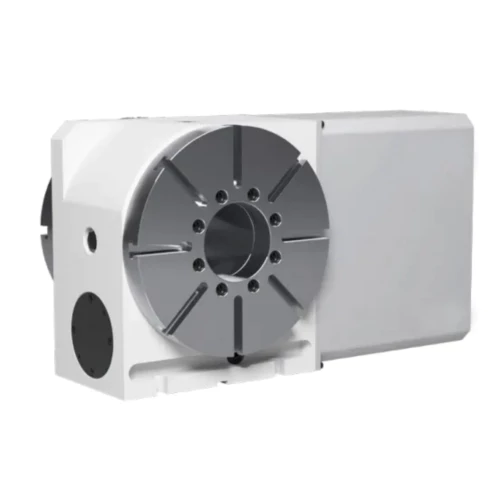

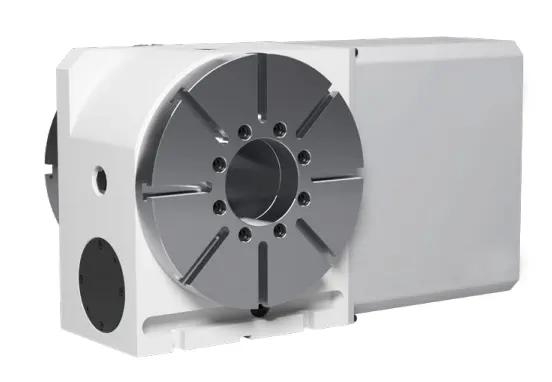

WT-320-2P CNC Rotary Table

Introduction to CNC Rotary Table

The CNC rotary table is an essential component in various CNC machine tools. It provides the ability to precisely rotate the workpiece or tool, enabling complex machining tasks. The WT-320-2P model has distinctive features that set it apart from the rest.

Product Features

The WT-320-2P CNC Rotary Table is known for its large aperture design, high segmentation accuracy and high rigidity. It is suitable for heavy load machining, offering high performance and efficiency. The product also features a strong braking structure system.

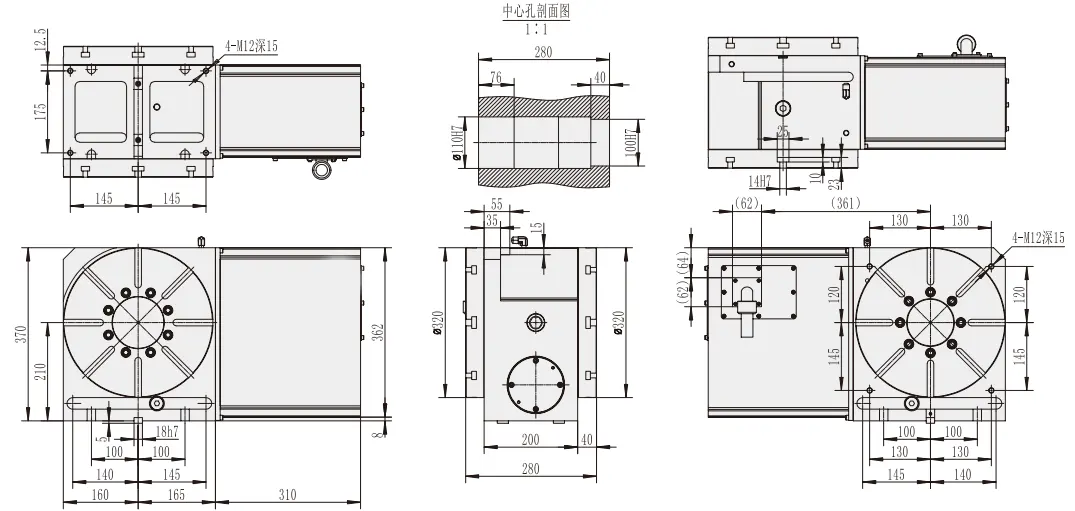

Product Specifications

Product Model	Disk Diameter	Center Diameter	Spindle Hole	Center Height	T-Slot Width	Positioning Button	Min lncrement
WT-320-2P	320mm	110H7mm	110mm	210mm	14H7mm	18H7mm	0.001??
Segmentation accuracy	Repeat positioning	Locking Mode	Servo Motor	Speed ReductionRatio	Maximun Speed	Allowable Work Inertia	Allowable Cutting Torque	Weight??Without Motor??
15"	4"	115kg.m	??22is;HF-204	1:120	33.3r.p.m	44.8kg.cm.sec2	80Kg.m	180Kg

Max.loadVertical: 150KGTailstock applied: 350KG

How Does CNC Rotary Table Work?

The CNC rotary table consists of three main parts: the spindle, the drive system, and the control system. The spindle is the axis that rotates the workpiece or tool, the drive system powers the spindle, and the control system regulates the speed and direction of the spindle.

Applications of CNC Rotary Table

The WT-320-2P CNC Rotary Table is used extensively in various fields:

• Manufacturing: It is used to manufacture parts like automotive components, electronic parts, and medical devices.
• Machining: It is used to process a variety of materials, including metal, plastic, and wood.
• Testing: It is used to test products like tires, bearings, and electronic devices.

Advantages of CNC Rotary Table

The CNC rotary table brings several benefits:

• Improved Production Efficiency: The automated rotation of the workpiece or tool enhances productivity.
• Enhanced Product Quality: The precise positioning during rotation improves product quality.
• Reduced Labor Costs: The automation reduces the need for manual labor, lowering costs.

About Raydafon

Raydafon is a leading supplier of CNC rotary tables. We are dedicated to R&D innovation, production technology, and meeting the ever-changing needs of our customers. Our main products include 4-axis and 5-axis CNC rotary tables and horizontal 4-axis rotary tables for machine tools. Our products are widely used in various processing equipment in industries such as 3C, automotive, energy, military, and aerospace.We encourage you to explore our products and contact us for any purchasing inquiries.

Frequently Asked Questions

Q1: What is the main function of the CNC Rotary Table?

A1: The CNC Rotary Table provides precise rotation of the workpiece or tool, enabling complex machining tasks.

Q2: What are the main applications of the CNC Rotary Table?

A2: The CNC Rotary Table is used in manufacturing, machining, and testing in various industries.

Q3: What are the advantages of using a CNC Rotary Table?

A3: The CNC Rotary Table improves production efficiency, enhances product quality, and reduces labor costs.
