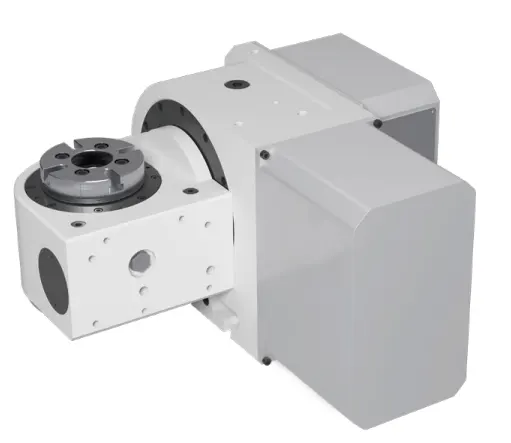

WT-RT200 Hydraulic Brake High Rigidity 200mm 5th Axis Rotary Table Vmc Index Table

Enhance precision machining with the Raydafon Group WT-RT200 Hydraulic Brake High Rigidity 200mm 5th Axis Rotary Table. This VMC index table delivers exceptional stability for complex multi-axis operations, ideal for manufacturers and workshops seeking reliable performance. Experience smooth, high-rigidity rotation that solves alignment challenges, boosting efficiency and accuracy in CNC applications. Its durable design sets it apart from competitors, inspiring confidence in every cut. Elevate your production today and discover the difference quality makes.

Send Inquiry

Product Description

What is a CNC Rotary Table and Its Role in CNC Machine Tools?

A CNC Rotary Table, also known as a CNC index table or CNC turntable, is a precision work positioning device used in metalworking. It enables the operator to precisely rotate a workpiece along an axis of rotation. This can be particularly useful in applications where it is necessary to drill or mill at an angle. In the context of CNC machine tools, a rotary table is an essential component that is used to add functionality to a machine tool.The WT-RT200 model, specifically, is a high rigidity 200mm 5th Axis Rotary Table VMC Index Table that boasts high performance and efficiency. With its strong hydraulic brake system and high segmentation accuracy, it offers advanced features that allow for precise and efficient machining. WT-RT200 Hydraulic Brake High Rigidity 200mm 5th Axis Rotary Table Vmc Index Table

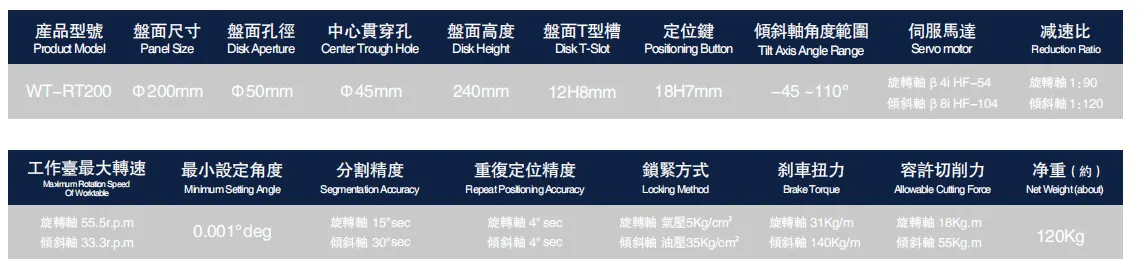

Product Specifications:

Application:	Punching Machine, Grinding Machine, Slotting Machine, Milling Machine, Drilling Machine, Boring Machine
Structure:	Horizontal
Material:	Stainless Steel
Type:	Precision Rotary Table
N.W.:	120 Kg
Brake:	Pneumatic / Hydraulic

Key Features of the WT-RT200 CNC Rotary Table:

Five-axis linkage machining: This allows for complex machining with fewer setups, reducing time and cost.
High segmentation accuracy: Ensures precise positioning for accurate machining.
High performance and efficiency: Designed for optimal performance, this table increases productivity.
Strong braking system: The hydraulic brake ensures stable operation and safety.
Optional hydraulic brake: Offers flexibility in different operating conditions.

How Does a CNC Rotary Table Work?

The CNC Rotary Table is made up of three basic parts: the spindle, the drive mechanism, and the control system. The spindle is the axis that rotates the workpiece or tool. The drive mechanism provides power to the spindle, and the control system controls the speed and direction of the spindle.

Applications of CNC Rotary Tables

Our CNC Rotary Tables are widely used in various machines such as Punching Machines, Grinding Machines, Slotting Machines, Milling Machines, Drilling Machines, and Boring Machines. WT-RT200 Hydraulic Brake High Rigidity 200mm 5th Axis Rotary Table Vmc Index Table

Advantages of CNC Rotary Tables

Increased productivity: CNC Rotary Tables can automate the rotation of the workpiece or tool, thereby improving production efficiency.
Improved product quality: They can ensure that the workpiece or tool maintains a precise position during rotation, thereby improving product quality.
Reduced labor costs: They can reduce the demand for manual labor, thereby lowering labor costs.

worm gear System in CNC Rotary Tables

The worm gear is a spiral structure similar to a propeller, and the worm wheel is a gear that cooperates with it, usually having more teeth than the worm. This design can provide a high transmission ratio, allowing for greater torque output in a smaller space. In CNC machines, the rotary worktable often uses a worm gear and worm drive system because it can provide accurate positioning and stable rotary motion, making it ideal for precision control and stability in machining tasks. WT-RT200 Hydraulic Brake High Rigidity 200mm 5th Axis Rotary Table Vmc Index Table

Why Choose Raydafon's CNC Rotary Tables?

Raydafon (Ningbo Raydafon) is a leading supplier of CNC rotary tables. We are dedicated to R&D innovation and production technology, and we work closely with our customers to design and manufacture CNC rotary tables that meet their specific needs. Our commitment to "honesty, harmony, technology, and industry competitiveness" has enabled us to develop high-precision 4-axis and 5-axis rotary tables that meet diverse processing needs. With support from all sectors, we continue to advance in R&D and service, striving to become a reliable professional service provider and leading brand in China's machine tool industry. Our products are widely used in various processing equipment, such as non-standard automatic special machines, metal cutting machines, etc., in 3C, automotive, energy, military, aerospace, and other fields.We encourage you to explore our products and contact us for further information. We are confident that our CNC Rotary Tables will greatly enhance your machining capabilities while delivering exceptional value. WT-RT200 Hydraulic Brake High Rigidity 200mm 5th Axis Rotary Table Vmc Index Table

Frequently Asked Questions:

Q: What is the lead time for the WT-RT200 CNC Rotary Table?: A: For common models, the lead time is about 5-7 workdays. For customized models, it may be about 30 workdays.
Q: Can I customize the product and the packaging?: A: Yes, we accept OEM orders. We can place your trademark on the machine body and create custom packaging to meet your needs.
Q: What is the quality guarantee period?: A: We offer a one-year quality guarantee for all our products.
