WWE2480 Series PTO Shaft-Replacement of Walterscheid PTO Shaft

WWE2480 Series PTO Shaft-Replacement of Walterscheid PTO Shaft

The WWE2480 series PTO shaft is a heavy-duty power take-off (PTO) shaft that is designed for use in agricultural and industrial applications. The shaft is made of high-quality steel and features a wide-angle universal joint that allows for a maximum operating angle of 80 degrees. This makes the PTO shaft ideal for use in applications where the PTO shaft driveline must be able to operate at a variety of angles.The WWE2480 series PTO shaft is also available in a variety of lengths and sizes, making it a versatile option for a wide range of applications. The shaft is also easy to install and maintain, making it a cost-effective choice for businesses that need a reliable and durable PTO shaft. If you are looking for a heavy-duty and versatile PTO shaft for your agricultural or industrial application, then the WWE2480 series PTO shaft is a great option. The PTO shaft is made of high-quality materials and features a wide range of features that make it ideal for a variety of applications.

WWE2480 Series PTO Shaft Specifications

Type	WWE2480 Series	Length of guard tube (inner)	535
Shaft length (Lz)	860	Length of guard tube (outer)	540
Item no. attachment WH-A	134770	SNR cone WH-I	129928
Item no. attachment WH-I	365722	Protective color	GELB
Torque of clutch in daNm	0	Cross seal	STANDARD
Rotation speed max. RPM	1000 RPM	Abbreviation attachment WH-I	ZK
Outer profile length	610	Profile tube - outer type	2AG
Inner profile length	630	Profile tube - inner type	1BGA
Cone Type WH-A	RP6	Guard type	SDF25
Chain	K

WWE2480 Series PTO Shaft Size Chart

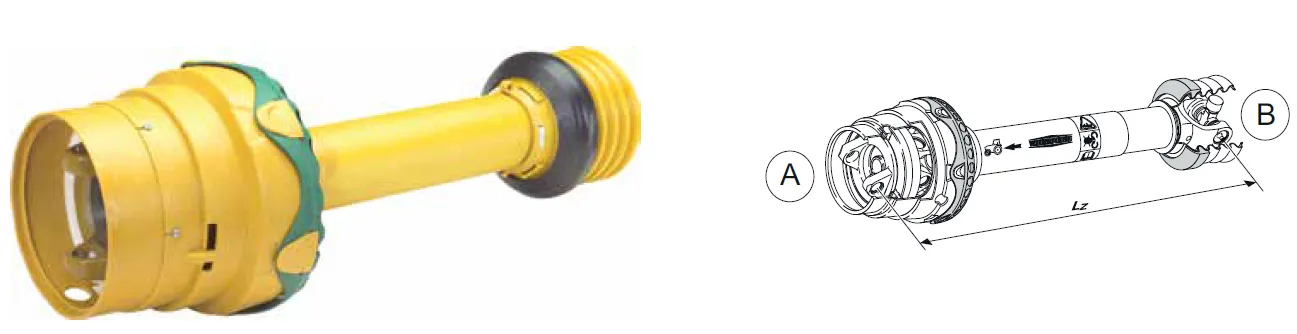

1. WWE2480 Series PTO Drive Shaft

Order Number	Type	Length	Guard	Tube	A		B
		(mm)			Yoke	Bore dim	Yoke	Bore dim
1113148	WWE2480	860	SDF25	1bGA/2aG	QSG	1 3/8” x 6Spline	AG	1 3/8” x 6 Spline
1113149	WWE2480	1210	SDF25Z	1bGA/2aG	QSG
1113150	WWE2480	860	SDF25	S4LGA/S5	QSG
1113151	WWE2480	1210	SDF25Z	S4LGA/S5	QSG

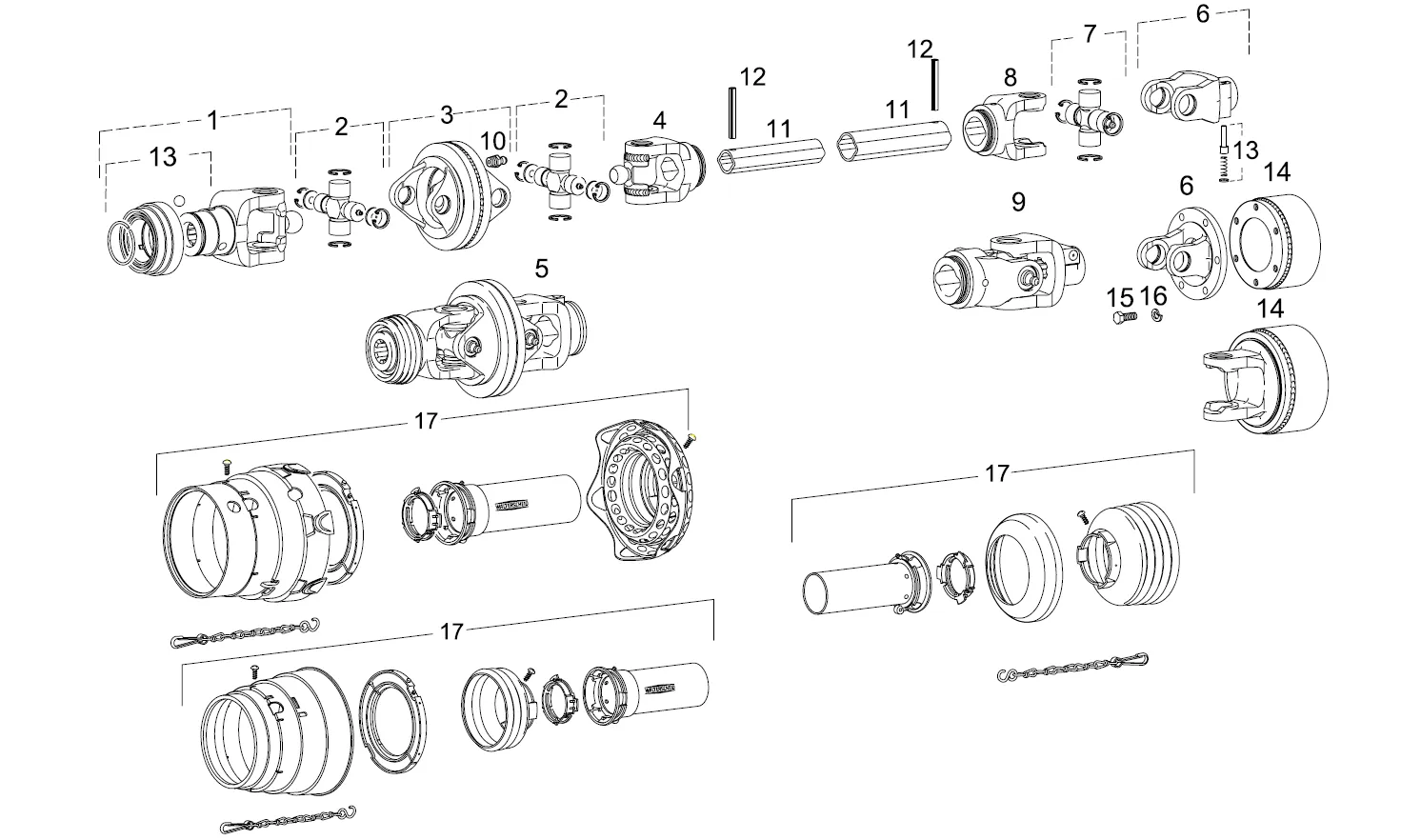

WWE2480 Series PTO Shaft Parts Diagram

Number	Parts Name	Number	Parts Name
1	Tractor Yoke	10	Grease nipple
2	Cross & Bearing Kit	11	Inner Tube
3	Double Yoke	12	Roll pin
4	Inner Profile Yoke	13	Closures for yoke & couplings
5	Yoke	14	Slip clutch
6	Outer Profile Yoke	15	Hexagon head screw
7	Cross & Bearing Kit	16	Spring washers
8	Yoke groove	17	PTO shaft guard
9	U joint

Advantages of WWE2480 Series PTO Shaft

The WWE2480 series PTO shaft is a power transmission component that is commonly used in agricultural and industrial applications to transfer power from a tractor or other power source to a machine or implement. Here are some of the advantages of the WWE2480 series PTO shaft:1. High power transmission capacity: The WWE2480 series PTO shaft has a high power transmission capacity, which makes it suitable for use with high-powered machines and equipment.2. Durable design: The WWE2480 series PTO shaft is designed to be durable and long-lasting, with high-quality materials and precision manufacturing that ensure reliable performance even under heavy use.3. Easy to install: The WWE2480 series PTO shaft is easy to install and can be quickly and easily connected to a tractor or other power source using standard PTO couplers.4. Smooth operation: The WWE2480 series PTO shaft is designed to provide smooth and efficient power transmission with minimal vibration and noise.5. Wide range of applications: The WWE2480 series PTO shaft is suitable for use in a wide range of agricultural and industrial applications, including mowers, balers, tillers, and more.

WWE2480 Series PTO Shafts for Farm Equipment

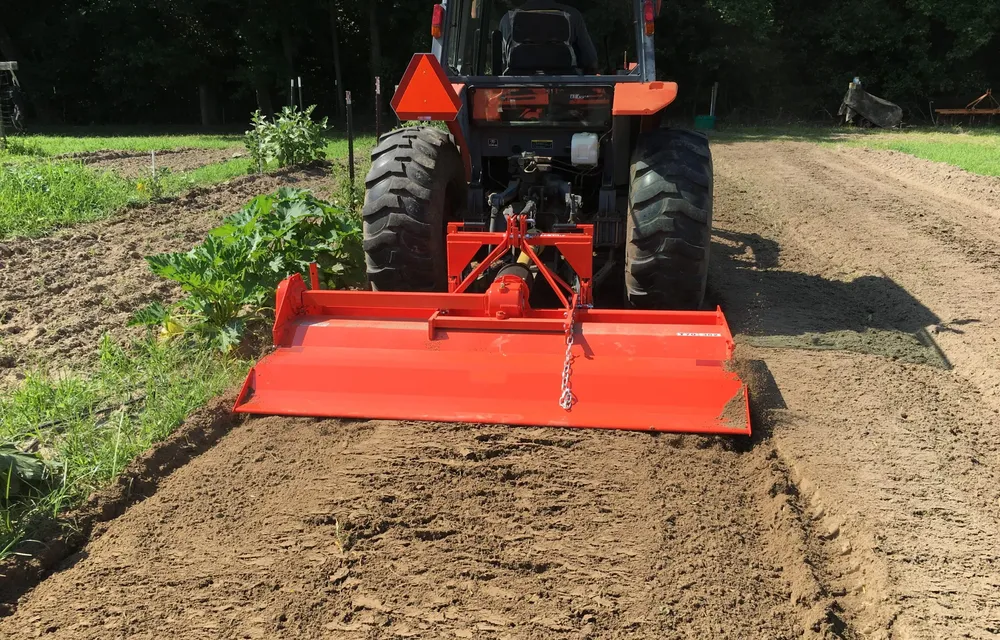

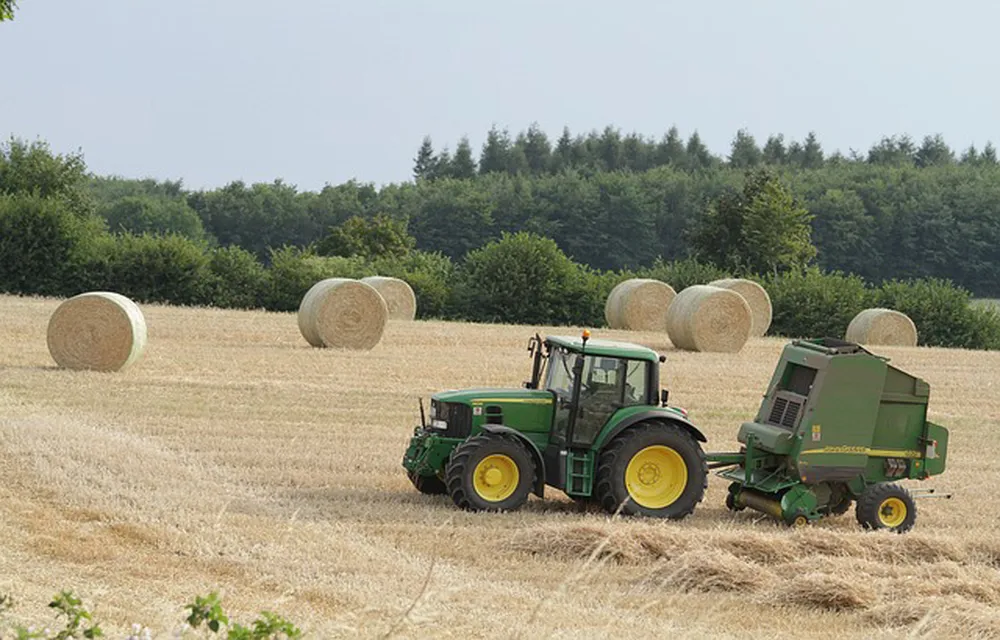

WWE2480 series PTO shafts are commonly used in a variety of farm equipment applications. Here are some of the ways that WWE2480 series PTO shafts can be used in farm equipment:(1) Tractor-mounted implements: Many farm implements, such as mowers, tillers, and balers, are designed to be mounted on the back of a tractor using a PTO shaft. The WWE2480 series PTO shaft can be used to transmit power from the tractor to the implement, allowing it to operate efficiently and effectively.(2) Livestock feeding equipment: PTO-driven feed grinders, mixers, and other livestock feeding equipment can be powered using a WWE2480 series PTO shaft. This allows for efficient and reliable operation of these important pieces of equipment.(3) Irrigation pumps: PTO-driven irrigation pumps can be used to move water from a well or other source to crops. The WWE2480 series PTO shaft can be used to power these pumps, providing a reliable source of water for irrigation.(4) Grain handling equipment: PTO-driven grain augers, conveyors, and other grain handling equipment can be powered using a WWE2480 series PTO shaft. This allows for efficient loading and unloading of grain, which is essential for modern farming operations.Overall, the WWE2480 series PTO shaft is a versatile and reliable power transmission component that can be used in a variety of farm equipment applications. Its high power transmission capacity, durable design, and easy installation make it an ideal choice for farmers and ranchers who need reliable power transmission for their equipment.

WWE2480 Series PTO Shaft Maintenance and Lubrication

Proper maintenance and lubrication are important for ensuring the long-term performance and reliability of the WWE2480 series PTO shaft. Here are some tips for maintaining and lubricating your PTO shaft:Regularly inspect your PTO shaft for signs of wear or damage. Check for cracks, breaks, or other signs of damage that could affect its performance.Clean your PTO shaft before lubricating it. Use a clean rag or brush to remove any dirt, debris, or other contaminants from the surface of the shaft.Apply lubrication to the PTO shaft according to the manufacturer's recommendations. Use a high-quality lubricant that is compatible with the materials used in your PTO shaft.Make sure to lubricate all moving parts of the PTO shaft, including the yokes and couplers.Reapply lubrication regularly. The frequency of lubrication will depend on the amount of use your PTO shaft receives, but generally, it is recommended to lubricate every 8 hours of use or once per day.Store your PTO shaft properly when not in use. Keep it clean and dry, and store it in a cool, dry place to prevent rust or other damage.Follow proper safety procedures when connecting and disconnecting your PTO shaft. Make sure the tractor or engine is turned off and the PTO shaft is properly secured before making any connections or disconnections.

Agricultural Gearbox for WWE2480 Series PTO Shaft

Agricultural gearboxes and PTO shafts are two important components in many farm machinery applications. Here's how they relate to each other:An agricultural gearbox is a mechanical device that is used to transfer power from a tractor or engine to various implements, such as mowers, tillers, and balers. The agricultural gearbox is typically mounted on the implement and is powered by a PTO shaft that is connected to the tractor or engine.The WWE2480 series PTO shaft is a specific type of PTO shaft that is designed to transmit high levels of power in agricultural and industrial applications. It can be used to connect the tractor or engine to the agricultural gearbox, allowing power to be transferred to the implement.The agricultural gearbox and PTO shaft work together to provide efficient power transmission to the implement. The agricultural gearbox reduces the speed of the PTO shaft and increases the torque, making it suitable for driving the implement. The PTO shaft, in turn, transmits the power from the tractor or engine to the gearbox, allowing the implement to operate effectively.Together, the agricultural gearbox and PTO shaft form a critical part of many farm machinery applications. The WWE2480 series PTO shaft is a reliable and efficient choice for powering agricultural gearboxes, ensuring that farmers and ranchers have the power they need to get their work done efficiently and effectively.

WWE2480 Series PTO Shaft FAQ

Q1: What is the WWE2480 series PTO shaft?A: The WWE2480 series PTO shaft is a specific type of PTO shaft that is designed to transmit high levels of power in agricultural and industrial applications. It is known for its high power transmission capacity, durable design, and easy installation.Q2: What are some of the applications for the WWE2480 series PTO shaft?A: The WWE2480 series PTO shaft is suitable for use in a wide range of agricultural and industrial applications, including mowers, balers, tillers, feed grinders, mixers, irrigation pumps, and grain handling equipment.Q3: What are some of the advantages of the WWE2480 series PTO shaft?A: Some of the advantages of the WWE2480 series PTO shaft include its high power transmission capacity, durable design, ease of installation, smooth operation, and suitability for a wide range of applications.Q4: How do I choose the right PTO shaft for my application?A: To choose the right PTO shaft for your application, you will need to consider factors such as the amount of power you need to transmit, the speed and torque requirements of your implement, the length and diameter of the shaft, and the type of coupler required to connect to your tractor or engine.Q5: How do I maintain my WWE2480 Series PTO Shaft?A: To maintain your WWE2480 series PTO shaft, you should regularly inspect it for signs of wear or damage, lubricate it according to the manufacturer's recommendations, and store it properly when not in use. It is also important to follow proper safety procedures when connecting and disconnecting the PTO shaft.
