X-Ring Motorcycle Chain

X-Ring Motorcycle Chain

An X-ring motorcycle chain is a type of sealed roller chain that uses X-shaped seals to retain lubricant and keep out dirt and debris. This results in a chain that is more durable, has less friction and lasts longer than a standard roller chain.

X-ring motorcycle chains are typically more expensive than standard roller chains, but they are worth the investment for riders who want the best possible performance and reliability. They are especially well-suited for high-performance motorcycles and riders who ride in harsh conditions.

X-Ring Motorcycle Chain Sizes Chart:

Chain No.	Pitch	Bush Type	Width	Pin Dia	Pin Length	Roller Dia	Plate Thickness Inner	Plate Thickness Outer	Tensile Strength	Weight
	mm		mm	mm	mm	mm	mm	mm	KN	kg/m
428H-X	15.875	Solid	7.85	4.45	21.60	8.51	2.20	2.03	23.8	1.00
520H-X	15.875	Solid	6.35	5.24	22.00	10.16	2.40	2.40	34.0	1.21
525H-X	15.875	Solid	7.94	5.24	23.80	10.16	2.40	2.40	34.0	1.35
530H-X	15.875	Solid	9.60	5.24	25.40	10.16	2.40	2.40	34.0	1.39

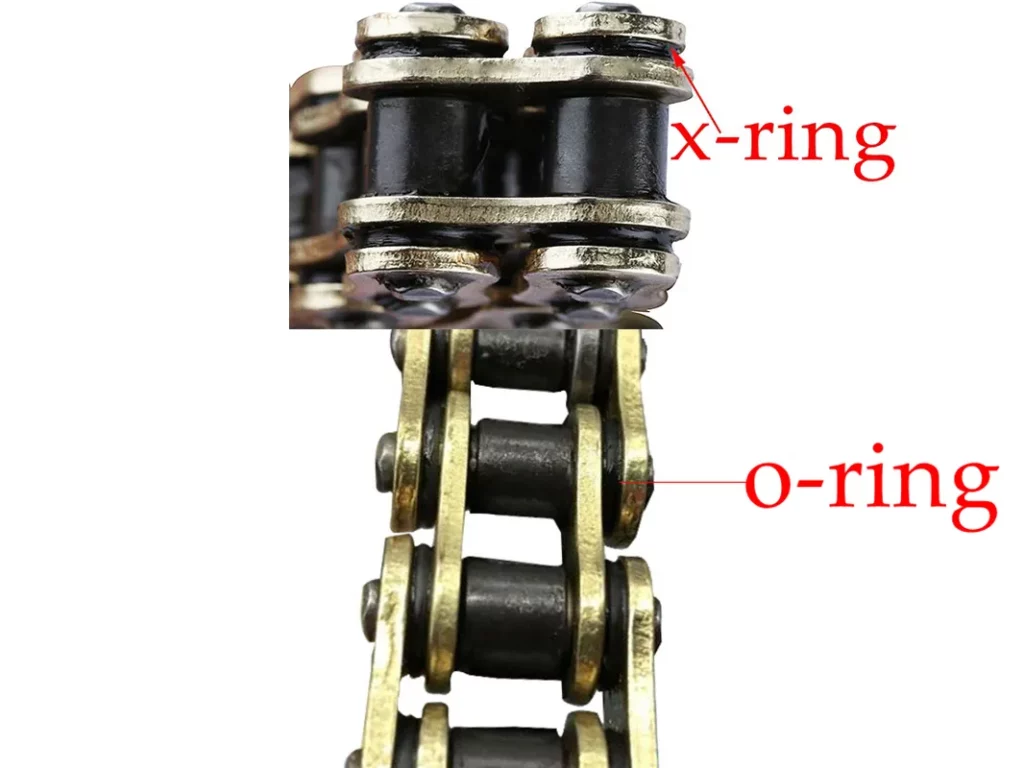

Advantages of X-Ring Motorcycle Chain:

X-ring motorcycle chains offer a number of advantages over other types of chains, including:

1. Longer lifespan:?X-ring motorcycle chains typically last longer than O-ring chains and standard non-sealed chains. This is because the X-ring design more effectively seals in lubricant and keeps dirt and debris out.2. Reduced friction:?X-rings have a smaller surface area than O-rings, which results in less friction. This can improve fuel economy and performance.3. Smoother operation:?X-rings also help to reduce vibration and noise, resulting in a smoother ride.4. Less maintenance: X-ring motorcycle chains require less maintenance than other types of chains. This is because they don't need to be lubricated as often, and they are less likely to stretch.

In addition to these advantages, X-ring motorcycle chains are also available in a wide range of sizes and styles to suit all types of motorcycles. Overall, X-ring motorcycle chains offer a number of advantages over other types of chains, making them a popular choice for riders of all levels.

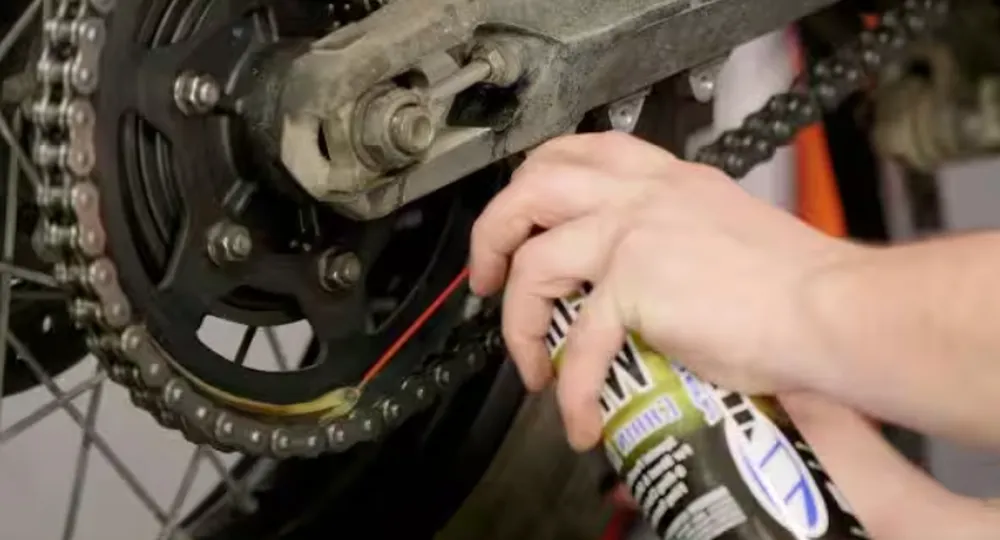

Cleaning and Lubing Motorcycle Chain:

To clean and lube your motorcycle chain, follow these steps:

1. Place your motorcycle on a center stand or paddock stand so that the rear wheel can spin freely.
2. Spray the chain with a chain cleaner.?Be sure to coat the entire motorcycle chain, including the sprockets.
3. Let the cleaner sit on the chain for a few minutes to loosen the dirt and grime.
4. Use a chain brush to scrub the chain clean.?Pay special attention to the sprockets and any other areas where dirt and grime have accumulated.
5. Rinse the chain with water to remove any remaining cleaner.
6. Dry the chain with a clean rag.
7. Apply a chain lubricant to the chain.?Be sure to coat the entire motorcycle chain, including the sprockets.
8. Allow the lubricant to dry before riding your motorcycle.

Here are some additional tips for cleaning and lubing your motorcycle chain:

• Use a motorcycle chain cleaner that is specifically designed for motorcycles. Avoid using harsh chemicals or degreasers, as these can damage the chain's O-rings.
• Be careful not to over-clean the chain. Too much cleaning can remove the lubricant from the chain, which can lead to wear and tear.
• If you ride in dusty or muddy conditions, you may need to clean and lube your chain more often.
• It is a good idea to check your chain tension regularly and adjust it as needed.

How often should you clean and lube your motorcycle chain?

The frequency of cleaning and lubing your motorcycle chain will depend on a number of factors, including the type of chain you have, the riding conditions, and how often you ride your motorcycle. However, it is generally a good idea to clean and lube your chain every 400-800 miles.

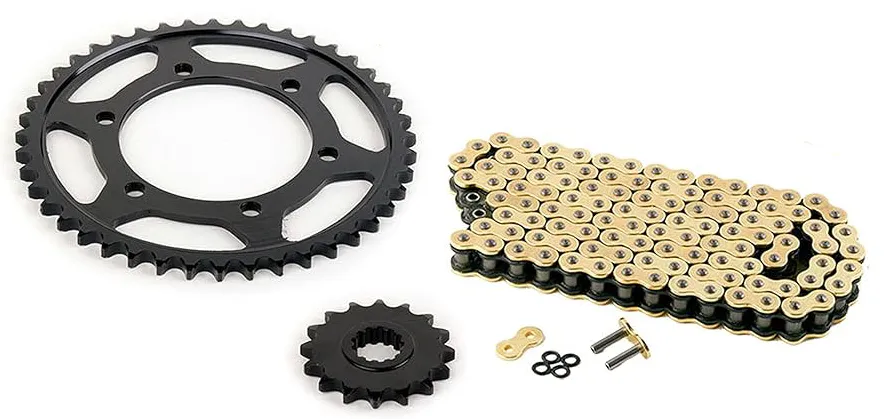

Motorcycle Sprockets and X-Ring Motorcycle Chains:

Motorcycle sprockets and X-ring motorcycle chains are two important components of a motorcycle's drivetrain. Sprockets are gears that transfer power from the engine to the rear wheel while X-ring motorcycle chains are a type of sealed roller chain that is designed to be low-friction and long-lasting.

Motorcycle sprockets are available in a variety of sizes and materials, including steel, aluminum, and titanium. The size of the sprockets will affect the bike's final drive ratio, which is the ratio of the engine's speed to the speed of the rear wheel. A lower final drive ratio will give the bike more acceleration, while a higher final drive ratio will give the bike more top speed.

The material of the sprockets will also affect their performance and durability. Steel sprockets are the most durable, but they are also the heaviest. Aluminum sprockets are lighter, but they are not as durable as steel sprockets. Titanium sprockets are the lightest and strongest, but they are also the most expensive.

X-ring motorcycle chains are a type of sealed roller chain that uses X-shaped rings to seal in the lubricant and keep out dirt and debris. This makes X-ring chains more durable and less maintenance-intensive than traditional non-sealed chains.

X-ring chains are also more efficient than non-sealed chains, which means that they reduce power loss and improve fuel economy. X-ring chains are available in a variety of sizes and strengths, making them suitable for a wide range of motorcycles.

Choosing the Right Motorcycle Sprockets and X-Ring Motorcycle Chains

When choosing motorcycle sprockets and X-ring motorcycle chains, it is important to consider the following factors:

• The type of motorcycle:?Different types of motorcycles have different drivetrain requirements. For example, sportbikes need sprockets and chains that can withstand high speeds and hard acceleration, while touring bikes need sprockets and chains that are durable and low-maintenance.
• Riding style:?If you ride your motorcycle aggressively, you will need sprockets and chains that are designed for high performance. If you ride your motorcycle more conservatively, you can get away with less expensive and durable sprockets and chains.
• Budget:?Sprockets and chains?can range in price from a few dollars to several hundred dollars. It is important to set a budget before you start shopping.

Once you have considered these factors, you can start shopping for motorcycle sprockets and X-ring motorcycle chains. Be sure to compare prices and features from different retailers before you make a purchase.
