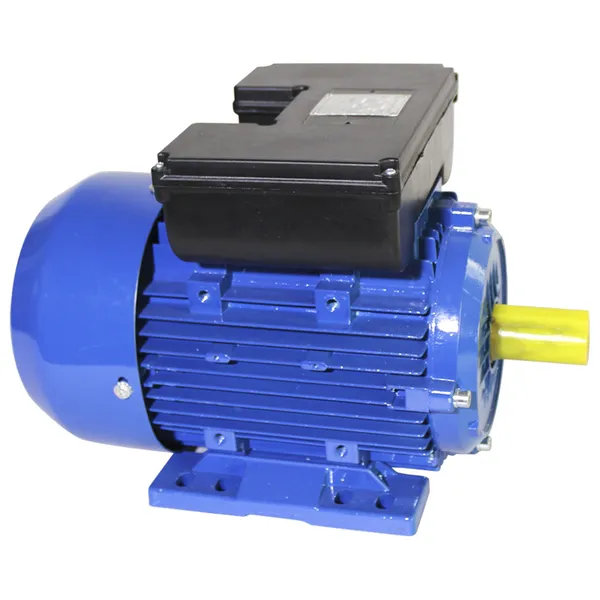

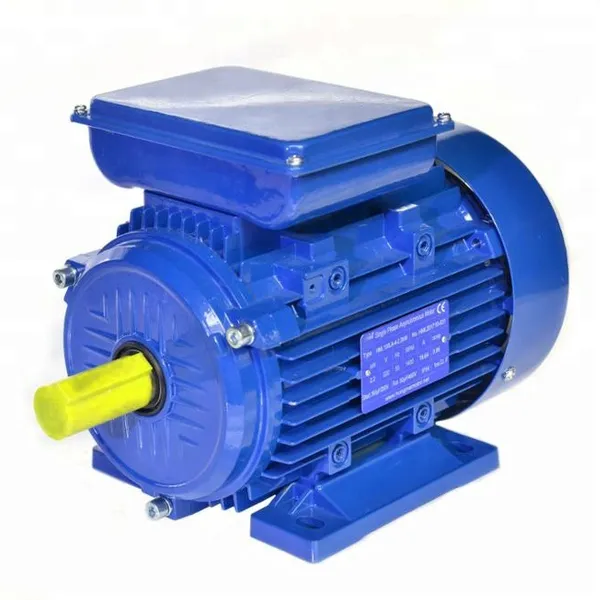

YL Series Single-Phase Dual-Capacitor Induction Motor for Air Compressors

Raydafon Group introduces the YL Series Single-Phase Dual-Capacitor Induction Motor for Air Compressors, engineered for high torque and reliable performance in demanding industrial settings. With its durable construction and energy-efficient design, it ensures smooth, quiet operation, reducing maintenance costs and downtime. Ideal for manufacturers and workshops, this motor delivers consistent power, solving overheating and startup issues. Its advanced capacitor system sets it apart with enhanced longevity and stability. Experience unmatched reliability—choose Raydafon Group for superior quality that keeps your operations running seamlessly.

Send Inquiry

Product Description

YL Series Single-Phase Dual-Capacitor Induction Motor for Air Compressors

YL series single-phase dual-capacitor induction motor is designed and manufactured according to national standards, newly developed by our company with low noise, compact dimension, and lightweight. easy maintenance. etc. These YL series single-phase dual-capacitor induction motors are widely used on air compressors, pumps, fans, refrigeration, medical instruments small-size machines, etc., especially for occasions where only a single-phase power supply is available.

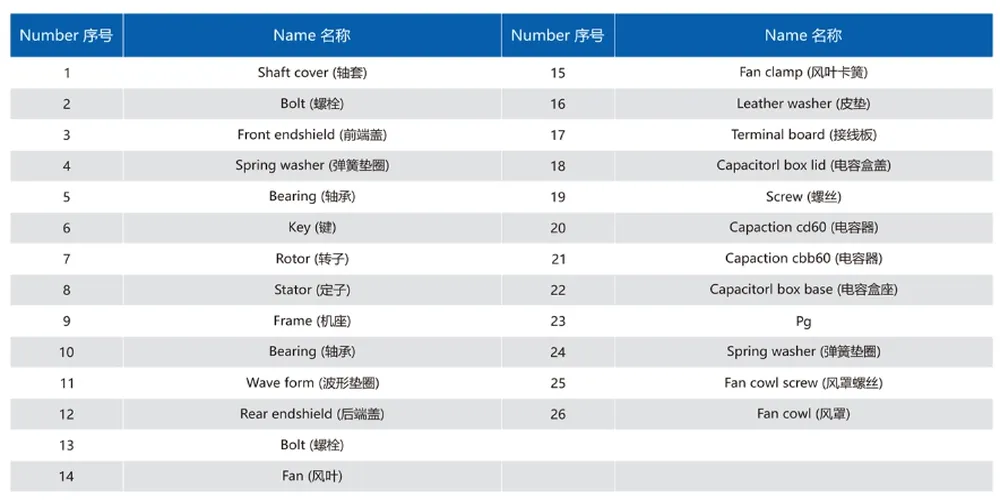

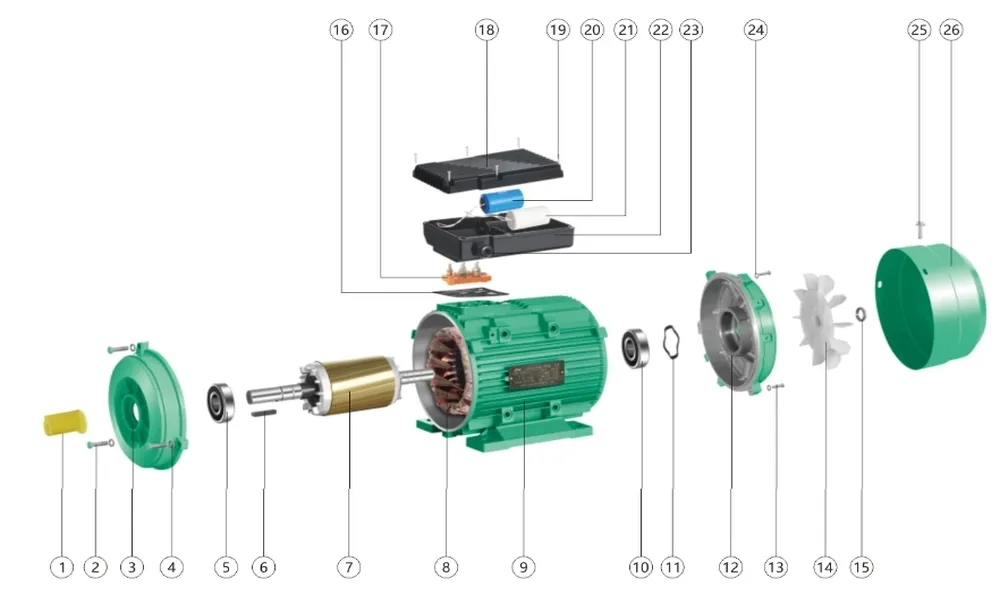

YL Series Dual-Capacitor Single-Phase Induction Motor Parts:

YL Series Dual-Capacitor Single-Phase Induction Motor Operating Conditions:

Ambient temperature: -15℃≤0≤40℃
Altitude:not exceeding 1000m
Rated voltage: 380V
Rated frequency: 50Hz、60Hz
Protection class: IP54、IP55
Insulation class: Class B/F
Cooling method: ICO141
Operation mode: Continuous S1

YL Series Dual-Capacitor Single-Phase Induction Motor Technical Data:

Type	Output		Voltage(V)	FrequencyHz	Current(A)	Speed(r/min)	Eff(%)	Power factor	Locked torqueRated torqueTstart/Tn	Locked currentRated torqueIst/In	Max torqueRated torqueTmax/Tn
Type	HP	KW	Voltage(V)	FrequencyHz	Current(A)	Speed(r/min)	Eff(%)	Power factor	Locked torqueRated torqueTstart/Tn	Locked currentRated torqueIst/In	Max torqueRated torqueTmax/Tn
YL7112	0.5	0.37	220	50	2.73	2800	67	0.92	1.8	6.0	1.8
YL7122	0.75	0.55	220	50	3.88	2800	70	0.92	1.8	6.0	1.8
YL7114	0.33	0.25	220	50	1.99	1400	62	0.92	1.8	6.0	1.8
YL7124	0.5	0.37	220	50	2.81	1400	65	0.92	1.8	6.0	1.8
YL8012	1	0.75	220	50	5.15	2800	72	0.92	1.8	6.0	1.8
YL8022	1.5	1.1	220	50	7.02	2800	75	0.95	1.8	6.0	1.8
YL8014	0.75	0.55	220	50	4.0	1400	68	0.92	1.8	6.0	1.8
YL8024	1	0.75	220	50	5.22	1400	71	0.92	1.8	6.0	1.8
YL90S-2	2	1.5	220	50	9.4	2800	76	0.95	1.8	6.0	1.8
YL90L-2	3	2.2	220	50	13.7	2800	77	0.95	1.8	6.0	1.8
YL90S-4	1.5	1.1	220	50	7.21	1400	73	0.95	1.8	6.0	1.8
YL90L-4	2	1.5	220	50	9.57	1400	75	0.95	1.8	6.0	1.8
YL100L-2	4	3	220	50	18.4	2820	78	0.95	1.8	6.0	1.8
YL100L1-4	3	2.2	220	50	13.9	1410	76	0.95	1.8	6.0	1.8
YL100L2-4	4	3	220	50	18.6	1420	77	0.95	1.8	6.0	1.8
YL112M-2	5	3.7	220	50	22.2	2820	80	0.95	1.8	6.0	1.8
YL112M-4	3	2.2	220	50	13.9	1410	76	0,95	1.8	6.0	1.8
YL112M1-4	4	3	220	50	18.17	1420	77	0.95	1.8	6.0	1.8
YL112M2-4	5	3.7	220	50	23	1430	78	0.95	1.8	6.0	1.8
YL132S1-4	4	3	220	50	18.17	1420	77	0.95	1.8	6.0	1.8
YL132S2-4	5	3.7	220	50	23	1430	78	0.95	1.8	6.0	1.8
YL132M-4	7.5	5.5	220	50	32.5	1430	81	0.95	1.8	6.0	1.8

*. 1110V, 110V/220V,60Hz, etc. models are available on request.

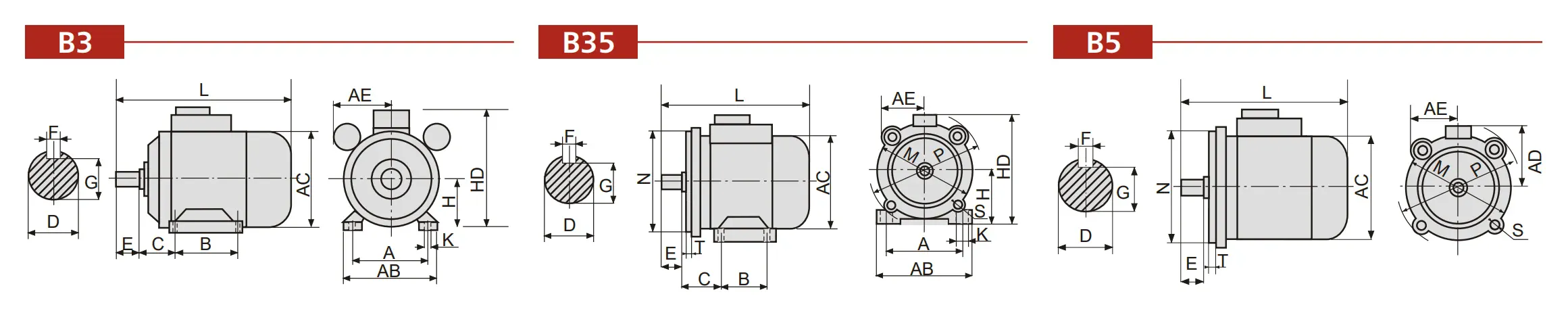

YL Series Dual-Capacitor Single-Phase Induction Motor Installation Dimension:

Hot Tags: Single-Phase Dual-Capacitor Motor, Air Compressor Induction Motor, YL Series Motor Wholesale

Send Inquiry

Contact Info



Address

Luotuo Industrial Area, Zhenhai District, Ningbo City, China


Tel

86-574-87167707


E-mail

[email protected]

Get customized quotes for transmission components, gearboxes, and machinery. Our engineers will respond within 24 hours.

News Recommendations

What is the difference between inline and right-angle helical gearboxes?View More >>

What materials are V pulleys and sheaves made from?View More >>

What are the advantages and disadvantages of oil-sealed vacuum pumps?View More >>

What are the different types of stainless steel chains?View More >>

How do hydraulic cylinder pressure and force affect vulcanizing machine performance?View More >>

Are there different types of agricultural sprockets for tractors and combines?View More >>

Online

Raydafon

We use cookies to offer you a better browsing experience, analyze site traffic and personalize content. By using this site, you agree to our use of cookies.Privacy Policy

Reject Accept

Type	Installation Size															Overall Dimension
Type	A	B	C	D	E	F	G	H	K	M	N	P	R	S	T	AB	AC	AD	HD	L
71	112	90	45	14	30	5	11	71	7	130	110	160	0	10	3.5	145	145	140	180	255
80	125	100	50	19	40	6	15.5	80	10	165	130	200	0	12	3.5	160	165	150	200	295
90S	140	100	56	24	50	8	20	90	10	165	130	200	0	12	3.5	180	185	160	240	370
90L	140	125	56	24	50	8	20	90	10	165	130	200	0	12	3.5	180	185	160	240	400
100L	160	140	63	28	60	8	24	100	12	215	180	250	0	15	4.0	205	220	180	260	430
112M	190	140	70	28	60	8	24	112	12	215	180	250	0	15	4.0	245	250	190	300	455
132S	216	140	89	38	80	10	33	132	12	265	230
