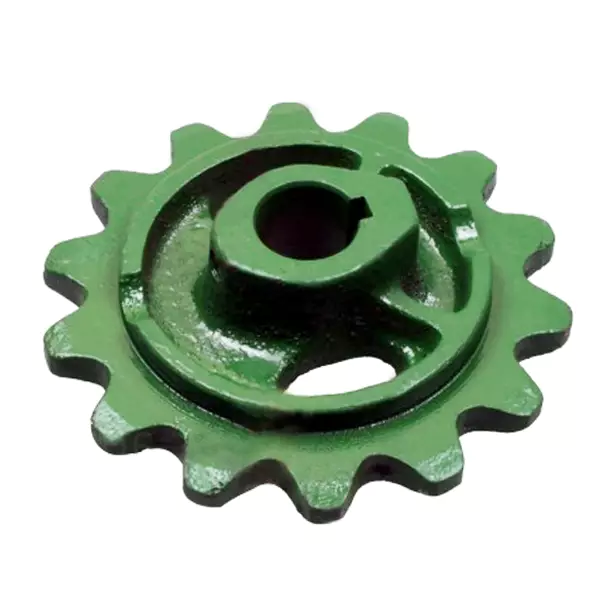

Z10815/Z11543 Chain Sprocket For John Deere Combine

Z10815/Z11543 Chain Sprocket For John Deere Combine

▍Application

Spare part for JOHN DEERE combine

▍Destination

The sprocket is an obligatory element of chain drive which serves for torque transfer between two in parallel located shaft by means of a flexible element - a chain.

▍Properties

Sprocket is a profiled wheel with teeth, which is characterized by the following parameters: width roller sprocket, chain pitch, the outer diameter of the sprocket, the number of sprocket teeth, width sprocket diameter fit on the shaft.

▍Features

One row sprocket.

▍Parameters of Z10815/Z11543 Chain Sprocket

Weight , W	kg	2.7
Inner diameter , d	mm	35
Outer diameter , D	mm	190
Number of teeth , Z		14
Number of mounting holes , N		2
Height , H	mm	58
Thread , M		M12x1.5
Outside diameter , D1	mm	135
Root radius , R	mm	6

▍Usage of Z10815/Z11543 Chain Sprocket

Z10815/Z11543 Chain Sprocket can be adapted to Combine harvester John Deere: 1032 1042 1052 1055 925 932 942 945 952 955 965 965H 968H

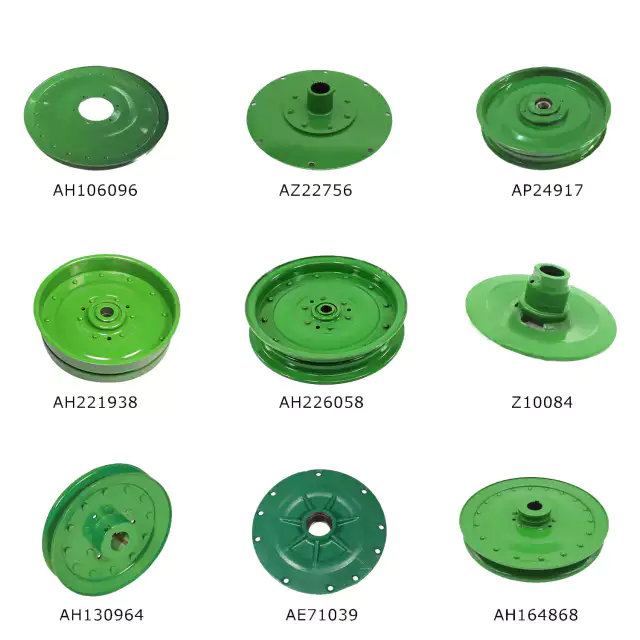

▍Related Products

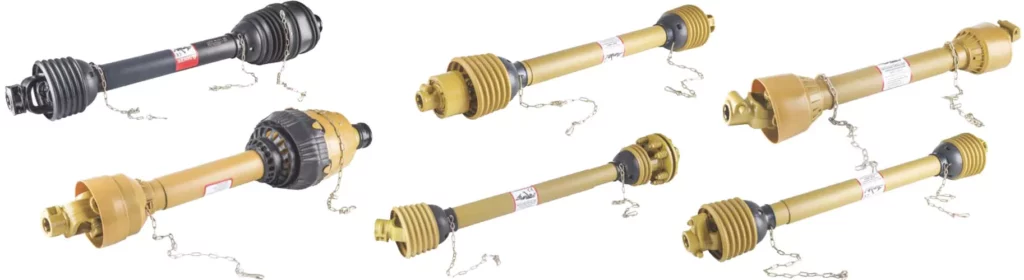

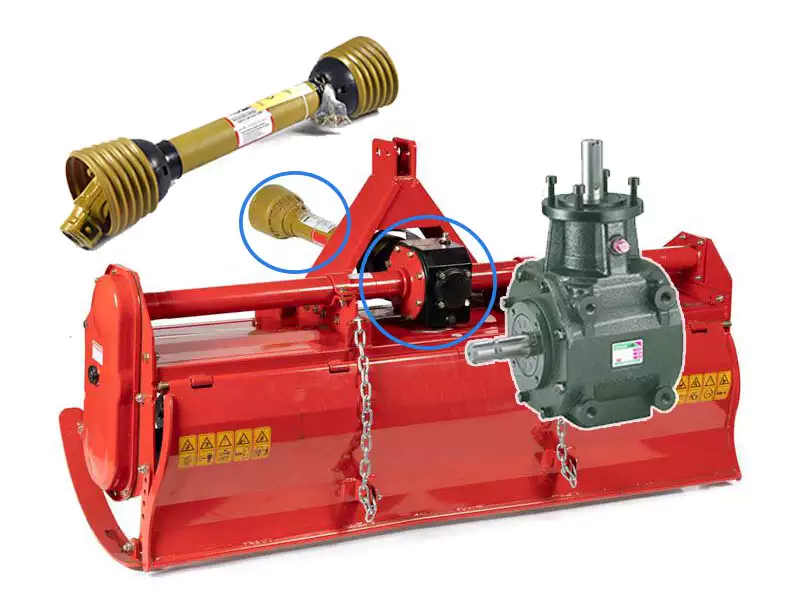

▍We Also Supply PTO Shafts & Agricultural Gearboxes

If you also need the PTO shafts, click here：https://hzpt.com/agricultural-pto-shaft/ We Also Supply Agricultural Gearboxes

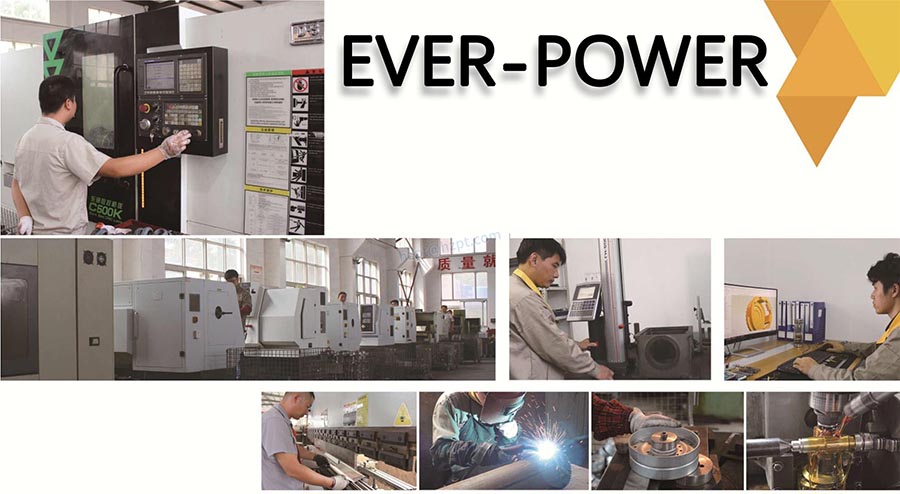

▍Company Information
