#40 Stainless Steel Sprockets

Introduction to Stainless Steel 40 Roller Chain Sprockets

Stainless Steel 40 Roller Chain Sprockets are high-quality, durable components used in various industrial applications. They are constructed from stainless steel, a material known for its corrosion-resistance and exceptional strength. These sprockets play a vital role in a chain drive system, transferring rotational motion to the chain.

#40 Stainless Steel Sprockets Specifications

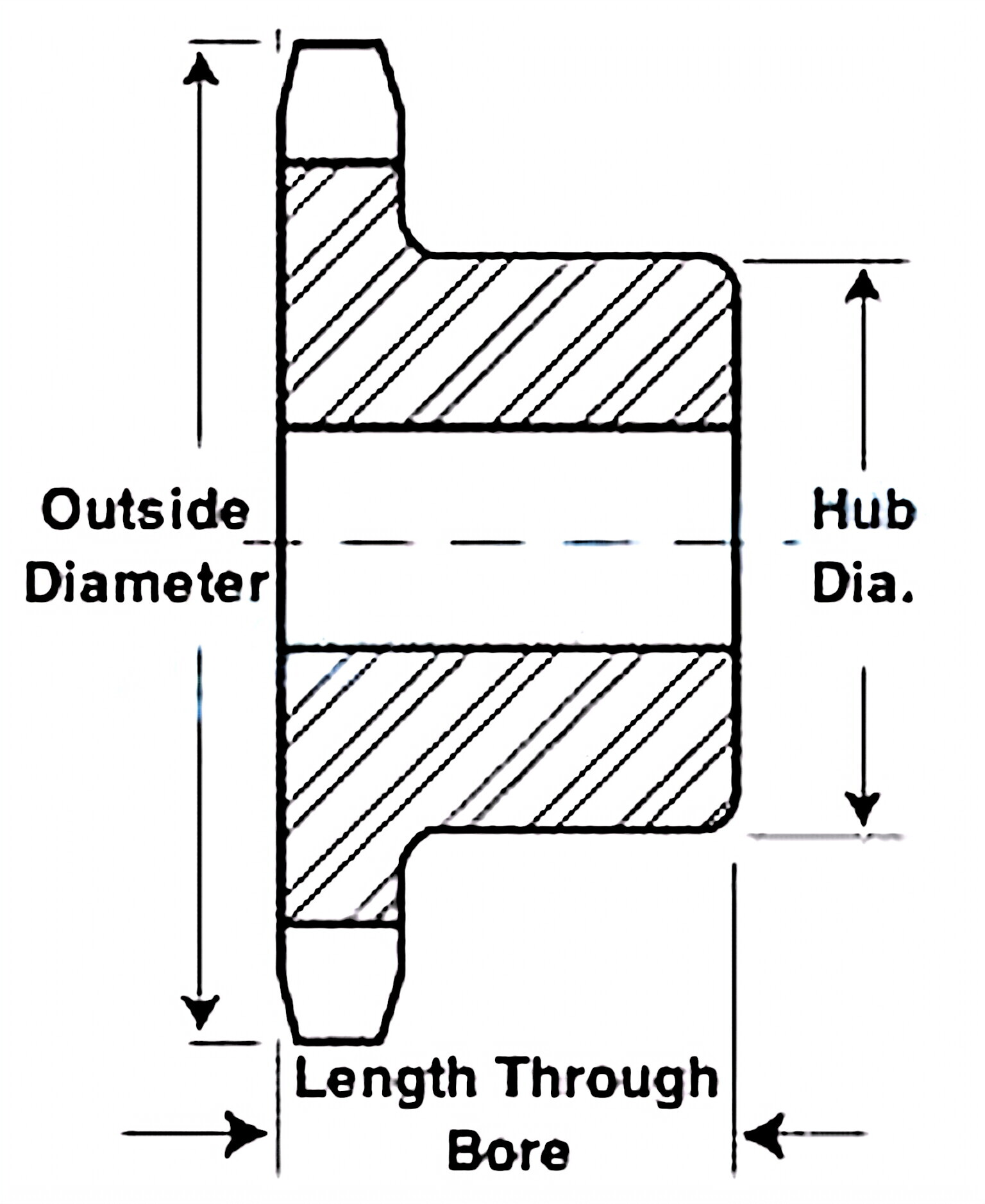

Sprocket Size	Number Of Teeth	Outside Diameter	Stock Bore Size	Maximum Bore	Hub Diameter	Length Thru Bore	Weight
40B10SS	10	1.84"	1/2"	3/4"	1-1/4"	7/8"	0.28lbs
40B11SS	11	2"	1/2"	13/16"	1-3/8"	7/8"	0.36lbs
40B12SS	12	2.17"	1/2"	15/16"	1-19/16"	1"	0.44lbs
40B13SS	13	2.33"	1/2"	1-1/16"	1-9/16"	1"	0.5lbs
40B14SS	14	2.49"	1/2"	1-1/8"	1-11/16"	1"	0.6lbs
40B15SS	15	2.65"	5/8"	1-1/4"	1-13/16"	1"	0.68lbs
40B16SS	16	2.81"	5/8"	1-3/8"	2"	1"	0.82lbs
40B17SS	17	2.98"	5/8"	1-7/16"	2-1/8"	1"	1.06lbs
40B18SS	18	3.14"	5/8"	1-1/2"	2-5/16"	1"	1.24lbs
40B19SS	19	3.3"	5/8"	1-3/4"	2-1/2"	1"	1.42lbs
40B20SS	20	3.46"	5/8"	1-7/8"	2-5/8"	1"	1.6lbs
40B21SS	21	3.62"	5/8"	1-7/8"	2-3/4"	1"	1.68lbs
40B22SS	22	3.78"	5/8"	1-7/8"	2-7/8"	1"	1.81lbs
40B23SS	23	3.94"	5/8"	2"	3"	1"	2.18lbs
40B24SS	24	4.1"	5/8"	2-1/4"	3-1/4"	1"	2.2lbs
40B25SS	25	4.26"	5/8"	2-1/4"	3-1/4"	1"	2.3lbs
40B26SS	26	4.42"	5/8"	2-1/4"	3-1/4"	1"	2.4lbs
40B28SS	28	4.74"	5/8"	2-1/4"	3-1/4"	1"	2.75lbs
40B28SS	30	5.06"	5/8"	2-1/4"	3-1/4"	1"	2.88lbs
40B30SS	35	5.86"	5/8"	2-1/4"	3-1/4"	1"	3.32lbs
40B32SS	40	6.65"	3/4"	2-3/8"	3-1/2"	1"	4.28lbs
40B35SS	45	7.45"	3/4"	2-3/8"	3-1/2"	1"	4.68lbs
40B36SS	60	9.84"	3/4"	2-3/8"	3-1/2"	1"	7lbs



Applications of Stainless Steel Sprockets

Stainless Steel 40 Roller Chain Sprockets are widely used in industries including food processing, wastewater treatment, and pulp and paper production, where their corrosion resistance and cleanliness are crucial.

Different Types of Stainless Steel

There are several types of stainless steel used in the manufacturing of these sprockets, including 304 and 316 stainless steel. These stainless steel types are preferred due to their enhanced corrosion resistance, strength, and machinability, making them suitable for producing durable and efficient chain sprockets.

Performance Advantages of Stainless Steel 40 Roller Chain Sprockets

Compared to sprockets made from other materials, Stainless Steel 40 Roller Chain Sprockets offer superior stability in harsh environments and durability for long-term use.

• Corrosion Resistance: One of the primary benefits is their exceptional resistance to corrosion. This makes them ideal for use in environments where they are exposed to moisture, chemicals, or other corrosive substances.
• Durability: Stainless steel sprockets are known for their strength and durability. They can withstand high levels of wear and tear, ensuring a longer lifespan compared to sprockets made from less durable materials.
• Temperature Resistance: They can operate effectively in a wide range of temperatures, making them suitable for use in both high-heat and cold environments.
• Maintenance: These sprockets require less maintenance. Their resistance to rust and corrosion means they need less frequent cleaning or replacement, reducing downtime and maintenance costs.
• Hygienic: Their non-porous surface makes them a hygienic choice, especially important in industries like food processing where cleanliness is paramount.
• Aesthetic Appeal: Stainless steel has a clean, professional appearance that can be important in consumer-facing applications.
• Versatility: They are versatile, able to be used in a variety of industrial applications, from heavy machinery to conveyance systems.

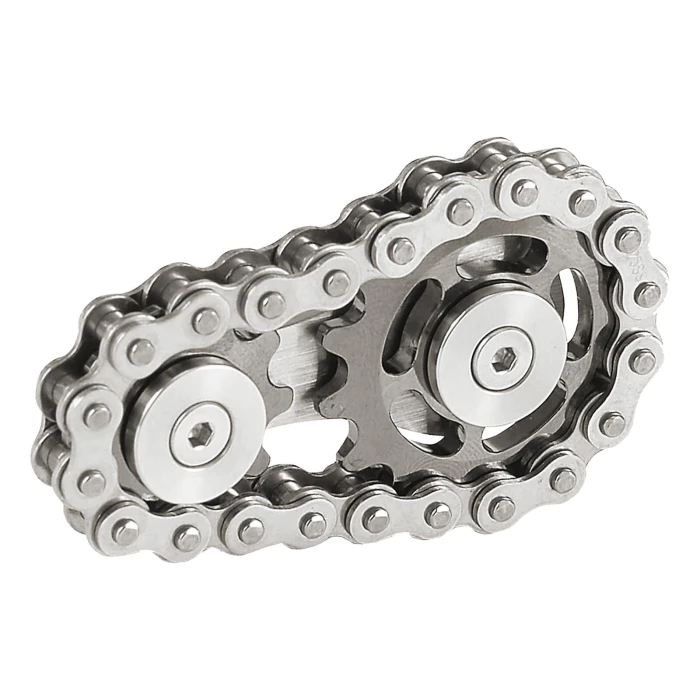

Roller Chains for Stainless Steel Sprockets

The relationship between stainless steel roller chain and sprocket is the embodiment of precision and resilience. These two components work hand in hand, creating a seamless power transmission system that powers industries around the globe. When it comes to reliability and longevity, this dynamic duo stands tall, bridging the gap between efficiency and durability.At Raydafon, we provide not only stainless steel sprockets but also stainless steel roller chains.

About Raydafon

Raydafon is not only a China sprockets manufacturer but a manufacturer and supplier of various industrial components. Since its establishment, the company has won the trust and support of customers with excellent quality and sincere service. We aim to seek development with science and technology, survive with quality, seek benefits with innovation, and strive to provide customers with excellent products and satisfactory services with progressive production management and strict quality requirements.Explore our range of Stainless Steel 40 Roller Chain Sprockets and elevate your industry's efficiency and productivity. Contact us today for inquiries and purchases.
