DIN/ISO Chain No. | Pitch | Roller diameter | Width between inner plates | Pin | Pin length | Inner plate depth | Plate thickness | Transverse pitch | Ultimate tensile strength | Average tensile strength | Weight per meter | |
P | d1(max) | b1(min) | d2(max) | L(max) | Lc(max) | h2(max) | t/T(max) | Pt | Q(min) | Q0 | q | |
mm | mm | mm | mm | mm | mm | mm | mm | mm | kN | kN | kg/m | |
05BSS-2 | 8 | 5 | 3 | 2.31 | 13.9 | 14.5 | 7.1 | 0.8 | 5.64 | 4.68 | 6.1 | 0.33 |
06BSS-2 | 9.525 | 6.35 | 5.72 | 3.28 | 23.4 | 24.4 | 8.2 | 1.3 | 10.24 | 10.14 | 11.22 | 0.77 |
08BSS-2 | 12.7 | 8.51 | 7.75 | 4.45 | 31.2 | 32.2 | 11.8 | 1.6 | 13.92 | 19.2 | 23.22 | 1.34 |
10BSS-2 | 15.875 | 10.16 | 9.65 | 5.08 | 36.1 | 37.5 | 14.7 | 1.7 | 16.59 | 26.7 | 33.72 | 1.84 |
12BSS-2 | 19.05 | 12.07 | 11.68 | 5.72 | 42 | 43.6 | 16 | 1.85 | 19.46 | 34.68 | 39.66 | 2.31 |
16BSS-2 | 25.4 | 15.88 | 17.02 | 8.28 | 68 | 69.3 | 21 | 4.15/3.1 | 31.88 | 63.6 | 79.8 | 5.42 |
20BSS-2 | 31.75 | 19.05 | 19.56 | 10.19 | 77.8 | 81.5 | 26.4 | 4.5/3.5 | 36.45 | 102 | 126.72 | 7.2 |
24BSS-2 | 38.1 | 25.4 | 25.4 | 14.63 | 101.7 | 106.2 | 33.2 | 6.0/4.8 | 48.36 | 168 | 191.52 | 13.4 |
28BSS-2 | 44.45 | 27.94 | 30.99 | 15.9 | 124.6 | 129.1 | 36.7 | 7.5/6.0 | 59.56 | 216 | 244.08 | 16.6 |
32BSS-2 | 50.8 | 29.21 | 30.99 | 17.81 | 124.6 | 129.6 | 42 | 7.0/6.0 | 58.55 | 270 | 305.1 | 21 |
40BSS-2 | 63.5 | 39.37 | 38.1 | 22.89 | 154.5 | 161.5 | 52.96 | 8.5/8.0 | 72.29 | 378 | 427.14 | 32 |
48BSS-2 | 76.2 | 48.26 | 45.72 | 29.24 | 190.4 | 198.2 | 63.8 | 44905 | 91.21 | 600 | 678 | 50 |

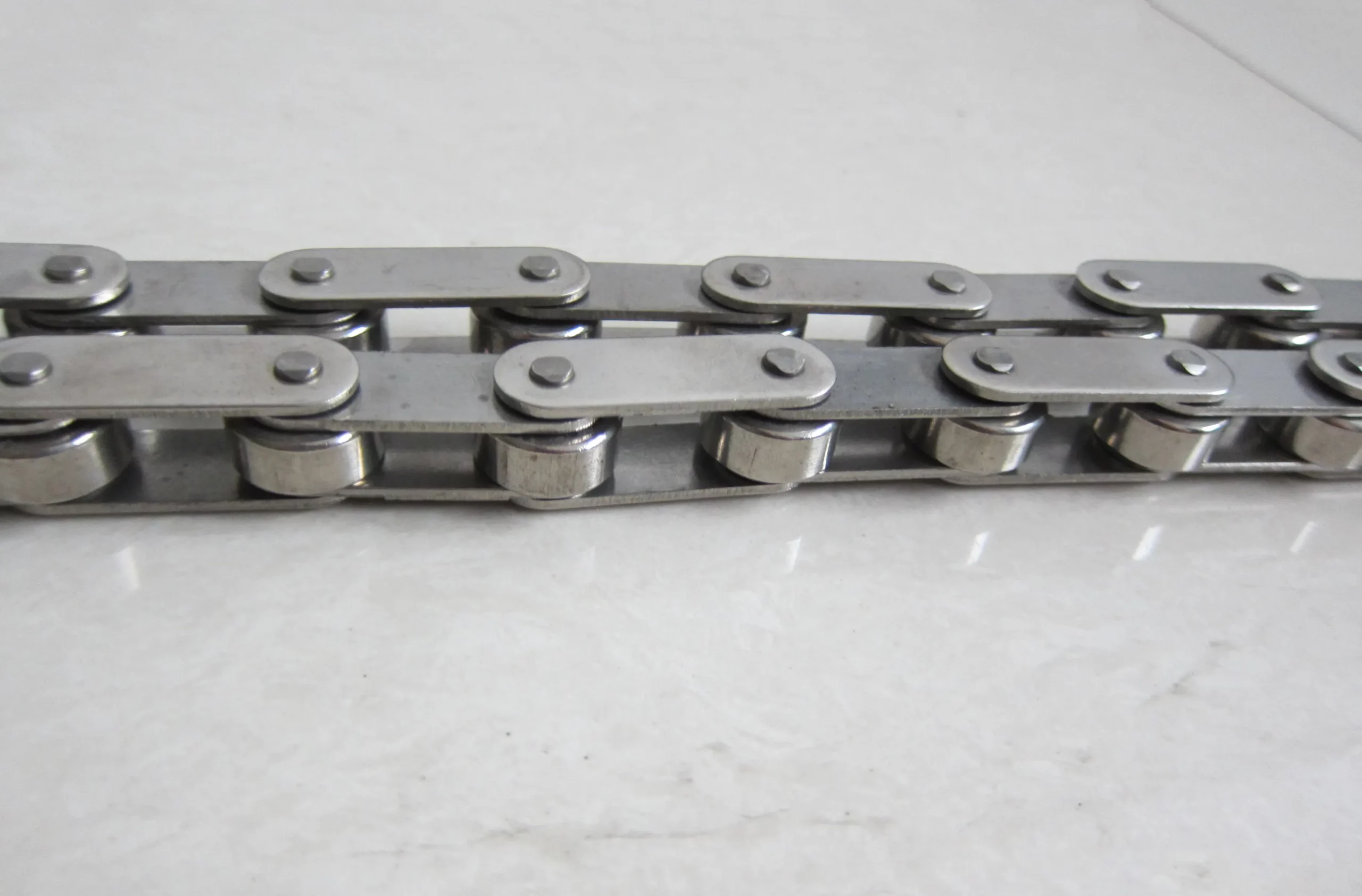

The 05BSS-2 Duplex Short Pitch Stainless Steel Roller Chain is a high-performance, durable product made for mechanical transmission systems. As an essential component, it offers both strength and efficiency, making it a popular choice among industries such as food processing, chemical, and medical equipment.
The structure of the 05BSS-2 Duplex Short Pitch Stainless Steel Roller Chain consists of three main parts:
The chain plate, consisting of inner and outer plates, forms the basic structure of the stainless steel roller chain. These plates are connected by a pin shaft.
The roller, made up of the roller body and roller shaft, is the main load-bearing component of the stainless steel roller chain. It is designed to work in conjunction with the convex platform of the chain plate and the pin shaft of the chain plate.
The pin shaft serves as the connecting component of the stainless steel roller chain, linking the chain plate and roller together.
Our stainless steel chain is made of advanced materials. They perform very well in acidic and alkaline environments where direct contact with food. Chains will be exposed to water and at extremely high or low temperatures (-40 ?? C to +400 ?? C) where corrosion resistance is required. When chemical resistance is critical, Reynolds stainless steel chains should be selected. It is manufactured from FDA-approved materials and pre-lubricated with USDA H1-approved lubricants.
The stainless steel roller chain operates by delivering power and bearing loads in mechanical transmission systems. This chain's ability to withstand heavy loads and maintain efficiency makes it a crucial component in various industries.
With its corrosion-resistant nature and durability, the stainless steel roller chain finds extensive use in industries such as:
It is particularly useful in environments that are wet or corrosive.
Proper care and maintenance of the stainless steel roller chain ensure its longevity and efficiency. This includes steps such as:
Stainless Steel Sprockets for Chains serve as the backbone of a robust and durable chain system. The seamless interaction between these sprockets and chains is crucial for smooth and efficient mechanical operations. The corrosion-resistant nature of stainless steel ensures longevity, making it ideal for various applications. The precise engagement of teeth on the sprockets with the links of the chain guarantees reliable power transmission. This symbiotic relationship enhances the overall performance, reducing wear and tear while maintaining a high level of efficiency. In industries where reliability is paramount, the combination of stainless steel sprockets and chains becomes indispensable for seamless functionality.
Raydafon is a professional chain manufacturer of standard chains and all kinds of special requirement shaped chains. Our stainless steel roller chains are manufactured in accordance with strict ANSI/DIN/ISO standards. Our roller chains are designed with sturdy rollers to ensure a long service life of the chains. In addition, our chains are heat treated and pre-stressed. According to customers' requirements, we offer a wide range of stainless steel materials. The products are manufactured using high quality alloy steel. These plates are punched and extruded holes through precision technology. The pins, bushings and rollers are processed by highly efficient automated equipment and automatic grinding equipment, and then heat-treated by carburizing, carbon and nitrogen protected mesh belt furnace and surface sand blasting process. Assembly accuracy is ensured by bore positioning, spinning, etc. Pressure riveting is used to ensure the performance of the whole chain. The factory has excellent equipments, mature and advanced technology and a large technical force team. With quick market response, flexible and modernized production and operation mode, and excellent and considerate after-sales service, we have won the favor of our customers. Our products are exported to Europe, Japan, the United States, Canada, Southeast Asia and other countries and regions.
We encourage customers to explore the benefits of our 05BSS-2 Duplex Short Pitch Stainless Steel Roller Chain and contact us for purchase.
