DIN/ISO Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Inner plate depth | Plate thickness | Ultimate tensile strength | Average tensile strength | Weight per meter | |
P | d1(max) | b1(min) | d2(max) | L(max) | Lc(max) | h2(max) | t/T(max) | Q(min) | Q0 | q | |
mm | mm | mm | mm | mm | mm | mm | mm | kN | kN | kg/m | |
04BSS-1 | 6 | 4 | 2.8 | 1.85 | 6.8 | 7.8 | 5 | 0.6 | 2 | 0.11 | |
05BSS-1 | 8 | 5 | 3 | 2.31 | 8.2 | 8.9 | 7.1 | 0.8 | 3 | 3.54 | 0.2 |
06BSS-1 | 9.525 | 6.35 | 5.72 | 3.28 | 13.15 | 14.1 | 8.2 | 1.3 | 5.4 | 6.24 | 0.41 |
08BSS-1 | 12.7 | 8.51 | 7.75 | 4.45 | 16.7 | 18.2 | 11.8 | 1.6 | 10.8 | 11.64 | 0.69 |
10BSS-1 | 15.875 | 10.16 | 9.65 | 5.08 | 19.5 | 20.9 | 14.7 | 1.7 | 13.44 | 16.5 | 0.93 |
12BSS-1 | 19.05 | 12.07 | 11.68 | 5.72 | 22.5 | 24.2 | 16 | 1.85 | 17.4 | 19.3 | 1.15 |
16BSS-1 | 25.4 | 15.88 | 17.02 | 8.28 | 36.1 | 37.4 | 21 | 4.15/3.1 | 3.6 | 43.68 | 2.71 |
20BSS-1 | 31.75 | 19.05 | 19.56 | 10.19 | 41.3 | 45 | 26.4 | 1.5/3.5 | 57 | 64.02 | 3.7 |
24BSS-1 | 38.1 | 25.4 | 25.4 | 14.63 | 53.4 | 57.8 | 33.2 | 6.0/4.8 | 96 | 106.8 | 7.1 |
28BSS-1 | 44.45 | 27.94 | 30.99 | 15.9 | 65.1 | 69.5 | 36.7 | 7.5/6.0 | 120 | 133.2 | 8.5 |
32BSS-1 | 50.8 | 29.21 | 30.99 | 17.81 | 66 | 71 | 42 | 7.0/6.0 | 150 | 166.5 | 10.25 |
40BSS-1 | 63.5 | 39.37 | 38.1 | 22.89 | 82.2 | 89.2 | 52.96 | 8.5/8.0 | 213 | 236.4 | 16.35 |
48BSS-1 | 76.2 | 48.26 | 45.72 | 29.24 | 99.1 | 107 | 63.8 | 44905 | 336 | 372.96 | 25 |

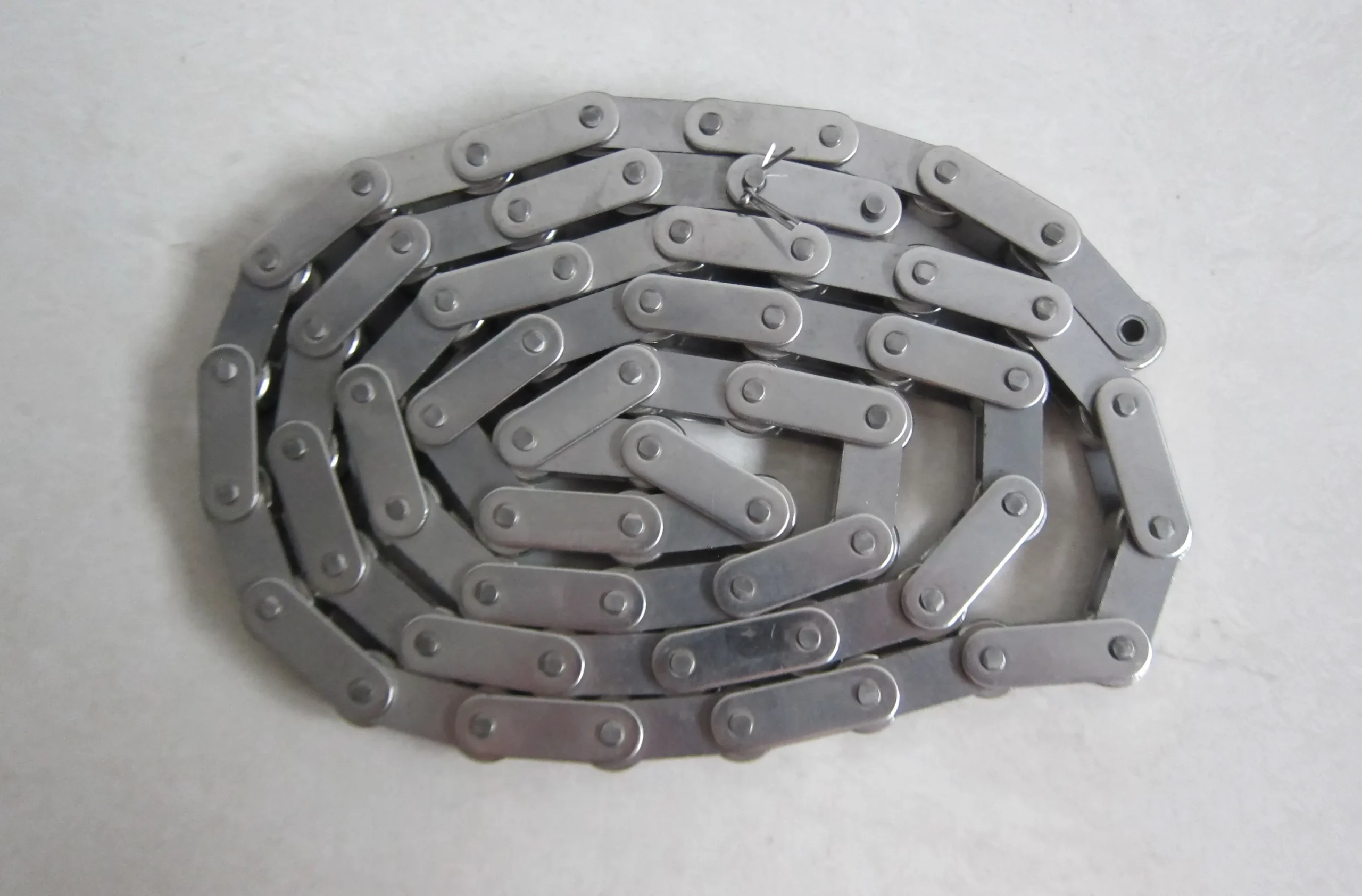

The 08BSS-1 Simplex Short Pitch Stainless Steel Roller Chain is a versatile and durable product that is an essential component in many mechanical transmission systems. Its defining features include its unique construction, superior material characteristics, and wide range of applications. The importance of the 08BSS-1 Simplex Short Pitch Stainless Steel Roller Chain in a mechanical transmission system cannot be overstated, as it plays a critical role in the smooth and efficient operation of many types of machinery.
The chain plate is the structural base of the short pitch stainless steel roller chain. It comprises the inner and outer chain plates, which are connected via a pin shaft.
The roller acts as the primary load-bearing component of the short pitch stainless steel roller chain. It consists of the roller body and roller shaft. The roller body works in tandem with the protruding platform of the inner and outer chain plates, while the roller shaft is compatible with the chain plate's pin shaft.
The pin shaft is the connecting component of the short pitch stainless steel roller chain, linking the chain plate and the roller together.
Our stainless steel chain is made of advanced materials. They perform very well in acidic and alkaline environments where direct contact with food. Chains will be exposed to water and at extremely high or low temperatures (-40 ?? C to +400 ?? C) where corrosion resistance is required. When chemical resistance is critical, Reynolds stainless steel chains should be selected. It is manufactured from FDA-approved materials and pre-lubricated with USDA H1-approved lubricants.
The stainless steel roller chain operates by transmitting power and bearing loads in mechanical transmission systems. The chain's unique design and construction allow it to effectively handle these tasks, ensuring smooth and efficient operation.
The short pitch stainless steel roller chain is used in a wide range of industries, including food processing, chemical production, and medical equipment manufacturing. Its corrosion-resistant properties make it particularly suitable for use in environments that are damp or corrosive.
Proper maintenance and care of the stainless steel roller chain involve cleaning, lubricating, and regular inspections. These steps are essential in ensuring the chain's longevity and optimal performance.
Stainless Steel Sprockets for Chains serve as the backbone of a robust and durable chain system. The seamless interaction between these sprockets and chains is crucial for smooth and efficient mechanical operations. The corrosion-resistant nature of stainless steel ensures longevity, making it ideal for various applications. The precise engagement of teeth on the sprockets with the links of the chain guarantees reliable power transmission. This symbiotic relationship enhances the overall performance, reducing wear and tear while maintaining a high level of efficiency. In industries where reliability is paramount, the combination of stainless steel sprockets and chains becomes indispensable for seamless functionality. We also offer high-quality stainless steel sprockets for sale.
Raydafon is a professional chain manufacturer of standard chains and all kinds of special requirement shaped chains. Our stainless steel roller chains are manufactured in accordance with strict ANSI/DIN/ISO standards. Our roller chains are designed with sturdy rollers to ensure a long service life of the chains. In addition, our chains are heat treated and pre-stressed. According to customers' requirements, we offer a wide range of stainless steel materials. The products are manufactured using high quality alloy steel. These plates are punched and extruded holes through precision technology. The pins, bushings and rollers are processed by highly efficient automated equipment and automatic grinding equipment, and then heat-treated by carburizing, carbon and nitrogen protected mesh belt furnace and surface sand blasting process. Assembly accuracy is ensured by bore positioning, spinning, etc. Pressure riveting is used to ensure the performance of the whole chain. The factory has excellent equipments, mature and advanced technology and a large technical force team. With quick market response, flexible and modernized production and operation mode, and excellent and considerate after-sales service, we have won the favor of our customers. Our products are exported to Europe, Japan, the United States, Canada, Southeast Asia and other countries and regions.
