100 DIN 654 Class Pintle Chain

No.100 DIN 654 CLASS PINTLE CHAIN is a heavyweight, moderately priced chain capable of handling average loads at slow or intermediate speeds.

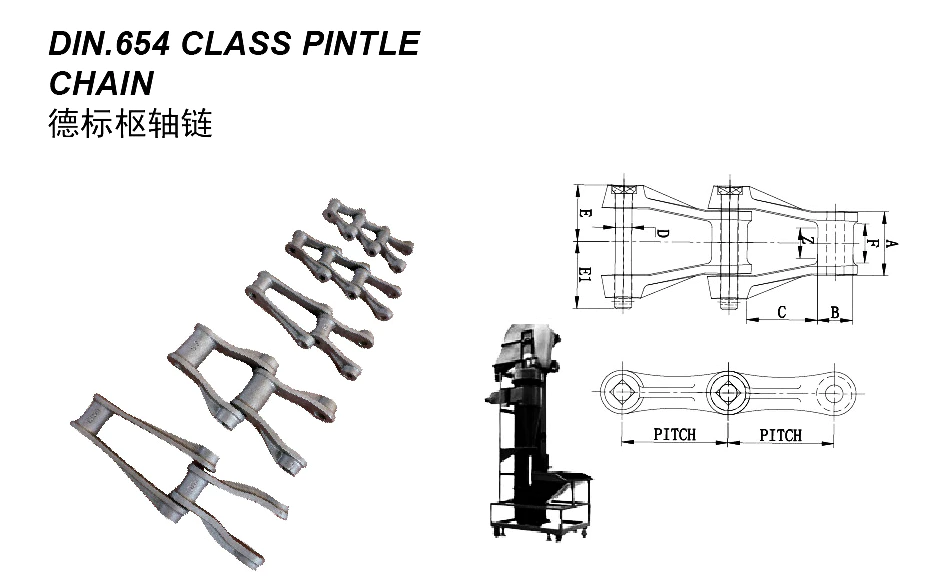

DIN 654 Chain No.	100
Pitch In Inches	100
A	42
B	23
C	77
D	12
E	37.5
E1	47.5
F	32
Z	23
Maximum Working Load Kgs.	600.00
Average Ultimate Strength Kgs.	3000.00
Weight Per Metre Kg.	4.4



100 DIN 654 Class Pintle Chain Features

It is proportionately cast for balance, strength and long, efficient service, and is available in cottered construction. The head of each pin is notched to fit the sidebar locking lug which keeps the pin from rotating when the chain is in use. Closed bearing construction makes DIN.654 CLASS PINTLE CHAIN useful in conveying gritty and abrasive materials.

• Heavy-duty, moderately priced chain
• Suitable for handling average loads at slow or intermediate speeds
• Good balance, strength and long service life
• Closed bearing construction makes it useful in conveying gritty and abrasive materials

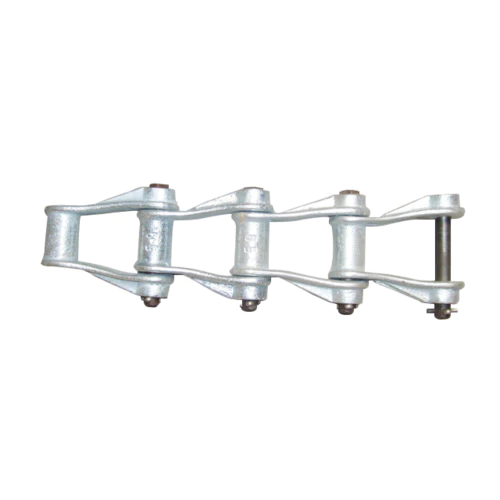

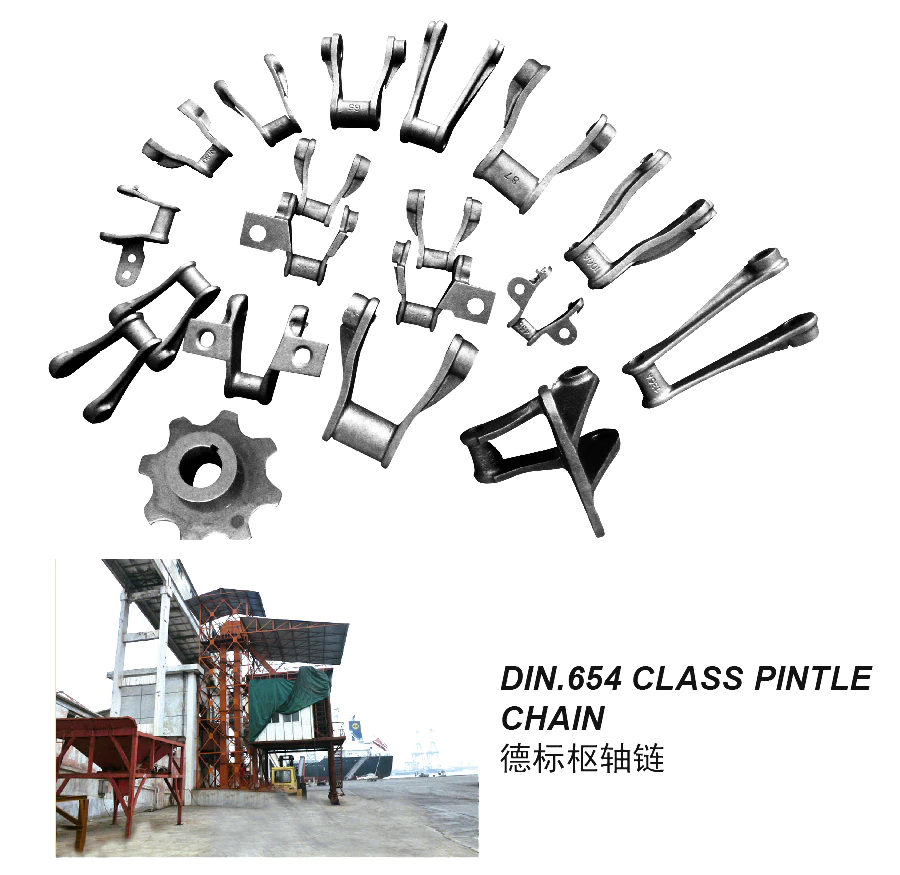

100 DIN 654 Class Pintle Chain Structure

The DIN 654 Class Pintle Chain is composed of link plates and pins. The link plates are composed of two link plate sheets and a link pin. The pins, the load-bearing parts of the chain, are made of cast iron or steel.

Applications of DIN 654 Class Pintle Chain

• Chain hoists - ideal for lifting and lowering heavy loads
• Chain conveyors - perfect for moving large quantities of goods
• Other applications that require heavy loads

Manufacturing Materials and Process

Pintle chains are typically made from cast iron or steel. The manufacturing process for pintle chains includes material preparation, casting, machining, and surface treatment.

Sprockets for Malleable Casting Chains

Here are some specific types of sprockets commonly used with malleable cast iron chains:

• cast iron sprockets: Offer cost-effective durability for light-duty applications
• Steel sprockets: More wear-resistant than cast iron, suitable for medium to heavy-duty applications
• Ductile iron sprockets: Provide superior strength and resistance to fatigue for demanding applications
• Double sprockets: Used for applications requiring two chains running in opposite directions on the same shaft
• Custom sprockets: Can be specially designed to meet specific requirements like unique tooth profiles or materials

We also offer compatible sprockets for our DIN 654 Class Pintle Chain.
