10B1-SS Stainless Steel Gripper Chain for Bread Application

10B1-SS Stainless Steel Gripper Chain: An Overview

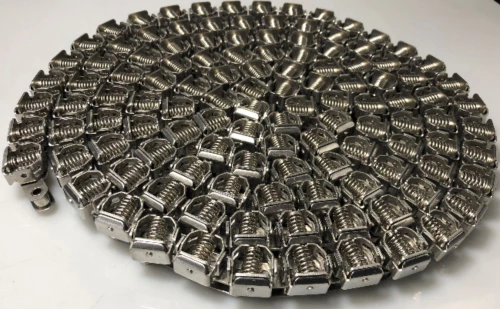

The 10B1-SS Stainless Steel Gripper Chain, also known as grip chain or Film Gripper Chain, is a key component in many industrial applications. Employing a unique design, this gripper chain is essential in applications where precise, controlled movement of materials is required. It is especially useful in the food industry, specifically for bread applications, where it facilitates efficient and safe product handling.

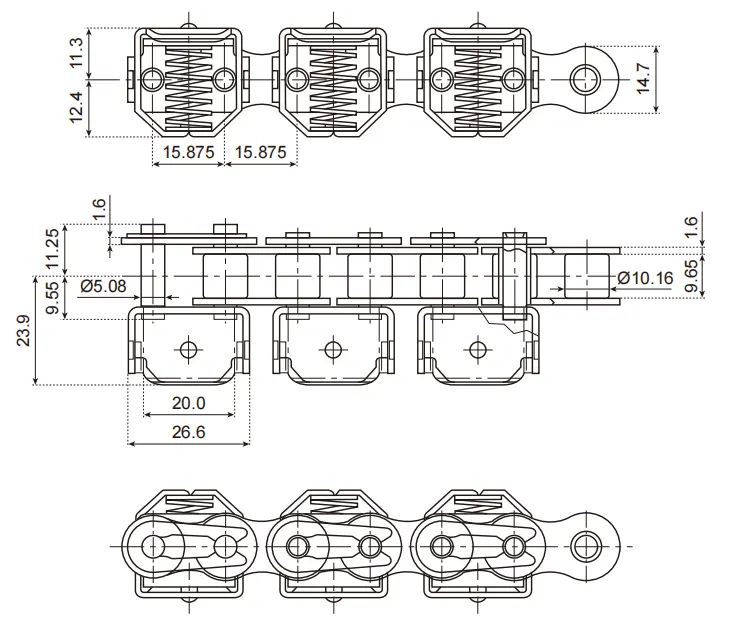

Gripper Chain Code	10B1-SS
Chain PitchP(mm)	15.875
Chain Material	Stainless Steel

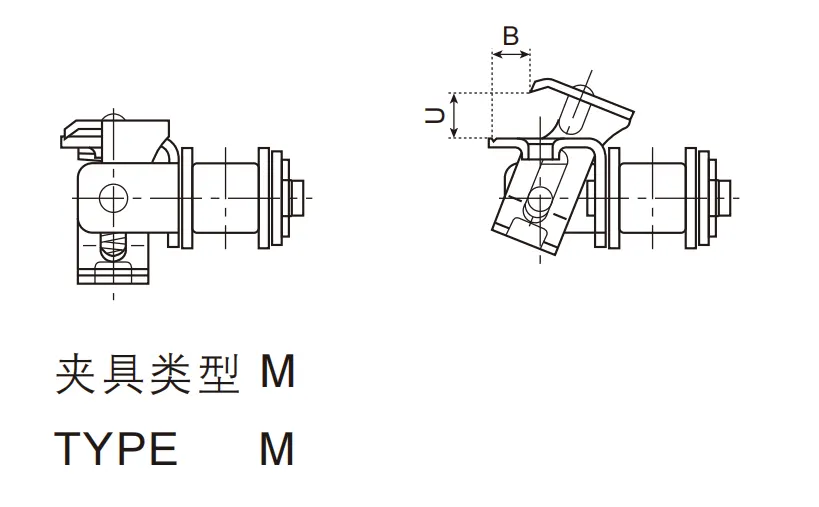

Type	M
Spring LoadN	70
Breaking LoadKN	20

Unique Features of Raydafon's10B1-SS Stainless Steel Gripper Chain

• Reliable Clamping Mechanism Design

  After years of research and practical experience, Raydafon has adopted a more reliable clamping mechanism for our 10B1-SS Stainless Steel Gripper Chain. This advanced design brings higher performance to the chain, ensuring efficient and secure operations.

• Unique Spring Design

  The spring design of our gripper chain is unique. It's made of high-quality imported material and passes very strict pressure tests. This ensures the chain's clamping performance is excellent and long-lasting.

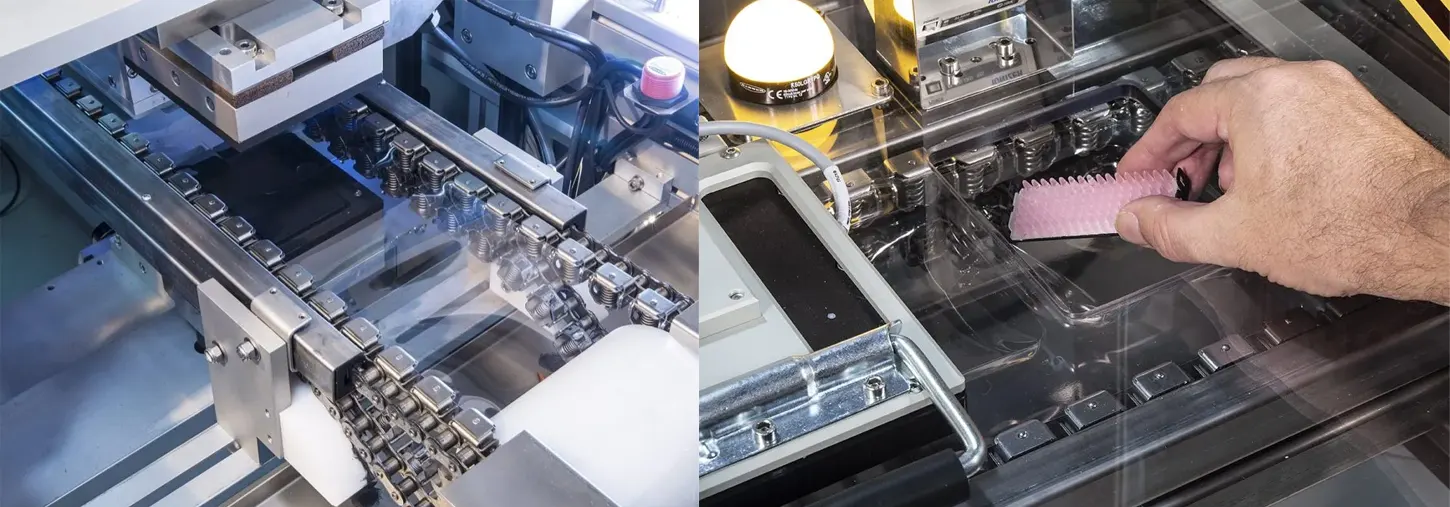

Applications of the 10B1-SS Stainless Steel Gripper Chain

In addition to food industry applications, the 10B1-SS Stainless Steel Gripper Chain is also suitable for use in the electrical and medical sectors:

• Food: Bread

  This chain is particularly useful in handling bread products. Its reliable clamping mechanism and unique spring design ensure products are moved safely and efficiently.

• Electrical: Wire

  The gripper chain is also used in the electrical industry to handle wire products. The stainless steel material of the chain ensures it can withstand the pressures of handling these types of materials.

• Medical: Injection Syringe, Pharmaceuticals

  Lastly, the gripper chain is used in the medical sector, particularly in handling injection syringes and pharmaceuticals. The chain's reliable design ensures precise, controlled movement, which is essential in these sensitive operations.

Why Grip Chain is Fit for Bread Application

The 10B1-SS Stainless Steel Gripper Chain is particularly suited to bread applications for several reasons:

• The chain??s unique spring design ensures a gentle grip, preventing any damage to the bread products during movement.
• Its reliable clamping mechanism allows for efficient and safe handling, which is crucial in high-speed production lines.
• The stainless steel material of the chain makes it resistant to the heat and moisture typically found in bread production environments.

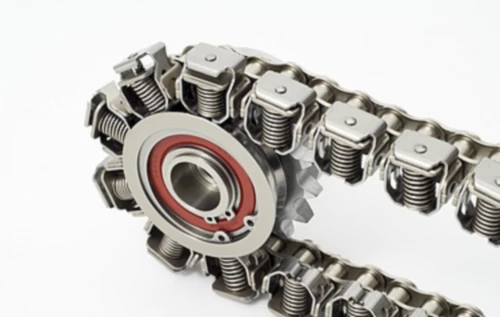

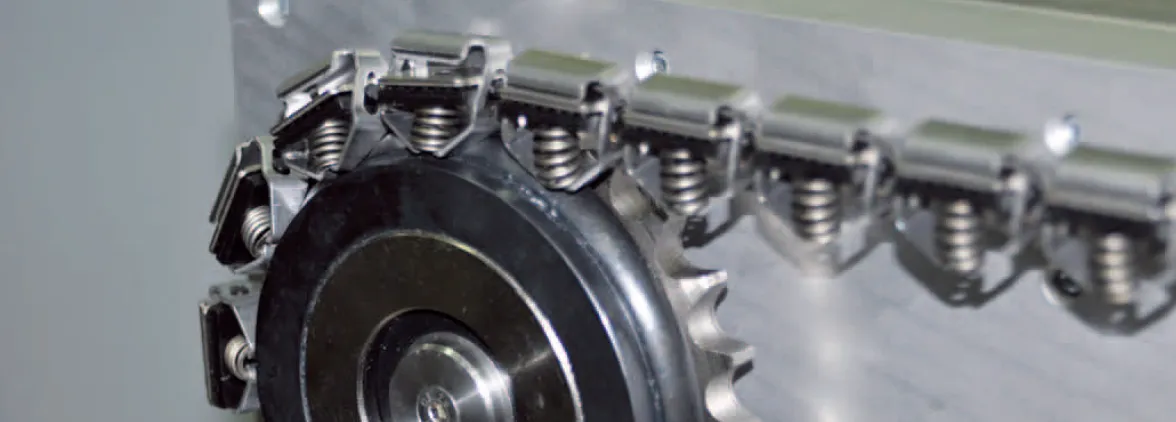

Gripper Chain Sprockets for Gripper Chains

Gripper chain sprockets are typically made from steel or aluminum, and they have a series of teeth that engage with the links of the gripper chain. The number of teeth on the sprocket determines the speed of the gripper chain, and the size of the teeth determines the amount of force that the sprocket can apply to the chain. Gripper chains are typically made from stainless steel or nickel-plated steel. The material of the gripper chain must be able to withstand the forces of the conveyor belt and the material being conveyed. The gripper chain also needs to be corrosion resistant, as it may be exposed to moisture or chemicals in some applications. In addition to our high-quality gripper chains, Raydafon also offers high-quality stainless steel gripper chain sprockets for sale.
