12A-G2 Rubber Top Roller Chain

Discover Raydafon Group's 12A-G2 Rubber Top Roller Chain – engineered for superior durability and reliable performance in mechanical applications. Featuring a robust rubber topping for enhanced grip and noise reduction, this chain ensures smooth operation in industrial settings. Perfect for engineers and manufacturers seeking a resilient, long-lasting solution, it reduces wear and downtime. Compared to standard chains, its innovative design minimizes slippage. Trust Raydafon Group for quality that boosts efficiency and reliability.

Send Inquiry

Product Description

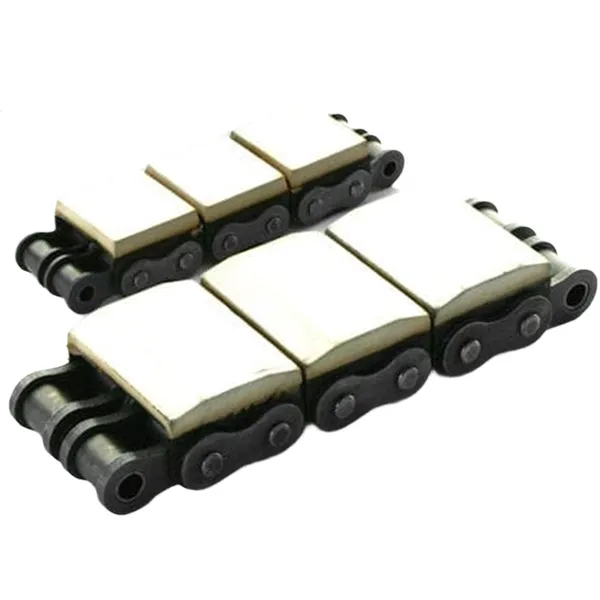

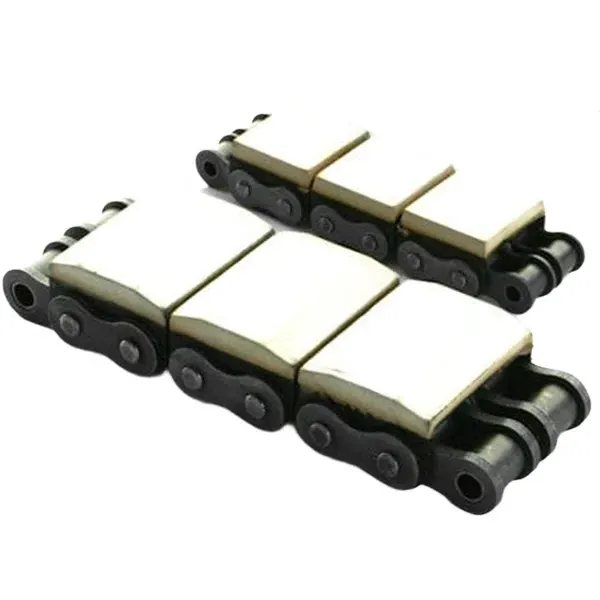

12A-G2 Rubber Top Chain 12A-G2 Rubber Top Roller Chain

The 12A-G2 rubber top chain is a type of conveyor chain that is commonly used in various industrial applications. It is a specific type of roller chain that features a rubber coating on the top of each chain link, which provides a non-slip surface and helps to grip the conveyed material. The "12A" part of the name refers to the rubber top chain's pitch, which is the distance between the centers of adjacent chain pins. In this case, the pitch is 12.7mm (0.5 inches). The "G2" part of the name refers to the rubber top chain's strength rating, with G2 being a higher strength rating than G1.The "rubber top" feature refers to the fact that the 12A-G2 rubber top chain has rubber pads on top of the links, which can help reduce noise and vibration during operation and provide additional grip for the chain. This can be useful in applications such as conveyors, where the chain needs to grip and move products along a surface. The 12A-G2 rubber top chain is often used in applications where a non-slip surface is required, such as in food processing, packaging, and bottling industries. The rubber top also helps to reduce noise and vibration during operation and can extend the life of the chain and sprockets. 12A-G2 Rubber Top Roller Chain

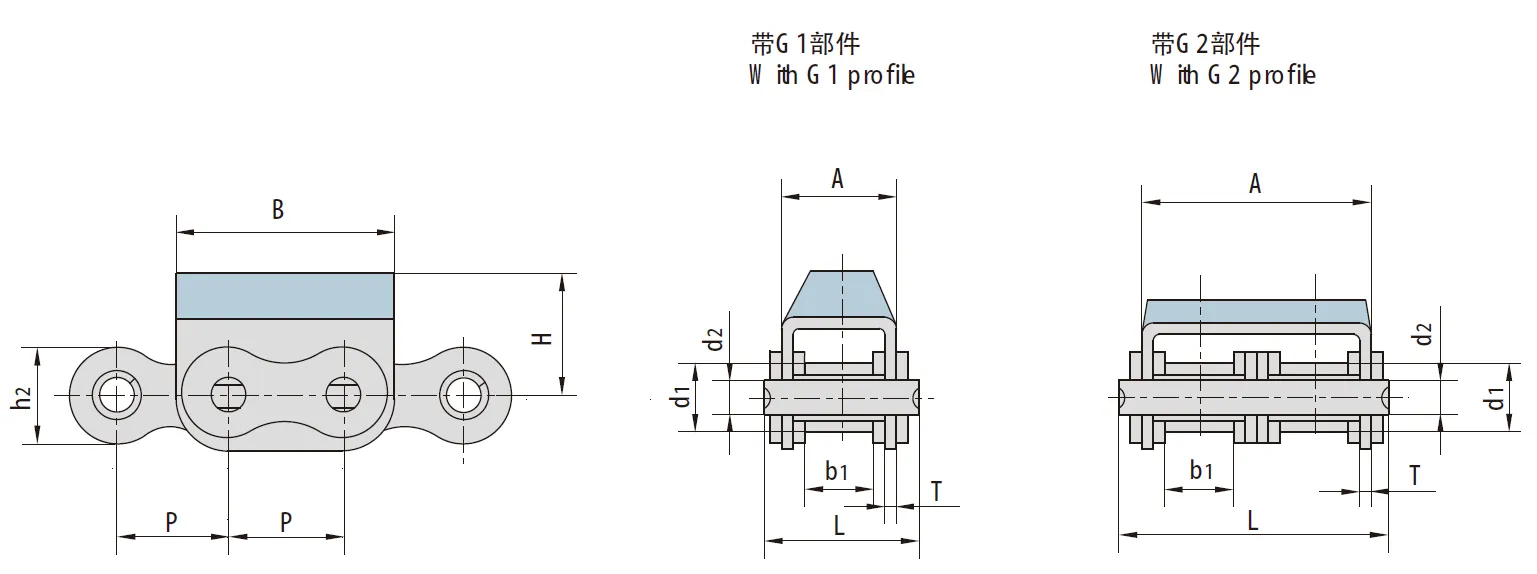

▍12A-G2?Rubber Top Chain Dimensions:

Chain No.

Pitch

Roller diameter

Width between inner plates

Pin diameter

Pin length

Plate and attachment dimension

?Tensile strength

Weight per meter

d1?max

b1?min

d2?max

Lmax

h2?max

Qmin

kN/lbf

kg/m

12A-G2 Chain

19.050

11.91

12.57

5.94

52.9

18.00

44.50

37.05

21.0

1.85

62.3/14005

4.25

▍12A-G2 Rubber Top Chain?Specifications:

1. Chain Material:?Alloy steel & Stainless steel2. Rubber Material:?NBR & NR3. Rubber hardness:?Shore hardness 65-75, 75-854. Chain Surface Treatment:?Shot peening & Blackening & Bluing5. Chain Size:??12A-G1 Chain, 12A-G2 Chain

Product?name?	12A-G2 Rubber Top Chain? (Rubber Top Roller Chain)
Materials?Available?	1.?Stainless?Steel:?SS304, SS316, etc
	2.?Alloy Steel: 45Mn, 42CrMo, 20CrMo, etc
	3. Appurtenant?material:?NR, NBR
	4. OEM, according to your request
Surface Treatment	Shot peening, Blackening, Oxygenation, Polishing, Zinc-plated, Nickel-plated, Anodized, etc.
Characteristic	Fire?Resistant,?Oil?Resistant,?Heat?Resistant
Design criterion	ISO DIN ANSI?& Customer's Drawing
Size	Customer's Drawing & ISO Standard
Application	Wood products factory, plywood factory
Package	Wooden Case / Container and pallet, or made-to-order
Certificate	ISO9001: 2008
Advantage	First quality, Best service, Competitive price, Fast delivery
Delivery Time	20 days for samples. Forty-five days for official order.

▍12A-G2 Rubber Top Chain Vs 12A-G1 Rubber Top Chain:The main difference between the 12A-G2 rubber top chain and the 12A-G1 rubber top chain is their strength rating. The "G2" and "G1" designations refer to the chain's strength rating, with G2 being a higher strength rating than G1.The 12A-G2 rubber top chain has a higher strength rating than the 12A-G1 rubber top chain, which means it can handle heavier loads and withstand more wear and tear over time. This makes the 12A-G2 rubber top chain a better choice for applications where the chain will be subjected to higher loads or more demanding operating conditions.In addition to the strength rating, the two rubber top chains may also differ in terms of their materials, dimensions, and surface finishes. It is important to carefully consider the specific requirements of your application when selecting a rubber top chain and to consult the manufacturer's specifications and recommendations to ensure that you choose the most suitable rubber top chain for your needs.The 12A-G2 rubber top chain has a thicker rubber top than the 12A-G1 rubber top chain. This makes the 12A-G2 chain more wear-resistant and provides better noise and vibration damping. The 12A-G2 chain is also slightly heavier than the 12A-G1 chain.Here is a table summarizing the key differences between the two chains:

Feature	12A-G2 Rubber Top Chain	12A-G1 Rubber Top Chain
Rubber top thickness	2.5mm	2mm
Wear resistance	Better	Worse
Noise and vibration damping	Better	Worse
Weight	Heavier	Lighter
Price	More expensive	Less expensive

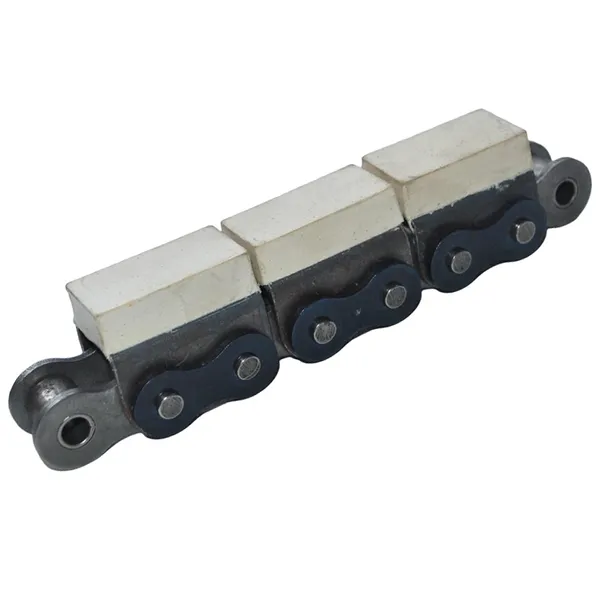

12A-G2 Rubber Top Chain	12A-G1 Rubber Top Chain

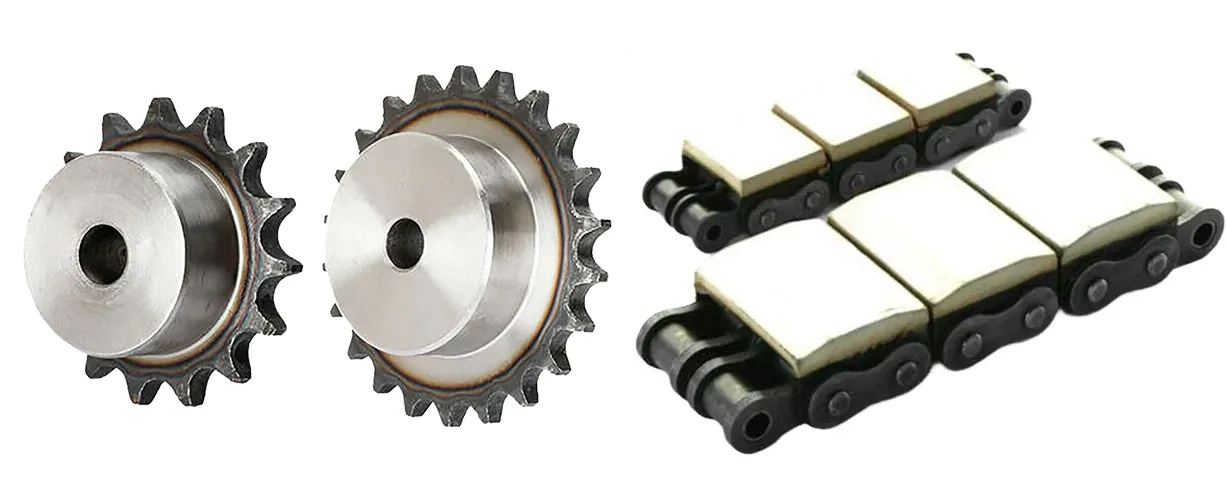

▍12A-G2 Rubber Top Chain Sprockets and 12A-G2 Rubber Top Chain

The 12A-G2 rubber top chain sprocket and the 12A-G2 rubber top chain are two different components that are used together in a chain drive system. The sprocket is the part that the chain runs on, and the chain is the part that transmits the power from the motor to the load.The 12A-G2 rubber top chain sprocket is made of steel and has a rubber top that helps to reduce noise and vibration. The sprocket is designed to fit the 12A-G2 rubber top chain, and it is available in a variety of sizes and tooth counts. The 12A-G2 rubber top chain is made of steel and has a rubber top that helps to reduce wear and tear. The chain is available in a variety of lengths and widths, and it can be used in a variety of applications.When choosing a 12A-G2 rubber top chain sprocket and a 12A-G2 rubber top chain, it is important to make sure that they are compatible with each other. The sprocket and chain should have the same pitch, width, and number of teeth. It is also important to make sure that the sprocket and chain are made of the same material.Here are some of the benefits of using a 12A-G2 rubber top chain sprocket and 12A-G2 rubber top chain:

Reduced noise and vibration
Increased wear resistance
Longer service life
Improved efficiency

Here are some of the applications where 12A-G2 rubber top chain sprockets and 12A-G2 rubber top chains are commonly used:

Conveyors
Hoists
Industrial machinery
Food processing equipment
Material handling equipment

If you are looking for a quiet, durable, and efficient chain drive system, then the 12A-G2 rubber top chain sprocket and 12A-G2 rubber top chain are good options. 12A-G2 Rubber Top Roller Chain

▍China Rubber Top Chain Manufacturers

We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like roller chains, palm oil chains, sugar mill chains, leaf chains, flat top chains, side bow chains, lumber conveyor chains,?81X chains,?agricultural chains, CA550 roller chains, silent chains, PIV chains, stainless steel chains, car parking chain, slient chain, engineering chain, steel pintle chain, welded steel chain, drop forged chain, malleable iron chain, and many other types. Different kinds of attachments are available. 12A-G2 Rubber Top Roller Chain
