16A-G1 Rubber Top Roller Chain

Raydafon Group's 16A-G1 Rubber Top Roller Chain delivers superior durability and smooth operation for industrial machinery. Its rubber-topped design reduces noise and wear, making it ideal for manufacturing and automation applications where precision matters. Experience enhanced efficiency and reliability—choose 16A-G1 for lasting performance that solves maintenance headaches.

Send Inquiry

Product Description

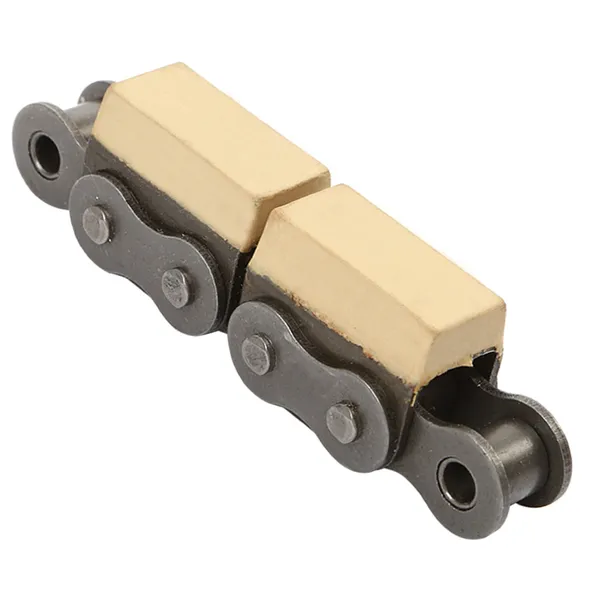

16A-G1 Rubber Top Chain 16A-G1 Rubber Top Roller Chain

The 16A-G1 rubber top chain is a type of roller chain that has rubber pads on the top of the links. This makes it a good choice for applications where noise and vibration need to be minimized, such as in the wood industry, glass, ceramics, and synthetic panels industries.The 16A-G1 rubber top chain is a G1-type chain, which means that it has a solid roller design. This makes it a strong and durable chain that can withstand heavy loads. The chain is also heat-treated, which further increases its strength and durability.The rubber pads on the top of the links help to absorb noise and vibration. This makes the rubber top chain quieter and reduces the amount of wear and tear on the sprockets. The rubber pads also help to protect the chain from dirt and debris, which can extend the lifespan of the rubber top chain.The 16A-G1 rubber top chain is available in a variety of lengths and sizes. It can be used with a variety of sprockets, making it a versatile chain that can be used in a wide range of applications.Here are some of the key features of the 16A-G1 rubber top chain:

G1-type solid roller design
Heat-treated components
Rubber pads on top of links
Noise and vibration reduction
Dirt and debris protection
Versatile and can be used in a wide range of applications

If you are looking for a high-quality roller chain that is quiet, durable, and vibration-resistant, then the 16A-G1 rubber top chain is a good option. 16A-G1 Rubber Top Roller Chain

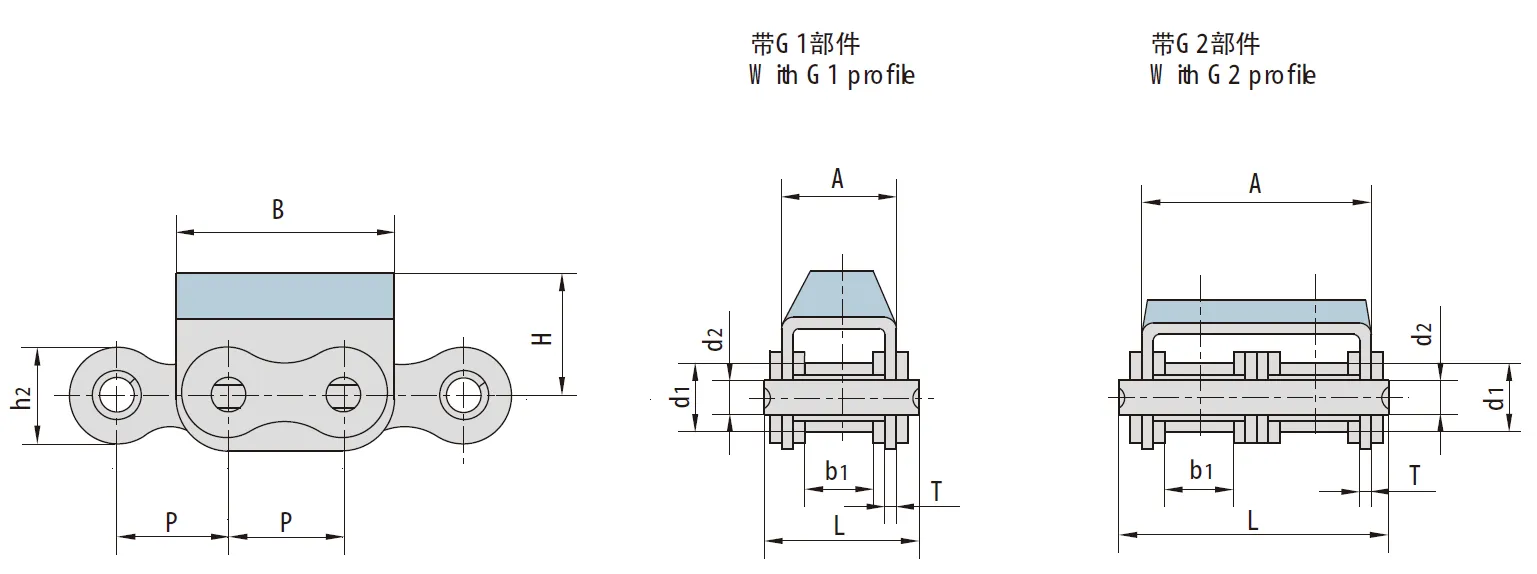

▍16A-G1 Rubber Top Chain Sizes Chart:

Chain No.

Pitch

Roller diameter

Width between inner plates

Pin diameter

Pin length

Plate and attachment dimension

?Tensile strength

Weight per meter

d1?max

b1?min

d2?max

Lmax

h2?max

Qmin

kN/lbf

kg/m

16A-G1 Chain

25.400

15.88

15.75

7.92

37.2

24.00

27.50

46.00

20.0

2.42

42.0/9545

3.97

▍16A-G1 Rubber Top Chain Specifications:

1. Chain Material:?Alloy steel & Stainless steel2. Rubber Material:?NBR & NR3. Rubber hardness:?Shore hardness 65-75, 75-854. Chain Surface Treatment:?Shot peening & Blackening & Bluing5. Chain Size: 16A-G1 Chain; 16A-G2 Chain

Product?name?	16A-G1 Rubber Top Chain (Rubber Top Roller Chain)
Materials?Available?	1.?Stainless?Steel:?SS304, SS316, etc
	2.?Alloy Steel: 45Mn, 42CrMo, 20CrMo, etc
	3. Appurtenant?material:?NR, NBR
	4. OEM, according to your request
Surface Treatment	Shot peening, Blackening, Oxygenation, Polishing, Zinc-plated, Nickel-plated, Anodized, etc.
Characteristic	Fire?Resistant,?Oil?Resistant,?Heat?Resistant
Design criterion	ISO DIN ANSI?& Customer's Drawing
Size	Customer's Drawing & ISO standard
Application	Wood product factory, plywood factory
Package	Wooden Case / Container and pallet, or made-to-order
Certificate	ISO9001: 2008
Advantage	First quality, Best service, Competitive price, Fast delivery
Delivery Time	20 days for samples. Forty-five days for official order.

▍16A-G1 Rubber Top Chain Vs 12B-G1 Rubber Top Chain

The 16A-G1 Rubber Top Chain and the 12B-G1 Rubber Top Chain are both high-quality roller chains with rubber pads on the top of the links. However, there are some key differences between the two chains.The 16A-G1 Rubber Top Chain has a larger pitch (25.4 mm) than the 12B-G1 Rubber Top Chain (19.05 mm). This means that the 16A-G1 chain can handle more load and can be used with larger sprockets. However, the 12B-G1 chain is more compact and can be used in applications where space is limited.The 16A-G1 Rubber Top Chain is also heavier than the 12B-G1 Rubber Top Chain. This is because the 16A-G1 chain has larger links and rollers. The extra weight can be a disadvantage in some applications, but it also makes the 16A-G1 chain more durable.In general, the 16A-G1 Rubber Top Chain is a good choice for applications where high load capacity and durability are important. The 12B-G1 Rubber Top Chain is a good choice for applications where space is limited or where a lighter chain is desired.Here is a table that summarizes the key differences between the two chains:

Feature	16A-G1 Rubber Top Chain	12B-G1 Rubber Top Chain
Pitch	25.4 mm	19.05 mm
Load Capacity	Higher	Lower
Sprocket size	Larger	Smaller
Weight	Heavier	Lighter
Compactness	Less compact	More compact
Durability	More durable	Less durable
Applications	High-load, high-durability applications	Space-limited applications, applications where a lighter chain is desired

16A-G1 Rubber Top Chain	12B-G1 Rubber Top Chain

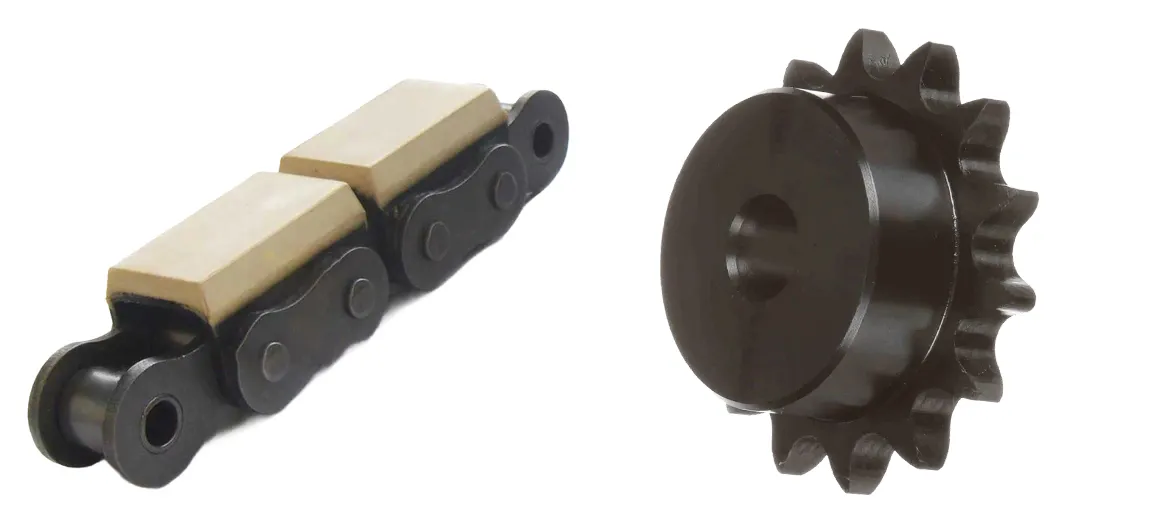

▍16A-G1 Rubber Top Chain Sprockets for 16A-G1 Rubber Top Chain

The 16A-G1 rubber top chain sprockets and 16A-G1 rubber top chain are a type of roller chain that is used in a variety of applications, including the wood industry, glass, ceramics, synthetic panels, and other delicate product type applications. The chain is made of heat-treated components and precision manufacturing to produce a high-strength and high-quality rubber top roller chain. The rubber top on the chain helps to protect the surface of the product being conveyed, preventing it from being marked or damaged.The 16A-G1 rubber top chain sprockets are available in a variety of sizes, so you can find the right size for your application. The sprockets are also available in a variety of materials, including steel, aluminum, and plastic.The 16A-G1 rubber top chain is available in a variety of lengths, so you can find the right length for your application. The chain is also available in a variety of materials, including steel, aluminum, and plastic.To determine the size sprocket you need for your chain, you will need to measure the chain pitch. The chain pitch is the distance between the centers of two adjacent rollers. Once you have measured the chain pitch, you can consult a sprocket sizing chart to find the right size sprocket.Here are some of the benefits of using 16A-G1 rubber top chain sprockets and 16A-G1 rubber top chain:

They are high-strength and high-quality.
They are durable and can withstand a lot of wear and tear.
They are non-marking, so they will not damage the surface of the product being conveyed.
They are available in a variety of sizes and materials to meet your specific needs.

If you are looking for a high-quality, durable, and non-marking chain and sprocket system for your application, then the 16A-G1 rubber top chain sprockets and 16A-G1 rubber top chain are great options. 16A-G1 Rubber Top Roller Chain

▍China Rubber Top Chain Manufacturers

We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like?roller chains, palm oil chains, sugar mill chains, leaf chains, flat top chains, side bow chains, lumber conveyor chains,?81X chains, agricultural chains, silent chains, PIV chains, stainless steel chains, car parking chain, slient chain,?engineering chain, steel pintle chain, welded steel chain, drop forged chain, malleable iron chain, and many other types. Different kinds of attachments are available.
