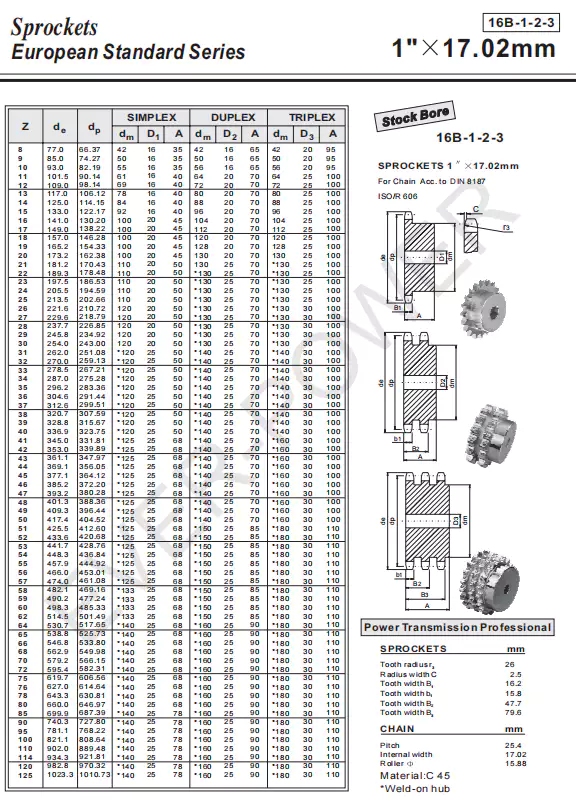

16B-1-2-3 Standard Bore Sprocket

16B-1-2-3 Standard Bore Sprocket

What is a standard bore sprocket?

A standard bore sprocket is a type of sprocket that is commonly used in various industrial applications. It is designed to transmit rotary motion between two shafts by means of a roller chain. The standard bore sprocket consists of a wheel with teeth that meshes with the chain, allowing it to transfer power and motion. It is an essential component in many machinery and equipment systems.To select the right standard bore sprocket, several factors need to be considered:

Material:

The material used for standard bore sprockets can vary based on the specific requirements of the application. It can be made from high carbon steel, alloy steel, or stainless steel. The choice of material depends on factors such as the load capacity, durability, and environmental conditions.

Tooth Profile:

The tooth profile of the sprocket determines how the chain engages with it. Common tooth profiles include the standard ANSI tooth profile and the European DIN tooth profile. The selection of the tooth profile depends on the type of chain being used and the desired performance.

Number of Teeth:

The number of teeth on the sprocket determines the speed ratio and the torque transmission capabilities. It is important to select the appropriate number of teeth based on the desired speed and torque requirements of the application.

Dimensions:

The dimensions of the sprocket, such as the outer diameter and the width, are crucial in ensuring proper chain engagement and alignment. It is important to select the dimensions that are compatible with the chain and the overall system.

Center Bore:

The center bore of the sprocket is the hole through which the sprocket is mounted onto the shaft. It needs to be properly sized to ensure a secure and accurate fit.

Keyway:

The keyway is a slot on the sprocket that allows a key to be inserted, providing a positive connection between the sprocket and the shaft. The size and shape of the keyway need to be compatible with the key and the shaft.

Surface Treatment:

To enhance the durability and corrosion resistance of the sprocket, various surface treatments can be applied. These include rust prevention coatings, such as zinc plating or black oxide, and heat treatment processes, such as quenching and tempering.

Our Material and Manufacturing Process:

Our standard bore sprockets are manufactured using high-quality materials and advanced manufacturing processes. We offer sprockets made from high carbon steel, alloy steel, or stainless steel, depending on the specific requirements of the application.The manufacturing process includes material selection, cutting, punching, forging, machining, heat treatment, surface hardening, surface treatment for rust prevention, and quality testing. Each step is carefully executed to ensure the production of sprockets that meet the highest standards of quality and performance.

Applications:

Standard bore sprockets find applications in various industries and scenarios, including:- Heavy machinery and equipment- Food processing and packaging- Chemical and pharmaceutical industries- Assembly lines- Logistics and warehousing

Maintenance and Care:

To ensure the optimal performance and longevity of standard bore sprockets, proper maintenance and care are essential. The following points should be considered:- Regular inspection to check for any signs of wear or damage- Cleaning to remove dirt, debris, and lubrication buildup- Lubrication to minimize friction and ensure smooth operation- Adjustment and calibration to maintain proper chain tension and alignmentCommon Problems and Solutions:1. Skipping teeth: Check for chain tension and alignment issues. Adjust as necessary and replace any worn-out sprockets or chains.2. Breakage: Inspect the sprocket for any signs of cracks or fractures. Replace with a new sprocket if necessary.3. Wear: Regularly inspect the sprocket for signs of wear on the teeth. Replace if the wear exceeds the recommended limits.4. Excessive noise: Check for misalignment or inadequate lubrication. Adjust as necessary and ensure proper lubrication.5. Chain detachment: Inspect the chain for any damaged or bent links. Replace any damaged links and ensure proper tension and alignment.

Other Types of Sprockets:

In addition to standard bore sprockets, we also offer a variety of other sprockets to meet different application needs. These include platewheel sprockets, idler sprockets, qd sprockets, and taper lock sprockets. We also provide compatible chains for these sprockets.Author: Miya
