20ASS/100SS Stainless Steel Short Pitch Conveyor Chain with WA1 WA2 WK1 WK2 Attachments

Raydafon Group's 20ASS/100SS Stainless Steel Short Pitch Conveyor Chain with WA1, WA2, WK1, and WK2 attachments offers unmatched durability and versatility for demanding industrial environments. Crafted from high-grade stainless steel, it resists corrosion and wear, ensuring smooth, reliable performance in applications like food processing, packaging, and material handling. This chain's short pitch design and customizable attachments make it ideal for engineers and manufacturers seeking efficiency and longevity, solving downtime issues while boosting productivity. Its unique combination of robustness and flexibility sets it apart from standard chains, delivering peace of mind through enhanced operational stability. Trust Raydafon Group for precision-engineered solutions that drive success.

Send Inquiry

Product Description

Overview of 20ASS/100SS Stainless Steel Short Pitch Conveyor Chain with WA1 WA2 WK1 WK2 Attachments

The 20ASS/100SS Stainless Steel Short Pitch Conveyor Chain is a high-quality conveyor chain made of stainless steel. It plays a crucial role in conveying systems, used to transport a variety of materials across different industries. This chain is built to withstand different environmental conditions, making it a suitable choice for various applications.

Specifications of 20ASS/100SS Stainless Steel Short Pitch Conveyor Chain

This conveyor chain boasts precision engineering, ensuring a high level of performance and durability. The 20ASS/100SS chain has been designed to meet the highest standards of quality and efficiency.

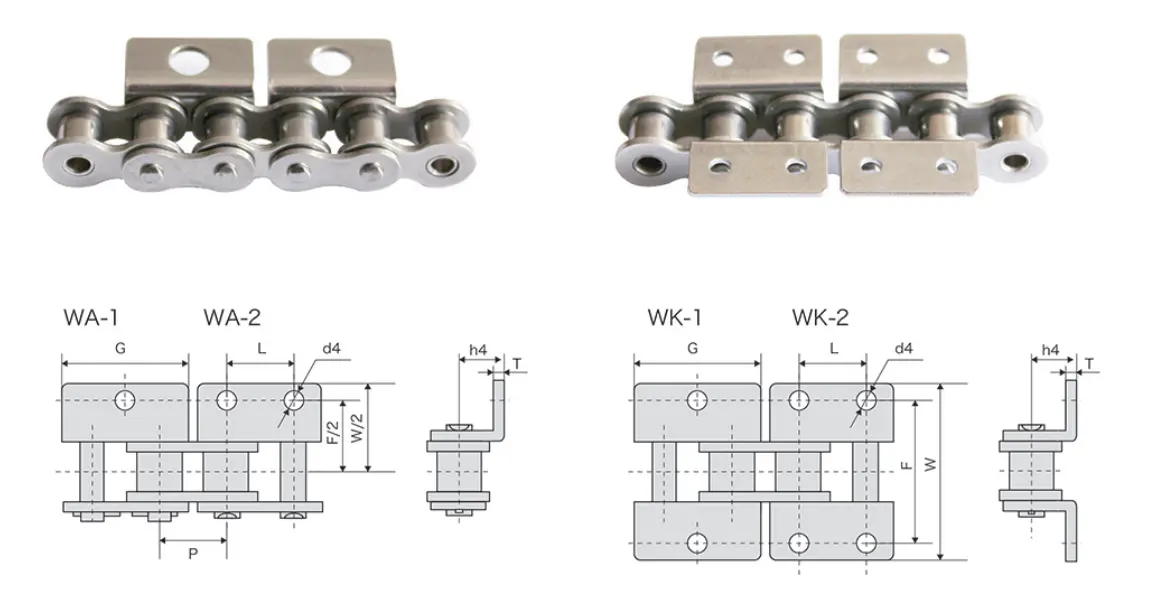

DIN/ISO Chain No.	ANSI Chain No.	P	G	L	F	W	T	h4	d4
DIN/ISO Chain No.	ANSI Chain No.	mm	mm	mm	mm	mm	mm	mm	mm
06CSS	35SS	9.525	17.32	9.525	19	28.6	1.2	6.35	2.8
08ASS	40SS	12.7	23	12.7	25.4	35.6	1.5	7.9	3.4
085SS	41SS	12.7	22.3	12.7	24	35	1.2	7.2	4.85
10ASS	50SS	15.875	28.8	15.875	31.75	46.8	2	10.3	5.5
12ASS	60SS	19.05	34.65	19.05	38.1	56.4	2.4	11.9	5.5
16ASS	80SS	25.4	45.9	25.4	50.8	73.2	3	15.9	6.8
20ASS	100SS	31.75	57.65	31.75	63.5	89.8	4	19,80	9.2
24ASS	120SS	38.1	69.3	38.1	76.2	108.8	4.8	23	9.8
28ASS	140SS	44.45	80.45	44.45	88.9	123	5.6	28.6	11.4
32ASS	160SS	50.8	92	50.8	101.6	142.8	6.4	31.75	13.1
40ASS	200SS	63.5	115.5	63.5	127	179	8	42.88	16.3
08BSS		12.7	24	12.7	25.4	36.4	1.5	8.9	4.3
10BSS		15.875	29.58	15.875	31,80	44.6	1.6	10.31	5.3
12BSS		19.05	34.05	19.05	38.1	52.4	1.8	13.46	6.4
16BSS		25.4	46.4	25.4	50.8	72.6	3	15.88	6.4
20BSS		31.75	58.1	31.75	63	100.5	4	19.8	9
24BSS		38.1	71.3	38.1	76.2	108.4	4.8	26.67	10.5
28BSS		44.45	81.1	44.45	88.9	123	6	28.58	13.1
32BSS		50.8	92.8	50.8	101.6	142.8	6	31.75	13.1

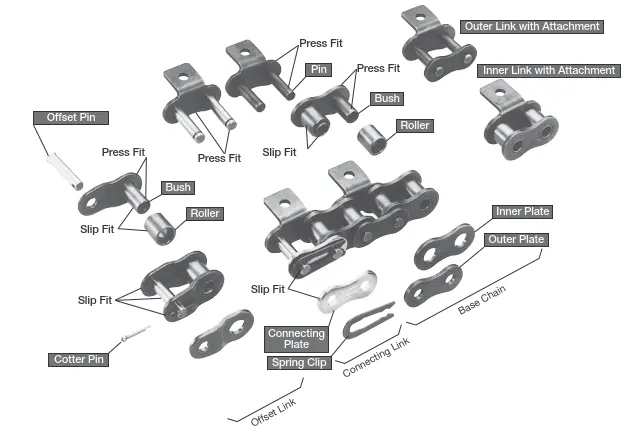

Structure of 20ASS/100SS Stainless Steel Short Pitch Conveyor Chain

The 20ASS/100SS Stainless Steel Short Pitch Conveyor Chain consists of several key components:

Chain Plate:
The chain plate is the main body of the chain, including the inner pin shaft, inner chain plate, outer chain plate, and outer pin shaft.
Roller:
Located on the inner pin shaft of the chain plate, the roller transfers power and reduces friction.
Pin Shaft:
The pin shaft connects the chain plate and the roller, transmitting power to the chain wheel.
WA-1 WA-2/WK-1WK-2 Attachments:
These attachments usually integrate tightly with the chain, providing additional functions and flexibility, making the chain suitable for different application requirements.

Material Features of 20ASS/100SS Stainless Steel Short Pitch Conveyor Chain

The stainless steel material used in the 20ASS/100SS Stainless Steel Short Pitch Conveyor Chain is typically made of 304 or 316 stainless steel. Here are some of the key features of this material:

Corrosion resistance: Stainless steel has good resistance to corrosion, able to withstand the corrosion of water, acid, alkali, etc.
Acid-alkali resistance: Stainless steel can resist the corrosion of strong acid and strong alkali.
High-temperature resistance: Stainless steel can withstand high-temperature environments.
Wear resistance: Stainless steel can bear large loads and wear, suitable for heavy-load conveyor equipment.

Applications of 20ASS/100SS Stainless Steel Short Pitch Conveyor Chain

The 20ASS/100SS Stainless Steel Short Pitch Conveyor Chain is widely used in various industries for different applications:

Food: Used in food processing and packaging, for transporting food and beverages.
Beverage: Used in beverage processing and packaging, for transporting beverages and canned goods.
Chemical: Used in chemical production and transportation, for conveying chemicals and raw materials.
Pharmaceutical: Used in pharmaceutical production and packaging, for conveying drugs and raw materials.
Metallurgy: Used in metallurgical production and processing, for conveying metal materials and raw materials.

Maintenance and Care of 20ASS/100SS Stainless Steel Short Pitch Conveyor Chain

Proper maintenance and care of the 20ASS/100SS Stainless Steel Short Pitch Conveyor Chain can prolong its service life and ensure optimal performance:

Cleaning: Regular cleaning of the chain can remove accumulated dust and dirt that can accelerate wear and corrosion.
Lubrication: Regular lubrication can reduce friction and heat produced during operation, reducing wear on the chain.
Inspection: Regular inspection of the chain can detect wear, corrosion, or deformation. Any abnormalities should be repaired or replaced promptly.

stainless steel sprockets for Chains

The Stainless Steel Sprockets for Chains serve as the backbone of a robust and durable chain system. The seamless interaction between these sprockets and chains is crucial for smooth and efficient mechanical operations. The corrosion-resistant nature of stainless steel ensures longevity, making it ideal for various applications. The precise engagement of teeth on the sprockets with the links of the chain guarantees reliable power transmission. This symbiotic relationship enhances the overall performance, reducing wear and tear while maintaining a high level of efficiency. In industries where reliability is paramount, the combination of stainless steel sprockets and chains becomes indispensable for seamless functionality. We also offer high-quality stainless steel sprockets for sale.
