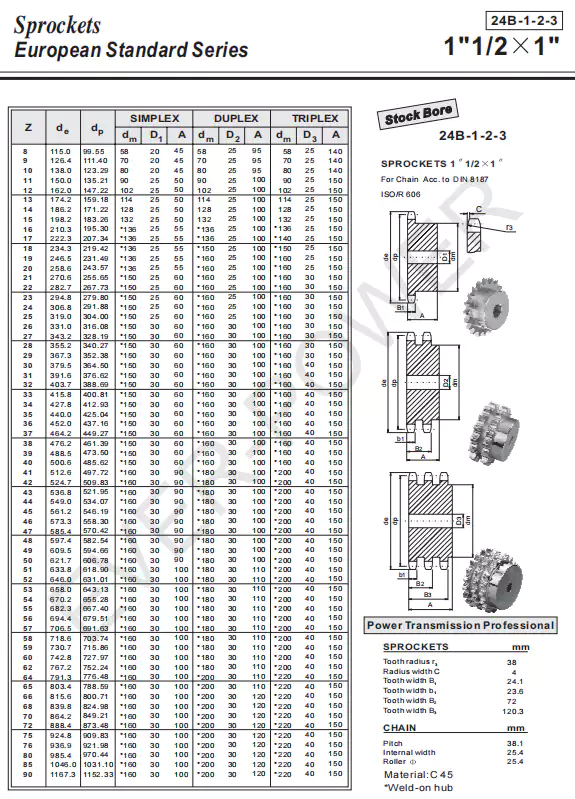

24B-1-2-3 Standard Bore Sprocket

24B-1-2-3 Standard Bore Sprocket

What is a standard bore sprocket?

A standard bore sprocket is a type of sprocket that is used in various mechanical systems to transfer torque and rotation between a driving shaft and a driven component, typically a chain. It is designed with a standardized bore size to fit onto a specific shaft diameter. The 24B-1-2-3 Standard Bore Sprocket is one such example.

Basic Structure and Customization of Sprockets

• Materials: Sprockets can be made from high carbon steel, alloy steel, or stainless steel, depending on the specific application requirements.
• Tooth Profile: The tooth profile determines the engagement and performance characteristics of the sprocket. Common profiles include standard, double pitch, and specialty profiles.
• Number of Teeth: The number of teeth on a sprocket determines the speed ratio and torque transmission capabilities.
• Dimensions: Sprockets come in various sizes to accommodate different chain widths and pitch sizes.
• Bore: The bore of a sprocket should match the diameter of the shaft it will be mounted on.
• Keyway: Some sprockets have keyways to ensure proper alignment and prevent rotational slippage.
• Surface Treatment: Sprockets can undergo surface treatments such as rust prevention coatings to enhance durability.

Materials and Manufacturing Process

Our sprockets are made from high carbon steel or alloy steel, depending on the specific application requirements. The manufacturing process involves material selection, cutting, stamping or forging, machining (turning, milling, drilling), heat treatment (quenching, tempering, surface hardening), surface treatment (anti-rust coatings), and quality inspection to ensure product reliability and performance.

Applications

• Heavy Machinery and Equipment: Our sprockets find applications in heavy-duty machinery and equipment, such as construction machinery, mining equipment, and agricultural machinery.
• Food Processing and Packaging: Sprockets are used in food processing and packaging machines, ensuring efficient and reliable operation in the food industry.
• Chemical and Pharmaceutical: Our sprockets are suitable for use in chemical and pharmaceutical processing equipment, where precision and cleanliness are essential.
• Assembly Lines: Sprockets play a crucial role in assembly line systems, enabling smooth movement and synchronization of components.
• Logistics and Warehousing: Sprockets are used in conveyor systems for efficient material handling and logistics in warehouses and distribution centers.

Maintenance and Troubleshooting

• Daily Inspection: Regularly inspect the sprocket for any signs of wear, damage, or misalignment.
• Cleaning: Keep the sprocket clean and free from dirt, debris, and excessive lubrication.
• Lubrication: Apply appropriate lubrication to the sprocket to reduce friction and extend its lifespan.
• Adjustment and Calibration: Periodically check and adjust the tension or alignment of the chain to ensure smooth operation.
• Common Issues and Solutions: Common problems with sprockets include tooth skipping, breakage, wear, excessive noise, and chain derailment. The appropriate solutions depend on the specific issue and may involve replacing the sprocket, repairing or replacing the chain, or adjusting the tension and alignment.

Other Types of Sprockets

In addition to the 24B-1-2-3 Standard Bore Sprocket, we also offer other types of sprockets to suit various application needs. These include platewheel sprockets, idler sprockets, qd sprockets, taper lock sprockets, and more. We also provide compatible chains for these sprockets.

Author: Miya
