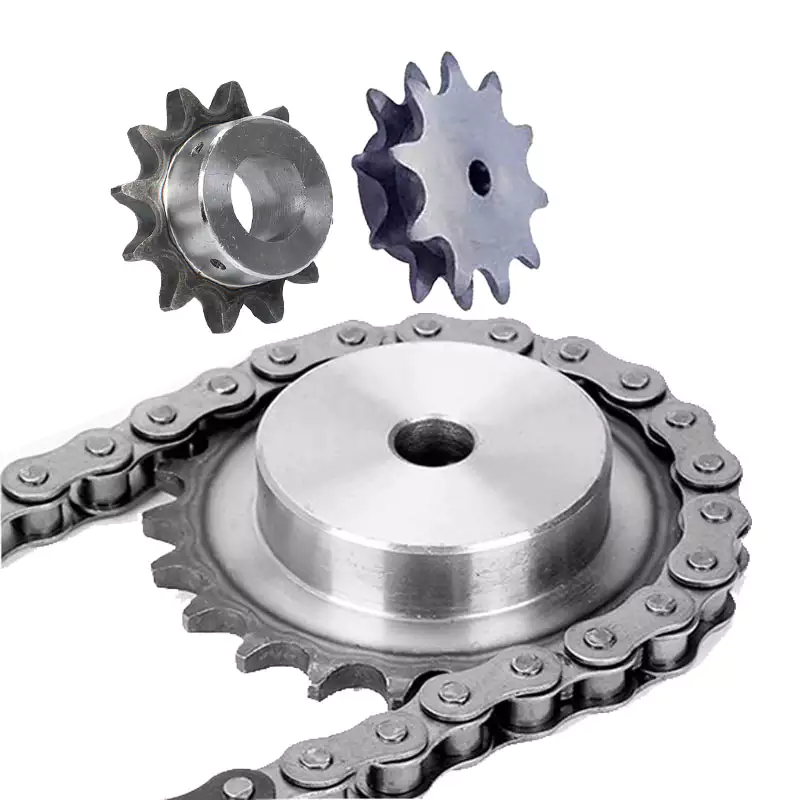

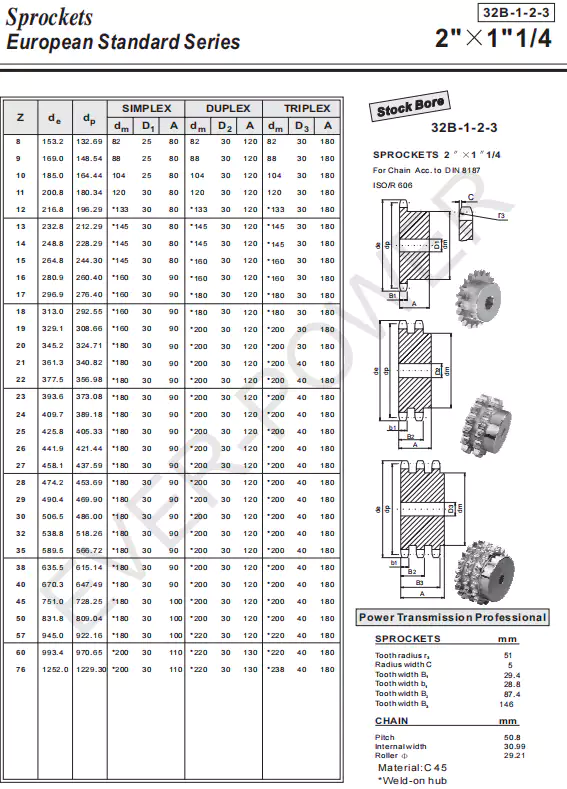

32B-1-2-3 Standard Bore Sprocket

32B-1-2-3 Standard Bore Sprocket

What is a standard bore sprocket?

A standard bore sprocket is a type of sprocket that is commonly used in various industrial applications. It is designed to transmit rotary motion between two shafts using a roller chain. The sprocket consists of teeth that mesh with the chain, allowing it to transfer power efficiently.

Basic structure of a sprocket

• Material: The material used for the sprocket can vary depending on the application requirements. Common materials include high carbon steel, alloy steel, or stainless steel.
• Tooth profile: The tooth profile determines the interaction between the sprocket and the chain. Different profiles are used based on the specific chain type.
• Number of teeth: The number of teeth on the sprocket affects the speed ratio and torque transmission of the system.
• Size: The overall dimensions of the sprocket determine its compatibility with the equipment.
• Bore: The bore is the central hole through which the sprocket is mounted onto the shaft. It needs to be properly sized to ensure a secure fit.
• Keyway: The keyway is a slot in the bore that allows a key to be inserted, providing additional torque transmission.
• Surface treatment: The surface of the sprocket can be treated to enhance its durability and resistance to corrosion.

Materials and processes used in our sprockets

• Material: We use high carbon steel, alloy steel, or stainless steel for our sprockets, depending on the application requirements.
• Processes: Our sprockets are manufactured using various processes, including material selection and cutting, stamping or forging, machining operations such as turning, milling, and drilling, heat treatment for hardening and tempering, surface hardening to improve wear resistance, surface treatment for rust prevention, and quality testing to ensure product reliability.

Applications of sprockets

• Heavy machinery and equipment: Sprockets are widely used in various heavy-duty applications, such as construction machinery and mining equipment.
• Food processing and packaging: Sprockets are employed in food production lines and packaging equipment, ensuring efficient and reliable operation.
• Chemical and pharmaceutical industry: Sprockets are utilized in chemical processing and pharmaceutical manufacturing equipment for smooth material handling and processing.
• Assembly lines: Sprockets are crucial components in assembly line systems, enabling the movement of products and parts during the manufacturing process.
• Logistics and warehousing: Sprockets are integral in conveyor systems used for material transportation and storage in warehouses and distribution centers.

Maintenance and care of sprockets

• Daily inspection: Regularly check the sprocket for any signs of wear, damage, or misalignment.
• Cleaning: Keep the sprocket clean and free from debris to prevent interference with chain operation.
• Lubrication: Apply appropriate lubrication to ensure smooth movement and reduce friction between the sprocket and chain.
• Adjustment and calibration: Periodically adjust the tension and alignment of the chain to maintain optimal performance.

Common issues and solutions

• Skipping teeth: Check for worn-out teeth or a loose chain. Replace the sprocket or adjust the chain tension accordingly.
• Breakage: Inspect for any signs of fatigue or excessive load. Replace the sprocket with a higher-rated one if necessary.
• Wear and tear: Regularly monitor the sprocket's condition and replace it when the teeth become excessively worn.
• Noise: Lubricate the sprocket and chain, and ensure proper tension to minimize noise caused by friction.
• Chain slippage: Verify that the chain is correctly installed and properly tensioned. Adjust as needed or consider replacing with a new chain.

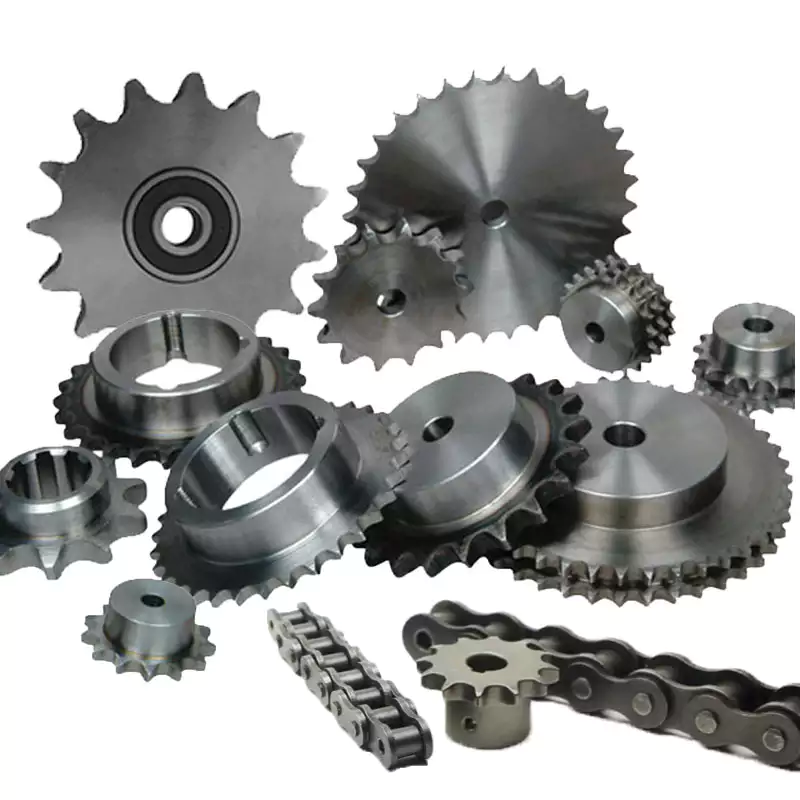

We also offer other types of sprockets such as platewheel sprockets, idler sprockets, qd sprockets, and taper lock sprockets, along with compatible chains.

Author: Miya
