330 Bucket Elevator Chain

330 Bucket Elevator Chain

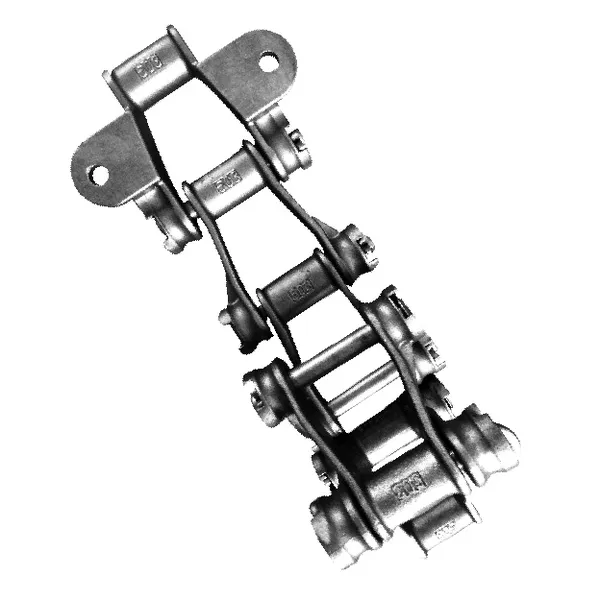

The 330 bucket elevator chain is a type of chain used in bucket elevators, which are mechanical devices used for vertically conveying bulk materials such as grains, seeds, fertilizers, and other granular or powdered materials. The chain plays a crucial role in the operation of the bucket elevator by supporting the buckets and facilitating the vertical movement of the material.

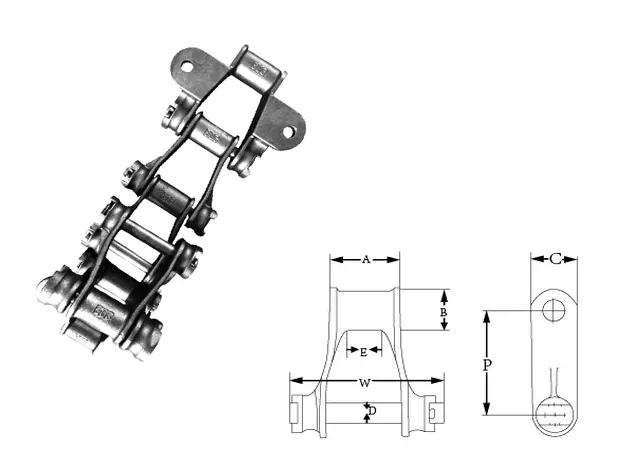

330 Bucket Elevator Chain Dimensions

330 Bucket Elevator Chain Dimensions in Inches:

Chain No.	330 Bucket Elevator Chain
Pitch In Inches	6.30
Weight	10.0
Allowable Chain Pull	5160
Breaking Load	40000
Links Per Coil	19
A	2.75
B	1.75
C	1.75
D	0.75
E	1.50
W	5.75



More About 330 Bucket Elevator Chains

This model of bucket elevator chain is commonly used in medium-duty bucket elevators, where it provides reliable and efficient conveying of materials. It is designed to withstand the demanding conditions of bulk material handling, including high loads, continuous operation, and abrasive environments. The 330 bucket elevator chain typically consists of interlocking steel links with pins and bushings that allow for smooth articulation and movement. The buckets are attached to the chain at regular intervals, forming a continuous loop. As the chain moves, the buckets scoop up the material from a lower point and discharge it at a higher point, achieving vertical transportation.The 330 bucket elevator chain is a high-strength, heavy-duty chain that is used in a variety of industrial applications, including bucket elevators, conveyors, and mining equipment. It is made of high-quality steel and is designed to withstand high loads and demanding conditions. It is an essential component of many industrial machines and is used to move materials safely and efficiently.

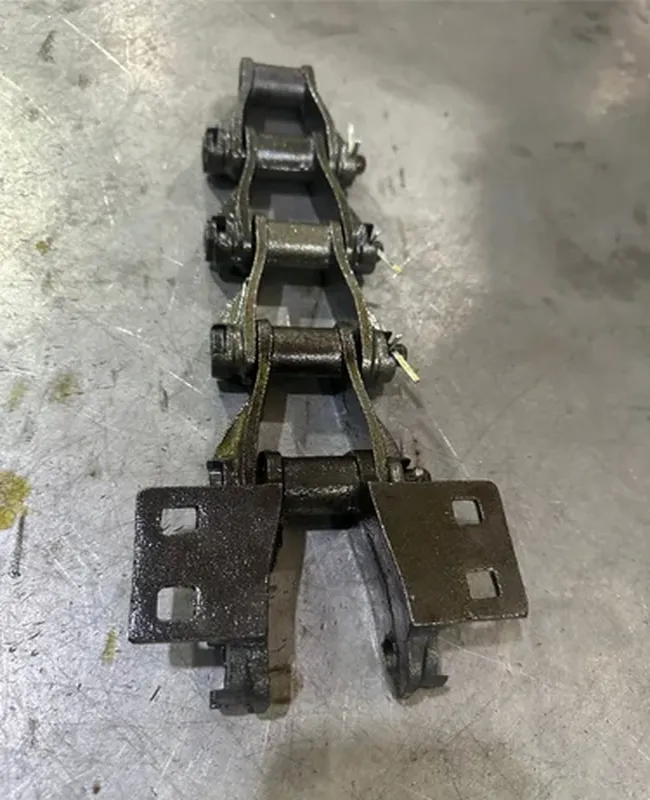

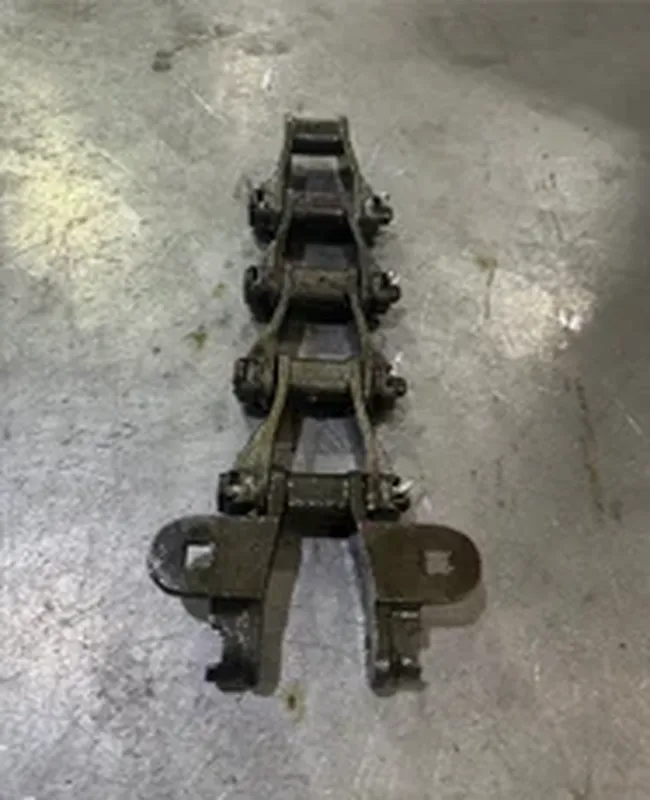

Advantages of 330 Bucket Elevator Chain

The 330 bucket elevator chain offers several advantages that make it a preferred choice in many industrial applications. Here are some of its key advantages:

1. High Load Capacity: The 330 bucket elevator chain is designed to handle heavy loads efficiently. Its robust construction and high-strength materials enable it to withstand the weight of bulk materials without compromising performance.2. Reliable Performance: This 330 bucket elevator chain is known for its reliable and consistent performance. It is engineered to operate smoothly, ensuring uninterrupted material handling and minimizing downtime. The chain's design and manufacturing precision contribute to its reliability.3. Long Service Life: The 330 bucket elevator chain is built to last. It is resistant to wear, corrosion, and fatigue, allowing it to withstand the harsh operating conditions commonly encountered in industries like mining, agriculture, and manufacturing. This longevity reduces the need for frequent replacements and lowers maintenance costs.

4. Versatile Applications: The 330 bucket elevator chain is suitable for a wide range of applications and can handle various bulk materials, including grains, seeds, fertilizers, minerals, and aggregates. Its versatility makes it a popular choice in multiple industries, providing efficient vertical transportation solutions.5. Customizable Configurations: The 330 bucket elevator chain can be customized to meet specific application requirements. It is available in different configurations, such as different types of attachments and chain lengths, allowing for easy adaptation to different elevator designs and capacities.6. Easy Maintenance: Proper maintenance is crucial for chain performance and longevity. The 330 bucket elevator chain is designed for easy maintenance, with features such as lubrication points that facilitate smooth operation. Regular inspection, lubrication, and upkeep can help maximize the chain's service life and minimize downtime.

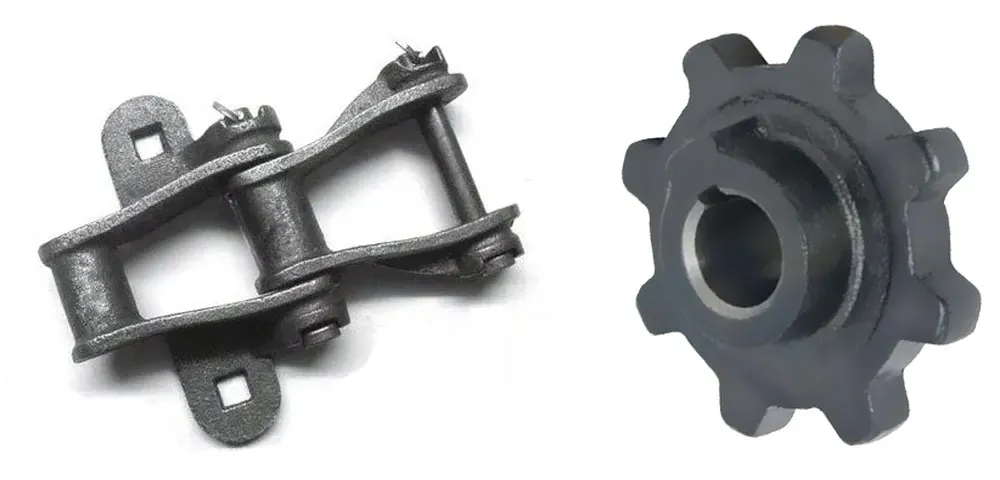

Bucket Elevator Chain Sprockets for 330 Bucket Elevator Chain

Bucket elevator chain sprockets are an integral part of the bucket elevator system that works in conjunction with the 330 bucket elevator chain. Sprockets are toothed wheels that engage with the chain, providing the driving force to move the chain and buckets in a bucket elevator. Here are some key points to understand about bucket elevator chain sprockets and their relationship with the 330 bucket elevator chain:(1) Design and Construction: Bucket elevator chain sprockets are specifically designed to match the pitch and width of the chain they are intended to work with. In the case of the 330 bucket elevator chain, the sprockets will have teeth spaced at the appropriate pitch to engage with the chain's links. They are typically made of durable materials such as steel and are precision-engineered to ensure proper alignment and smooth engagement with the chain.(2) Pitch Alignment: The pitch alignment between the sprockets and the 330 bucket elevator chain is crucial for efficient and reliable operation. Pitch alignment ensures that the chain properly engages with the sprocket teeth, minimizing wear and preventing chain slippage or disengagement during operation. Proper pitch alignment is achieved by selecting sprockets specifically designed for the pitch of the chain.(3) Tooth Profile: Sprockets for bucket elevator chains often feature a specific tooth profile optimized for smooth engagement and reduced wear. The tooth profile should match the shape of the chain's links to ensure efficient power transmission and minimize stress concentration on the chain and sprockets.(4) Sprocket Maintenance: Like any other mechanical component, bucket elevator chain sprockets require regular maintenance. This includes lubrication to reduce friction and wear, as well as periodic inspection to check for signs of wear, tooth damage, or misalignment. Timely maintenance and replacement of worn or damaged sprockets can help prevent chain failure and ensure the smooth operation of the bucket elevator system.In summary, bucket elevator chain sprockets are designed to work in conjunction with the 330 bucket elevator chain. The sprockets provide the driving force and pitch alignment required for efficient and reliable operation. Proper maintenance and alignment of the sprockets are essential to ensure the longevity and optimal performance of the bucket elevator system.

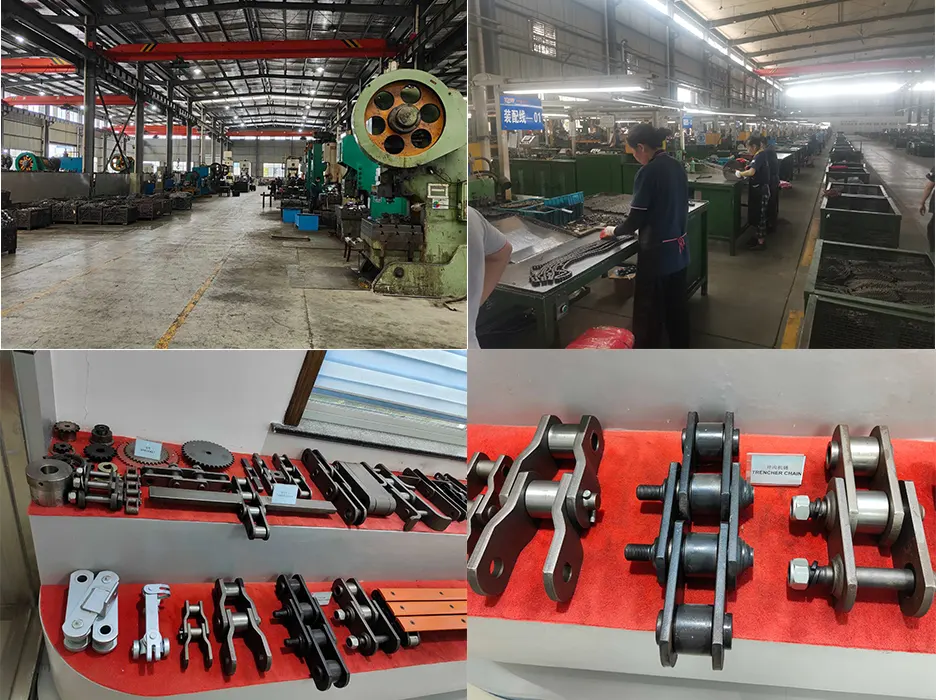

China Bucket Elevator Chain?Manufacturers-Raydafon

Raydafon is a leading manufacturer specializing in high-quality bucket elevator chains for various industrial applications. With advanced production facilities and over a decade of experience, we offer durable and reliable chains designed to withstand demanding environments. Our products are widely used in industries such as cement, mining, and agriculture, providing superior performance and long service life. We maintain strict quality control standards to ensure each chain meets international specifications. Raydafon is committed to delivering excellent customer service, competitive pricing, and customized solutions to meet the specific needs of clients in Europe, North America, and beyond.We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like roller chains, double pitch conveyor chains, hollow pin chains, leaf chains, flat top chains, side bow chains, lumber conveyor chains, 81X conveyor chains, agricultural chains, CA550 roller chains, S55 roller chains, silent chains, X458 conveyor chains, grip chains (film gripper chains), PIV chains, stainless steel chains, nickel/ zinc plated chain, slient chain, engineering chain, steel pintle chain, welded steel chain, drop forged chain, malleable iron chain, "H" Class mill chain, CC Class crate conveyor chain,??"H" Class refuse drag chain, "H" Class transfer rooftop chain, and many other types. Different kinds of attachments are available.
