3558T Plucking Conveyor Chain
  • 3558T Plucking Conveyor Chain3558T Plucking Conveyor Chain

3558T Plucking Conveyor Chain

The Raydafon Group's 3558T Plucking Conveyor Chain is designed for efficient material handling, offering durability with high-quality materials and precision engineering. It suits industrial users in agriculture, manufacturing, and logistics, enhancing productivity by reducing downtime. This chain stands out with its smooth operation and reliability, delivering a sense of efficiency and problem-solving ease. Experience superior performance today with our trusted quality assurance.
Send Inquiry
Product Description
3558T-48001 3558T-48001F1 3558T-48002 Agricultural Plucking Conveyor Chain

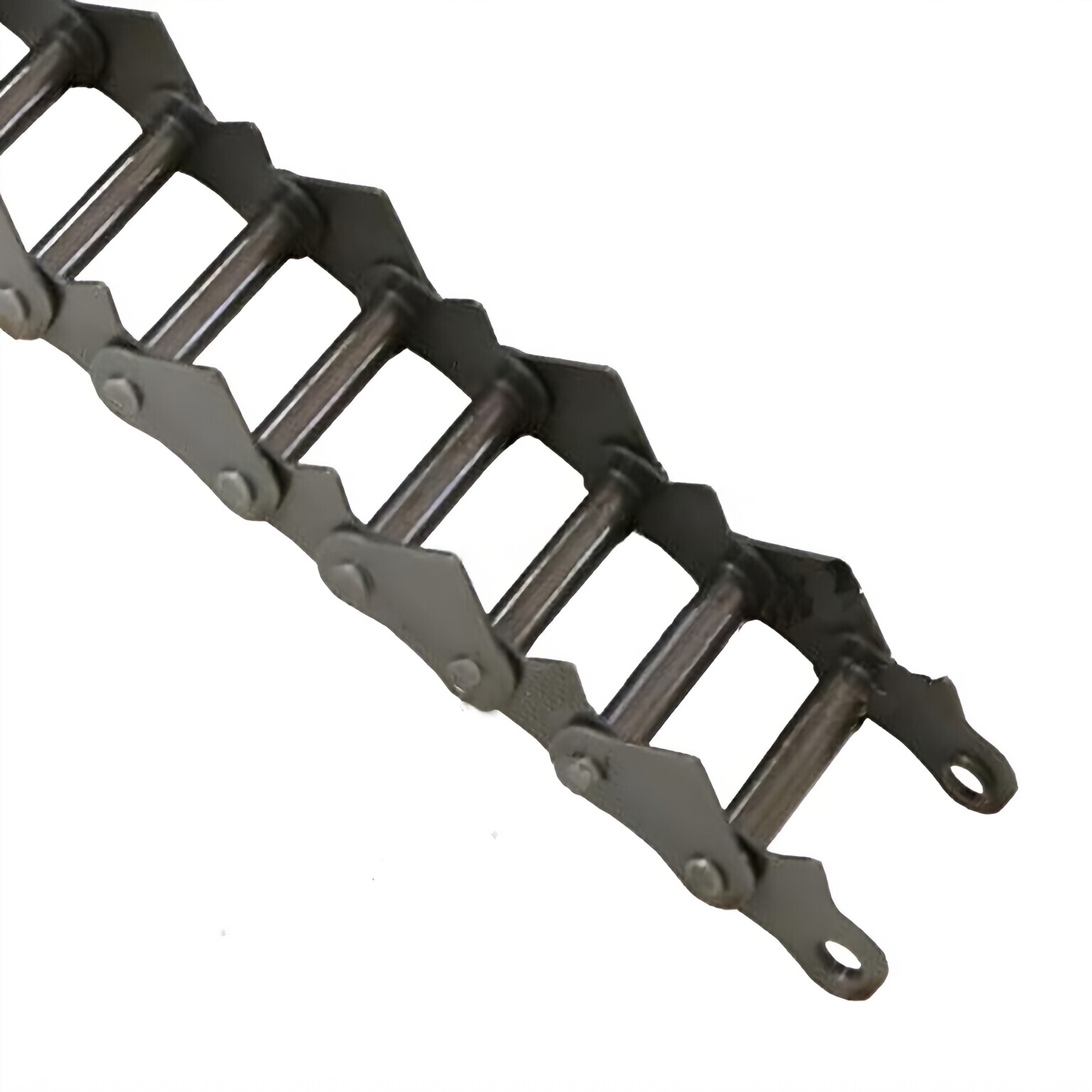

[caption id="" align="alignnone" width="700"]3558T Plucking Conveyor Chain Plucking Conveyor Chain[/caption]

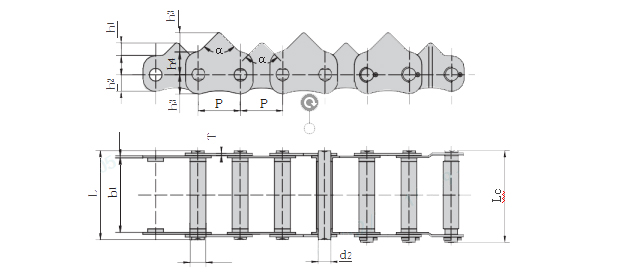

[caption id="" align="alignnone" width="619"]3558T Plucking Conveyor Chain Plucking Conveyor Chain[/caption]
3558T-48001
558T-48001F1
3558T-48002
Pitch
P
35
35
35
Roller diameter
d1 max
10.1
12.6
12.8
Width between inner plates
b1 min
58
58
58
Pin diameter
d2 max
7
10
7
Pin length
Lmax
69.4
69.4
69.4
Lc max
72
71.2
72
Tooth angle
α
90
90
90
Plate dimension
h1
10
10
10
h2
13
13
13
h3
15
15
15
h4
18
18
18
Plate thickness
T
1.6/2.03
1.6/2.03
1.6/2.03
Ultimate tensile strength
Qmin
19.6/4457
19.6/4457
19.6/4457
Average tensile strength
Q0
23
23
23
we are specialised in producing Agricultural Roller Chain, Flat Top Chain,Caterpillar Track Chain,Hollow Pin Chain,Conveyor Chain for Beer Filling and Packing Line,Paver Chain,Attachment Sidebar Elevator Chain,Bucket Elevator Chain (Cement Mill Chain),Forging Scraper Chain,Loading Chain for Automobile Industry,Loading Chain for Metallurgical Industry,Conveyor Chain for Mine Machinery,Trencher Chain,Sugar Mill Chain,Double Flex Chain,etc. Welcome calls and emails to inquiry!
