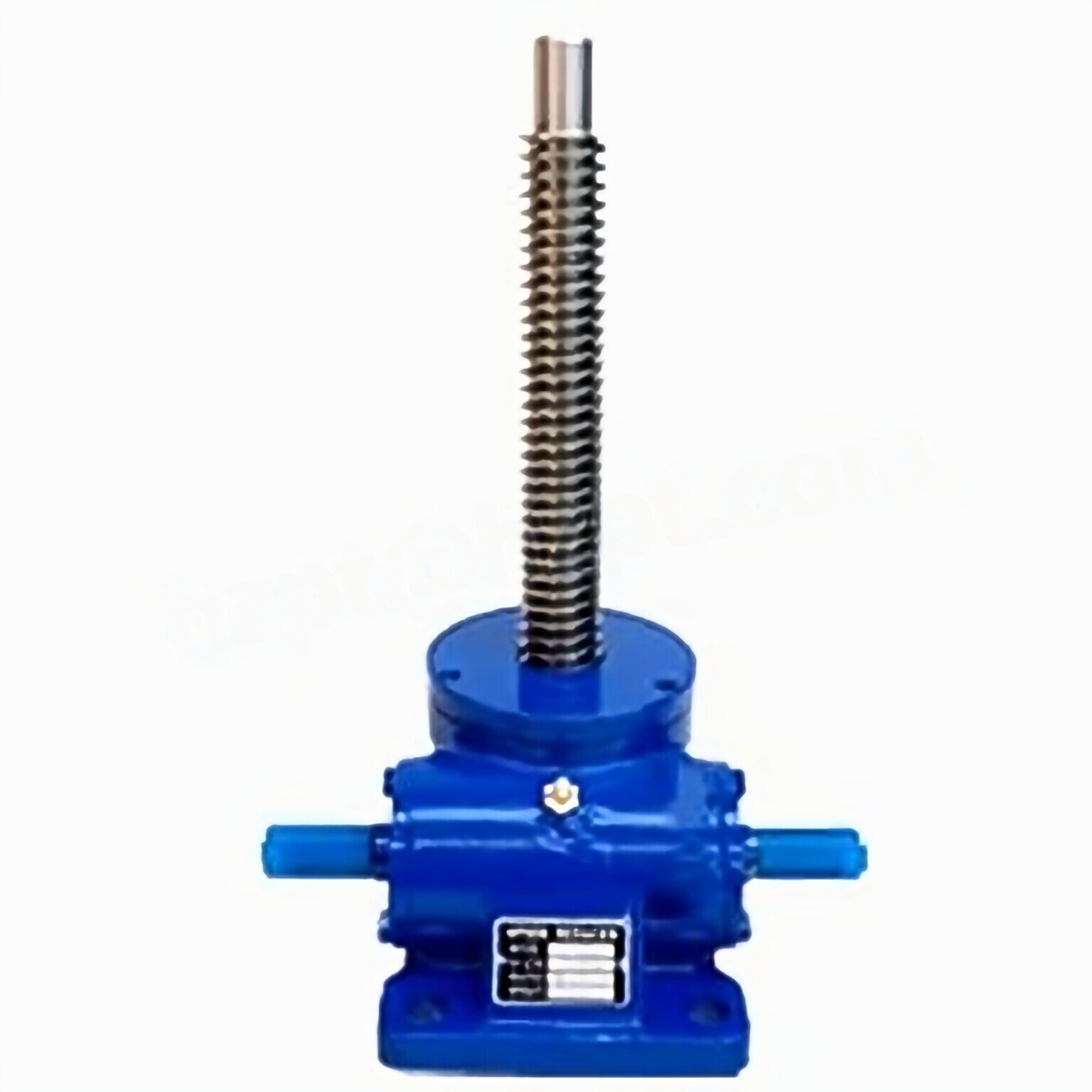

400KG Small Bevel Gear Screw Jack

Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Construction works, Energy & Mining, Lifting System, Lift Table, Lifting Platform
Weight (KG): 5 KG
Customized support: OEM, ODM, OBM
Gearing Arrangement: Bevel / Miter
Output Torque: Drive Shaft
Input Speed: Maximum 1000RPM
Output Speed: Maximum 500RPM
Product name: 400KG Small Bevel Gear Screw Jack
Structures: Jack housing, bevel gears, drive shafts, bearings etc.
Load Capacities: Static Load Maximum 400KG
Mounting Type: Upright or Inverted
Screw Design: Translating Screw, Keyed Screw, Rotating Screw
Travel Stroke: Customized, 5-1000MM
Bevel Gear Ratio: 2:1
Lifting Screw Ends: Top Plate, Clevis End, Thread End, Plain End, Customized
Input Types: Solid Input Shaft, Motor Flange Coupled, or Both
Operation: Manual Operation, or Electrical Driven
Gearing Arrangement: Bevel / Miter
Output Torque: Drive Shaft
Input Speed: Maximum 1000RPM
Output Speed: Maximum 500RPM
Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Construction works, Energy & Mining, Lifting System, Lift Table, Lifting Platform
Weight (KG): 5 KG
Customized support: OEM, ODM, OBM
Product name: 400KG Small Bevel Gear Screw Jack
Structures: Jack housing, bevel gears, drive shafts, bearings etc.
Load Capacities: Static Load Maximum 400KG
Mounting Type: Upright or Inverted
Screw Design: Translating Screw, Keyed Screw, Rotating Screw
Travel Stroke: Customized, 5-1000MM
Bevel Gear Ratio: 2:1
Lifting Screw Ends: Top Plate, Clevis End, Thread End, Plain End, Customized
Input Types: Solid Input Shaft, Motor Flange Coupled, or Both
Operation: Manual Operation, or Electrical Driven
Packaging Details: Strong Exporting Plywood Cases (International Exporting Standard Wooden Material with Free Fumigation).
Port: Shenzhen, Guangzhou, Hongkong

Features400KG Small Bevel Gear Screw Jacksprovide a fast lifting speed with ball screw and trapezoidal spindle. Due to the high efficiency of the integral bevel gears a high overall efficiency is provided. Upright or inverted mount. Available in Translating, Keyed for non-rotating, and Travelling Nut designs. Can be operated by manually operated with handwheel or by electrically drive with engine motor. Bevel lifting jacks act as miter boxes, making them an ideal choice for multi-jack systems. As many as three output shafts may be specified for mounting motors, limit switches, couplings and other accessories.



Specifications

400KG Small Bevel Gear Screw Jack Technical Parameters:

Drawing DimensionsAbout 2D Autocad dwg, dxf assembly drawings, and 3D stp, step, model, igs, prt or catpart assembly drawings, please contact Raydafon directly.
Packaging & ShippingShipping: 1. Ocean freight: seaport to seaport, price terms CIF, FOB, EXW, CFR etc.2. Air freight: airport to airport, price terms EXW, CRF etc.3. Air courier: DHL, FEDEX, UPS, TNT door to door shipment, price terms DDU, CPT etc.Packing: 100% standard exporting plywood cases.
Note: International Exporting Standard Wooden Material with Free Fumigation.
