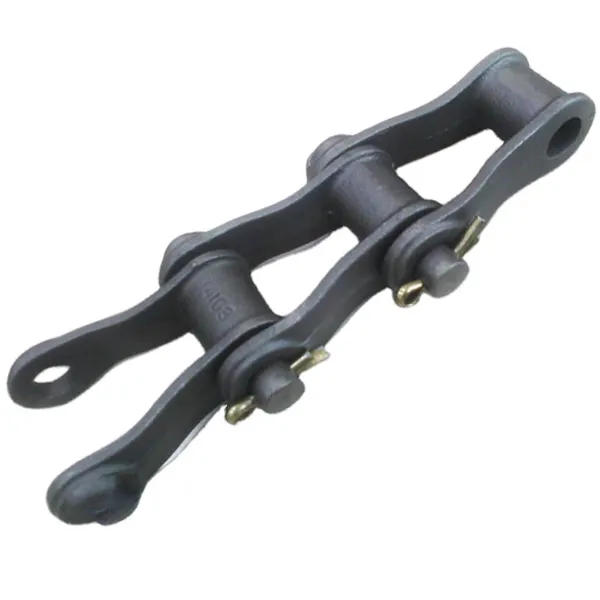

4103 Pintle Chain

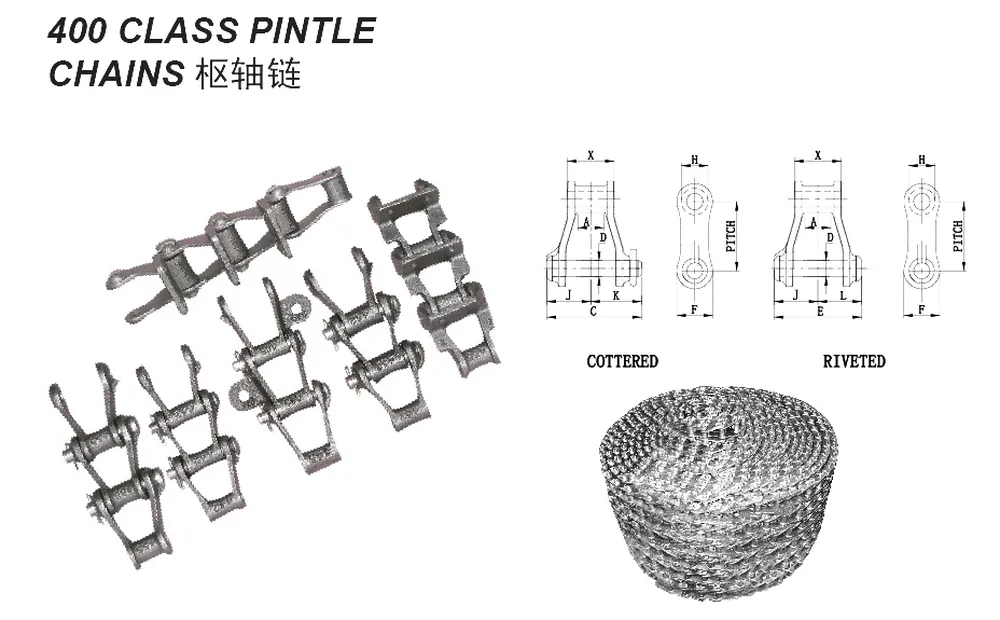

Chain No.	4103 Pintle Chain
Pitch In Inches	3.075
Weight Per Foot LBS	5.70
Average Ultimate Strength	27000
Maximum Working Load LBS.	42000
A	1.12
C	3.56
D	0.75
E	3.25
F	1.50
H	1.25
X	1.88
Available Attachments	F2, F29, K2

4103 Pintle Chain Attachments:

There are a variety of 4103 pintle chain attachments available, each designed for a specific application. Some of the most common attachments include the 4103 F2 attachment, the 4103 F29 attachment, and the 4103 K2 attachment.

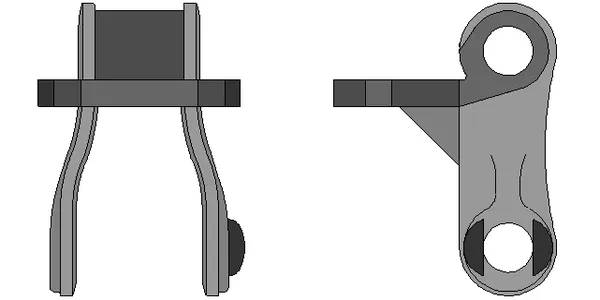

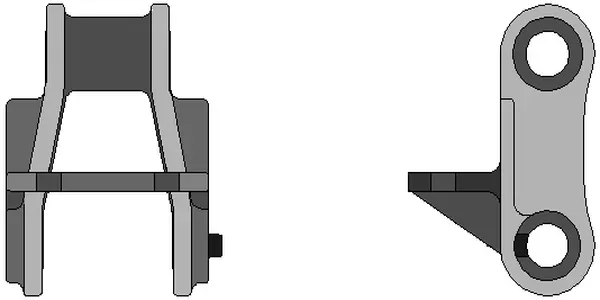

4103 Pintle Chain F2 Attachment	4103 Pintle Chain F29 Attachment

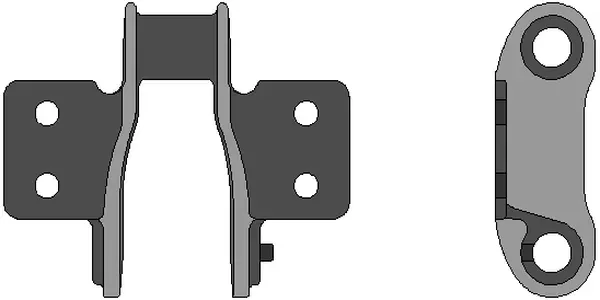

4103 Pintle Chain K2 Attachment

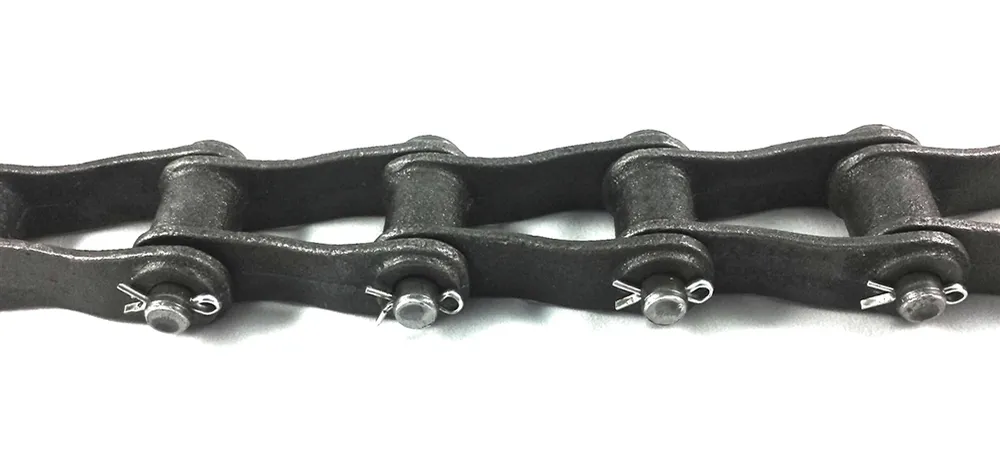

Advantages of 4103 Pintle Chain:

Here are some of the advantages of the 4103 pintle chain:

1. Lightweight: The 4103 pintle chain is lighter than other types of chains, making it easier to transport and use. This can be a major advantage in applications where weight is a concern, such as agricultural equipment.2. Economical: The 4103 pintle chain is a relatively inexpensive chain, making it a good option for budget-minded applications.3. Durable: The 4103 pintle chain is made of high-quality materials and is heat-treated to improve its strength and durability. This makes it a good choice for applications where the chain will be subjected to heavy loads or harsh conditions.4. Easy to maintain: The 4103 pintle chain is relatively easy to maintain. The pins and bushings can be replaced as needed, and the chain can be cleaned and lubricated to keep it running smoothly.5. Wide range of applications: The 4103 pintle chain is found in a wide range of applications, including agricultural equipment, conveyors, elevators, and wastewater treatment systems.

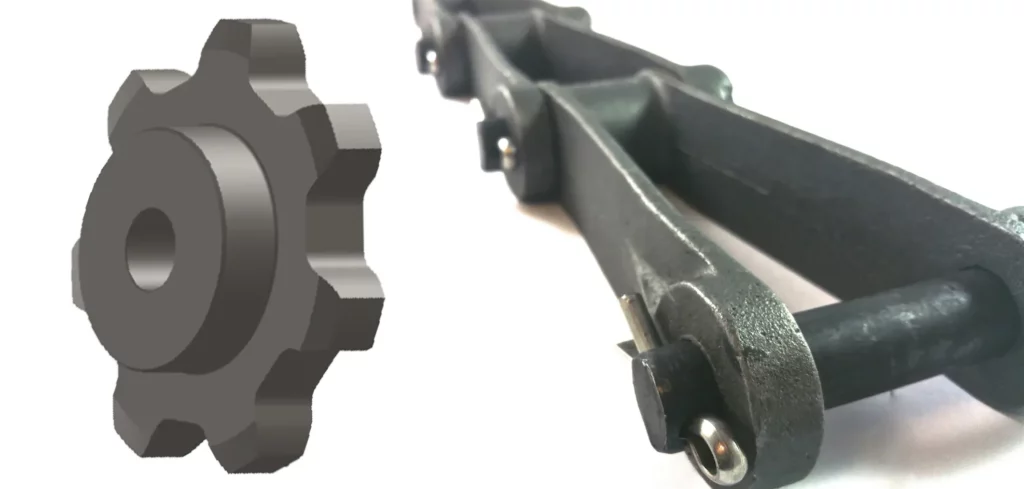

4103 Pintle Chain Sprockets for 4103 Pintle Chains:

When using the 4103 pintle chain, it is crucial to consider the corresponding sprockets that work in conjunction with the chain. Sprockets are toothed wheels that engage with the chain, providing the necessary power transmission and control. Here's some information about 4103 pintle chain sprockets and their compatibility with the chain:(1) Sprocket Design: The design of the 4103 pintle chain sprocket must match the pitch size and tooth configuration of the 4103 pintle chain. The sprocket will typically have teeth that correspond to the spacing of the chain's rollers and link plates, ensuring proper engagement and smooth operation.(2) Pitch Size: The pitch size of the 4103 pintle chain sprocket should match the pitch size of the 4103 pintle chain. In the case of the 4103 pintle chain, the pitch size is typically 3.075 inches. Ensuring compatibility between the chain and sprocket pitch sizes is essential for proper power transmission and efficient operation.(3) Tooth Configuration: The tooth configuration of the 4103 pintle chain sprocket should match the shape and dimensions of the chain's rollers and link plates. This ensures that the chain fits securely into the sprocket, preventing slippage and maintaining proper engagement during operation.(4) Number of Teeth: The number of teeth on the 4103 pintle chain sprocket determines the speed ratio and power transmission capabilities. The selection of the sprocket with the appropriate number of teeth depends on the specific application requirements, such as desired speed and torque.(5) Material and Durability: The 4103 pintle chain sprocket material should be chosen based on the operating conditions and requirements of the application. Common materials for sprockets include steel, cast iron, and stainless steel, each offering different levels of strength and durability.When using the 4103 pintle chain, it is important to ensure that the sprocket and chain are compatible in terms of pitch size, tooth configuration, and design. Matching sprockets and chains appropriately will ensure smooth and efficient power transmission, reducing wear and extending the service life of both components.
