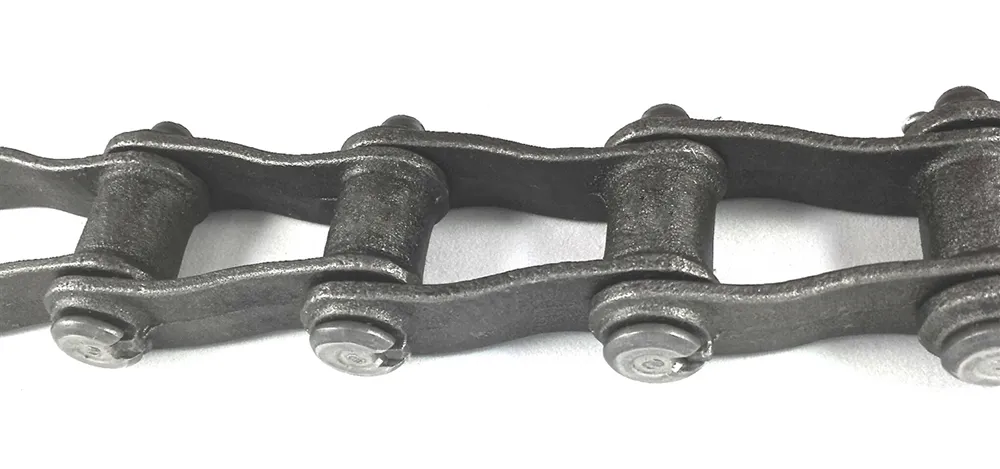

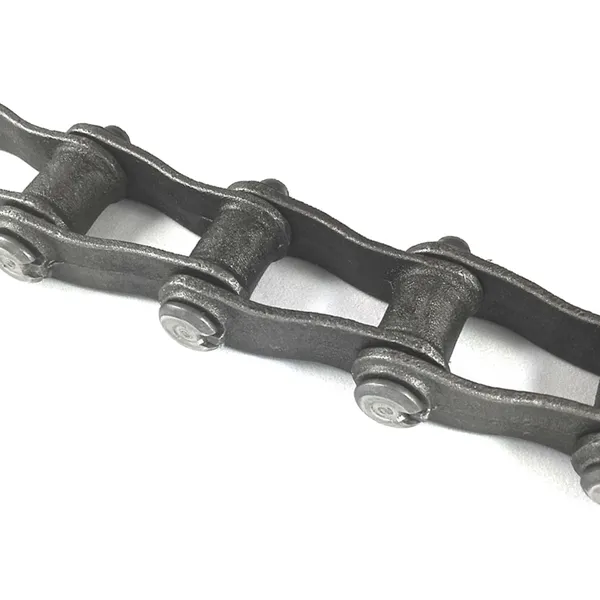

445 Pintle Chain

Chain No.	445 Pintle Chain
Pitch In Inches	1.630
Weight Per Foot LBS	1.50
Average Ultimate Strength	6000
Maximum Working Load LBS.	1000

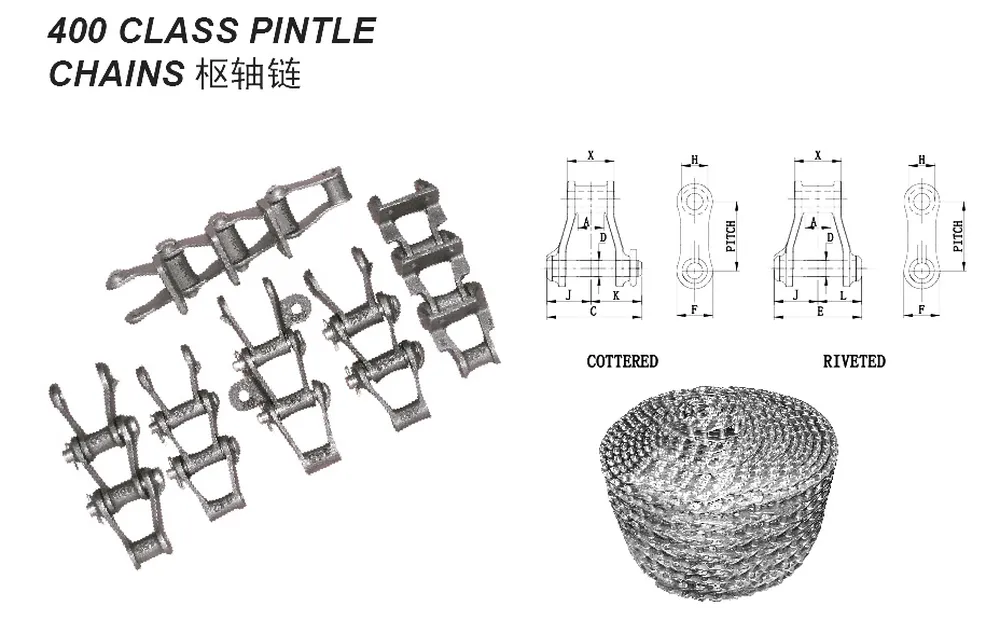

A	0.69
C	2.03
D	0.31
E	1.88
F	0.75
H	0.62
X	1.06
Available Attachments	A1, F2, K1

445 Pintle Chain Attachments:

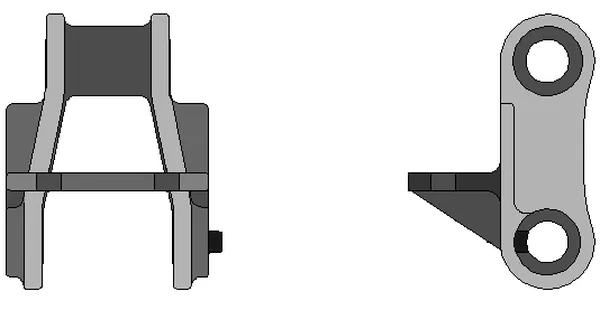

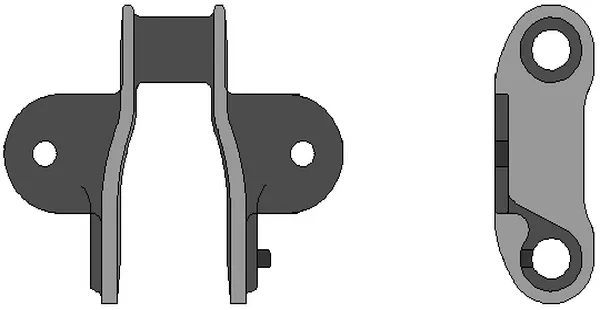

445 Pintle Chain K1 Attachment	445 Pintle Chain F2 Attachment

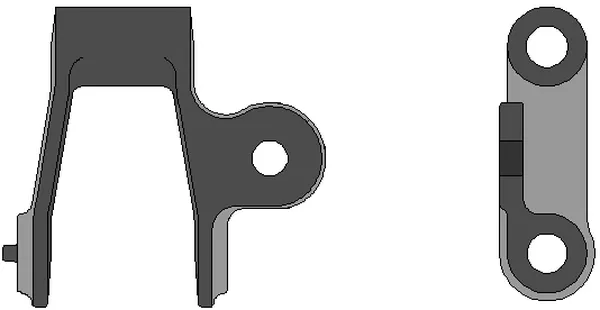

445 Pintle Chain A1L Attachment	445 Pintle Chain?A1R Attachment

445 Pintle Chain Advantages:

The 445 pintle chain is a type of pintle chain that is used in a variety of industrial applications. It is known for its strength, durability, and lightweight design. Here are some of the advantages of using a 445 pintle chain:

• Strength and durability: The 445 pintle chain is made of high-quality steel materials, which makes it very strong and durable. It can withstand heavy loads, shocks, and vibrations.
• Lightweight design: The 445 pintle chain is lightweight, which makes it easy to transport and maneuver. This can be a major advantage in applications where space is limited or where the chain needs to be lifted or moved frequently.
• Economical: The 445 pintle chain is relatively inexpensive, which makes it a cost-effective option for many applications.
• Wide range of applications: The 445 pintle chain can be used in a wide range of industrial applications, including:
  • Material Handling
  • Elevators
  • Conveyors
  • Agricultural machinery
  • Construction Equipment
  • Wastewater treatment
• Easy to maintain: The 445 pintle chain is relatively easy to maintain. It does not require as much lubrication as other types of chains, and it is less likely to break or wear out.

Overall, the 445 pintle chain is a versatile and reliable option for a variety of industrial applications. It is strong, durable, lightweight, and economical. If you are looking for a chain that can handle heavy loads and demanding conditions, the 445 pintle chain is a good choice.

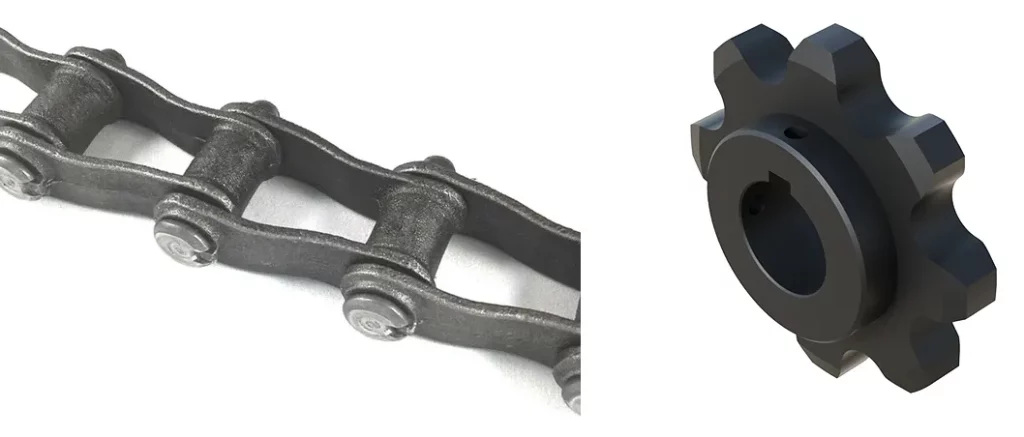

445 Pintle Chain Sprockets for 445 Pintle Chain:

The 445 pintle chain sprocket is the component that the chain engages with. The sprocket has teeth that match the pitch of the chain, and the number of teeth on the sprocket determines the speed of the chain. The sprocket is typically made of steel or cast iron, and it can be either a single-strand or double-strand sprocket.

The following are some of the factors to consider when choosing 445 pintle chain sprockets:

• Chain pitch:?The sprocket teeth must match the pitch of the chain.
• Sprocket size:?The sprocket size must be large enough to accommodate the chain.
• Sprocket material:?The sprocket material must be strong enough to withstand the loads and conditions of the application.
• Sprocket type:?The sprocket type (single-strand or double-strand) must match the chain type.
• Sprocket lubrication:?The sprocket must be lubricated to prevent wear and tear.

Here are some of the common applications of 445 pintle chain sprockets and 445 pintle chain:

• Material handling: 445 pintle chain sprockets and chains are used in conveyor systems to transport materials.
• Elevators: 445 pintle chain sprockets and chains are used in elevators to move people and materials.
• Conveyors: 445 pintle chain sprockets and chains are used in conveyor systems to transport materials.
• Agricultural machinery: 445 pintle chain sprockets and chains are used in agricultural machinery to power implements.
• Construction equipment: 445 pintle chain sprockets and chains are used in construction equipment to power winches and hoists.
• Wastewater treatment: 445 pintle chain sprockets and chains are used in wastewater treatment plants to move sludge and other materials.

China 400 Class Pintle Chain?Manufacturers

We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like roller chains, double pitch conveyor chains, hollow pin chains, leaf chains, flat top chains, side bow chains, lumber conveyor chains, 81X conveyor chains, agricultural chains, CA550 roller chains, S55 roller chains, silent chains, X458 conveyor chains, grip chains (film gripper chains), PIV chains, stainless steel chains, nickel/ zinc plated chain, slient chain, engineering chain, steel pintle chain, welded steel mill chain, drop forged chain, malleable iron chain, “H” Class mill chain, CC Class crate conveyor chain, ?“H” Class refuse drag chain, "H" Class transfer rooftop chain, and many other types. Different kinds of attachments are available.
