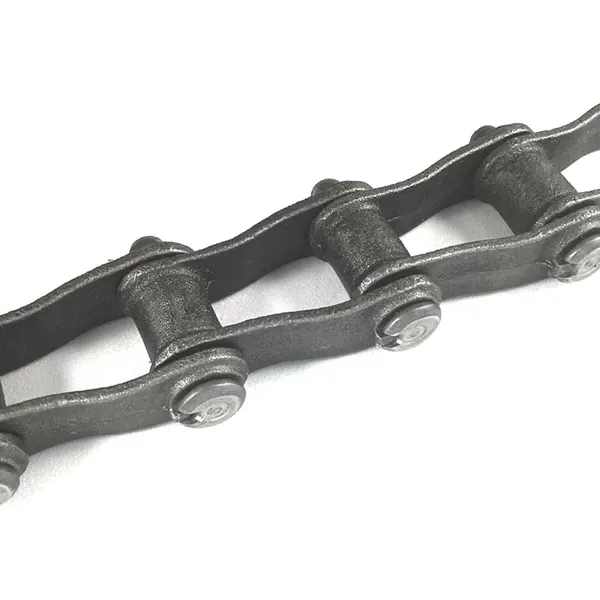

477 Pintle Chain

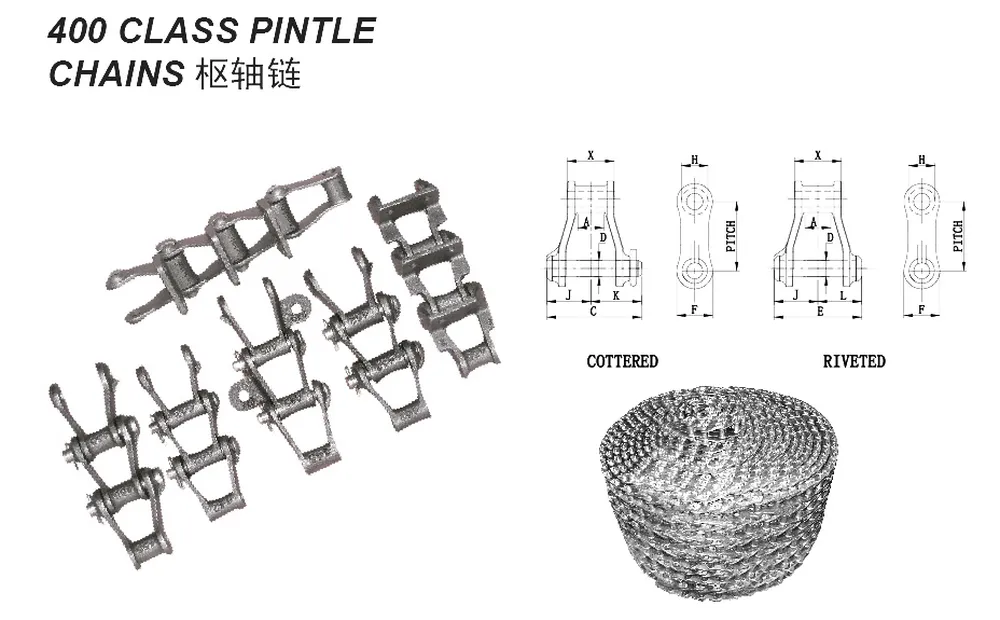

Chain No.	477 Pintle Chain
Pitch In Inches	2.308
Weight Per Foot LBS	2.00
Average Ultimate Strength	9600
Maximum Working Load LBS.	1640
A	0.69
C	2.38
D	0.44
E	2.25
F	1.00
H	0.72
X	1.25
Available Attachments	A22, D5, F2, F16, G1, G19, K1, K2

477 Pintle Chain Attachments:

There are a variety of 477 pintle chain attachments available, each designed for a specific application. Some of the most common attachments include the 477 A22 attachment, the 477 D5 attachment, the 477 F2 attachment, the 477 F16 attachment, the 477 G1 attachment, the 477 G19 attachment, the 477 K1 attachment, and the 477 K2 attachment.

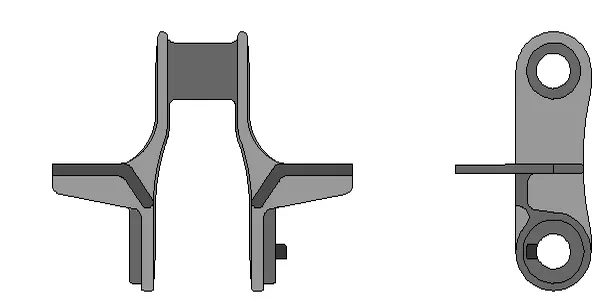

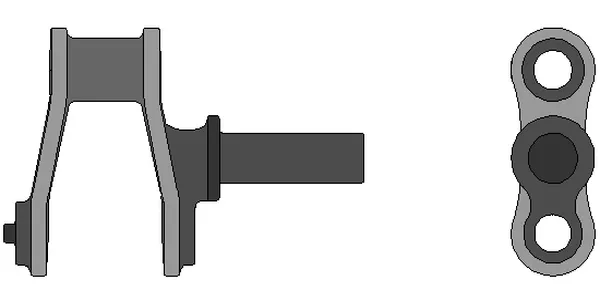

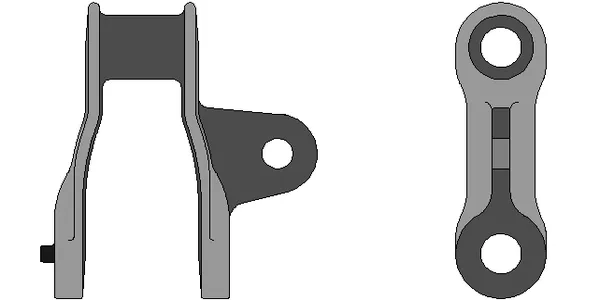

477 Pintle Chain A22 Attachment	477 Pintle Chain D5 Attachment	477 Pintle Chain F16 Attachment

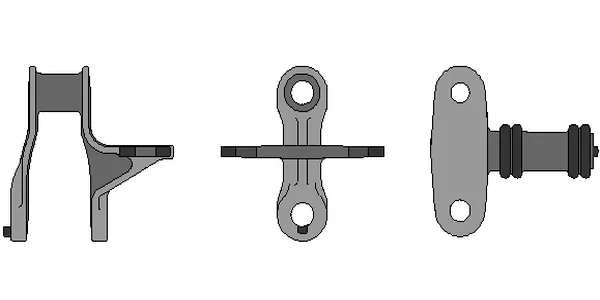

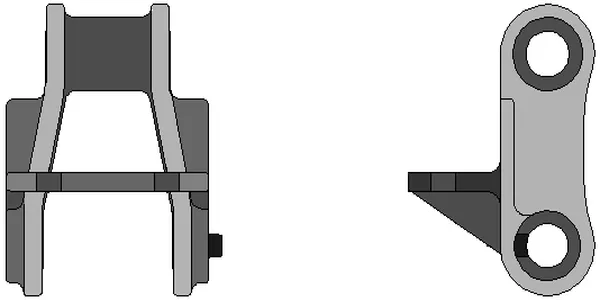

477 Pintle Chain F2 Attachment	477 Pintle Chain G1 Attachment	477 Pintle Chain G19 Attachment

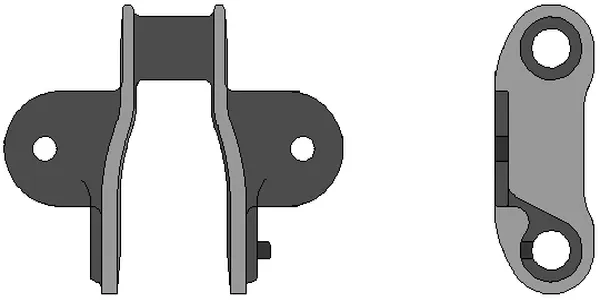

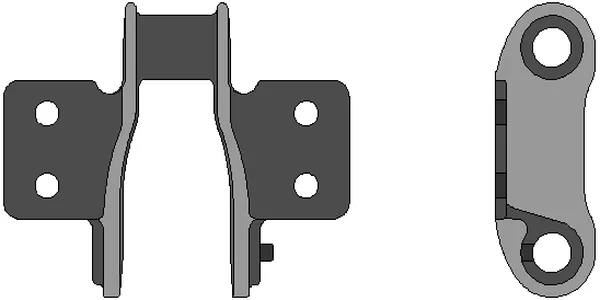

477 Pintle Chain K1 Attachment	477 Pintle Chain K2 Attachment

477 Pintle Chain Application Scenarios:

The 477 pintle chain is a versatile chain that can be used in a wide variety of applications. Some of the most common application scenarios for the 477 pintle chain include:

1. Material handling:?The 477 pintle chain is often used in material handling applications, such as conveyors, elevators, and bucket elevators. It is a good choice for these applications because it is lightweight and durable, and it can handle a variety of loads.2. Elevators:?The 477 pintle chain is also used in elevators, where it is used to lift and transport passengers and cargo. It is a good choice for this application because it is strong and durable, and it can withstand the high loads and stresses that are encountered in elevators.3. Environmental and wastewater applications: The 477 pintle chain is also used in environmental and wastewater applications, such as sludge pumps and conveyors. It is a good choice for these applications because it is resistant to corrosion and wear, and it can handle the harsh conditions that are often encountered in these environments.4. Mining:?The 477 pintle chain is also used in mining applications, such as conveyors and hoists. It is a good choice for this application because it is strong and durable, and it can withstand the high loads and stresses that are encountered in mining.5. Construction:?The 477 pintle chain is also used in construction applications, such as hoists and derricks. It is a good choice for this application because it is strong and durable, and it can withstand the high loads and stresses that are encountered in construction.6. Agriculture:?The 477 pintle chain is also used in agriculture applications, such as manure spreaders and hay balers. It is a good choice for this application because it is strong and durable, and it can withstand the harsh conditions that are often encountered in agriculture.7. Food processing:?The 477 pintle chain is also used in food processing applications, such as conveyors and mixers. It is a good choice for this application because it is cleanable and sanitary, and it can withstand the harsh conditions that are often encountered in food processing.

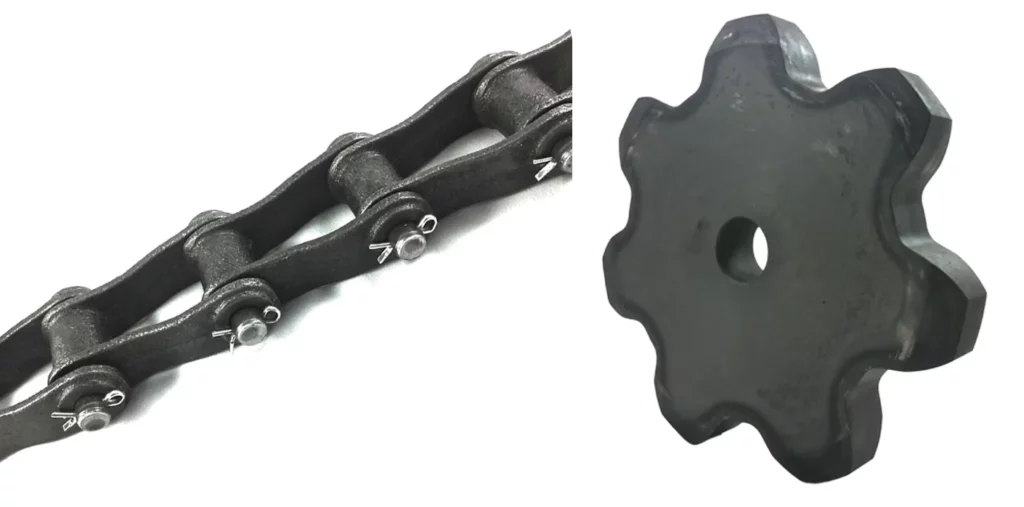

477 Pintle Chain Sprockets for 477 Pintle Chains:

A 477 pintle chain is a type of pintle chain with a pitch of 2.308 inches. It is a lightweight, economical, and durable chain that is capable of handling average loads at slow or intermediate speeds. It is available in riveted or cottered construction and is found in a wide range of material handling and elevator applications, along with some environmental and wastewater applications.

The number of 477 pintle chain sprockets you need will depend on the application and the desired speed and torque. A good rule of thumb is to use one sprocket for every 10 feet of chain. So, if you have 40 feet of chain, you will need four sprockets.

The number of 477 pintle chains you need will also depend on the application and the desired speed and torque. However, as a general rule, you should use one chain for every two sprockets. So, if you have four sprockets, you will need two chains.

Here are some additional things to keep in mind when choosing 477 pintle chain sprockets and chains:

• The sprockets and chains must be compatible with each other. Make sure to check the pitch, width, and number of teeth when choosing sprockets and chains.
• The sprockets and chains must be able to handle the load and speed requirements of the application.
• The sprockets and chains must be made from durable materials that can withstand the elements and the wear and tear of the application.

China 400 Class Pintle Chain?Manufacturers

We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like roller chains, double pitch conveyor chains, hollow pin chains, leaf chains, flat top chains, side bow chains, lumber conveyor chains, 81X conveyor chains, agricultural chains, CA550 roller chains, S55 roller chains, silent chains, X458 conveyor chains, grip chains (film gripper chains), PIV chains,?stainless steel chains, nickel/ zinc plated chain, slient chain, engineering chain, steel pintle chain,?welded steel mill chain, drop forged chain, malleable iron chain, “H” Class mill chain, CC Class crate conveyor chain, ?“H” Class refuse drag chain, "H" Class transfer rooftop chain, and many other types. Different kinds of attachments are available.
