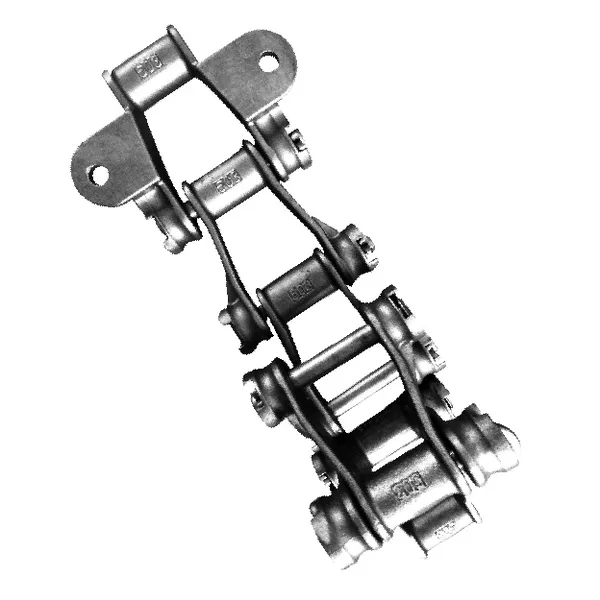

503 Bucket Elevator Chain

503 Bucket Elevator Chain

The 503 bucket elevator chain is a type of chain commonly used in bucket elevators, which are vertical conveyors designed to transport bulk materials such as grains, seeds, fertilizers, and other granular or powdered substances. The bucket elevator chain plays a crucial role in the operation of the elevator, as it is responsible for lifting and conveying the buckets that carry the materials.The 503 bucket elevator chains are constructed with high-quality materials to ensure durability and reliable performance in demanding industrial environments. They are typically made from alloy steel or stainless steel, which provides excellent strength, corrosion resistance, and wear resistance.The 503 bucket elevator chain consists of interconnected links with specially designed attachments or buckets that are spaced evenly along the chain. These buckets are responsible for scooping up the material from the bottom of the elevator, carrying it vertically, and then discharging it at the top.Proper selection and maintenance of the bucket elevator chain are crucial for optimal performance and extended service life. Factors such as chain strength, load capacity, speed, and environmental conditions should be taken into account when choosing the appropriate chain for a specific application.

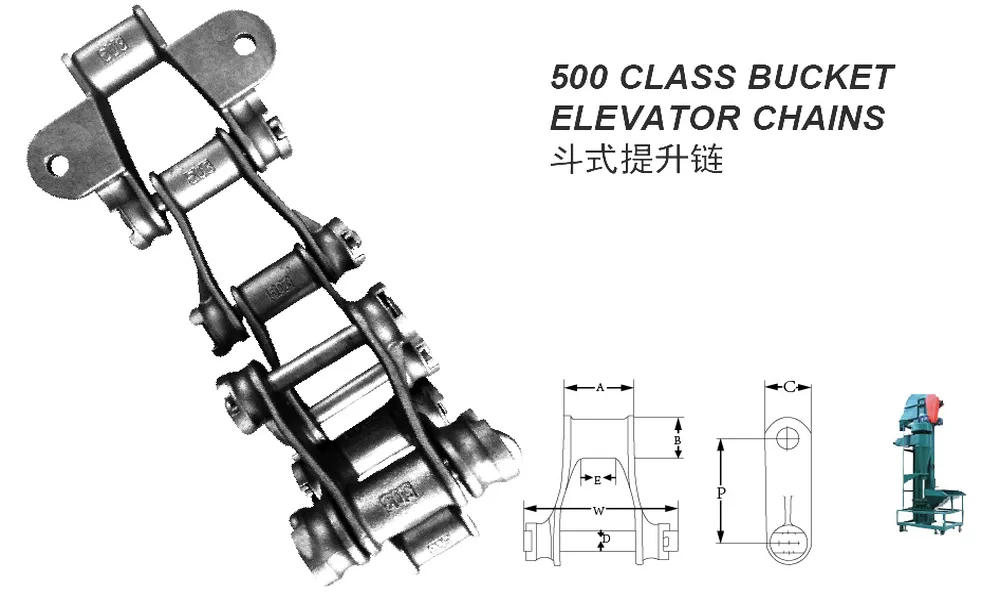

503 Bucket Elevator Chain Dimensions:

Chain No.	503 Bucket Elevator Chain
Pitch In Inches	3.02
Weight	6.2
Allowable Chain Pull	2810
Breaking Load	20000
Links Per Coil	40
A	2.06
B	1.09
C	1.38
D	0.56
E	1.13
W	4.31

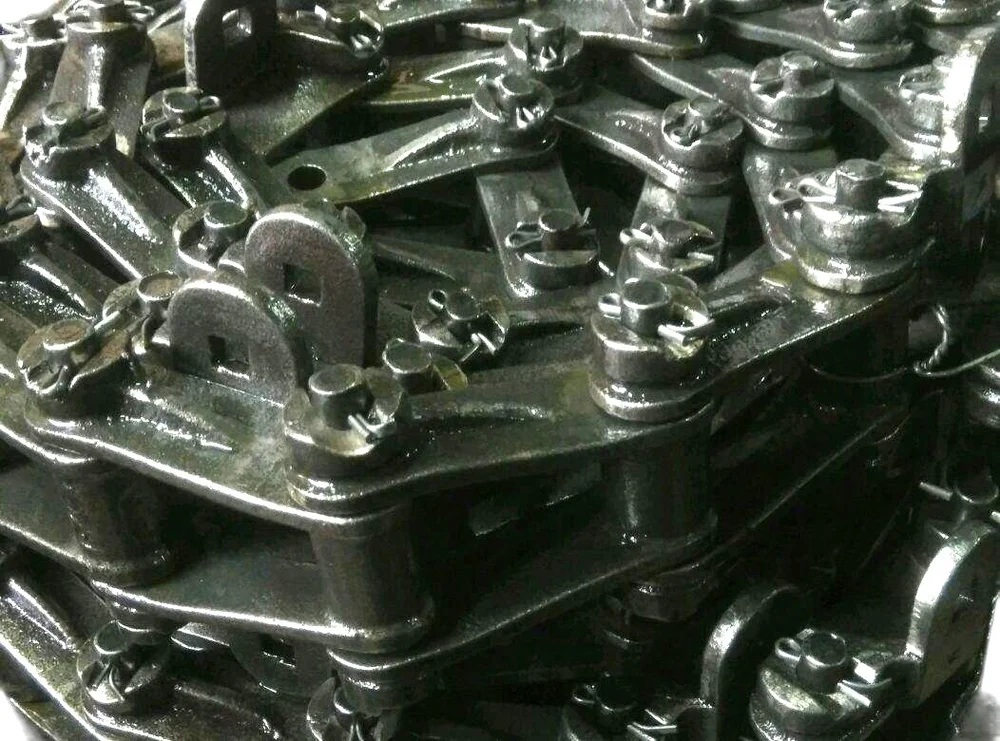

Benefits of Using the 503 Bucket Elevator Chain:

The 503 bucket elevator chain is a specific type of chain used in bucket elevators, which are vertical conveyors designed to transport bulk materials such as grains, seeds, powders, and other granular or solid materials. The 503 bucket elevator chain offers several benefits that make it a preferred choice in various industries. Some of these benefits include:1. High Strength: The 503 bucket elevator chain is known for its exceptional strength and durability. It is designed to withstand heavy loads and operate reliably under demanding conditions. This ensures efficient and consistent material handling without the risk of chain failure or breakdown.2. Wear Resistance: The 503 bucket elevator chain is constructed using high-quality materials and advanced manufacturing techniques, making it highly resistant to wear and abrasion. This extends the chain's lifespan and reduces the need for frequent replacements, resulting in cost savings for the user.3. Smooth Operation: The precise design and construction of the 503 bucket elevator chain contribute to smooth and quiet operation. It allows for efficient material flow, minimizing the risk of jams or blockages during the elevating process. The smooth operation helps maintain productivity and reduces downtime for maintenance or repairs.4. Easy Maintenance: The 503 bucket elevator chain requires minimal maintenance, making it a convenient choice for industrial applications. Regular lubrication and occasional inspections are typically sufficient to keep the chain in optimal condition. This ease of maintenance saves time and effort for operators.5. Versatility: The 503 bucket elevator chain is suitable for a wide range of applications and can handle diverse materials, including both fine and coarse particles. It is commonly used in industries such as agriculture, food processing, mining, cement production, and more. Its versatility makes it a reliable choice across different sectors.6. Compatibility: The 503 bucket elevator chain is designed to be compatible with various bucket elevator systems available in the market. This ensures easy integration and replacement of existing chains, providing flexibility and convenience for users.

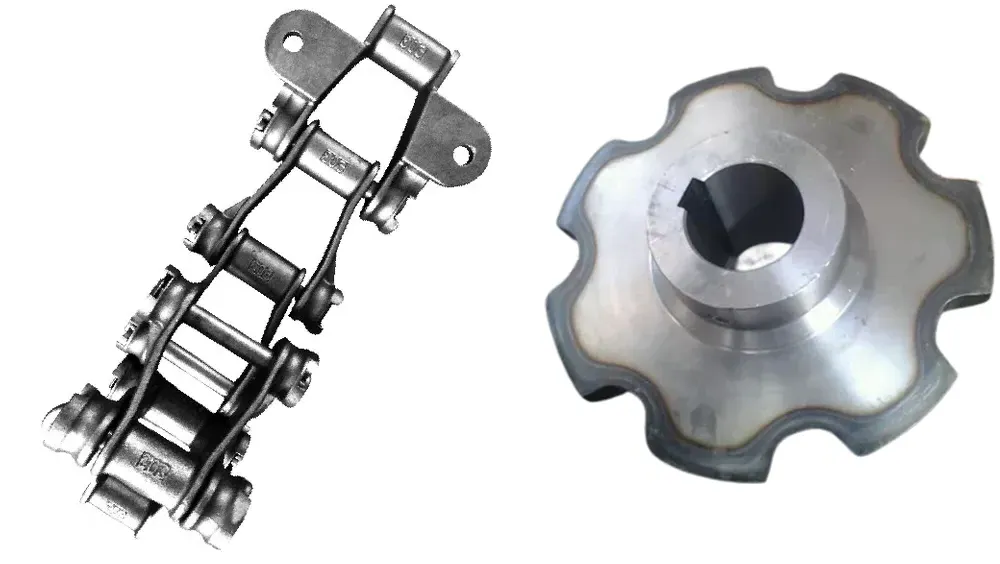

Bucket Elevator Chain Sprockets for 503 Bucket Elevator Chain

The standard bucket elevator chain sprockets for 503 bucket elevator chains are made of cast steel and have a pitch of 2.32 inches. The sprockets are available in a variety of sizes to fit different applications. The most common size is 12 inches in diameter, but other sizes such as 10 inches, 14 inches, and 16 inches are also available.

The sprockets should be made of a material that is strong and durable enough to withstand the wear and tear of the bucket elevator chain. Cast steel is a good choice because it is strong and can withstand a lot of abuse. The sprockets should also be made to fit the chain closely so that there is no slippage.

When choosing bucket elevator chain sprockets, it is important to consider the following factors:

• The type of bucket elevator chain
• The pitch of the chain
• The size of the sprocket
• The material of the sprocket
• The load capacity of the sprocket

It is also important to make sure that the sprockets are compatible with the other components of the bucket elevator.
