504 Bucket Elevator Chain

504 Bucket Elevator Chain

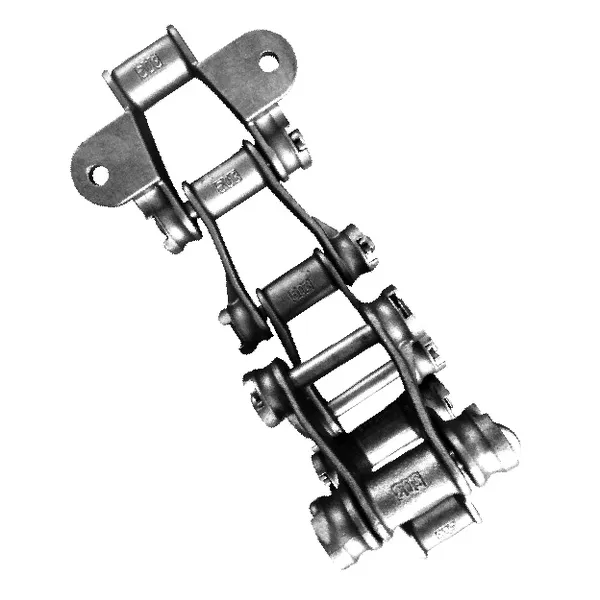

The 504 bucket elevator chain is a type of chain specifically designed for use in bucket elevators. Bucket elevators are commonly used in industries such as agriculture, mining, and manufacturing to vertically transport bulk materials, such as grains, ores, and powders.The 504 bucket elevator chain consists of a series of interconnected links, with each link having attachments in the form of buckets. These buckets are used for carrying the materials as they are lifted vertically. The 504 bucket elevator chain is designed to withstand the rigorous demands of continuous vertical conveying, ensuring reliable and efficient operation.The 504 bucket elevator chain is typically made from high-quality steel, which provides strength and resistance to wear and fatigue. It is important for the chain to have excellent tensile strength and load-bearing capacity to handle the weight of the materials being transported.Proper lubrication is crucial for the smooth operation and longevity of the 504 bucket elevator chain. Lubricants help reduce friction, prevent corrosion, and extend the chain's service life. Regular maintenance and inspection are also essential to identify any signs of wear or damage and take appropriate measures to prevent chain failure.

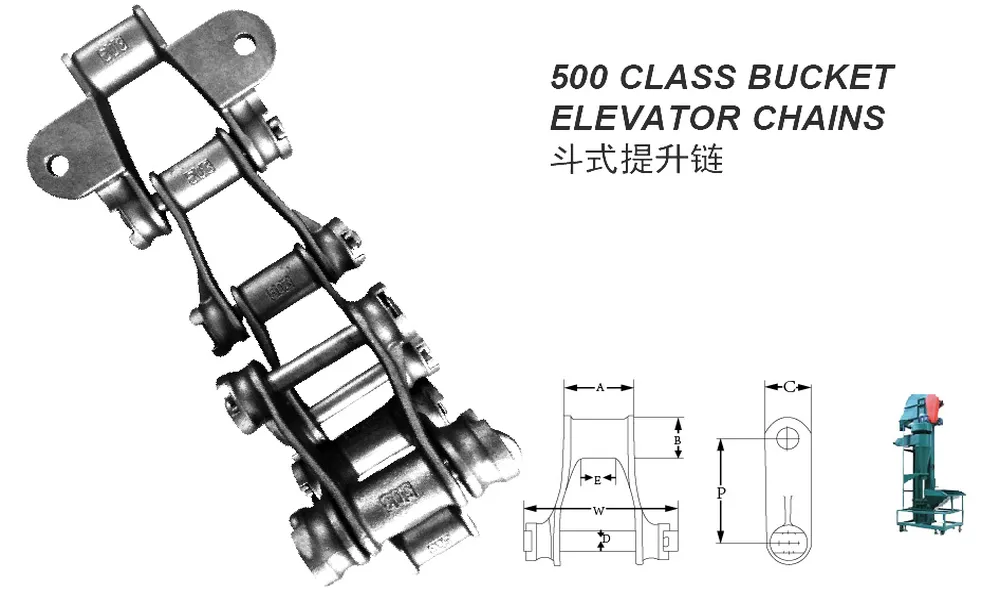

504 Bucket Elevator Chain Dimensions:

504 Bucket Elevator Chain Dimensions in Inches:

Chain No.	504 Bucket Elevator Chain
Pitch In Inches	4.06
Weight	8.5
Allowable Chain Pull	4500
Breaking Load	27500
Links Per Coil	30
A	2.88
B	1.31
C	1.69
D	0.63
E	1.75
W	5.75

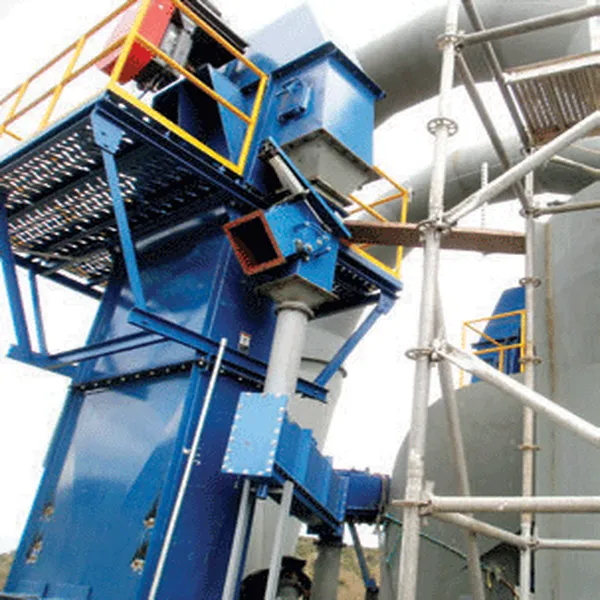

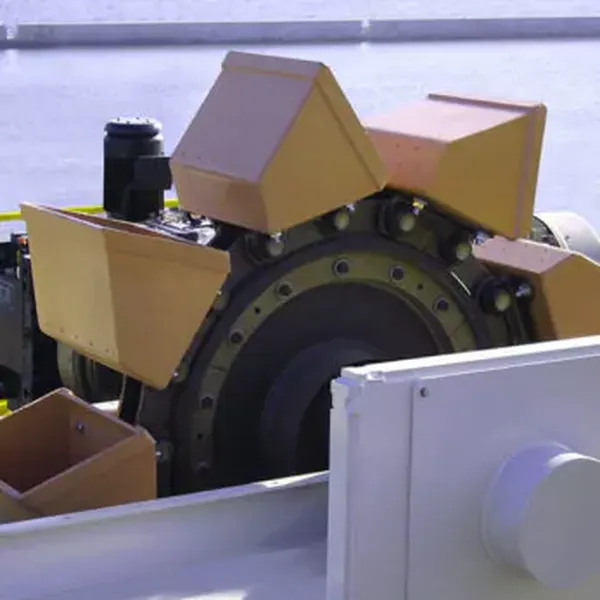

504 Bucket Elevator Chain Application Scenarios:

The 504 bucket elevator chain finds applications in various industries and scenarios where vertical material handling is required. Here are some common application scenarios for the 504 bucket elevator chain:1. Agriculture: In the agricultural sector, the 504 bucket elevator chain is used in grain elevators and seed processing plants. It efficiently transports grains, such as wheat, corn, rice, and soybeans, from ground level to storage silos or processing equipment.2. Mining and Minerals: The 504 bucket elevator chain is employed in mining and mineral processing operations to lift and transport ores, coal, limestone, gravel, and other bulk materials. It is commonly used in underground mining operations, open-pit mines, and mineral processing plants.3. Cement Industry: Bucket elevators play a crucial role in the cement manufacturing process, where materials like limestone, gypsum, and clinker need to be conveyed vertically. The 504 bucket elevator chain is used in cement plants to transport these materials from the quarry or storage to various stages of the production process.4. Chemical and Fertilizer Industry: In chemical and fertilizer plants, the 504 bucket elevator chain is utilized to handle granular or powdered materials, including fertilizers, chemicals, and industrial minerals. The chain effectively lifts these materials to different levels within the production facility.5. Food Processing: The 504 bucket elevator chain is used in food processing plants for handling bulk food ingredients, such as grains, sugar, flour, and spices. It ensures efficient and hygienic vertical transportation, meeting the strict quality and safety standards of the food industry.6. Recycling and Waste Management: The 504 bucket elevator chain is also used in recycling and waste management facilities to handle materials like shredded paper, plastic pellets, glass cullet, and other recyclable or waste materials. It facilitates the vertical movement of these materials for sorting, processing, or disposal.

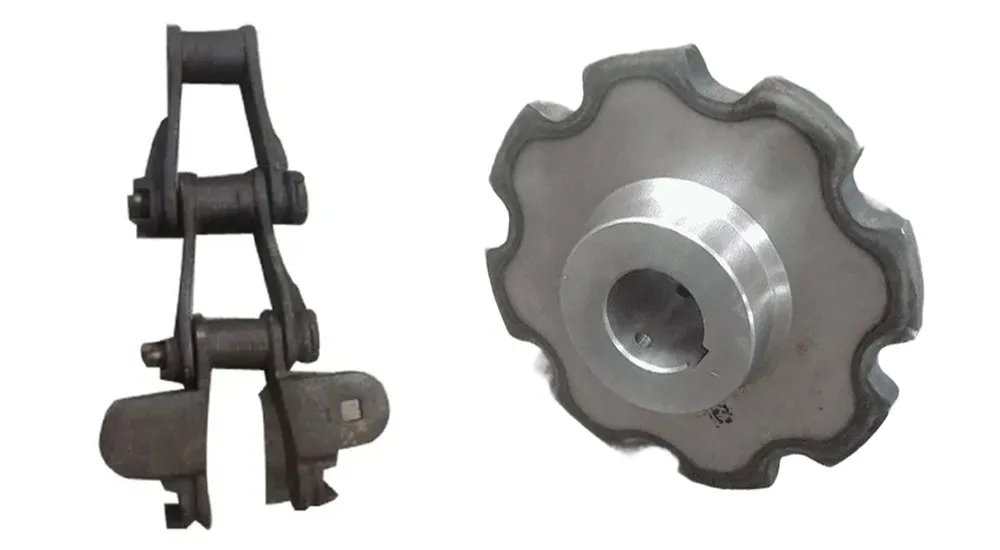

Bucket Elevator Chain Sprockets for 504 Bucket Elevator Chain

Bucket elevator chain sprockets and the 504 bucket elevator chain are components used in bucket elevators, which are industrial machines used to convey bulk materials like grains, powders, and other granular or lumpy materials.Bucket elevator chain sprockets are toothed wheels that engage with the buckets of the elevator chain, providing the driving force to lift and convey the materials. The sprockets are typically mounted on the elevator shaft or the drive mechanism.The bucket elevator chain sprockets have teeth that match the pitch of the elevator chain, ensuring proper engagement and smooth operation. They are generally made of durable materials such as steel or cast iron to withstand the heavy loads and abrasive nature of the conveyed materials.The 504 bucket elevator chain refers to a specific type of elevator chain commonly used in bucket elevators. The 504 bucket elevator chain consists of a series of interconnected links, usually made of high-strength steel. These links have attachments or buckets mounted at regular intervals. The buckets are designed to scoop up the material from the bottom of the elevator and discharge it at the top as the chain moves along the sprockets.The 504 bucket elevator chain is designed to withstand the vertical lifting forces and the abrasion caused by the conveyed materials. It is important to select the appropriate chain type and quality depending on factors such as material characteristics, operating conditions, and the capacity of the bucket elevator. Regular maintenance, including lubrication, tension adjustment, and inspection for wear, is crucial to ensure the longevity and smooth operation of the 504 bucket elevator chain.It's important to select the appropriate bucket elevator chain sprocket size, number of teeth, and tooth profile to match the specific bucket elevator chain and application requirements. Proper sprocket maintenance, including lubrication and periodic inspection for wear, is essential to ensure the reliable and efficient operation of the bucket elevator.

China Bucket Elevator Chain?Manufacturers

We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like roller chains, double pitch conveyor chains, hollow pin chains, leaf chains, flat top chains, side bow chains, lumber conveyor chains, 81X conveyor chains, agricultural chains, CA550 roller chains, S55 roller chains, silent chains, X458 conveyor chains, grip chains (film gripper chains), PIV chains, stainless steel chains, nickel/ zinc plated chain, slient chain, engineering chain, steel pintle chain, welded steel chain, drop forged chain, malleable iron chain, "H" Class mill chain, CC Class crate conveyor chain,? "H" Class refuse drag chain, "H" Class transfer rooftop chain, and many other types. Different kinds of attachments are available.
