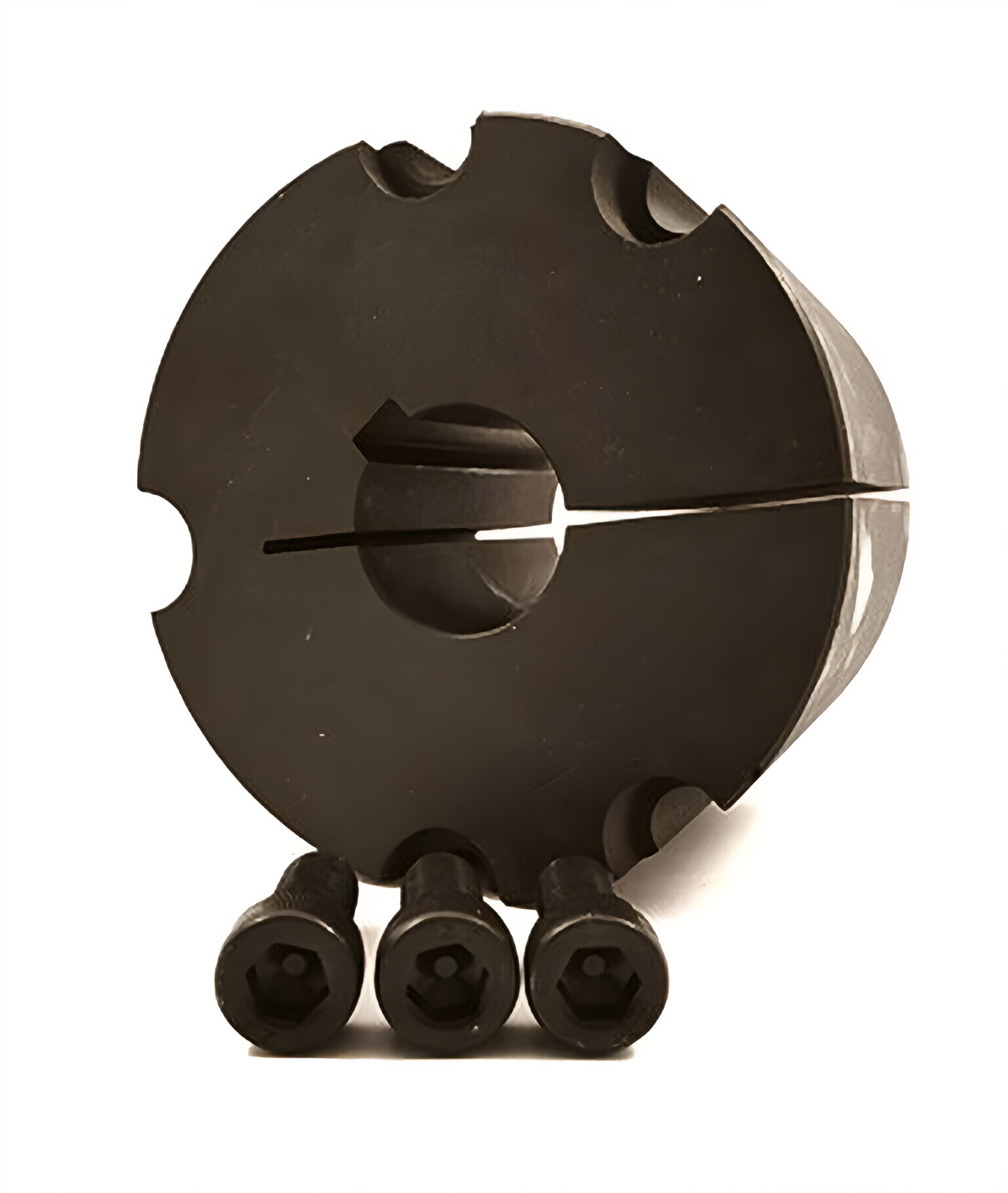

5050 Taper Lock BushingsThe tapered locking bushing is designed to mechanically connect two or more shafts and has a tapered surface. They provide flexibility between primary and secondary components and have ISO-compliant threads and keyways. QTL tapered bushing is installed on the tapered hub, and QTL tapered bushing is installed on the keyway. These two styles are processed according to ISO standards. The size of the tapered locking bushing is defined by four digits, including the flange. The first two digits of the dimension represent the maximum hole diameter, and the last two digits represent the length of the bushing. For example, a taper lock bushing with a diameter of 1.5 "is 1-1/2". Similarly, the metric aperture is given by placing "mm" after the metric dimension. In addition, the tapered locking bushing is flush with the tapered pulley and sprocket.

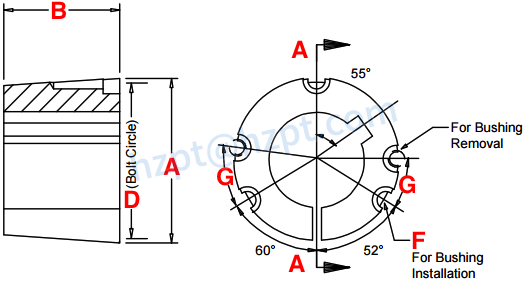

Dimensions of the 5050 Taper-Lock Bushings

• Bushing Number: 5050
• Bore: 1"、1/2"、10mm、11/16"、11mm、12mm、13/16"、14mm.....
• Dimension (A): 7"
• Dimension (B): 5"
• Dimension (D): 6.72"
• Number Of Set Screws: 3
• Threads: 7/8"
• Length: 2-1/4"
• Dimension (G): 37°
• Wrench Torque: 3,100 LBS
• Weight: 32 LBS

Installation

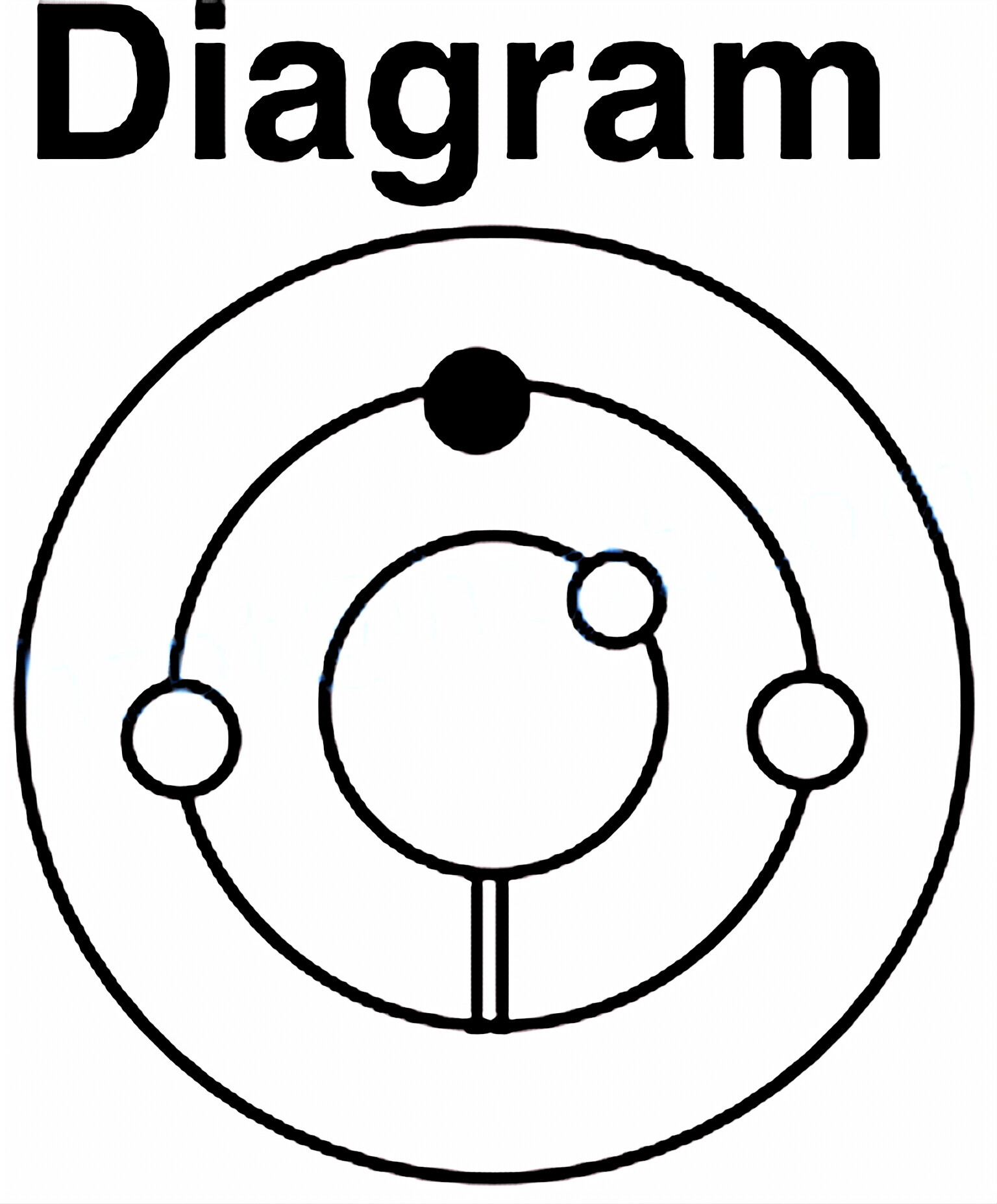

1. Clean all oil, dirt, and paint from the shaft, bushing holes, bushing exterior, and bores of components (sprockets, pulleys, etc.).2. Insert the bushing into the assembly. Match hole patterns, not threaded holes (each hole is threaded on one side only).3. Thread the set screw or cap screw into the half-threaded hole shown below. Install the assembly on the shaft.4. Alternately set the torque setting or cap screw* to the recommended torque setting in the table below.5. Fill all unoccupied holes with grease.

Removal

1. Remove any retaining or cap screws.2. Insert the set screw or cap screw into the above hole.3. To reinstall, complete all five (5) installation instructions.Keyless shaft locking allows more torque transfer for a given diameter shaft. They will also keep the stress evenly distributed across the outside and inside diameters of the shaft, rather than concentrating it in the keyway. They can also cause thin hubs to crack under high pressure. Therefore, you should look for shafting made of walls of minimum thickness. When purchasing a locking bushing, make sure the wall thickness of the shaft is appropriate for the type of application you have in mind.Keyless shaft-to-hub locking devices are another common type. They allow for easy removal and repositioning of components while eliminating gaps and synchronization issues. They also do not require threads, which makes them more economical and popular for low-volume applications. Additionally, they are easier to install and do not require the milling of keyways. As an added bonus, keyless bushings are less expensive and allow for higher shaft tolerances, making them an excellent choice for a variety of applications.Keyless shaft-to-hub locking devices work by compressing an inner sleeve with a tapered outer and inner diameter. The inner sleeve is installed on the shaft and in the hub hole of the assembly. By tightening the bolts in the locking mechanism, the inner sleeve squeezes and compresses the shaft within the outer diameter of the hub. This ensures a secure connection.Click and check out more products you're looking for.
