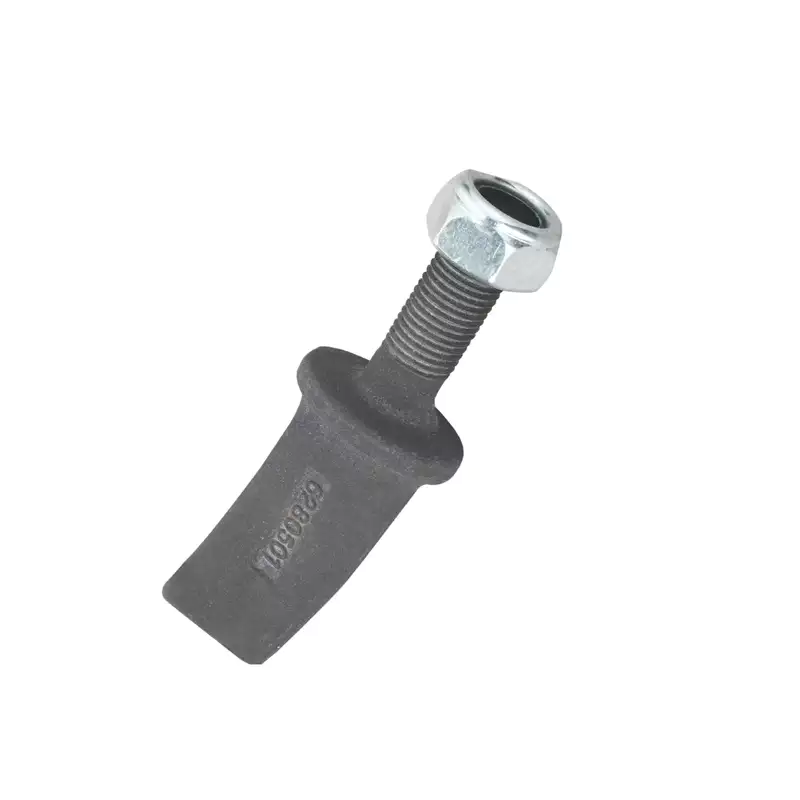

628050.1 Cylinder Spike Tooth For Combine Harvesters Concave

628050.1 Cylinder Spike Tooth For Combine Harvesters Concave

Introduction

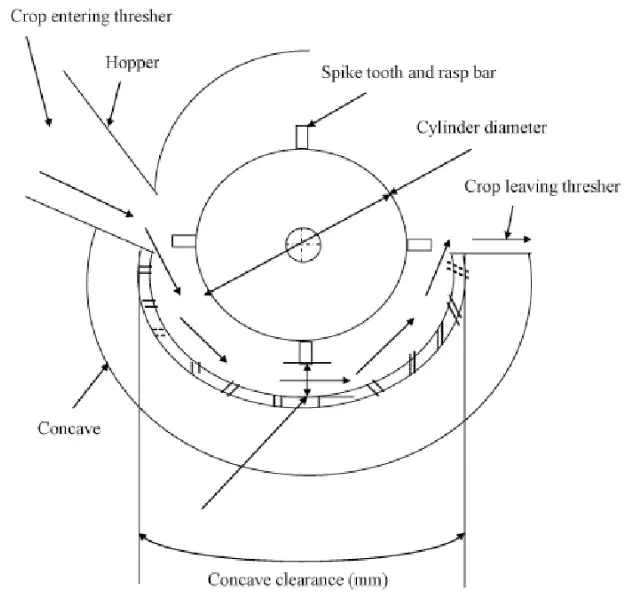

The cylinder spike tooth is a component used in agricultural machinery. It is designed to separate the grain from the straw during the harvesting process. The spike tooth cylinder is an essential component of a combine harvester that is used to separate the grain from the crop.

Here is a table that shows the specifications of the 628050.1 Cylinder Spike Tooth For Combine Harvesters Concave:

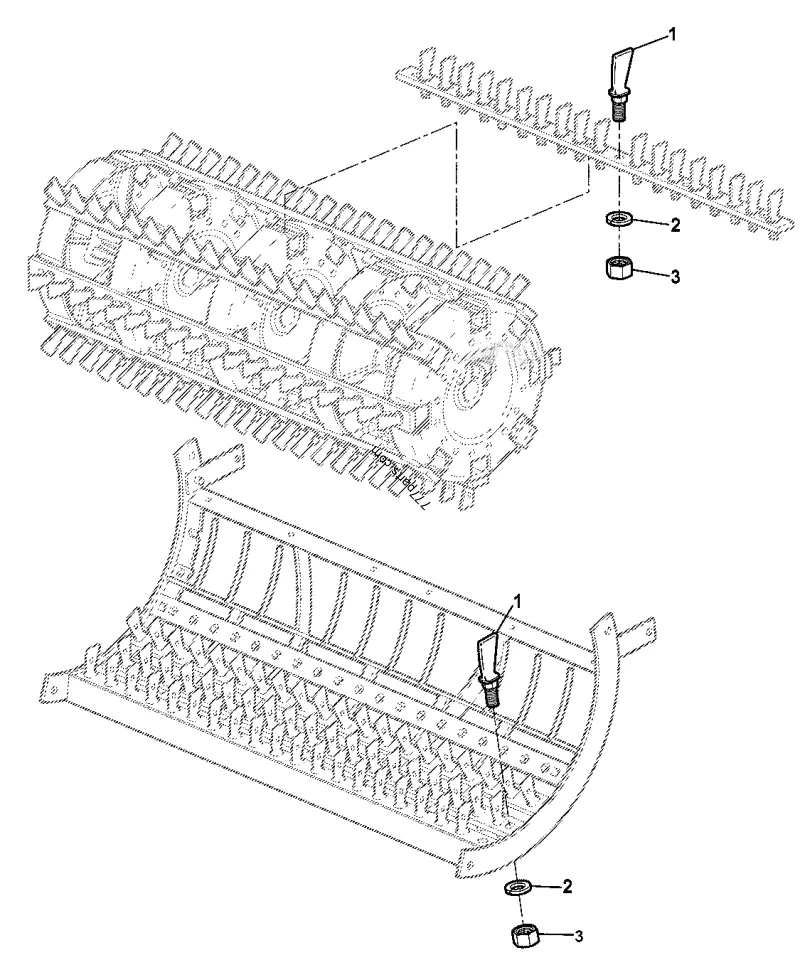

The Cylinder Spike Tooth is usually located in the concave section of the combine harvester.

The 628050.1 Cylinder Spike Tooth For Combine Harvesters Concave is compatible with various brands and models of agricultural machinery. Here is a table that lists the brands and models:

Aside from the Cylinder Spike Tooth, we also offer other agricultural machinery parts such as agricultural chains, agricultural gearbox, pulley, sprocket, coupling, PTO shaft, concave, and much more.

When to Replace the Cylinder Spike Tooth

There are several signs that indicate that it's time to replace the Cylinder Spike Tooth:

1. Decreased Threshing Efficiency: If the combine harvester is not threshing efficiently and there is a significant increase in grain loss or if there are a lot of grains remaining in the straw, it may indicate that the spike tooth cylinder is severely worn out and can no longer provide enough cutting and threshing force.
2. Worn Out: If the spike teeth on the cylinder are broken, missing, or have significant wear and deformation, or if the height of the teeth has decreased, it means that the cylinder's service life has come to an end, and the spike tooth or the entire cylinder must be replaced.
3. Foreign Object Damage: During operation, if the combine harvester inhales stones, metal fragments or other hard debris, causing spike teeth to break or damage, this can seriously affect the threshing function, and damaged spike teeth must be replaced promptly.
4. Abnormal Noise: If the combine harvester is making unusual noises during operation, it may be due to the damaged spike teeth causing abnormal contact between parts.
5. Increased Power Consumption: Due to the wear of the spike teeth, the machine may require more power to achieve the same threshing effect, which can be seen as an increase in engine load or fuel consumption.

How to Choose the Right Cylinder Spike Tooth

Choosing the right cylinder spike tooth is essential to ensure efficient harvesting. Here are the factors to consider when selecting a Cylinder Spike Tooth:

1. Crop Type: Different crops have different requirements for spike teeth. For example, small grains like wheat or rice require spike teeth that are suitable for fine threshing, while crops with bigger grains and tougher straw like corn require more durable spike teeth with greater penetration force.
2. Spike Tooth Shape and Arrangement: Spike teeth come in different shapes and arrangements, and each has its specific application. High-density arrangements are suitable for fine threshing, whereas low-density arrangements are better at reducing straw damage.
3. Material and Hardness: Spike teeth must have good wear resistance, corrosion resistance, and certain toughness to ensure stable performance under long-term use. The choice of hardness is also critical. If the spike tooth is too hard, it may wear out prematurely or damage the crops too quickly, while if it is too soft, it will wear out quickly, affecting the service life.

Author: Miya
