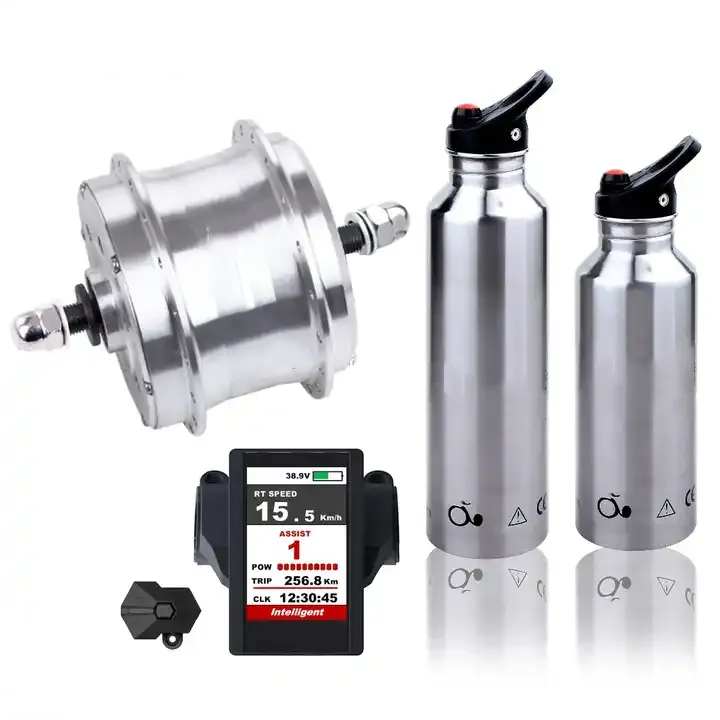

700C road vehicle hub motor modification kit ebike conversion kit 250w Model SFB110

[embed]https://youtu.be/Z3rT9dG_4wI[/embed]Experience the future of cycling with our 700C road vehicle hub motor modification kit. This German warranty long-term after-sales product comes with an e-bike conversion kit that packs a power of 250W. The model number is SFB110, and the kit is designed to transform your regular bicycle into a high-performance e-bike, enhancing your riding experience. Let's delve into the specifics of this game-changing product.

Electric Bike Front Hub Motor Specifications

Specification	S110SWXC / S110SWXDC
Diameter (mm)	112±1mm
Width (mm)	100±2mm
Communication	Wireless
Sensor	Wireless Pedal Sensor
Spokes Number	20, 24, 28, 32, 36
Rated Voltage (V)	36V	33V	24V
Maximum Current (A)	6.18A	6.67A	9.00A
Rated Output Power (W)	250W	250W	250W
Maximum Power (W)	500W	500W	500W
Maximum Torque (N·m)	>35N·m	>35N·m	>35N·m
Efficiency (%)	≥89%	≥88%	≥87%
Rated Revolution (r/min)	160-260r/min	160-260r/min	160-260r/min
Weight (kg)	2.1kg	2.1kg	2.1kg

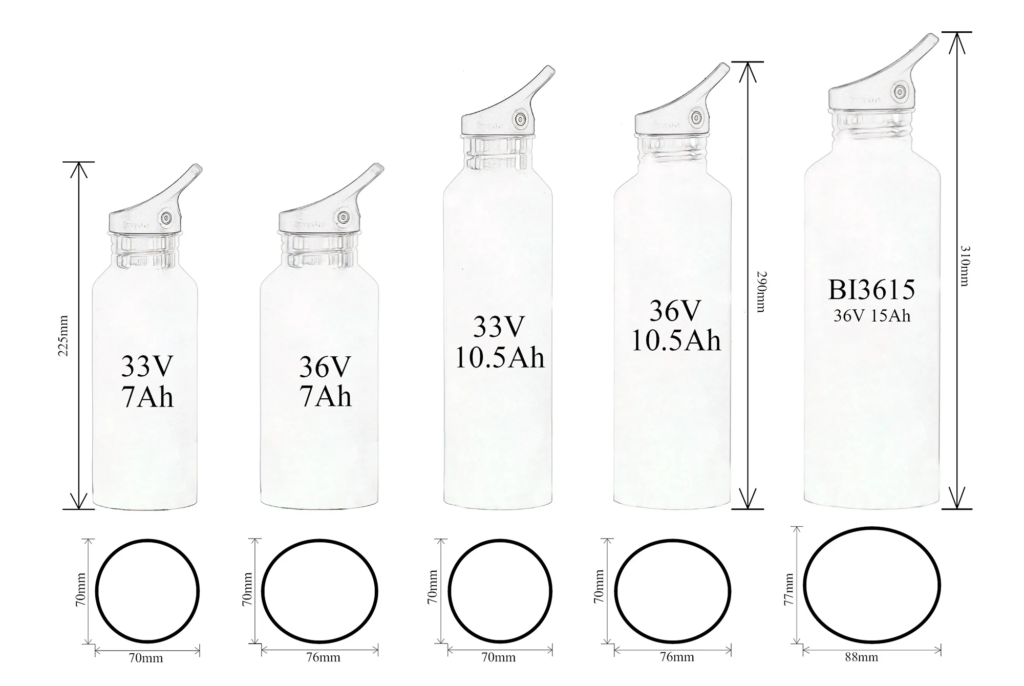

Electric Bike Battery Specifications

Specification	BI3607	BI3611	BI3615	BI3614	BI3620
Rated Voltage (V)	36V	36V	36V	36V	36V
Rated Capacity (Ah)	7Ah	10.5Ah	15Ah	14Ah	20Ah
Voltage Range (V)	28V~42V	28V~42V	28V~42V	28V~42V	28V~42V
Battery Capacity (Wh)	252Wh	378Wh	540Wh	504Wh	720Wh
Maximum Current (A)	20A	20A/40A	40A	40A	40A
Charge Current (A)	3A	3A	3A	3A	3A
Charge Time (h)	2.5h	3.5h	5h	4h-5h	6h-8h
Working Temperature (℃)	-20℃~60℃	-20℃~60℃	-20℃~60℃	-20℃~75℃	-20℃~75℃
Cycle Life (times)	≥1000times	≥1000times	≥1000times	≥1000times	≥1000times
Waterproof	IP67	IP67	IP67	IP66	IP66
Diameter (mm)	70mm×76mm	70mm×76mm	77mm×88mm	330mm×75mm	323mm×86mm
Height (mm)	225mm	290mm	310mm	74.3mm	84.8mm
Weight (kg)	1.2kg	1.8kg	2.5kg	2.5kg	3.0kg

Electric Bike Front Hub Motor Advantages

The front hub motor of our e-bike conversion kit comes with several advantages that make it stand out from the crowd:

1. 1. Built-in controller: This ensures efficient and smooth operation by regulating the power distribution and motor speed.
   2. Wireless pedal sensor: It enhances the riding experience by seamlessly integrating your pedal power with the motor??s power.
   3. Light weight & small size: This makes it easy to install and does not add significant weight to your bike.
   4. Super-silent: The motor operates quietly, allowing you to enjoy peaceful rides.
   5. Easy to install & disassemble: This makes it user-friendly and ideal for DIY enthusiasts.
   6. Wireless control: The wireless control feature adds to the convenience and modernity of the kit.

Electric Bike Battery Advantages

Our e-bike conversion kit comes with a robust battery that offers several benefits:

1. Small size, light weight, easy to disassemble: This facilitates easy installation and removal, and does not add extra bulk to your bike.
2. Built-in BMS: The Battery Management System ensures optimal performance and extends the battery's lifespan by regulating its charging and discharging.
3. Adopt imported Panasonic cells: These high-quality cells guarantee reliable and long-lasting power supply.
4. Support upgrading to extended range battery: This allows you to enhance your bike's range if required.
5. Long cycle life: Our battery is designed to last, providing you with a durable power solution.

Applications of the E-bike Front Motor Conversion Kit

Our e-bike front motor conversion kit is versatile and can be installed on various types of bicycles to convert them into electric bikes. Here are the functions of our e-bike front motor conversion kit for different types of bicycles:

1. Road Bike: Assist in climbing hills and tackling steep inclines with ease. Provide an extra boost of speed, especially during sprints or long rides. Reduce the effort required for long-distance commuting or touring. Enhance overall ride comfort and enjoyment.
2. Mountain Bike: Offer assistance in climbing steep off-road trails and technical terrains. Provide additional power to overcome challenging obstacles and inclines. Improve traction and control, especially in loose or slippery conditions. Extend the range and duration of off-road adventures.
3. Folding Bike: Aid in effortless folding and unfolding of the bike, as the motor helps with propulsion. Assist in pedaling when riding uphill or against headwinds, which can be challenging on a folding bike due to its smaller wheel size. Enable longer commutes or leisure rides without excessive physical exertion. Enhance portability and convenience of the folding bike by reducing the need for excessive pedaling.
4. City Bike: Facilitate commuting and urban transportation by providing a smoother and quicker ride. Make it easier to navigate through traffic or crowded areas. Reduce sweat and fatigue during daily commutes, making it more suitable for commuting to work. Enable carrying heavier loads, such as groceries or other items, with less effort.

In general, our e-bike front motor conversion kit adds electric assist functionality to the respective bike types, allowing riders to enjoy the benefits of electric power while still being able to pedal manually when desired. The specific functions and performance may vary depending on the quality and specifications of the conversion kit chosen.

How Does the E-bike Front Motor Conversion Kit Work?

Our e-bike front motor conversion kit operates through a seamless integration of various components. Let's explore how each of these components works:1. Front Hub Motor: The front hub motor is the central component of the conversion kit. It is usually a brushless electric motor that is installed in the front wheel hub of a regular bicycle. The motor provides additional power to assist the rider while pedaling. When the rider activates the electric assistance, the motor engages and propels the bike forward, making it easier to pedal and providing an extra boost of speed. The front hub motor is controlled by the electric bike display and is connected to the battery for power.2. Battery Options:water bottle battery: This type of battery is designed to resemble a water bottle and is mounted on the bike frame in place of a regular water bottle. It typically has a capacity ranging from 36V to 48V and provides the electrical energy to power the motor. The water bottle battery is connected to the motor and the electric bike display using appropriate cables.Down Tube Battery: Alternatively, some conversion kits use a down tube battery, which is larger in size and is mounted on the downtube of the bike frame. Down tube batteries usually have a higher capacity compared to water bottle batteries, providing a longer range for the e-bike. They are also connected to the motor and the display through suitable cables.3. Electric Bike Wireless Display: The wireless display is a control unit that allows the rider to monitor and adjust various parameters of the e-bike conversion kit. It is usually mounted on the handlebars for easy access. The wireless display shows information such as battery level, speed, distance traveled, and allows the rider to select different levels of electric assistance. It communicates wirelessly with the motor and battery, sending commands and receiving data to provide a seamless riding experience.4. Electric Bike Cables: The electric bike cables form the wiring system that connects the various components of the conversion kit. These cables transmit electrical signals and power between the battery, motor, and display. They are designed to be durable and weatherproof, ensuring reliable connectivity and electrical transfer.During operation, when the rider pedals the e-bike, the electric bike display detects the pedaling motion and sends a signal to the front hub motor to activate. The motor then provides assistance by applying additional power to the front wheel, propelling the bike forward. The power is supplied by the battery, which can be recharged when needed. Overall, our e-bike front motor conversion kit combines the traditional pedaling power of a bicycle with the added assistance of an electric motor, offering a more efficient and enjoyable riding experience.

Choose the Right Front Motor Conversion Kit for Electric Bicycle

Choosing the right front motor conversion kit for your electric bicycle involves considering several factors. Here are some key points to help you make an informed decision:

1. Compatibility: Ensure that the conversion kit you choose is compatible with your specific bicycle model. Check the wheel size, fork width, and brake type to ensure a proper fit. Some conversion kits are designed for specific bike models, while others offer more flexibility and can fit a range of bicycles.
2. Motor Power and Torque: Consider the power and torque output of the front hub motor. Higher power and torque will provide better acceleration and assist you more effectively, especially if you frequently ride on hills or rough terrain. Look for motors with sufficient power to meet your riding needs.
3. Battery Capacity and Range: Evaluate the capacity of the battery included in the conversion kit. Higher capacity batteries will generally provide longer riding range. Consider your typical riding distance and choose a battery that can meet your requirements without frequent recharging. Take note of the battery type (water bottle or down tube) and its compatibility with your bike frame.
4. Electric Assistance Levels: Check the available electric assistance levels offered by the conversion kit. Different kits may provide different levels of assistance, such as eco, normal, and high. Having multiple assistance levels allows you to adjust the amount of power assistance based on your riding conditions and preferences.
5. Display and Controls: Consider the type of wireless display provided with the conversion kit. Look for a display that is easy to read, intuitive to operate, and provides essential information such as battery level, speed, and distance. Some displays may offer additional features like a USB charging port or integrated lights.

Why Choose Raydafon's E-bike Front Motor Conversion Kit?

Raydafon Electric Technology Co Ltd. is dedicated to the R&D, manufacturing, and worldwide marketing of high-end electric bicycle parts. All our products are designed and developed in-house and protected by a number of domestic and international in
