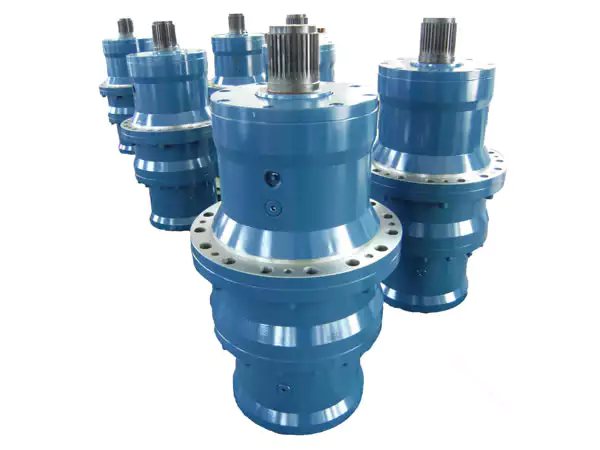

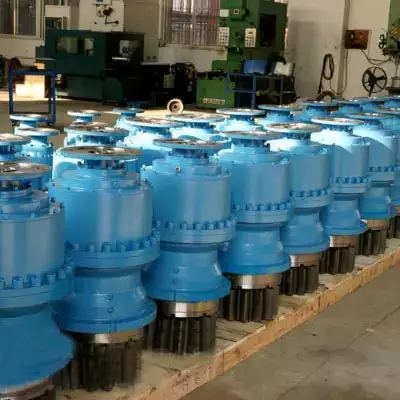

700L Slewing Drive Planetary Gearbox

700L Slewing Drive Planetary Gearbox

Product Overview

The 700L Slewing Drive Planetary Gearbox is a high-quality product designed for various applications in the engineering machinery, solar tracking systems, marine engineering equipment, and military equipment industries. This model is known for its exceptional performance and reliability.

Dimension Type EP700L EP701L EP703AL EP705AL D2 150 150 175 175 D3 195 195 245 245 D4 220 220 270 270 D5 185 185 245 245 D6 10-ф13 10-ф13 12-ф13 12-ф13 L1 31 31 32 32 L2 Size according to motor type Pinion data Pinion data according to customer

Technical specification

Type	Max.Output Torque		Ratio	RecommendHydraulicMotor	Max.inputspeed	Braketorque	Brake workpressure
	Excavator	Crane	(i)		(rpm)	(N.m)	(bar)
EP700L	1000	1200	3.4--32	SAE A adopt	3500	50-400	20-50
EP701L	1800	2400	3.4--32	SAE B adopt
EP703AL	2500	3500	12.4—174.5	SAE C adopt
EP705AL	5000	6500	12.4—174.5	A2FE 45·56·63

Input – output rotate same direction.Other ratio and other input type can be specially designed.Model Naming and PositioningThe 700L Slewing Drive Planetary Gearbox follows a unique naming convention to indicate its specific characteristics and capabilities. The model is positioned as a top-of-the-line solution for high-demand applications.

Product Design and Structural Features

The design of the 700L Slewing Drive Planetary Gearbox incorporates advanced engineering principles to ensure optimal performance and durability. The product features a well-designed planetary gear system, a robust bearing system, efficient sealing technology, and a reliable lubrication system.

Core Technologies and Materials



Planetary Gear Design

The 700L Slewing Drive Planetary Gearbox utilizes a precision-engineered planetary gear system that ensures smooth and efficient power transmission. This design allows for high torque density and minimizes energy loss.

Bearing System

The bearing system in the 700L Slewing Drive Planetary Gearbox is designed to withstand heavy loads and provide reliable rotational movement. It ensures smooth operation and long service life.

Sealing Technology

The sealing technology employed in the 700L Slewing Drive Planetary Gearbox prevents the ingress of dirt, water, and other contaminants, ensuring optimal performance even in harsh environments.

Lubrication System

The lubrication system of the 700L Slewing Drive Planetary Gearbox is engineered to provide continuous and efficient lubrication, reducing friction and wear, and extending the product's lifespan.

Performance Advantages

High Torque Density

The 700L Slewing Drive Planetary Gearbox offers a high torque density, allowing it to handle heavy loads and perform demanding tasks with ease.

Low Noise and Vibration

This gearbox is designed to operate quietly, minimizing noise and reducing vibration levels. It ensures a comfortable working environment and improves overall efficiency.

Environmental Adaptability

The 700L Slewing Drive Planetary Gearbox is built to withstand various environmental conditions, making it suitable for use in diverse applications and industries.

Intelligent Monitoring

Equipped with intelligent monitoring features, the 700L Slewing Drive Planetary Gearbox allows for real-time performance tracking and diagnostics, enabling proactive maintenance and minimizing downtime.

Applications

Engineering Machinery

The 700L Slewing Drive Planetary Gearbox is widely used in engineering machinery, including tower cranes, excavators, and port machinery. Its superior performance and durability make it an ideal choice for these demanding applications.

Solar Tracking Systems

In solar tracking systems, the 700L Slewing Drive Planetary Gearbox ensures precise and efficient movement, allowing solar panels to follow the sun's path and maximize energy generation.

Marine Engineering Equipment

The 700L Slewing Drive Planetary Gearbox is trusted in marine engineering equipment, where it withstands the harsh marine environment while providing reliable rotation and movement.

Military Equipment

In military applications, the 700L Slewing Drive Planetary Gearbox delivers the necessary power and performance to support the operation of various military equipment, ensuring mission success.

Our Company's Advantages

Our company stands out in the industry for several reasons. We have a team of highly skilled engineers and technicians who are dedicated to delivering top-quality products. We prioritize customer satisfaction and strive for excellence in every aspect of our operations. With our commitment to innovation, reliability, and customer service, we aim to establish long-term partnerships with our valued clients.Author: Miya
