Product Overview

The 707AL Slewing Drive Planetary Gearbox is a high-performance gearbox designed for various applications. Its model naming convention and positioning strategy ensure efficient operation and compatibility with different systems. The gearbox is known for its innovative design and structural features, which contribute to its exceptional performance.

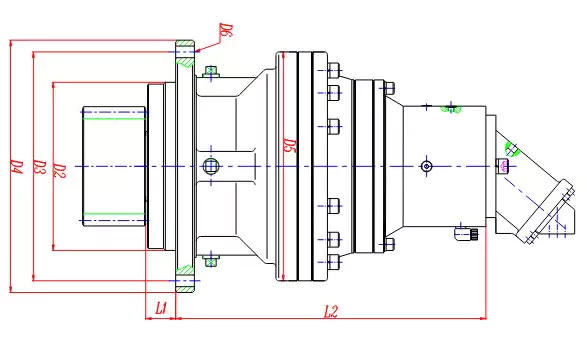

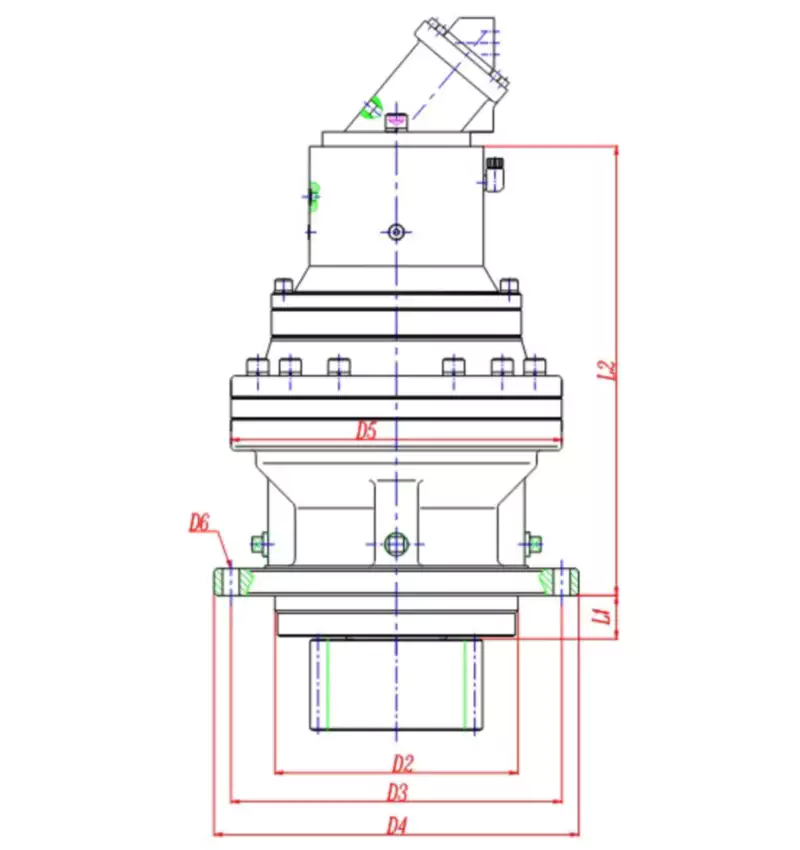

Dimension	Type
	EP706AL	EP707AL	EP709AL	EP711AL
D2	230	240	280	320
D3	335	335	385	500
D4	365	365	420	560
D5	300	345	345	425
D6	14-ф17	14-ф17	14-ф22	18-ф22
L1	55	60	60	70
L2	Size according to motor type
Pinion data	Pinion data according to customer

Technical specification

Type	Max.Output Torque		Ratio	RecommendHydraulicMotor	Max. inputspeed	Braketorque	Brake workpressure
	Excavator	Crane	(i)		(rpm)	(N.m)	(bar)
EP706AL	7700	12000	13.5—142.5	SAE A·B·C·D·E adoptA2FE 45·56·63A2FE 80·90A2FE 107·125	3500	50-1000	20-50
EP707AL	10500	165000	12.6—257.7
EP709AL	16000	26000	12.6—257.7
EP711AL	32000	45000	14.0—223.0		2500	400-3200

Input – output rotate same direction.Other ratio and other input type can be specially designed.

Core Technologies and Materials

Planetary Gear Design

The 707AL Slewing Drive utilizes an advanced planetary gear design to optimize torque transmission and improve overall efficiency. The carefully engineered gear system ensures smooth operation and minimal energy loss.

Bearing System

Equipped with a robust bearing system, the gearbox offers excellent load-bearing capacity and stability. This feature enhances the gearbox's durability and allows it to withstand heavy-duty applications.

Sealing Technology

The sealing technology employed in the 707AL Slewing Drive ensures reliable protection against dust, moisture, and other environmental factors. This feature increases the lifespan of the gearbox and enhances its performance in various operating conditions.

Lubrication System

The gearbox incorporates an efficient lubrication system, which ensures proper lubrication of all critical components. This system minimizes friction, reduces wear and tear, and extends the service life of the gearbox.

Performance Advantages

High Torque Density

The 707AL Slewing Drive offers a high torque density, allowing it to deliver maximum power in a compact size. This feature makes it suitable for applications where space is limited.

Low Noise and Vibration

Thanks to its precise design and high-quality materials, the gearbox operates with minimal noise and vibration. This characteristic makes it ideal for applications where noise reduction is essential.

Environmental Adaptability

The 707AL Slewing Drive is designed to withstand harsh environmental conditions. Its durable construction and sealing technology enable it to perform reliably in extreme temperatures, moisture, and other challenging environments.

Intelligent Monitoring

The gearbox features an intelligent monitoring system that provides real-time data on its performance. This allows for proactive maintenance and ensures optimal efficiency and reliability.

Applications

Construction Machinery

The 707AL Slewing Drive is widely used in construction machinery, including tower cranes, excavators, and port machinery. Its robust design and high torque density make it suitable for heavy lifting and precise movements.

Solar Tracking Systems

For solar tracking systems, the 707AL Slewing Drive provides the necessary power and precision to ensure efficient solar panel positioning for maximum energy generation.

Marine Engineering Equipment

In marine engineering applications, such as offshore platforms and ship-mounted equipment, the 707AL Slewing Drive offers reliable performance and durability in harsh marine environments.

Military Equipment

Due to its rugged design and exceptional performance, the gearbox is also utilized in various military equipment, where reliability and efficiency are crucial.Our company takes pride in offering top-quality products like the 707AL Slewing Drive Planetary Gearbox. With our expertise and dedication to innovation, we strive to exceed customer expectations and build strong partnerships. Join us today and experience the superior performance and reliability our products provide.Author: Miya
