707L Slewing Drive Planetary Gearbox



707L Slewing Drive Planetary Gearbox

Product Overview

The 707L Slewing Drive Planetary Gearbox is a high-performance product designed to meet the needs of various industries. It features a unique naming convention and positioning within the market. The product is known for its exceptional design and structural characteristics.

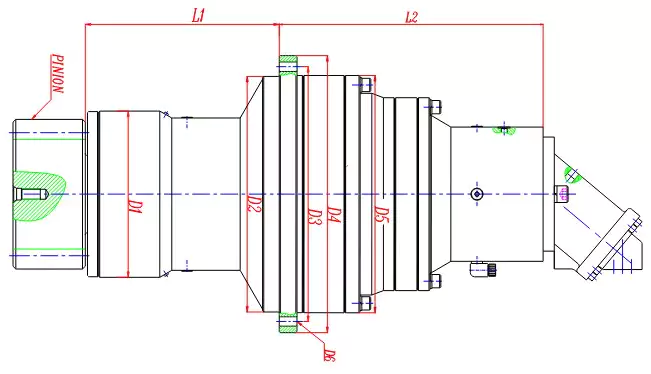

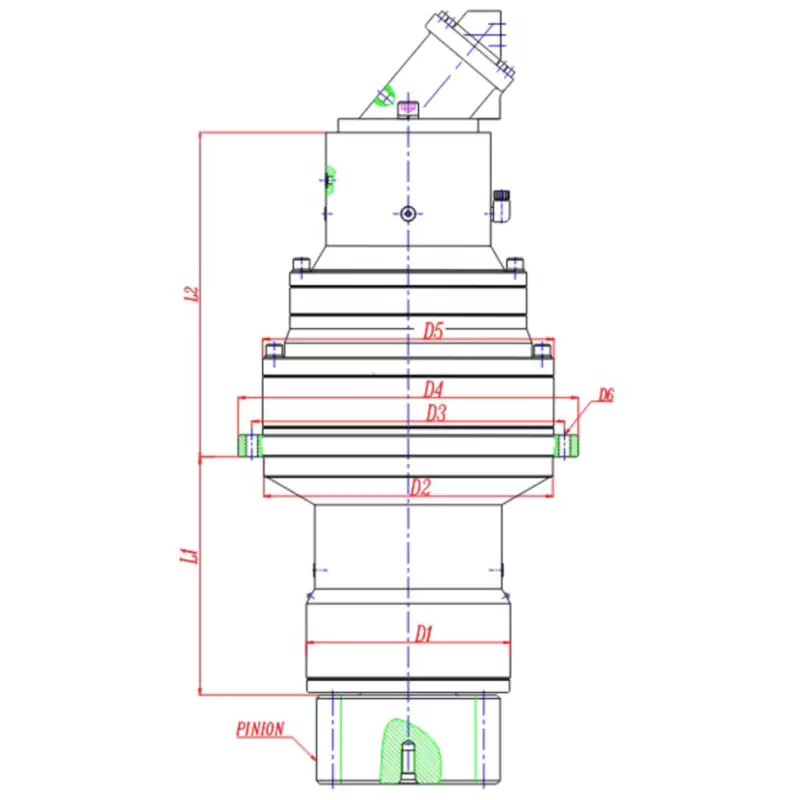

Dimension	Type
	EP705L	EP706L	EP707L	EP709L
D1	180	200	230	250
D2	195	250	280	280
D3	245	325	314	380
D4	290	360	348	420
D5	245	292	345	345
D6	12-ф13	10-ф17	12-ф17	12-ф17
L1	171	225	295	295
L2	Size according to motor type
Pinion data	Pinion data according to customer

Technical specification

Type	Max.Output Torque		Ratio	RecommendHydraulicMotor	Max. inputspeed	Braketorque	Brake workpressure
	Excavator	Crane	(i)		(rpm)	(N.m)	(bar)
EP705L	5000	6500	12.4—174.5	SAE A·B ·C adopt	3500	50-400	20-50
EP706L	7700	12000	13.5—142.5	SAE D·E adopt		50-1000
EP707L	10500	165000	12.6—257.7	A2FE 45·56·63
EP709L	16000	26000	12.6—257.7	A2FE 80·90

1. • Input – output rotate same direction.
   • Other ratio and other input type can be specially designed.

Core Technologies and Materials

Planetary Gear Design

Our 707L Slewing Drive Planetary Gearbox incorporates advanced planetary gear technology, ensuring superior efficiency and durability.

Bearing System

The bearing system of our product is carefully engineered to provide optimal load distribution and smooth operation, resulting in increased performance and longevity.

Sealing Technology

We have implemented state-of-the-art sealing technology in the 707L Slewing Drive Planetary Gearbox to prevent leakage and protect internal components from external contaminants.

Lubrication System

Our product is equipped with an efficient lubrication system that ensures proper lubrication of all critical components, reducing friction and extending the lifespan of the gearbox.

Performance Advantages

High Torque Density

The 707L Slewing Drive Planetary Gearbox offers an exceptional torque density, allowing it to handle heavy loads and demanding applications with ease.

Low Noise and Vibration

With meticulous design and precision manufacturing, our product operates quietly and minimizes vibrations, providing a comfortable and reliable working environment.

Environmental Adaptability

The 707L Slewing Drive Planetary Gearbox is designed to withstand various environmental conditions, including temperature variations, humidity, and exposure to dust and debris.

Intelligent Monitoring

Our gearbox is equipped with advanced monitoring systems, allowing real-time tracking and analysis of key performance indicators, ensuring efficient operation and proactive maintenance.

Applications

Construction Machinery

Our product is widely used in construction machinery such as tower cranes, excavators, and port machinery, providing reliable and precise movement control.

Solar Tracking Systems

The 707L Slewing Drive Planetary Gearbox is an ideal choice for solar tracking systems, efficiently maximizing solar panel exposure to sunlight for optimal energy generation.

Marine Engineering Equipment

In marine engineering applications, our gearbox enables precise and smooth rotation in various marine equipment, ensuring safe and efficient operation.

Military Equipment

With its robust design and exceptional performance, our product is trusted in military applications, providing reliable power transmission and operation in demanding conditions.Our company takes pride in offering the 707L Slewing Drive Planetary Gearbox, a cutting-edge solution that delivers unparalleled performance and reliability. With our advanced technologies, superior materials, and extensive expertise, we are dedicated to meeting the diverse needs of our customers.Author: Miya
