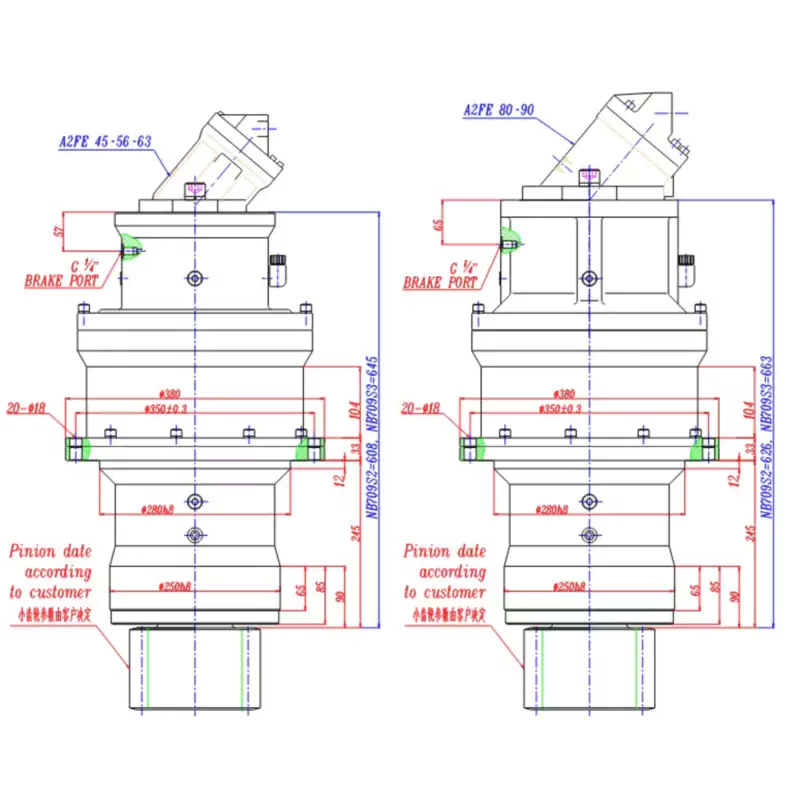

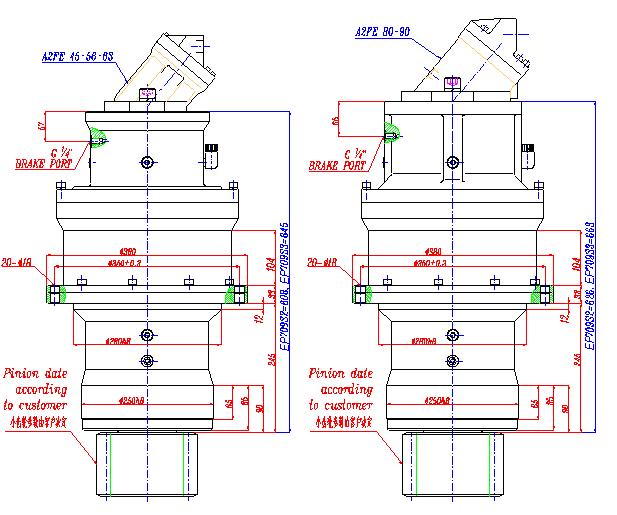

709S3 Slewing Drive Planetary Gearbox



709S3 Slewing Drive Planetary Gearbox

Product Overview

The 709S3 Slewing Drive Planetary Gearbox is a high-performance product designed for various applications. It is known for its exceptional quality and durability. The product is designed with precision and incorporates advanced technology to ensure optimal performance in different operating conditions.

Technical specification

Type	Max.Output Torque		Ratio	RecommendHydraulicMotor	Max. inputspeed	Braketorque	Brake workpressure
	Excavator	Crane	(i)		(rpm)	(N.m)	(bar)
EP709S2	16000	26000	20.1, 23.1, 27.5	A2FE 45·56·63A2FE 80·90A2FE107·125	3000	400-600	20-50
EP709S3			66.9, 82.4, 105.8, 121.3, 143.9

1. • Input – output rotate same direction.
   • Other ratio and other input type can be specially designed.

Model Naming and Positioning

The 709S3 Slewing Drive Planetary Gearbox follows a specific model naming convention to differentiate its various versions and configurations. The product is positioned as a reliable and efficient solution for various industries, including engineering machinery, solar tracking systems, marine engineering equipment, and military applications.

Design and Structural Features

Planetary Gear Design

The 709S3 Slewing Drive Planetary Gearbox employs an advanced planetary gear design that enhances its torque transmission capabilities. This design ensures smooth and efficient power transfer, enabling the product to handle heavy loads with ease.

Bearing System

Equipped with a robust bearing system, the 709S3 Slewing Drive Planetary Gearbox offers exceptional stability and load-carrying capacity. The high-quality bearings used in its construction provide reliable support and minimize wear and tear, resulting in extended product lifespan.

Sealing Technology

The product incorporates advanced sealing technology to protect its internal components from dust, moisture, and other environmental factors. This ensures the longevity and reliable performance of the 709S3 Slewing Drive Planetary Gearbox, even in harsh operating conditions.

Lubrication System

With an efficient lubrication system, the 709S3 Slewing Drive Planetary Gearbox minimizes friction and heat generation, allowing for smoother operation and reduced wear. This system ensures optimal lubrication to enhance the product's overall performance and longevity.

Performance Advantages

High Torque Density

The 709S3 Slewing Drive Planetary Gearbox offers a high torque density, allowing it to transmit more power while maintaining a compact size. This feature makes it suitable for applications where space is limited but high torque is required.

Low Noise and Vibration

Designed with precision and using high-quality components, the 709S3 Slewing Drive Planetary Gearbox operates quietly with minimal vibration. This ensures a comfortable and noise-free working environment, making it ideal for noise-sensitive applications.

Environmental Adaptability

The 709S3 Slewing Drive Planetary Gearbox is engineered to withstand extreme temperatures, humidity, and other environmental challenges. Its rugged construction and advanced sealing technology make it highly adaptable to various operating conditions, providing reliable performance in diverse environments.

Intelligent Monitoring

Equipped with intelligent monitoring features, the 709S3 Slewing Drive Planetary Gearbox allows for real-time performance monitoring and diagnostics. This enables proactive maintenance, reduces downtime, and enhances overall operational efficiency.

Applications

Engineering Machinery

The 709S3 Slewing Drive Planetary Gearbox finds extensive use in engineering machinery such as tower cranes, excavators, and port machinery. Its robust design and high load-carrying capacity make it an ideal choice for these demanding applications.

Solar Tracking Systems

With its precise and reliable performance, the 709S3 Slewing Drive Planetary Gearbox is widely employed in solar tracking systems. It ensures accurate tracking of solar panels to maximize energy absorption and optimize solar power generation.

Marine Engineering Equipment

In marine engineering equipment, the 709S3 Slewing Drive Planetary Gearbox is utilized for various applications, including cranes, winches, and rotating platforms. Its resistance to corrosion and ability to withstand harsh marine environments make it a trusted choice.

Military Equipment

The 709S3 Slewing Drive Planetary Gearbox plays a crucial role in military equipment, providing reliable power transmission and enhanced performance. Its durability and adaptability make it suitable for use in armored vehicles, missile systems, and other military applications.

Our Company Advantage

Our company takes pride in being a leading provider of high-quality and technologically advanced power transmission solutions. With years of experience and a dedicated team of experts, we consistently deliver products that meet the highest industry standards.By choosing to partner with us, you benefit from our commitment to innovation, reliability, and customer satisfaction. We strive to exceed your expectations and provide customized solutions tailored to your specific needs. With our extensive knowledge and expertise, you can trust us to deliver the best-in-class products and services.Author: Miya
