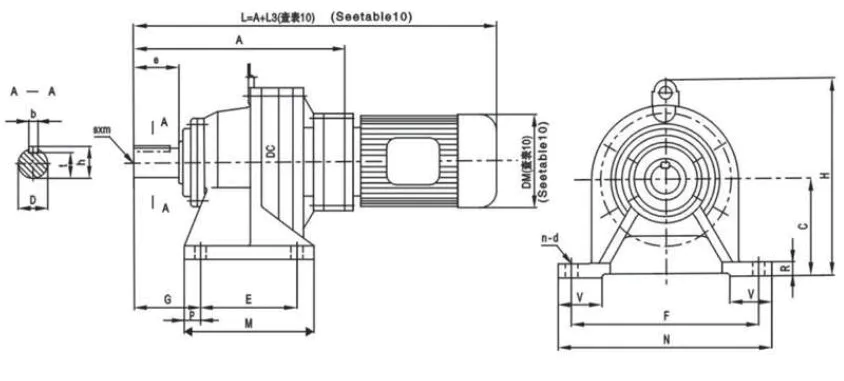

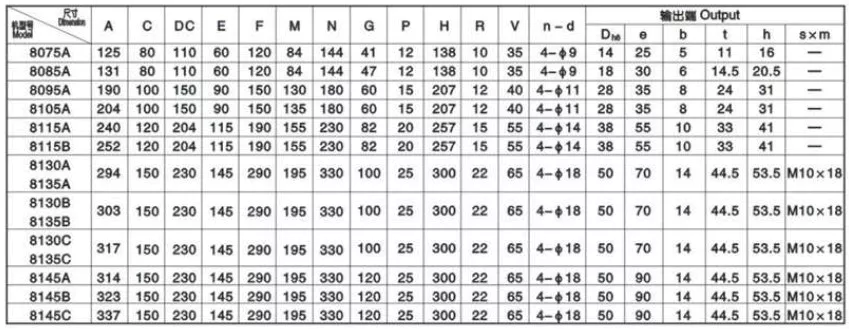

8000 Series XWED Cycloidal Pinwheel Reducer Gearbox 8075A-8145C Two Horizontal

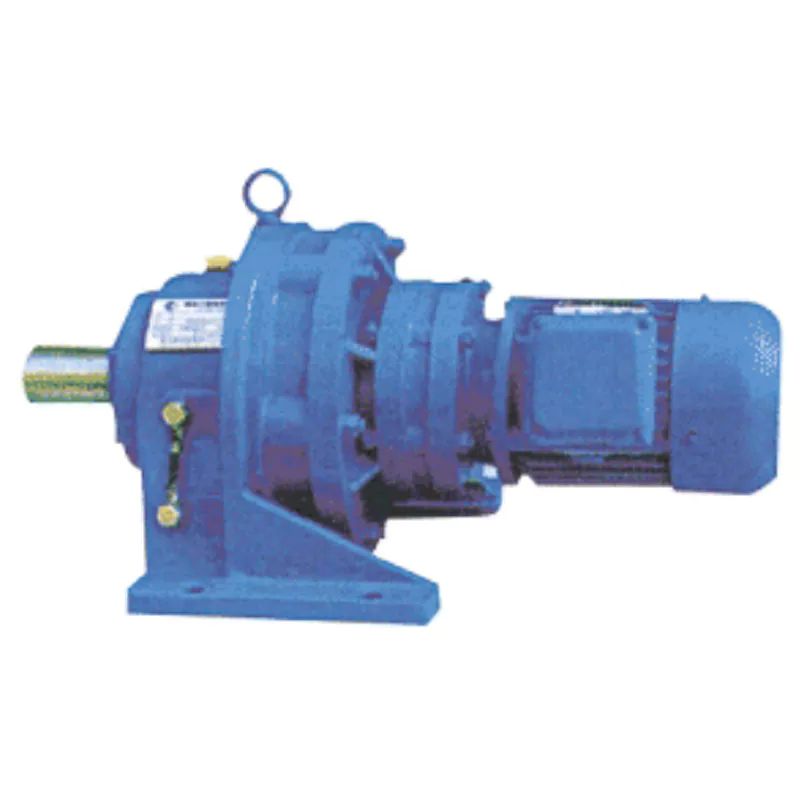

8000 Series XWED Cycloidal Pinwheel Reducer

The main in-line drives are all power cycloidal gear reducers and gear motors. The revolutionary Raydafon design provides quiet, efficient, and reliable performance beyond the involute gear design. The key to Raydafon's unparalleled performance and reliability is that 67% of the reduction components are always in contact with each other compared to the gear design that only uses limited tooth contact. Unlike the gear drive design, the Raydafon reducer assembly operates under compression rather than shear conditions, so it is incredibly sturdy and impact resistant. All power technology, innovative product options, and accessories provide the broadest range of application solutions. The transmission efficiency is high: because the cycloidal reducer adopts the rolling meshing principle, the sliding friction and vibration phenomenon are reduced, and multiple teeth bear the transmission of torque. The transmission efficiency can reach more than 95% at the first level, and the secondary aging rate can reach more than 90%.

1. The cycloidal pin gear meshing is adopted to achieve the ability of simultaneous meshing transmission of multiple teeth, up to 67%, and avoid the possibility of tooth breakage. Therefore, the cycloidal pin gear structure has an overload resistance of 500% that other reducers cannot bear.
2. The process of raw material procurement, parts processing, and machine assembly is completed under strict quality control. With the rolling friction principle, the reliability and durability of the product are excellent.
3. It has complete specifications and several pens for customers to choose from. The first reduction ratio is 1:6 to 1:87, and the second reduction ratio is 1:99 to 1:7569
4. Because of its reliability, durability, and lower maintenance costs, it is more economical.

Gear Precision grade	6(ISO 1328)
Gear surface hardness	HRC58-62
Gear material	20CrMnTi
Shaft material	40Cr
Housing material	Main aluminum alloy; Cast iron
Bearing brand and lifetime	HRB ;NSK;SKF
Color	Blue; Gray

Advantage of Our Cycloid Gearbox

1: Wide variety of inputs available, including C-Face, Free shaft, Gearmotors, and Brake motor2:Superior seal design using wear sleeves and pressure-rated seals3: All Rotation components are fully hardened, vacuum-degassed bearing grade steel for consistently reliable performance4:High power destiny. All reductions contained in compacting ring gear housing5:Rugged,shock-resistant cast iron housing. Optional ductile iron is also available6:unique oil sight gauge for simple, visible lubrication indication7:Unmatched reliability, Exceptional performance

Cycloidal Pin Gear Reducer VS Gear Reducer

There are many classifications of the reducers we usually use. If it is shown that the apparent classification is cycloidal gear, they are widely used in all walks of life. In many applications, these two types of reducers can be replaced. You may ask, what's the difference between the two? How should we choose? Next, let me tell you something about gear reducers: we take four series (R series helical gear problematic tooth surface reducer, S series helical worm gear reducer, K series spiral bevel gear reducer, F series parallel shaft helical gear reducer) as an example. These four series are used in various industries because their reducers can be arbitrarily matched to meet the needs of many industries. In addition, The gear reducer has high transmission efficiency, stable operation, low noise, easy disassembly and inspection, and easy installation, which is why users widely favor it.After talking about gear reducers, let's talk about cycloidal pin gear reducers. Its internal structure is quite different from that of a gear reducer. It adopts a transmission mode of cycloidal pin gear engagement. Under the same conditions, the carrying torque of this transmission mode is more significant than that of the gear reducer, and the volume is smaller.In addition, the speed ratio of the cycloidal pin gear reducer is relatively small, not as much as that of the gear reducer, because the load torque of the cycloidal pin gear reducer is much better than that of the gear reducer. There are still many customers who use gear reducers. Later, they changed cycloidal pin gear reducers. What they wanted was the bearing capacity of the cycloid.After talking about the performance, let's analyze the maintenance problem. At this point, the gear reducer is more straightforward than the cycloid. Because the structure of the gear reducer is relatively more straightforward than that of the cycloidal reducer, the later maintenance of the cycloidal reducer is more troublesome.In practical application, selecting a suitable reducer should also be decided according to the operating conditions.

Cycloidal Pinwheel Reducer Manufacturer

It is determined to build a good gearbox within 100 years. The company has 50-100 employees and professional R&D personnel; D. The design, sales team, and products sell well at home and abroad, and the market is mainly concentrated overseas. Provide customers with personalized solutions. Based on mutual benefit, the company insists on satisfying customers' needs with high-quality and efficient services. We have professional engineers who can provide personalized solutions to meet specific needs.The product can meet the needs of multiple application fields. Silk and titanium products can meet the needs of many application fields. They have been successfully applied in the meat, seafood, and aquatic product processing industry, baking industry, canned food industry, beverage and dairy product processing industry, fruit and vegetable processing industry, pharmaceutical and cosmetics industry, battery manufacturing, corrugated paper production, tire production, and other production fields.
