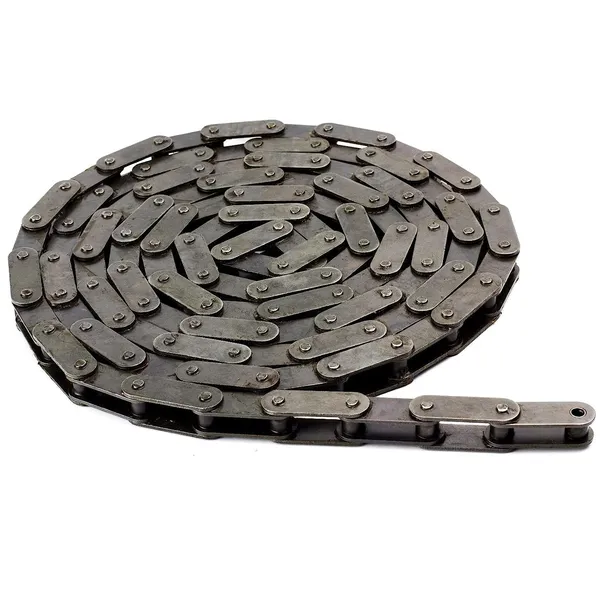

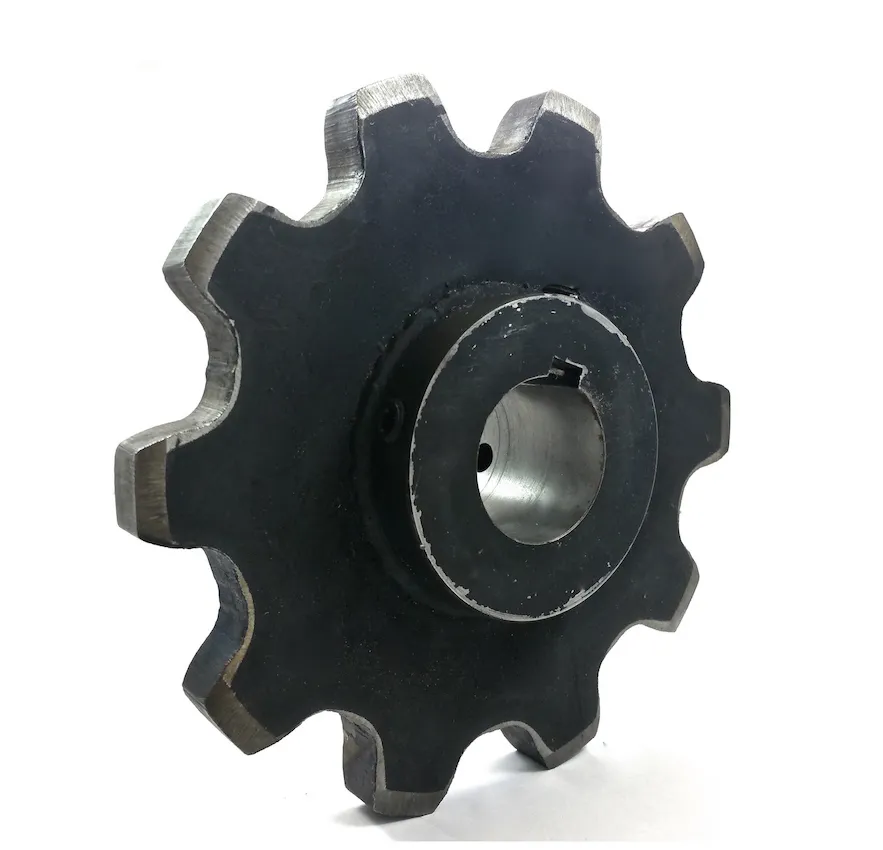

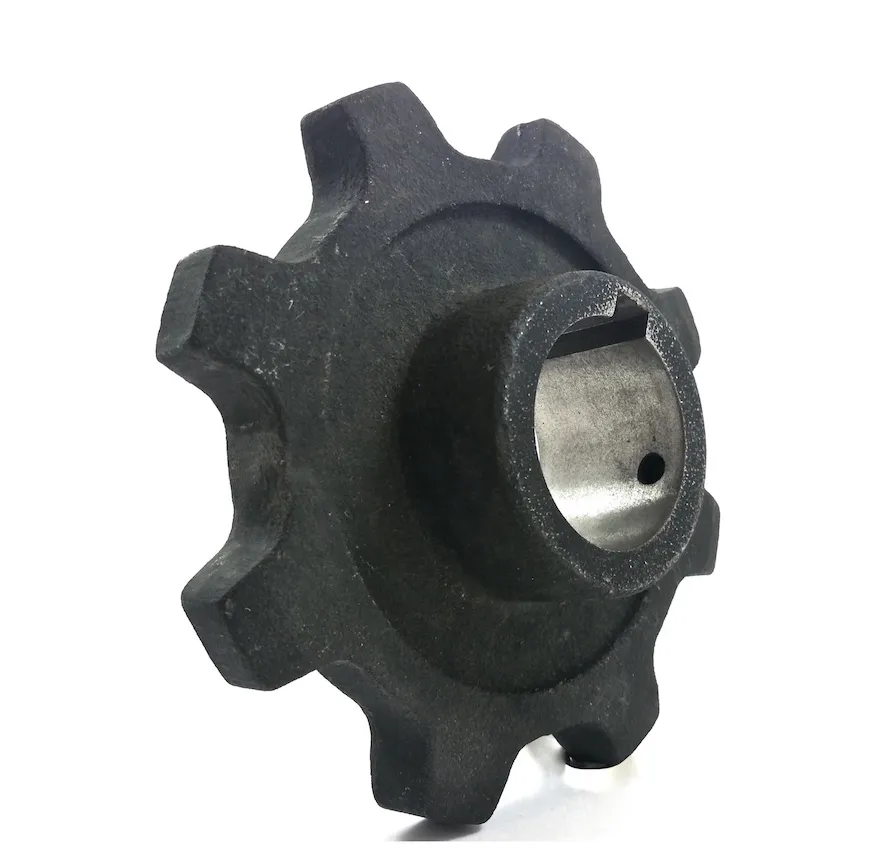

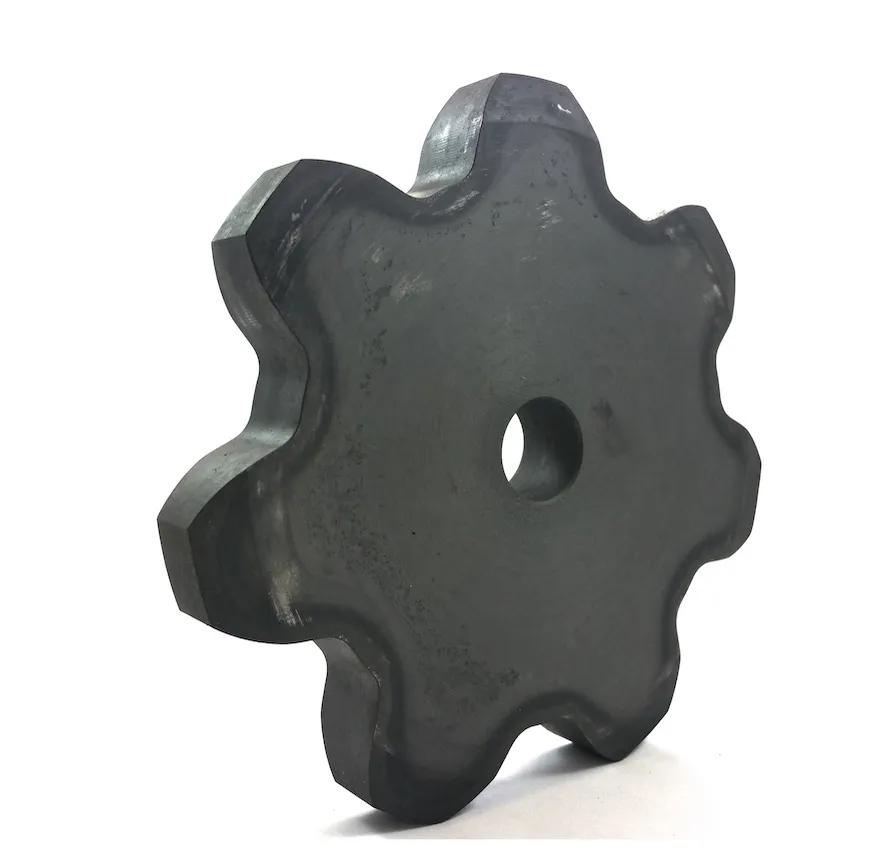

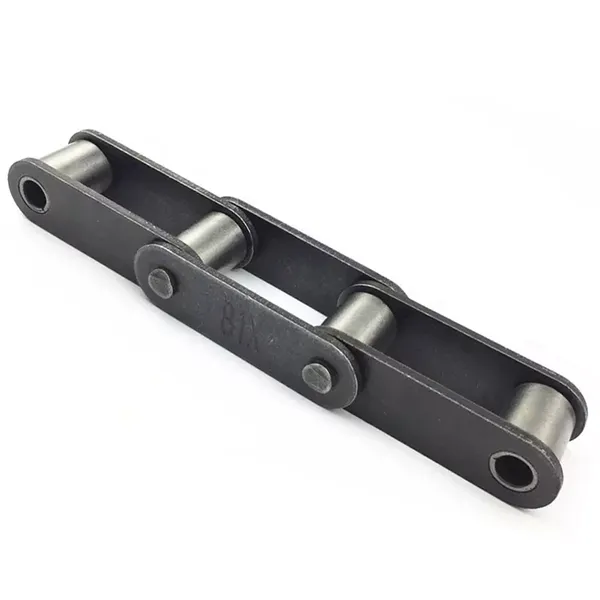

81X chain features a 2.609" pitch and is categorized as a steel bushed roller chain within the engineer class of chains. Its commonly referred to as an 81X conveyor chain due to the straight side-bar design and common usage within conveying applications. Most commonly, this 81X lumber conveyor chain is found in the lumber and forestry industry and is available with upgrades such as "chrome pins" or heavier-duty sidebars. Our high-strength chain is manufactured to ANSI specifications and dimensionally interchanges with other brands, meaning sprocket replacement is not necessary. We also supply 81X chain sprockets and 81X chain attachments, and we have an 81X chain breaker. Because of its high-strength and effective design, this 81X chain can be found in applications all around the world, such as lumber, agriculture, mills, grain handling, and many more drive and conveying applications.

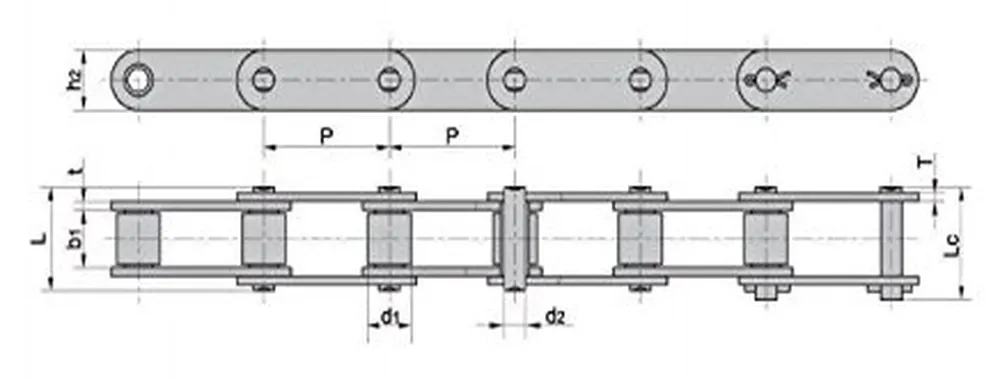

▍81X Chain Dimensions:

Chain No:	81X Chain (81X Conveyor Chain)
Pitch Size:	2.609 Inch
Roller Diameter:	0.906 Inch
Width Between Inner Plates:	1.063 Inch
Pin Diameter:	0.437 Inch
Pin Length L Max:	1.929 Inch
Pin Length Lc Max:	2.106 Inch
Inner Plate Depth:	1.122 Inch
Plate Thickness:	0.157 Inch
Average Tensile Strength:	28979 lb
Material:	Carbon Steel
Length:	10 Feet
Weight Per Foot:	2.533 Ibs

▍Advantages of 81X Conveyor Chains:

The 81X conveyor chain is a high-strength, steel-bushed roller chain that is commonly used in material handling applications such as the lumber industry. It features a 2.609" pitch and is manufactured to ANSI specifications. The 81X chain is available in standard, stainless, heavy-duty, and super heavy-duty versions.Here are some of the advantages of 81X conveyor chains:1. High tensile strength:?The 81X chain has a tensile strength of 25,000 lbs., which makes it a good choice for applications where high loads are present.2. Durability:?The 81X chain is made of high-quality steel and is heat treated to resist wear and tear. This makes it a long-lasting chain that can withstand the rigors of demanding applications.3. Easy to maintain:?The 81X chain is easy to maintain and lubricate. This helps to extend the lifespan of the chain and keep it running smoothly.4. Wide range of applications:?The 81X chain can be used in a variety of applications, including lumber conveyors, trimmer saws, stackers, transfer conveyors, unscramblers, sorters, veneer dryers, and gypsum board ovens.5. ANSI-compliant:?The 81X chain is manufactured to ANSI specifications, which ensures that it meets the highest standards of quality and performance.Overall, the 81X conveyor chain is a high-quality, durable, and versatile chain that is a good choice for a variety of demanding applications.

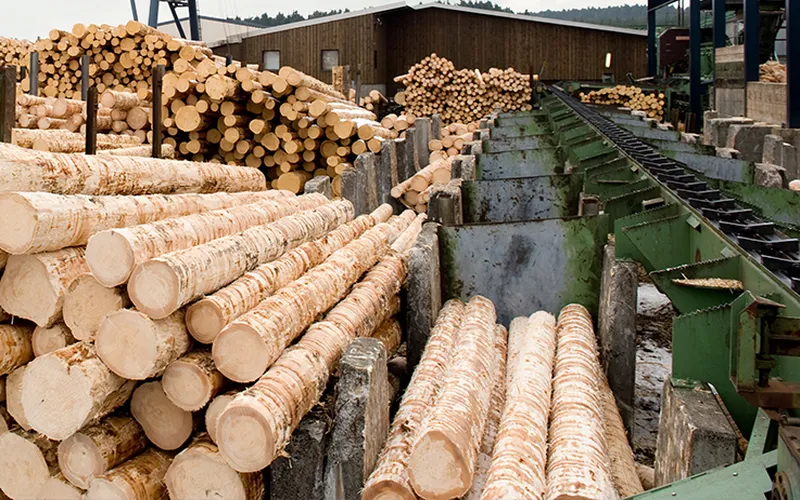

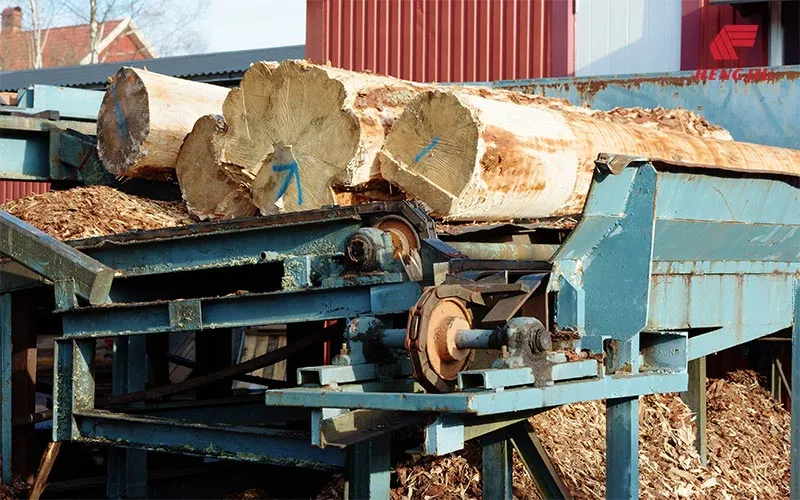

▍Applications of 81X Lumber Conveyor Chain:

81X lumber conveyor chain is a type of chain commonly used in the lumber industry for conveying large and heavy loads of lumber. The chain is designed with large, sturdy links that can withstand high loads and resist wear and tear. Some of the common applications of 81X lumber conveyor chain include:

• Lumber conveyors: This is the most common application for the 81X chain. Lumber conveyors are used to move logs and lumber around sawmills and lumberyards.
• Trimmer saws:?81X chain is often used on trimmer saws, which are used to cut logs into smaller pieces.
• Stackers:?81X chain is also used on stackers, which are used to stack lumber.
• Transfer conveyors:?Transfer conveyors are used to move lumber from one location to another.
• Unscramblers:?Unscramblers are used to unscramble lumber that has been jumbled together.
• Sorters:?Sorters are used to sort lumber by size or grade.

In addition to these applications, the 81X lumber conveyor chain can also be used in other industries, such as agriculture, mining, and manufacturing.We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like?roller chains,?palm oil chains,?sugar mill chains, leaf chains, flat top chains, side bow chains, lumber conveyor chains,?agricultural chains, silent chains, PIV chains,?stainless steel chains,?car parking chain, slient chain, engineering chain,?steel pintle chain,?welded steel chain,?drop forged chain, malleable iron chain, and many other types. Different kinds of attachments are available.
