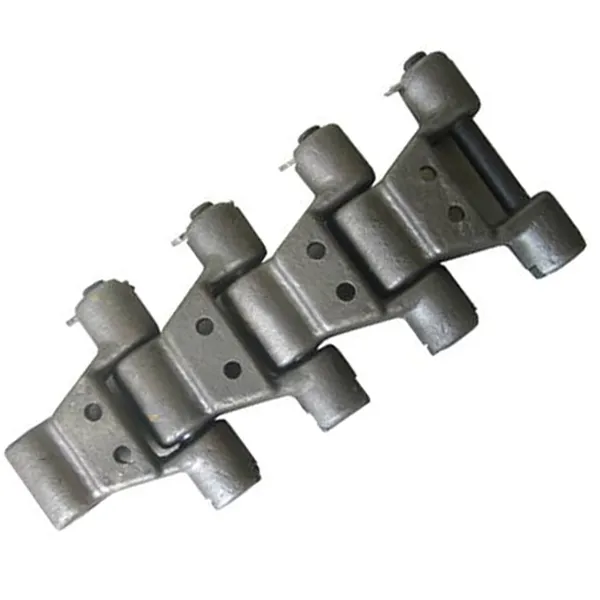

901 Sugar Mill Chains

901 Sugar Mill Chains

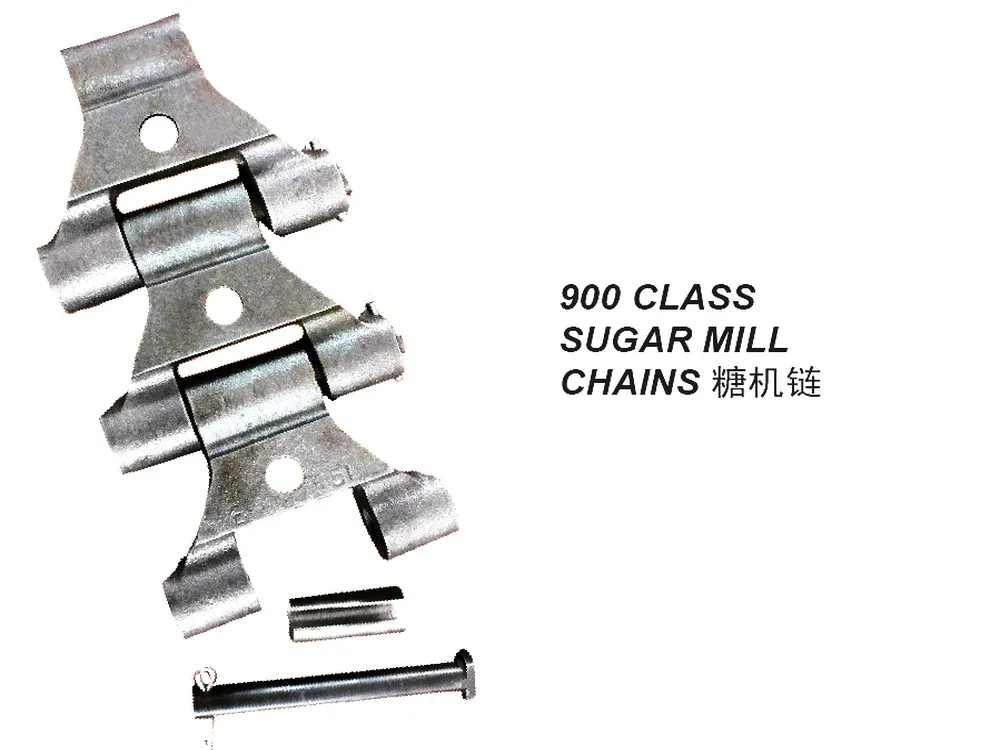

The 901 Sugar Mill Chain is a heavy-duty industrial chain designed for the demanding conditions of the sugar mill industry. The 901 Sugar Mill Chain is made with high-quality steel and features a cranked link design that provides superior strength and durability. It is also resistant to corrosion and wear, making it ideal for use in harsh environments.

The 901 Sugar Mill Chain is available in a variety of sizes and pitches to meet the specific needs of your application. It can be used in a variety of conveyor systems, including cane carriers, bagasse carriers, and roller conveyors.

Here are some of the key features of the 901 sugar mill chain:

• Made from high-quality steel
• Heat-treated for durability
• Highly resistant to wear and tear
• Available in a variety of sizes and configurations

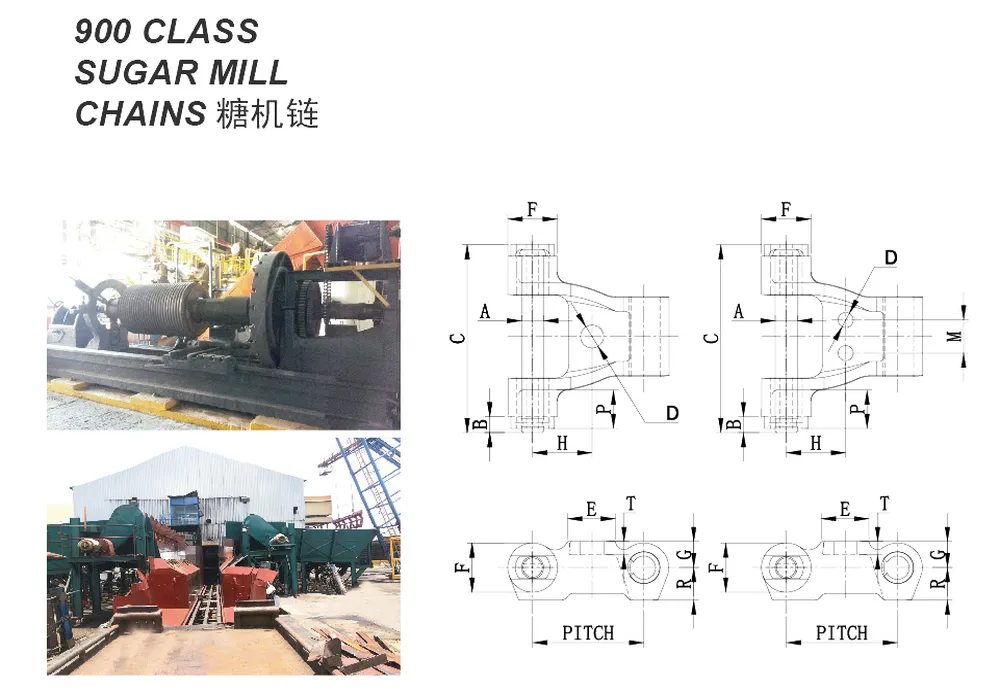

901 Sugar Mill Chains Dimensions:

Chain No.	Pitch	A	C	D	E	F	G	H	M	P	R	T	Weight (Lbs)
E41
901	3.149	0.625	5.50	0.66	1.25	1.34	0.78	1.38	-	1.13	0.94	0.36	12.2
E42
901	3.149	0.625	5.50	0.66	1.25	1.34	0.78	1.58	-	1.13	0.94	0.36	12.2
E43
901	3.149	0.625	5.50	0.41	1.25	1.34	0.78	1.38	1.09	1.13	0.94	0.36	12.2
E44
901	3.149	0.625	5.50	0.41	1.25	1.34	0.78	1.58	1.09	1.13	0.94	0.36	12.2

Advantages of 901 Sugar Mill Chains:

901 sugar mill chains are a type of heavy-duty chain that is specifically designed for use in the sugar mill industry. They are made of high-quality materials and are designed to withstand the harsh conditions of sugar mills, such as high temperatures, humidity, and corrosive chemicals.

Some of the advantages of 901 sugar mill chains include:

• Durability:?901 sugar mill chains are made of high-quality materials and are designed to withstand the harsh conditions of sugar mills. This makes them a durable and long-lasting solution for sugar mill applications.
• Strength:?901 sugar mill chains are very strong and can handle heavy loads. This is important for sugar mill applications, where chains are often used to transport heavy loads of sugar cane and other materials.
• Resistance to wear and tear:?901 sugar mill chains are resistant to wear and tear, even in the most demanding applications. This means that they will last longer and require less maintenance than other types of chains.
• Corrosion resistance:?901 sugar mill chains are corrosion resistant, which makes them ideal for use in sugar mills, where chains are often exposed to corrosive chemicals.
• Efficiency:?901 sugar mill chains are designed to operate efficiently, with minimal friction. This helps to reduce energy consumption and improve the overall performance of sugar mill operations.

In addition to these advantages, 901 sugar mill chains are also relatively easy to install and maintain. This makes them a cost-effective solution for sugar mills of all sizes.

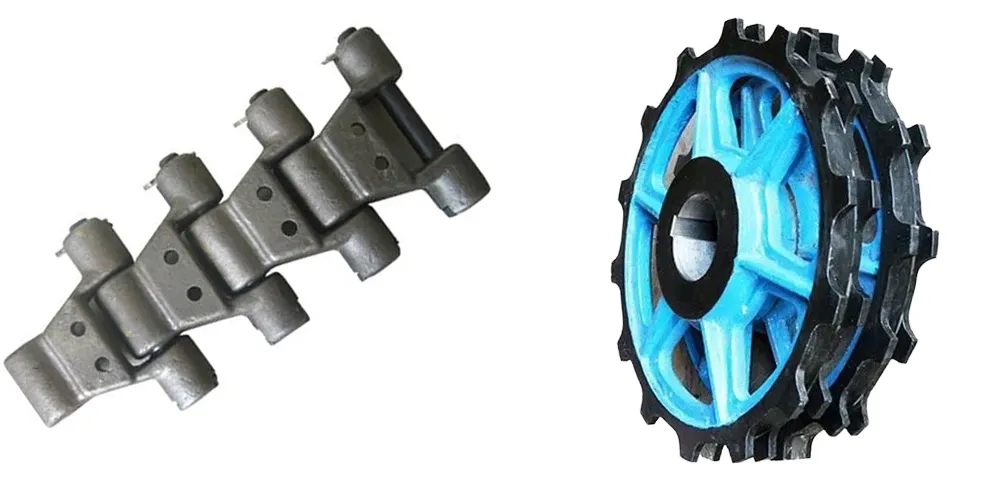

Sugar Mill Chain Sprockets for 900 Class Sugar Mill Chains:

Sugar mill chain sprockets for 900 class sugar mill chains are heavy-duty sprockets that are designed to withstand the demanding conditions of the sugar milling industry. They are typically made of cast iron or steel, and they have hardened teeth to resist wear.

900 class sugar mill chains are large-pitch chains that are used in a variety of applications in the sugar milling process, including cane carriers, shredders, and mills. They are known for their strength, durability, and resistance to abrasion and corrosion.

Sugar mill chain sprockets for 900 class sugar mill chains are available in a variety of sizes and configurations to meet the specific needs of different applications. They can be single or double sprockets, and they can be either solid or split. Solid sprockets are more durable, but they can be more difficult to install and remove. Split sprockets are easier to install and remove, but they are not as durable as solid sprockets.

When choosing sugar mill chain sprockets for 900 class sugar mill chains, it is important to consider the following factors:

• The pitch of the chain
• The number of teeth on the sprocket
• The bore size of the sprocket
• The material of the sprocket
• The application of the sprocket

It is also important to make sure that the sprockets are compatible with the chain. For example, single sprockets can only be used with single chains, and double sprockets can only be used with double chains.
