902 Sugar Mill Chains

902 Sugar Mill Chains

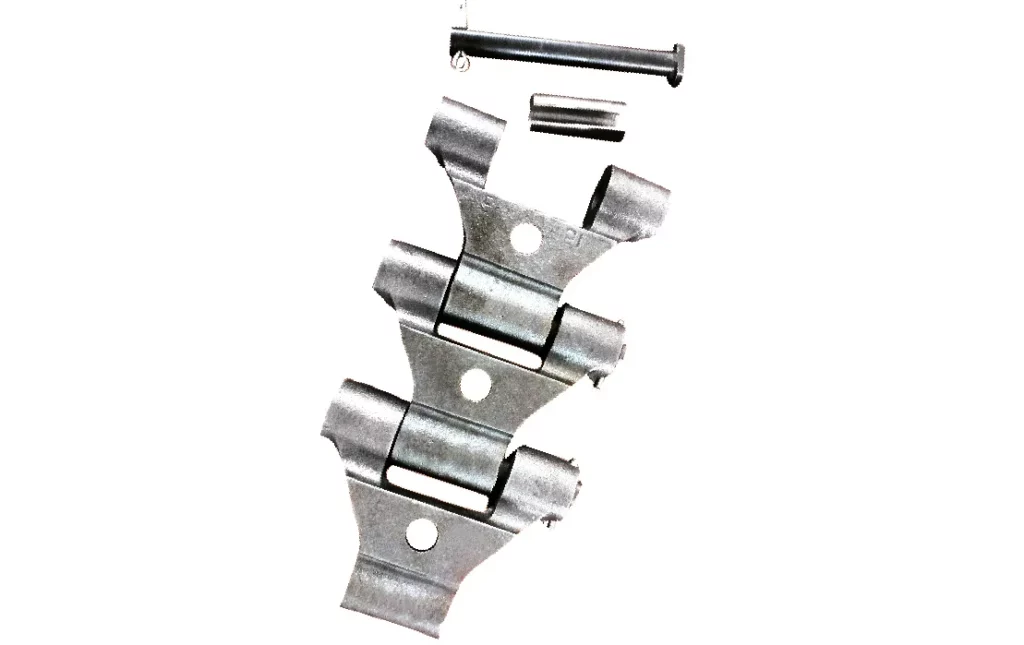

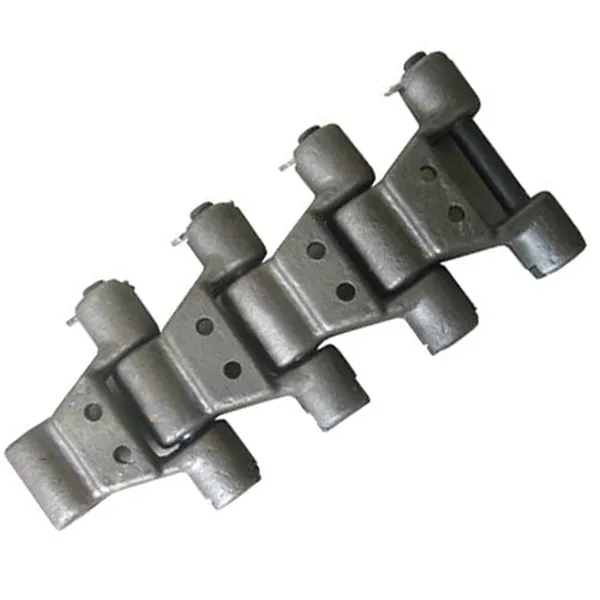

The 902 Sugar Mill Chain is a heavy-duty roller chain designed for use in the demanding environments of sugar mills. It is manufactured from high-quality carbon steel and features a special surface treatment that makes it resistant to wear and corrosion. The chain is also equipped with heat-treated pins and case-hardened bushings for added durability.

The 902 Sugar Mill Chain is available in a variety of sizes and pitches to meet the specific needs of different sugar mill applications. It is commonly used for conveying sugar cane, bagasse, and other materials throughout the mill. The chain is also used in a variety of other industrial applications, such as mining, construction, and agriculture.

Here are some of the key features and benefits of the 902 Sugar Mill Chain:

• High strength and durability
• Wear and corrosion-resistant
• Heat-treated pins and case-hardened bushings
• Available in a variety of sizes and pitches
• Suitable for a wide range of industrial applications

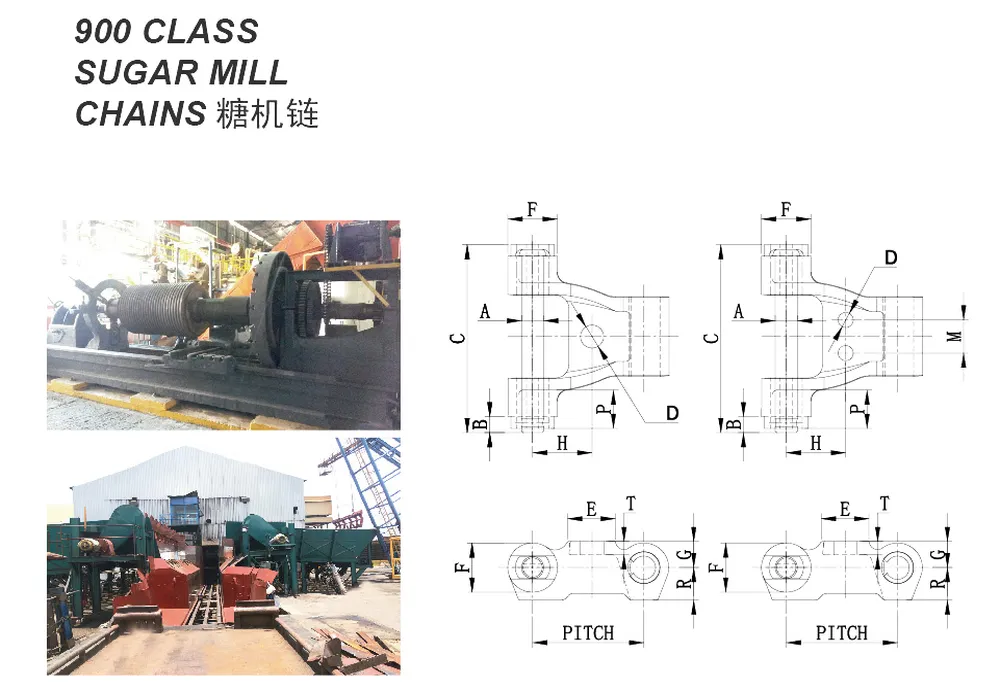

902 Sugar Mill Chain Dimensions:

Chain No.	Pitch	A	C	D	E	F	G	H	M	P	R	T	Weight (Lbs)
E41
902	2.970	0.625	5.50	0.66	1.25	1.34	0.88	1.38	-	1.13	0.94	0.36	12.5
E42
902	2.970	0.625	5.50	0.66	1.25	1.34	0.88	1.48	-	1.13	0.94	0.36	12.5
E43
902	2.970	0.625	5.50	0.41	1.25	1.34	0.88	1.38	1.09	1.13	0.94	0.36	12.5
E44
902	2.970	0.625	5.50	0.41	1.25	1.34	0.88	1.48	1.09	1.13	0.94	0.36	12.5

Benefits of 902 Sugar Mill Chain:

The 902 sugar mill chain is a heavy-duty chain that is specifically designed for use in sugar mills. It is made with high-quality materials and construction, and it is built to withstand the rigors of the sugar milling process.

Some of the benefits of using a 902 sugar mill chain include:

1. Durability:?The 902 sugar mill chain is made with high-strength steel and other durable materials. It is also heat-treated and hardened to resist wear and tear.2. Reliability:?The 902 sugar mill chain is a reliable and dependable chain that can be used in the most demanding applications. It is also easy to maintain and repair.3. Efficiency:?The 902 sugar mill chain is designed to operate efficiently with minimal friction. This can help to reduce energy consumption and improve productivity.4. Safety:?The 902 sugar mill chain is a safe chain to use. It is designed to prevent chain slippage and breakage.

Applications of 902 Sugar Mill Chain:

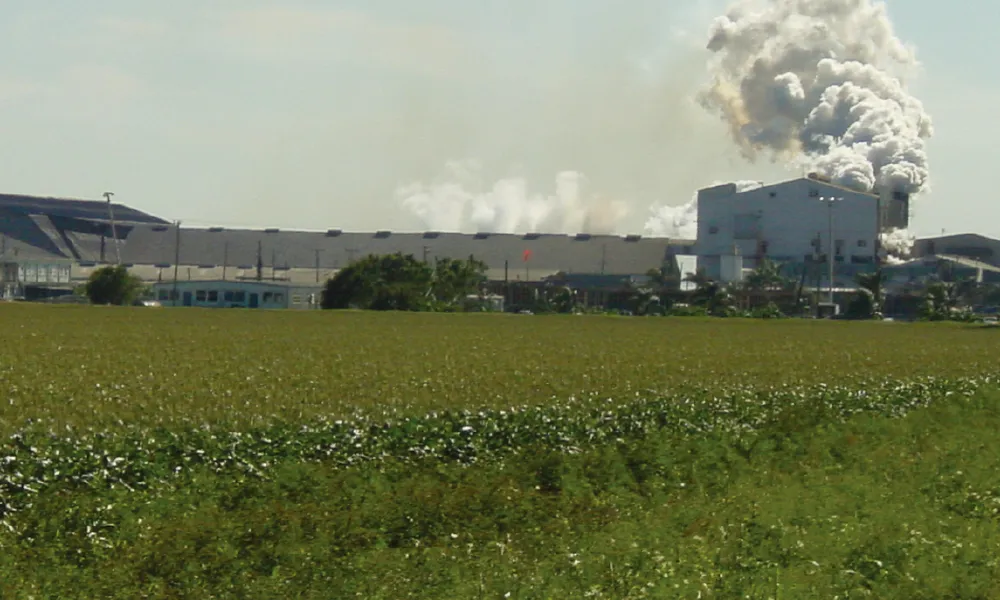

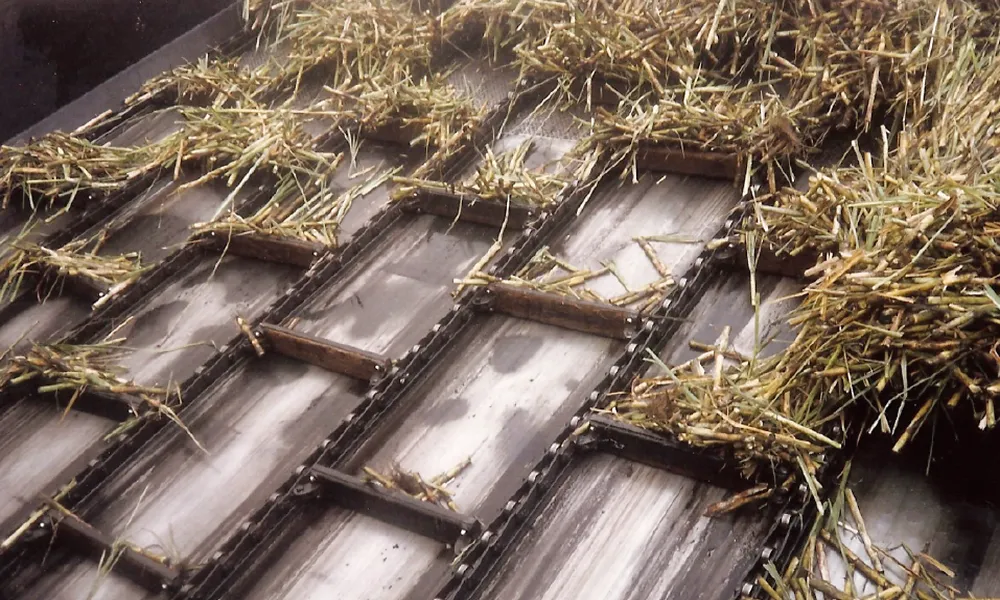

The 902 Sugar Mill Chain is a specific type of chain used in sugar mills for conveying sugarcane through various stages of the sugar production process. This chain is designed to withstand the demanding conditions of the sugar industry, including high temperatures, abrasive materials, and heavy loads. Here are some applications of the 902 Sugar Mill Chain:(1) Cane Carrier Chain: The 902 Sugar Mill Chain is commonly used in the cane carrier system of sugar mills. It helps transport the harvested sugarcane from the fields to the mill for processing. The chain's robust construction and high tensile strength enable it to handle the weight and stress of the cane as it moves along the carrier.(2) Bagasse Carrier Chain: Bagasse is a fibrous residue obtained after extracting juice from sugarcane. The 902 Sugar Mill Chain can be used in the bagasse carrier system to transport bagasse from the milling process to storage or further utilization. Its durability ensures reliable and efficient handling of the bagasse, even in harsh operating conditions.(3) Juice Extraction Chain: During the sugar production process, sugarcane is crushed to extract juice. The 902 Sugar Mill Chain can be employed in the juice extraction system to convey the crushed cane through various stages, including shredding, milling, and diffusing. The chain's wear resistance and strength make it suitable for the demanding nature of this process.(4) Milling and Crushing Chain: Sugar mills utilize heavy-duty equipment to crush and grind the sugarcane, extracting maximum juice. The 902 Sugar Mill Chain can be used in these milling and crushing machines, such as cane mills or shredders, to facilitate the movement of cane through the crushing rollers or shredding blades. Its high tensile strength and resistance to wear ensure reliable operation.(5) Elevator and Conveying Systems: Sugar mills often require vertical or inclined transportation of various materials, such as sugarcane, bagasse, or intermediate products like sugar crystals. The 902 Sugar Mill Chain can be employed in elevator and conveying systems, allowing efficient and reliable movement of materials between different processing stages or storage areas.

Sugar Mill Chain Sprockets for 900 Class Sugar Mill Chains:

Sugar mill chain sprockets for the 900 class sugar mill chains are specialized sprockets designed to work specifically with these chains. The 900 class sugar mill chains are heavy-duty chains commonly used in sugar mills for conveying sugar cane through various stages of the milling process.When selecting sugar mill chain sprockets for the 900 class chains, it's important to consider the following factors:1. Pitch: The pitch refers to the distance between the center of one roller pin and the center of the next roller pin in the chain. The sprocket's pitch must match the pitch of the chain to ensure proper engagement.2. Number of teeth: The number of teeth on the sprocket determines the speed ratio and engagement with the chain. The sprocket should have the appropriate number of teeth to match the chain's requirements.3. Tooth profile: The tooth profile of the sprocket should match the tooth profile of the chain to ensure smooth engagement and minimize wear.4. Material: Sugar mill chain sprockets are typically made from high-quality, durable materials such as hardened steel or alloy steel. The material should be chosen based on the specific operating conditions, including load, speed, and environment, to ensure longevity and reliability.

900 Class Sugar Mill Chain Manufacturers

We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like roller chains, double pitch conveyor chains, hollow pin chains, leaf chains, flat top chains, side bow chains, lumber conveyor chains, 81X conveyor chains, agricultural chains, CA550 roller chains, S55 roller chains, silent chains, X458 conveyor chains, grip chains (film gripper chains), PIV chains, stainless steel chains, nickel/ zinc plated chain, slient chain, engineering chain, steel pintle chain,?welded steel mill chain, drop forged chain, malleable iron chain, "H" Class mill chain, CC Class crate conveyor chain,??"H" Class refuse drag chain, 600 Class ley bushed chain, combination transfer chain, "H" Class transfer rooftop chain, and many other types. Different kinds of attachments are available.
