Adjustable Lock Nut 45°Elbow-VEE-M Hydraulic Fittings

Adjustable Lock Nut 45°Elbow-VEE-M Hydraulic Fittings

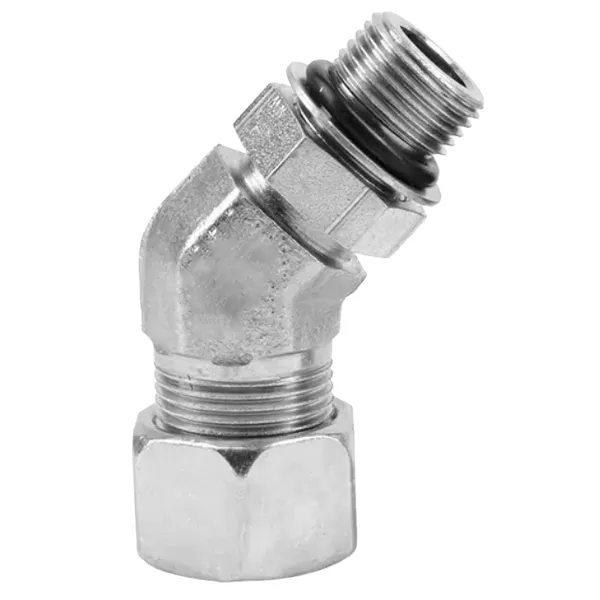

Adjustable Lock Nut 45° Elbow-VEE-M Hydraulic Fittings are a type of hydraulic fitting that is used to connect two hydraulic hoses at a 45-degree angle. They are designed to be leak-proof and to withstand high pressure and temperatures.The Adjustable Lock Nut 45°Elbow-VEE-M Hydraulic Fittings feature allows for easy adjustment of the fitting, which can be helpful in applications where the hoses need to be aligned precisely. The Adjustable Lock Nut 45° Elbow-VEE-M Hydraulic Fittings is a type of bite-type fitting that is known for its strength and durability.Adjustable Lock Nut 45° Elbow-VEE-M Hydraulic Fittings are typically used in a variety of industrial applications, such as construction, mining, and manufacturing. They can be used to connect hydraulic hoses to a variety of equipment, such as excavators, bulldozers, and backhoes.

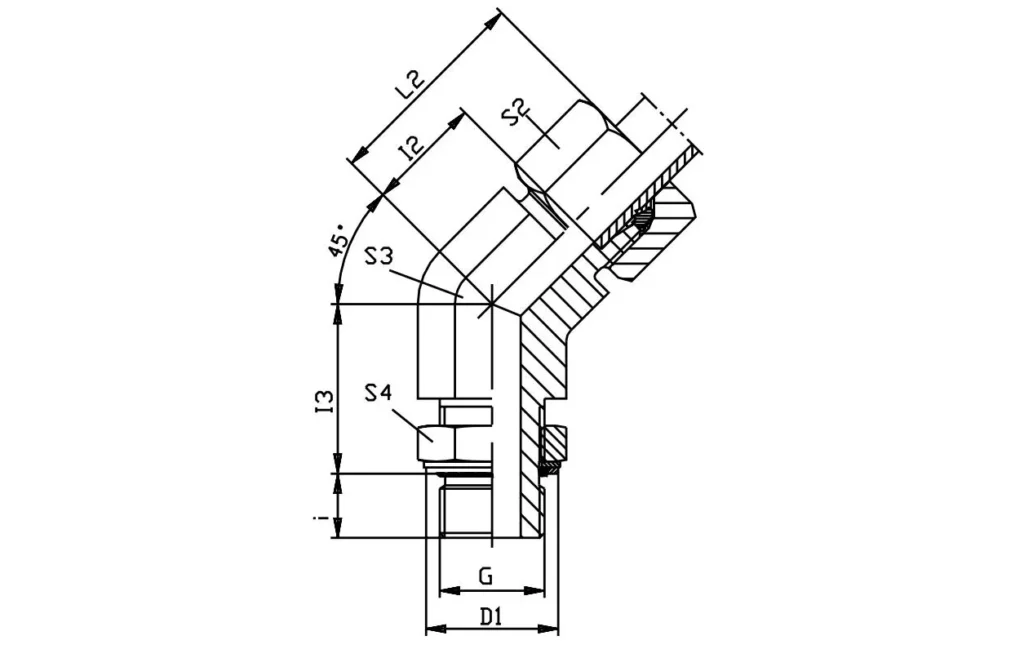

Adjustable Lock Nut 45°Elbow-VEE-M Hydraulic Fitting Size Chart:

VEE-MPart NO.	Series Working Pressure(bar/psi)	Tube O.d	Gmale thread	L2	l2	l3	i	D1	S2	S3	S4
VEE06LM	L light 315 bar 4560psi	6	M10x1	24	9	21	7	15	14	14	14
VEE08LM		8	M12x1.5	27	12	19	10	18	17	14	17
VEE10LM		10	M14x1.5	27	12	24	9	20	19	19	19
VEE12LM		12	M16x1.5	28	14	25	9	23	22	19	22
VEE15LM		15	M18x1.5	32	17	24	11	25	27	22	24
VEE18LM	250bar 3625psi	18	M22x1.5	33	17	31	11	28	32	27	27
VEE22LM	160 bar 2320psi	22	M27x2	35	19	31	14	33	36	30	32
VEE28LM		28	M33x2	40	23	35	14	41	41	36	41
VEE35LM		35	M42x2	48	27	37	14	51	50	50	50
VEE42LM		42	M48x2	49	26	37	16	56	60	50	55
VEE06SM	S heavy 315 bar 4650psi	6	M12x1.5	24	9	19	10	18	17	14	17
VEE08SM		8	M14x1.5	27	12	19	10	20	19	19	19
VEE10SM		10	M16x1.5	29	13	23	11	23	22	19	22
VEE12SM		12	M18x1.5	33	17	25	12	25	24	22	24
VEE16SM	250bar 3625psi	16	M22x1.5	34	16	30	14	28	30	27	27
VEE20SM		20	M27x2	38	16	35	16	33	36	30	32
VEE25SM	160 bar2320 psi	25	M33x2	43	19	37	16	41	46	36	41
VEE30SM		30	M42x2	50	24	37	17	51	50	50	50
VEE38SM		38	M48x2	50	9	38	19	56	60	50	55

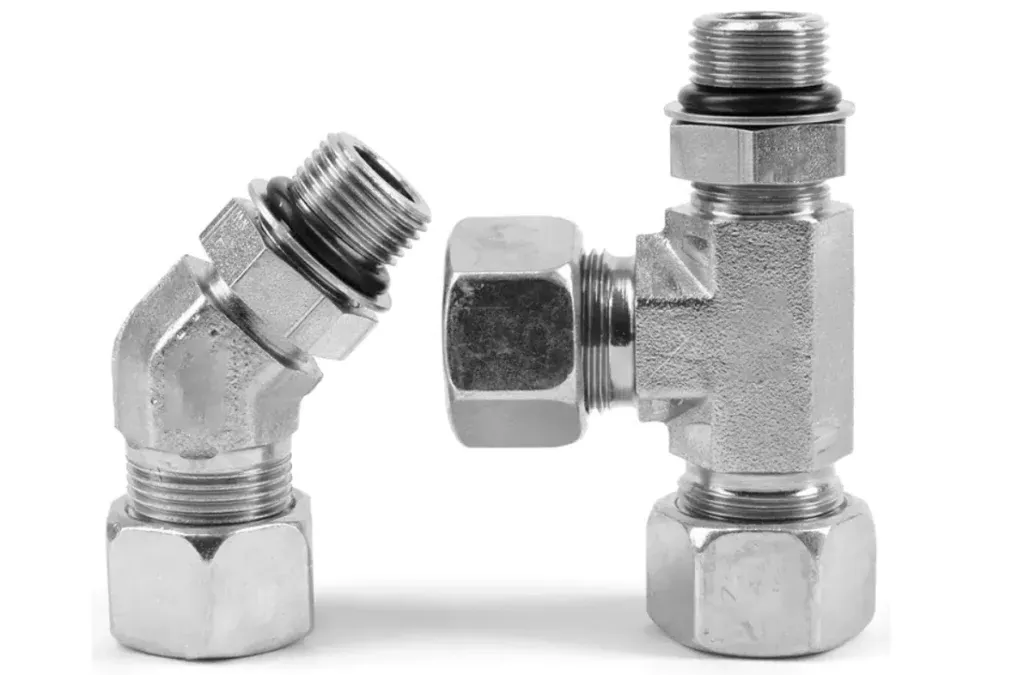

Adjustable Lock Nut 45°Elbow-VEE-M Hydraulic Fittings Benefits:

Using Adjustable Lock Nut 45°Elbow-VEE-M Hydraulic Fittings offers several benefits in hydraulic systems. Here are some key advantages:1. Adjustable Connection: The Adjustable Lock Nut 45°Elbow-VEE-M Hydraulic Fittings feature allows for easy and precise tightening or loosening of the fitting. This adjustability ensures a secure and leak-free connection, even in applications with varying tolerances or when adjustments are needed during installation or maintenance.2. Versatile Angle: The 45° elbow design of the hydraulic fitting provides flexibility in hydraulic system layout and routing. It allows for changes in direction, making it easier to navigate around obstacles or fit into tight spaces. The ability to connect hydraulic hoses or tubes at a 45° angle enhances system efficiency and improves overall installation flexibility.3. Leak Prevention: The VEE-M sealing system used in these hydraulic fittings ensures effective sealing and minimizes the risk of leaks. The combination of O-rings, V-rings, or other sealing elements creates a reliable and durable seal, even under high-pressure conditions. This reduces fluid loss, prevents contamination, and enhances the overall efficiency and safety of the hydraulic system.4. Durability: Adjustable Lock Nut 45° Elbow-VEE-M Hydraulic Fittings are typically constructed from high-quality materials such as stainless steel, brass, or carbon steel. These materials offer excellent resistance to corrosion, wear, and other environmental factors, ensuring the long-term durability and reliability of the fittings in various operating conditions.5. Wide Application Range: These Adjustable Lock Nut 45°Elbow-VEE-M Hydraulic Fittings are suitable for use in diverse industries and applications. Whether it's in manufacturing, construction, agriculture, or automotive sectors, the adjustable lock nut 45° elbow configuration provides versatile connectivity options for different hydraulic components. This adaptability makes them compatible with a wide range of hydraulic systems and equipment.
