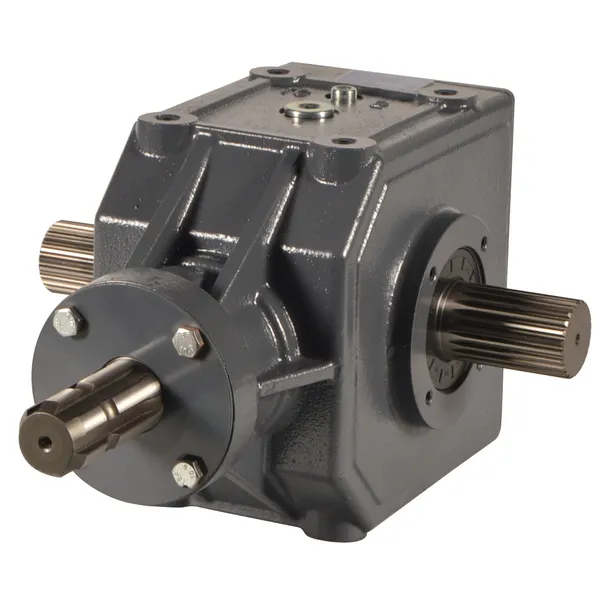

Agricultural Gearbox-Replacement of Bondioli & Pavesi 2081

Agricultural Gearbox-Replacement of Bondioli & Pavesi 2081

The replacement Replacement of Bondioli & Pavesi 2081 gearbox is designed specifically for agricultural applications, where it plays a crucial role in transferring power from the engine to various agricultural implements such as mowers, tillers, balers, and sprayers. It is known for its durability, efficiency, and versatility.The gearbox is designed to handle high power requirements, allowing it to efficiently transfer power from the engine to the agricultural implement. It can accommodate a wide range of power inputs, depending on the specific application. The gearbox offers a variety of gear ratios, allowing to adjust the speed and torque output according to their specific needs. This flexibility enables the use of different agricultural implements and optimizes their performance.

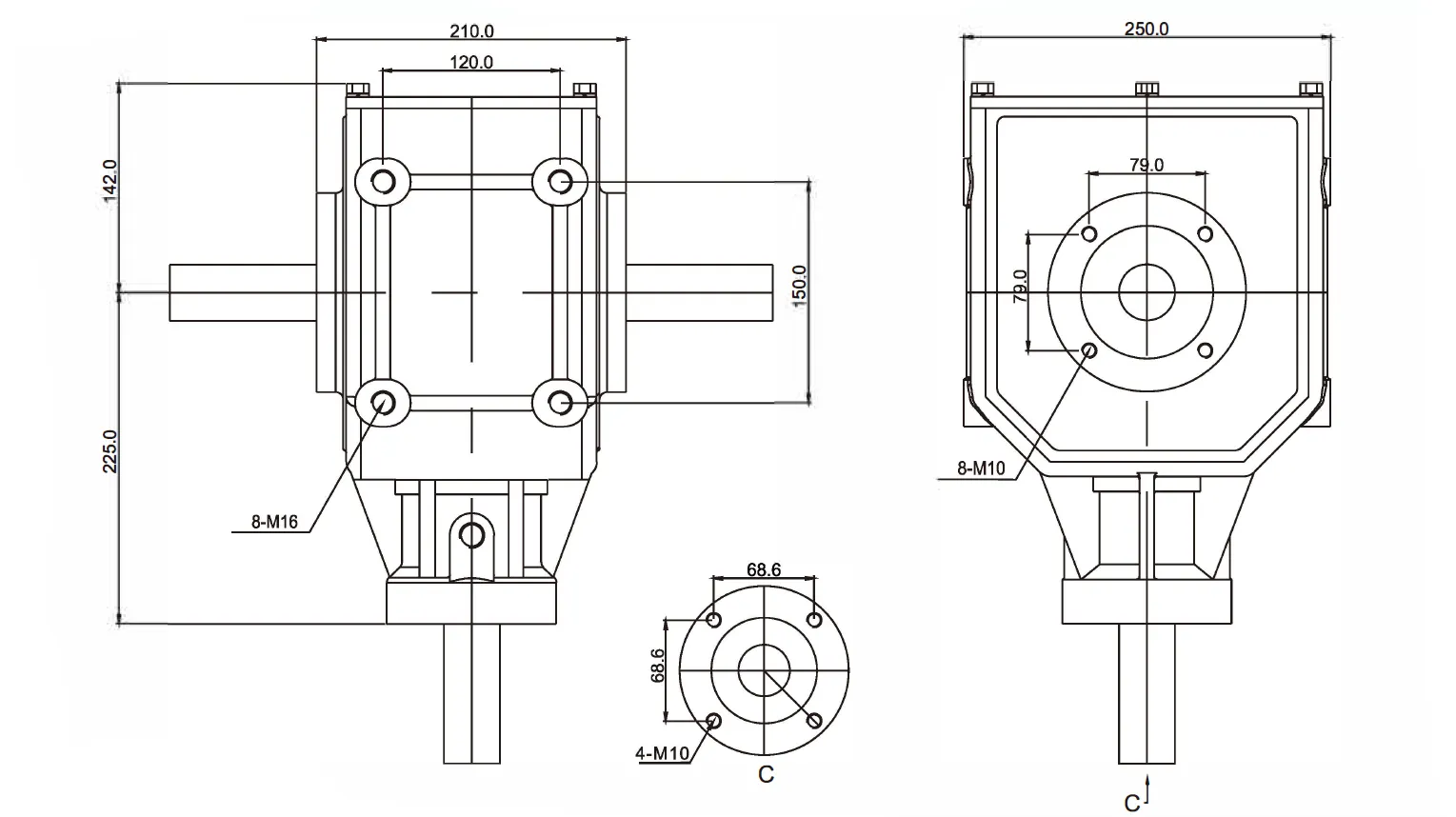

Dimensions of Agricultural Gearbox-Replacement of Bondioli & Pavesi 2081

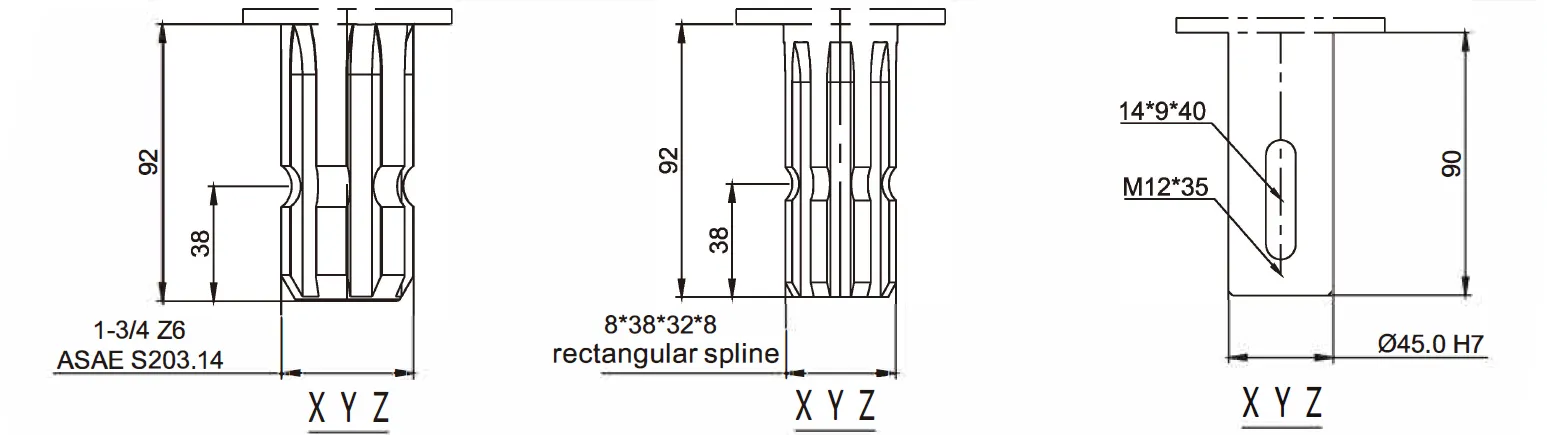

Agricultural Gearbox-Replacement of Bondioli & Pavesi 2081 Shaft Dimensions

Agricultural Gearbox-Replacement of Bondioli & Pavesi 2081 Technical Data

i		Suitable	Rpm input	Rpm output	KW(Nom)	Output torque	Toothing
			r/min	r/min	hp	N.m
Speed increase	1:1.93	Universal gearbox	540	1042	100	130	Gleason HelicalTeeth
	1:2.46		540	1328	90	120
	1:3.1		540	1674	85	115
Decelerate	1.93:1		540	280	65	90
	2.46:1		540	280	45	60
	3.1 :1		540	174	40	55
Remark: If you have any special require feel free let me know, we also accept custom.

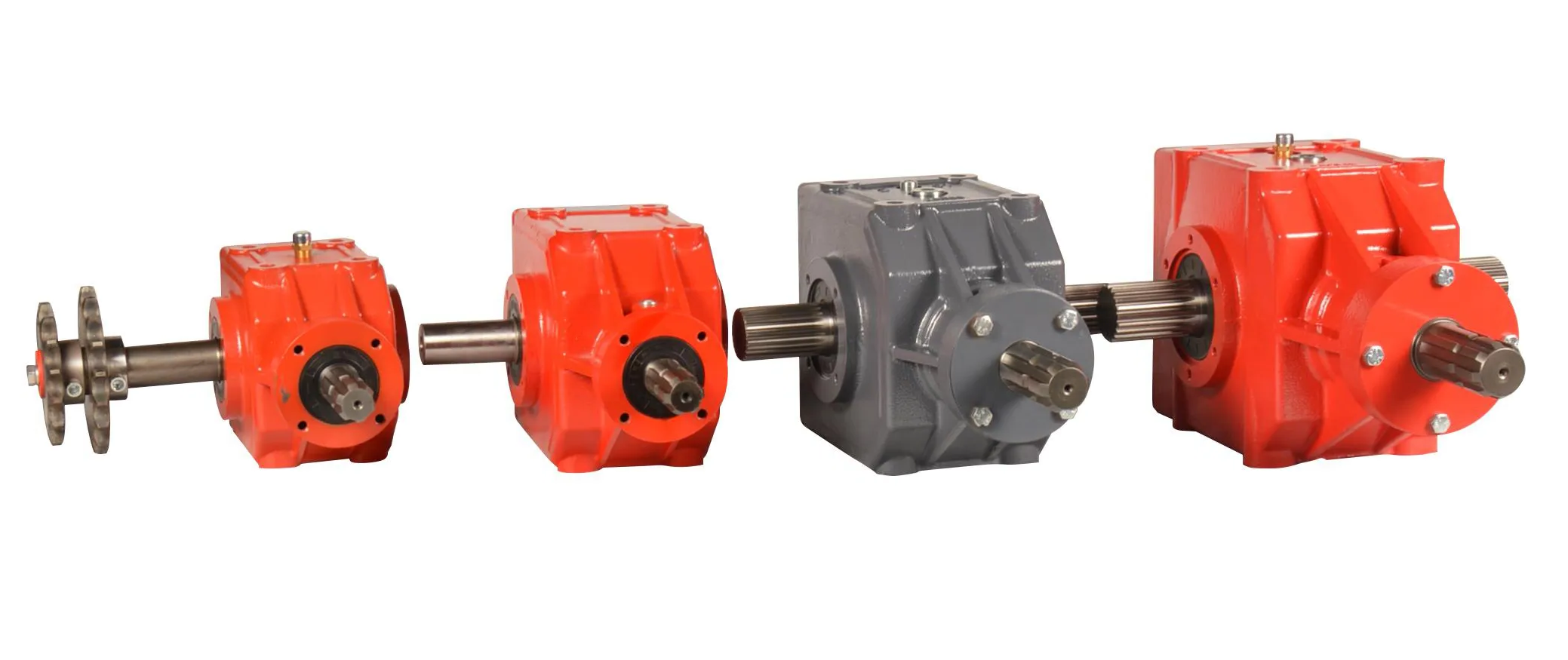

Benefits of Agricultural Gearbox-Replacement of Bondioli & Pavesi 2081

The replacement Replacement of Bondioli & Pavesi 2081 gearbox offers several benefits when used in agricultural machinery. Here are some key advantages:1. Increased Power Transmission Efficiency: The gearbox is designed to efficiently transfer power from the engine to the agricultural implement. With its optimized gear ratios and robust construction, it minimizes power losses during transmission, resulting in higher overall efficiency. This translates into improved performance and productivity of the agricultural machinery.2. Versatility and Compatibility: The agricultural gearbox is compatible with a wide range of agricultural implements and machinery. It can be integrated into various applications such as mowers, tillers, balers, and sprayers. This versatility allows farmers to use the same gearbox across different equipment, reducing the need for multiple gearbox models and simplifying maintenance and spare parts management.3. Durability and Reliability: We are known for our high-quality engineering and manufacturing standards. The 2081 series agricultural gearbox is built to withstand the demanding conditions of agricultural operations, including heavy loads, vibrations, and varying environmental factors. Its robust construction ensures long-term durability and reliability, reducing the risk of breakdowns and minimizing downtime.4. Flexibility in Power Management: The replacement Replacement of Bondioli & Pavesi 2081 gearbox offers a variety of gear ratios, allowing farmers to adjust the speed and torque output according to their specific needs. This flexibility enables optimal power management for different agricultural tasks. For example, it allows for higher torque when operating heavy implements like plows or higher speed for tasks like mowing.5. Easy Maintenance and Serviceability: The gearbox is designed with serviceability in mind. It features a modular construction and readily available spare parts, making maintenance and repairs relatively easy. This ensures that any necessary servicing can be performed quickly, minimizing downtime and maximizing the productivity of the agricultural machinery.6. Cost-effectiveness: By improving power transmission efficiency, reducing downtime, and offering easy maintenance, the replacement Replacement of Bondioli & Pavesi 2081 gearbox contributes to overall cost-effectiveness. It helps farmers optimize their agricultural operations, reduce fuel consumption, increase productivity, and extend the lifespan of their machinery.

Applications of Agricultural Gearbox-Replacement of Bondioli & Pavesi 2081

The replacement Replacement of Bondioli & Pavesi 2081 gearbox finds applications in various agricultural machinery and equipment. Here are some common applications where the 2081 series agricultural gearbox is utilized:(1) Tractors: The 2081 gearbox is often integrated into tractors, which are essential for numerous agricultural tasks. It helps transfer power from the tractor engine to the wheels and other attachments such as plows, cultivators, and seeders. The gearbox allows for efficient power transmission and control, enabling the tractor to perform a wide range of agricultural operations.(2) Harvesters: Harvesters are used for harvesting crops such as grain, corn, and rice. The gearbox plays a key role in powering the cutting mechanisms, conveyors, and grain storage systems of harvesters. It ensures smooth and reliable power transmission, helping to optimize the harvesting process and increase efficiency.(3) Mowers: Agricultural mowers are used for cutting and maintaining grass, hay, and other vegetation. The replacement Replacement of Bondioli & Pavesi 2081 gearbox is often used in mower attachments to transfer power from the tractor to the cutting blades. It allows for adjustable speed and torque output, enabling efficient and precise cutting operations.(4) Balers: Balers are machines used to compress and package crops such as hay, straw, and silage into compact bales for storage or transport. The 2081 series gearbox is commonly utilized in balers to power the feeding mechanisms, compression systems, and bale ejection mechanisms. It ensures smooth and reliable power transmission, enabling efficient baling operations.(5) Sprayers: Agricultural sprayers are used to apply pesticides, herbicides, fertilizers, and other agricultural chemicals to crops. The gearbox is often integrated into sprayer equipment to power the pumps, agitators, and spray booms. It enables efficient and precise control of the spraying process, ensuring even coverage and effective application of chemicals.(6) Tillers: Tillers, also known as cultivators, are used for soil preparation, weed control, and seedbed preparation. The 2081 series agricultural gearbox is commonly used in tiller attachments to transfer power from the tractor to the rotating tines or blades. It allows for adjustable speed and torque, enabling efficient and thorough tillage operations.

Maintenance of Agricultural Gearbox-Replacement of Bondioli & Pavesi 2081

Proper maintenance of the replacement Replacement of Bondioli & Pavesi 2081 gearbox is crucial to ensure its optimal performance and longevity. Here are some maintenance practices that can help keep the gearbox in good condition:1. Regular Inspection: Conduct routine visual inspections of the gearbox to check for any signs of wear, damage, or leaks. Look for loose bolts, cracks, or excessive oil leakage. Address any issues promptly to prevent further damage.2. Lubrication: Proper lubrication is essential for the smooth operation of the gearbox. Follow the manufacturer's recommendations for the type and amount of lubricant to use. Regularly check the oil level and top up or change the lubricant as needed. Ensure that the lubricant is clean and free from contaminants.3. Filter Maintenance: The gearbox may have filters to remove debris and contaminants from the oil. Clean or replace these filters regularly to maintain proper oil flow and filtration. Clogged filters can cause reduced performance and premature wear of internal components.4. Tighten and Replace Fasteners: Over time, vibrations and normal use can cause fasteners to become loose. Regularly check and tighten all bolts and fasteners to ensure they are properly secured. Replace any damaged or worn fasteners as necessary.5. Seals and Gaskets: Inspect the seals and gaskets for any signs of leakage or wear. Replace them if necessary to prevent oil leaks or contamination.6. Cooling System: If the gearbox has a cooling system, ensure that it is functioning properly. Clean any debris or dirt from the cooling fins or radiator to maintain efficient heat dissipation.7. Operating Conditions: Avoid overloading the gearbox beyond its recommended capacity, as this can lead to premature wear and damage. Operate the gearbox within the specified temperature and speed limits.

We Also Offer Other Agricultural Gearboxes

We also offer other types of agricultural gearboxes, such as rotary cutter gearboxes, fertilizer spreader gearboxes, lawn mower gearbox, post hole digger gearboxes, rotary tiller gearboxes, corn headers gearboxes, fertilizer seeder gearboxes, feed mixer gearboxes, flail mower gearboxes, square baler gearboxes, round baler gearboxes, grader-driven rake gearboxes, universal gearboxes, irrigation reels gearboxes, manure spreader gearboxes, rotary rake gearboxes, gearbox for hay tedders, etc.Our technical staff can reconfigure an existing design or assist you in designing a custom agricultural PTO gearbox if a standard or existing design does not fit your application. Shaft rotation, speed ratio, design type, load nature, mounting position, and the application’s environment are all considerations when choosing an agricultural gearbox. We offer a wide range of agricultural gearboxes and PTO shafts for different applications. If you want to buy agricultural gearboxes, please get in touch with us.
