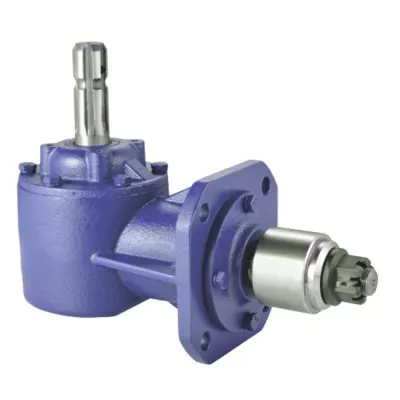

Agricultural Lawn Mower Gearbox RDF-RC31-193 RDF-RC31-147

Agricultural Lawn Mower Gearbox RDF-RC31-193 RDF-RC31-147

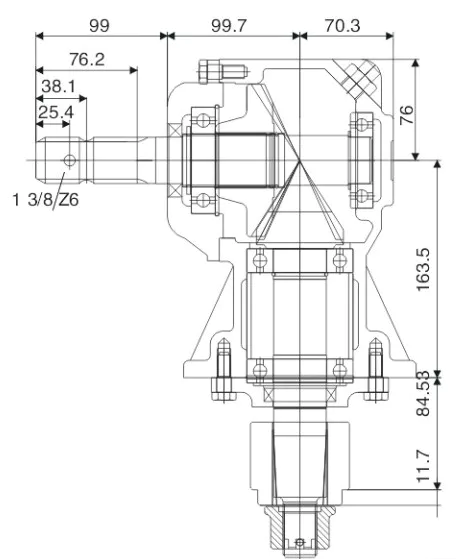

Lawn Mower Gearbox Detail

ITEM	RDF-RC31-193	RDF-RC31-147
Ratio	1:1.93	1:1.47
Teeth	15/29	15/22
Module	4.0	5.08
Power(HP)	30	40
Rated Input	540rpm	540rpm
Input/Output Description	1-3/8 Z6Cone base aequilate spline shaft
Weight(N.W)	24.5KG	24.5KG

Replacement Replacement of OMNI GEAR series RC-31 right angle rotary cutter gearbox. Horizontal input and vertical output downward. Bevel gears. Large deep groove ball bearings to support output. Four 5/16"-18 tapped holes on 4-1/8" dia. B.C.  For ships without oil, the user must add oil prior to use per the user‘s manual.

Specifications of Lawn Mower Gearbox

• Rotation CCW input gives CW output
• Gear Ratio 1:1.46 Increaser
• Input RPM 540/1000
• Output RPM 788/1460
• Input HP 35-83
• Max Torque 4083-9683 in.lbs.
• Input Shaft 1-3/8" dia. x 3-7/8" long 6T spline W/ 5/16" dia. pinhole
• Output Shaft 2" dia. 15 teeth tapered spline w/threaded end. 4-5/8" total length
• Blade Hub 3.94" dia. x 2.275" stepped down to 2.5" dia. x 0.45" then tapers down to 2.175" dia. over 0.25"
• Mount 4 holes on 8" dia. B.C.
• Pilot 5-5/8" dia.
• Size 12-3/8" x 9-3/4" x 9-3/4"
• Shpg. 89 lbs.

Brand of replaceable gearbox

Bush Hog: ATH 600 and ATH 720, ATH 900, FTH 480, FTH 600, FTH 720, MTH 600, MTH 720 Series Mowers;Landpride: FDR1548, FDR1560, FDR1572, FDR1648, FDR1660, FDR1672, FDR2548, FDR2560, FDR2572, AT2660, AT2672 Series Mowers;Kubota: BL348A, B342A; Caroni TC480, TC590, TC710, TC910 with spline Input Shaft;Befco most late models with splined input shafts, early models had some with smooth input shaft;Curtis all Models; Douglas all Models; Tecma all Models;Sovema all Models; Maschio all Models; Phoenix all Models;Sicma all Models; First Choice all Models

Customized Service of Agricultural Gearbox

Our agricultural gearbox has many items for your choice and we can produce as per your drawing or sample to meet your special request1. Stainless Steel: SS201, SS303, SS304, SS316, SS416, SS4202. Steel:C45(K1045), C46(K1046),C203. Brass:C36000 ( C26800), C37700 ( HPb59), C38500( HPb58), C27200(CuZn37), C28000(CuZn40)4. Bronze: C51000, C52100, C54400, etc5. Iron: 1213, 12L14,12156. Aluminum: Al6061, Al60637. OEM according to your request
