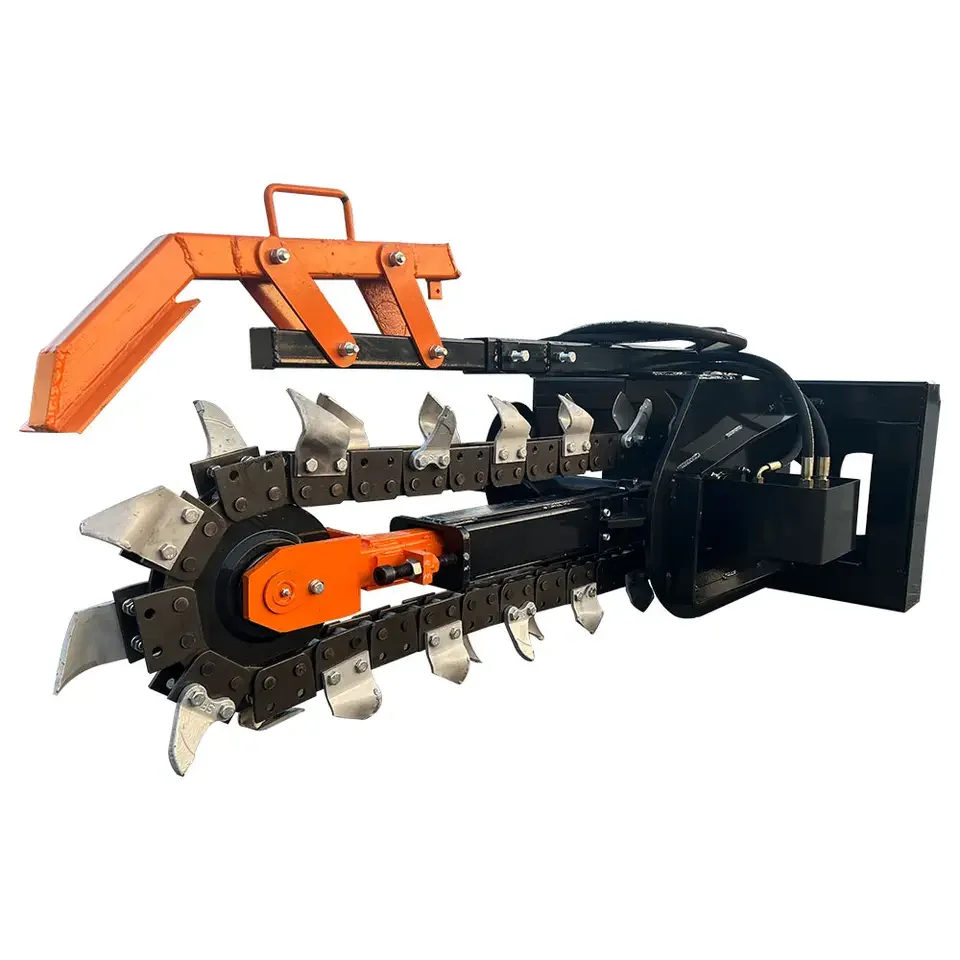

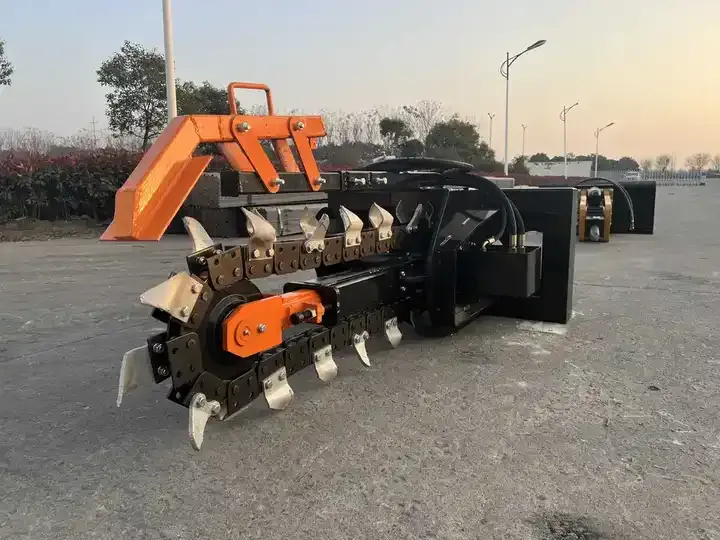

Introducing our Agricultural Machinery Skid Steer Trenching Machine Chain Trencher, a robust and reliable piece of equipment designed specifically for farm use. This machine weighs 405 KG and comes with a 3-month warranty, ensuring that you can work with peace of mind knowing that your investment is protected. The trencher is a new product, offering high safety levels and core components that include a gearbox and motor. It is an ordinary product type that comes with its machinery test report and video outgoing-inspection.
The chain trencher is a versatile tool that finds its utility in various agricultural applications. It is designed for high flow hydraulic systems, operating with flows between 20-40 gpm (76-151 lpm). The trencher offers a range of trench widths from 6??-12?? (152-305 mm) and digging depths from 36??-60?? (914-1524 mm), making it suitable for different trenching needs.
One of the key features of this chain trencher is the adjustable trenching depth, which can be set up to 36??-60??. It comes with different teeth configurations, including shark teeth made of alloy carbide steel for rocky and gravel trenching, and cup teeth with a wear-resistant edge for general soil work trenching. The trencher also features a large scraper shoe with built-in springs that helps maintain loose soil and keep the trenched area clean.
The working principle of the chain trencher revolves around the hydraulic flows, which drive the motor and the gearbox, causing the chain to rotate and dig into the ground. Installation is straightforward and does not require any special tools. The machine comes with three hydraulic hoses, including in and out hoses, and a case drain line for releasing motor pressure.
In terms of maintenance, the chain tension can be adjusted as needed, and the flat-faced couplers included with the machine make maintenance tasks easier. It is also recommended that the machine be inspected regularly to ensure all components are functioning correctly.
At Raydafon, we offer a wide range of skid steer loader and accessories products that are designed to meet the needs of various agricultural activities. Our products are backed by comprehensive warranties and excellent after-sales services. Browse through our product range and find the best fit for your agricultural needs. Click here to explore our product range and make your purchase today!
Choosing Raydafon's skid steer loader and accessories products means choosing quality, reliability, and superior customer service. We are a professional manufacturing factory specializing in agricultural machinery, garden machinery, construction machinery, and more. We offer a full range of products, from PTO shafts and gearboxes to rotary tillers and disc harrows, all of which are renowned for their excellent performance and reliability. Our products are sold all over the country and are exported to many countries and regions worldwide.
Based in Ningbo Zhejiang, China, Raydafon Machinery Manufacture Co., Ltd is a professional manufacturing factory specializing in agricultural machinery, garden machinery, construction machinery, automotive, and accessories. Built on 90,000 square meters, our factory is equipped with state-of-the-art casting, machining, and sheet metal workshops.
We take pride in our ability to meet the US and Europe's emission demands by cooperating with US Engines. Our hydraulic pipes, imported from a renowned German company, are high-quality and leak-resistant. We also offer customizable packaging options to meet your needs.
Want to see our chain trencher in action? Watch this video to see how it operates and understand its key features and benefits. You will also get a glimpse of our manufacturing process and the rigorous testing our products undergo to ensure they meet our high-quality standards.
