Agricultural Walking Tractor Chains

Agricultural Walking Tractor Chains

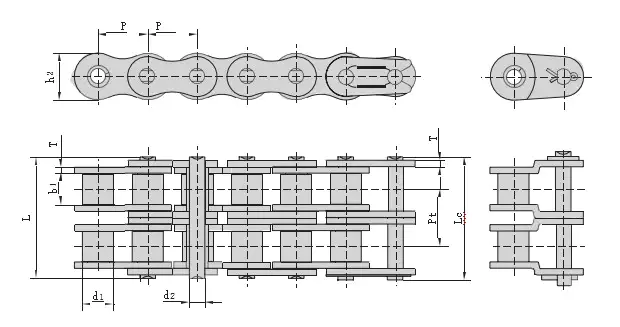

Chain No.	Pitch	Roller?diameter	Widthbetween inner plates	Pindiameter	Pinlength		Innerplate depth	Platethickness	Transversepitch	Ultimatetensile strength	Averagetensile strength	Weightper meter
	P	d1?max	b1?min	d2?max	Lmax	Lc?max	h2?max	Tmax	Pt	Qmin	Q0	q
	mm	mm	mm	mm	mm	mm	mm	mm	mm	kN/lbf	kN	kg/m
08B-2	12.70	8.51	7.75	4.45	31.2	32.2	11.8	1.60	13.92	32.0/7273	38.7	1.34
12A-2	19.05	11.91	12.57	5.94	48.8	50.5	18.0	2.42	22.78	63.6/14455	82.1	2.92
60H-2	19.05	11.91	12.57	5.94	55.3	57.1	18.0	3.25	26.11	63.6/14455	84.5	3.71

Our ServicesPre-sales:1. OEM &ODM service2. Any of your kind inquiry would be replied within 24 hours.3. Complete product information will be offered4. Free sample will be sent if you need .5. Any other reasonable requirements as per requestedDuring production ,we provide:1. Schedule of production2. Mass production picture will offered3. Any other reasonable requirements as per requestedFinish production:1. Courier tracking number2. Documents you need3.?Protection of your sales area, ideas of design and all your private information.

1)Type	roller chain
2)Materials	A class carbon steel
3)Chain No.	08B/12A
4)Process	Sand blasting,heat treatment,High?speed?impact,Four?sides?riveting,Pre-stretching?and?running,Lubricate?with grease.
5)Function	tillage chain
6)MOQ	1000Pcs
7)Supply Ability	100000 Meter/Meters per year
8)Tensile Strength/Hardness	standard or above
9)Delivery Time	within 30 days after receiving your 30% deposits
10)Payment Terms	L/C,T/T
11)Packing	chains packing in standard export carton, also can packing as your requirement

Related Products

We specialize in the chains made to customers’ drawings and specification. Our advantage is reliable quality, competitive price, prompt delivery and good service. Standard products include various transmission and conveyor chains, like Roller Chain, double pitch Conveyor Chain,?Hollow Pin Chain,?Leaf Chain, Table Top Chain, Side Bow Chain, Lumber Chain, Agriculture Chain, Silent Chain, PIV Chain,?Stainless Steel Chain, Nickel/ Zinc plated Chain, Dacromet Chain, Engineering Chain, Steel Pintle Chain, Welded steel chain, Forged chain, Malleable Iron chain, and many other types. Different kinds of attachment are available.

We also provide sprockets to match your roller chains：https://hzpt.com/sprockets/

Packaging Display of Roller Chains

Our chain is most commonly supplied in 10ft boxes including one connecting link per box, but we can also supply this chain at custom lengths as needed. We also offer a full line of good-quality sprockets for this chain. For pricing and availability please contact us at any time.

Production Workshop of Roller Chains

Why choose us?

1. Raydafon established in 1991, we have 5 subsidiaries in China and also have 6 subsidiaries abroad;2. We covering a production area of 200, 100 square meters, have more than 1, 800 sets of advanced equipment and over 3, 100 highly skilled employees, the annual production capacity has exceeded 20, 000, 000 meters;3. We specialized in producing all kinds of standard chains and special chains, such as A or B series chains, driving chains, conveyor chains, dragging chains, agricultural chains and so on;4. We have obtained ISO9001, ISO14001, ISO16969, AAA and API certificates.The company is specialized in producing all kinds of standard chains and special chains, e. G. A or B series chains, automobile chains, stainless steel chains, combine harvester chains, heavy-duty cranked link transmission chains, stereo garage chains and maintenance-free chains etc. In recent years, it invests the capital and depends on the improvement of technology to accelerate the step of new product development and the step of technology reform. It intends to produce high strength and precision chains in order to meet requirements of the domestic and overseas markets.We look forward to receiving your soon.Edited by mmy
