AL 1288 leaf chains for forklifts and material handling

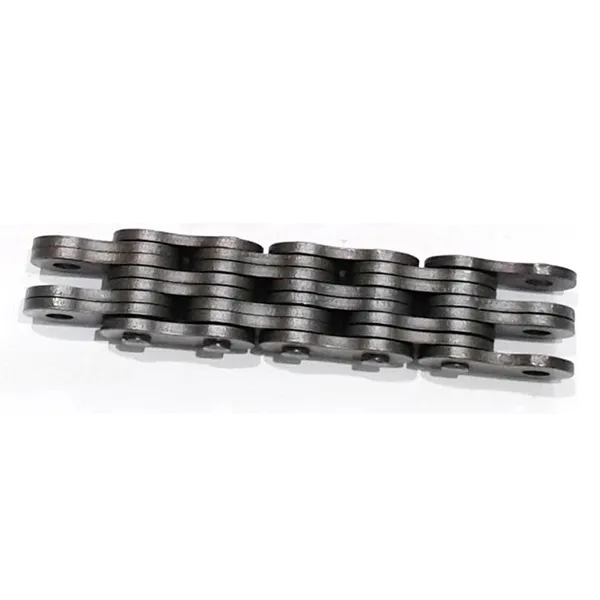

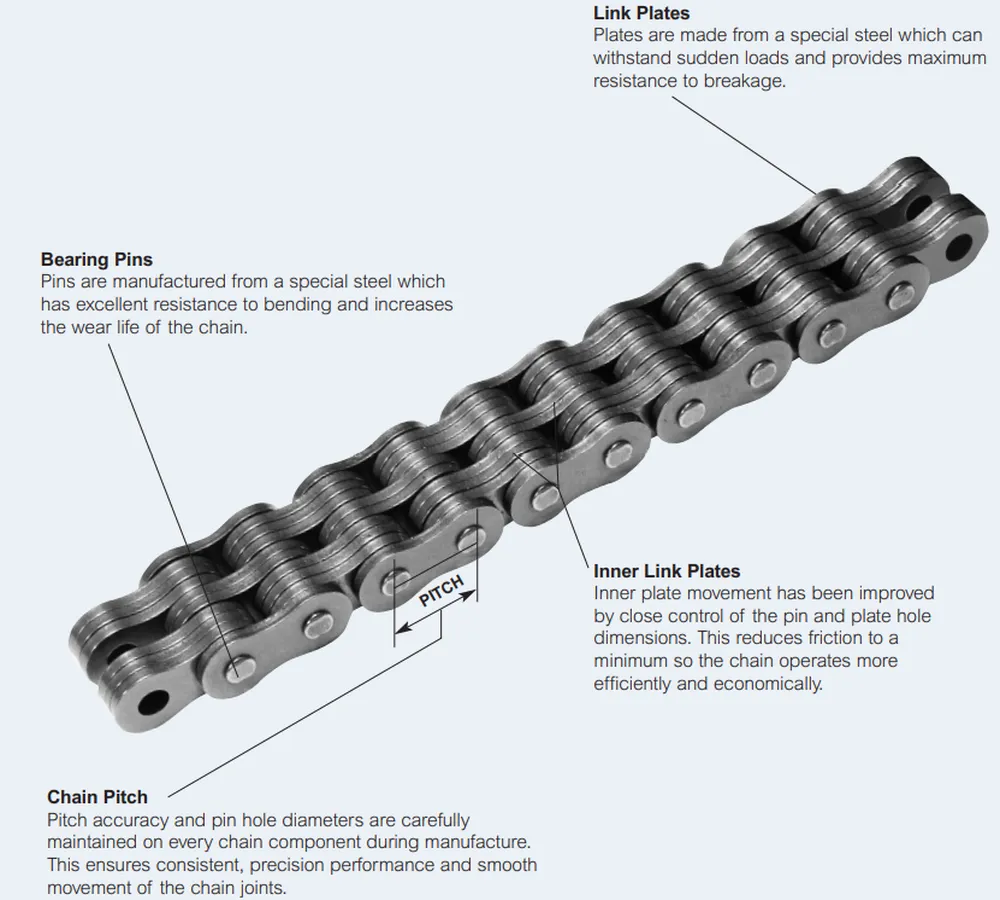

AL Series leaf chains are known for their durability and reliability in various lifting applications. They are designed according to ANSI leaf chain specification dimensions, establishing them as the "lighter" duty of leaf chains. The AL leaf chains' high-strength lifting design and compact nature make them a preferred choice in the industry. The high-strength hardened pins, heat-treated plates, and shot-peened components further enhance the quality of our leaf chains.

Technical Specs

The AL leaf chains are pre-stressed at the factory to reduce stretching during initial installation. They are available in 10ft boxes, 50ft reels, and 100ft reels. We also offer custom leaf chains and cut-to-length options.

Chain Size	Lacing	Pitch (P)	Min. Tensile Strength	Weight (Per Ft)	Pin Diameter (D)	Pin Length (L)	Plate Height	Plate Thickness (T)
AL322	2X2	0.375"	2,045 lbs	0.2 lbs	0.141"	0.27"	0.30"	0.051"
AL344	4X4	0.375"	4,090 lbs	0.3 lbs	0.141"	0.46"	0.30"	0.051"
AL422	2X2	0.500"	3,205 lbs	0.3 lbs	0.156"	0.33"	0.41"	0.059"
AL444	4X4	0.500"	6,409 lbs	0.5 lbs	0.156"	0.57"	0.41"	0.059"
AL466	6X6	0.500"	9,614 lbs	0.8 lbs	0.156"	0.81"	0.41"	0.059"
AL522	2X2	0.625"	5,000 lbs	0.4 lbs	0.200"	0.44"	0.50"	0.080"
AL534	3X4	0.625"	7,500 lbs	0.7 lbs	0.200"	0.67"	0.50"	0.080"
AL544	4X4	0.625"	10,000 lbs	0.8 lbs	0.200"	0.76"	0.50"	0.080"
AL566	6X6	0.625"	15,000 lbs	1.2 lbs	0.200"	1.08"	0.50"	0.080"
AL622	2X2	0.750"	8,409 lbs	0.6 lbs	0.234"	0.51"	0.61"	0.095"
AL644	4X4	0.750"	14,450 lbs	1.2 lbs	0.234"	0.89"	0.61"	0.095"
AL666	6X6	0.750"	22,750 lbs	1.8 lbs	0.234"	1.27"	0.61"	0.095"
AL688	8X8	0.750"	30,317 lbs	2.4 lbs	0.234"	1.66"	0.61"	0.095"
AL822	2X2	1.000"	12,886 lbs	1.0 lbs	0.312"	0.63"	0.81"	0.128"
AL844	4X4	1.000"	25,773 lbs	2.0 lbs	0.312"	1.16"	0.81"	0.128"
AL866	6X6	1.000"	38,636 lbs	3.0 lbs	0.312"	1.74"	0.81"	0.128"
AL1022	2X2	1.250"	20,114 lbs	1.6 lbs	0.375"	0.77"	1.01"	0.157"
AL1044	4X4	1.250"	40,227 lbs	3.1 lbs	0.375"	1.43"	1.01"	0.157"
AL1066	6X6	1.250"	60,227 lbs	4.8 lbs	0.375"	2.06"	1.01"	0.157"
AL1088	8X8	1.250"	80,454 lbs	6.7 lbs	0.375"	2.70"	1.01"	0.157"
AL1222	2X2	1.500"	28,864 lbs	2.5 lbs	0.437"	0.96"	1.20"	0.189"
AL1244	4X4	1.500"	57,727 lbs	4.7 lbs	0.437"	1.72"	1.20"	0.189"
AL1266	6X6	1.500"	86,591 lbs	7.1 lbs	0.437"	2.49"	1.20"	0.189"
AL1288	8X8	1.500"	115,450 lbs	9.4 lbs	0.437"	3.25"	1.20"	0.189"
AL1444	4X4	1.750"	84,705 lbs	7.0 lbs	0.498"	2.02"	1.43"	0.220"
AL1466	6X6	1.750"	127,045 lbs	10.2 lbs	0.498"	2.94"	1.43"	0.220"
AL1644	4X4	2.000"	107,045 lbs	8.7 lbs	0.559"	2.28"	1.64"	0.252"
AL1666	6X6	2.000"	160,454 lbs	13.3 lbs	0.559"	3.30"	1.64"	0.252"
AL1688	8X8	2.000"	214,090 lbs	17.1 lbs	0.559"	4.31"	1.64"	0.252"

Unique Features and Advantages

• Lightweight
• High-strength
• Corrosion-resistant
• Good electrical and thermal conductivity
• Easy maintenance
• Compact design

Application Scenarios

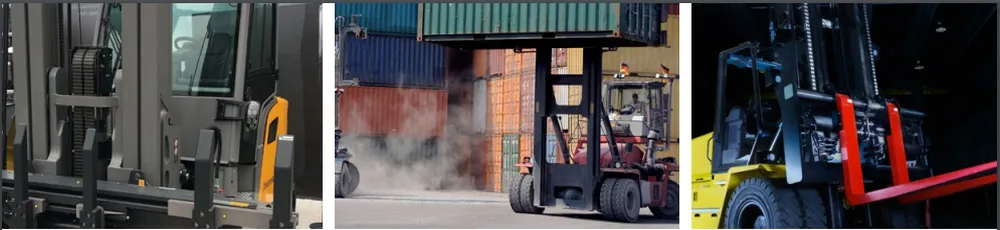

AL leaf chains are ideal for various lifting applications because of their space-saving design and high strength. They are particularly useful in material handling and forklift operations.

The AL series leaf chain??s advantages in market competition

1. High strength and lightweight: The AL series leaf chain is made of high-strength aluminum alloy material, which has the characteristics of lightweight and high strength, and can meet the needs of modern industry for high performance and lightweight.2. Long life and reliability: The AL series leaf chain has undergone precision processing and heat treatment, giving it high durability and reliability. Under normal working conditions, the AL series leaf chain has a long service life and can ensure long-term and stable use.3. Excellent anti-corrosion performance: The AL series leaf chain uses high-quality aluminum alloy materials and advanced surface treatment technology, which has excellent anti-corrosion performance. Under various harsh environmental conditions, the AL series leaf chain can still maintain the stability of its performance and appearance.4. Energy saving and environmental protection: AL series leaf chain has excellent energy saving and environmental protection performance, can effectively reduce energy consumption and carbon emissions, and is in line with the trend of green development of modern industry.5. Customized services: AL series leaf chain provides customized services and can provide products of different specifications, sizes, and performances according to customer needs to meet customers' personalized needs.6. Complete after-sales service: AL series leaf chain provides complete after-sales service, including product consultation, installation guidance, maintenance, etc., and can provide customers with comprehensive service support.

Market Advantages of AL Leaf Chains

Lightweight: AL plate chains are much lighter than traditional steel chains, which can significantly reduce the overall weight of the application. This is particularly beneficial for transportation and logistics, as lightweight materials can improve fuel efficiency and reduce operating costs.High Durability: Aluminum plate chains have excellent fatigue resistance and can withstand high tensile loads for long periods of time. This durability makes them suitable for harsh and demanding applications such as automotive and agricultural equipment, where they can withstand rigorous use and still maintain their integrity.Corrosion Resistance: Aluminum plate chains are highly resistant to corrosion due to the protective oxide layer formed on the aluminum surface. This makes them suitable for outdoor applications in corrosive environments, such as offshore drilling and marine equipment, where they can withstand salt water and other corrosive agents without degrading.High Heat Resistance: Aluminum plate chains have good heat resistance, allowing them to operate at high temperatures without significant thermal deformation or strength loss. This makes them suitable for applications involving high temperatures, such as internal combustion engines and industrial furnaces.Easy to maintain: AL leaf chains require minimal maintenance compared to steel chains. They will not rust or corrode, reducing the need for regular inspection and replacement. Additionally, they can be easily cleaned without the need for special lubricants or coatings, further reducing maintenance costs.Versatility: AL leaf chains are suitable for a wide range of applications thanks to their unique combination of properties. They can be used in automotive drive chains, conveyor belts, lifting equipment, agricultural machinery, and other industrial applications that require reliable and durable power transmission or lifting capabilities.Sustainability: AL leaf chains are environmentally friendly and sustainable due to their durability and longevity. They can be replaced less frequently than steel chains, resulting in less waste. Additionally, aluminum is a recyclable material, allowing AL leaf chains to be reused or repurposed at the end of their useful life, further reducing environmental impact.

About Raydafon

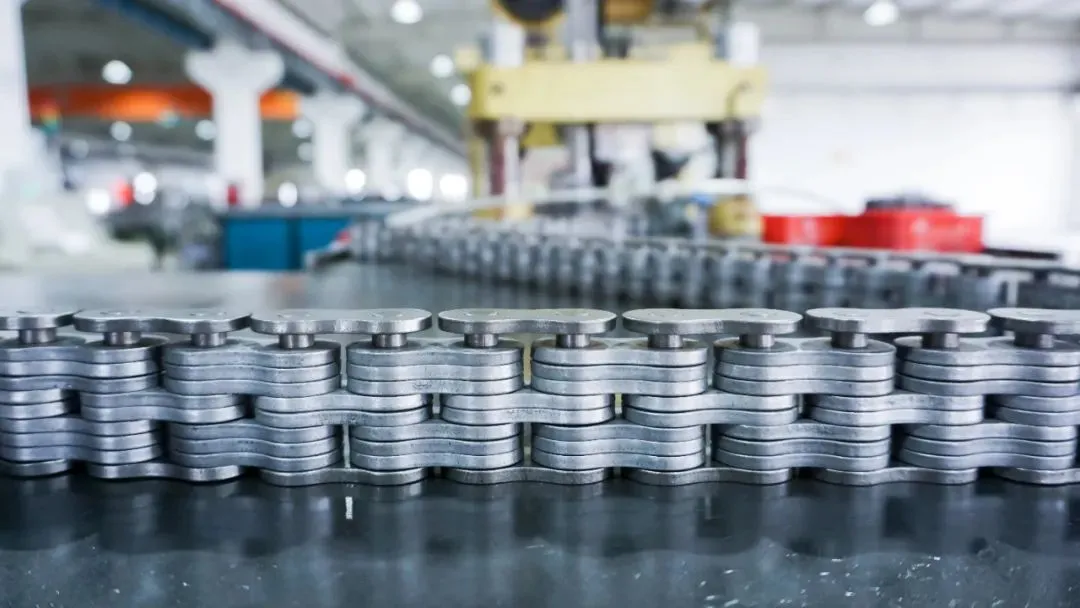

Raydafon is a leading manufacturer of leaf chains in China. Our product range includes AL Series Leaf Chain, BL series leaf chain, agricultural chain, conveyor chain, and drive chain. We use fully automated CNC production and assembly equipment to ensure the quality of our products. We welcome custom orders based on your specifications.
