AL 866 leaf chains for forklifts and material handling

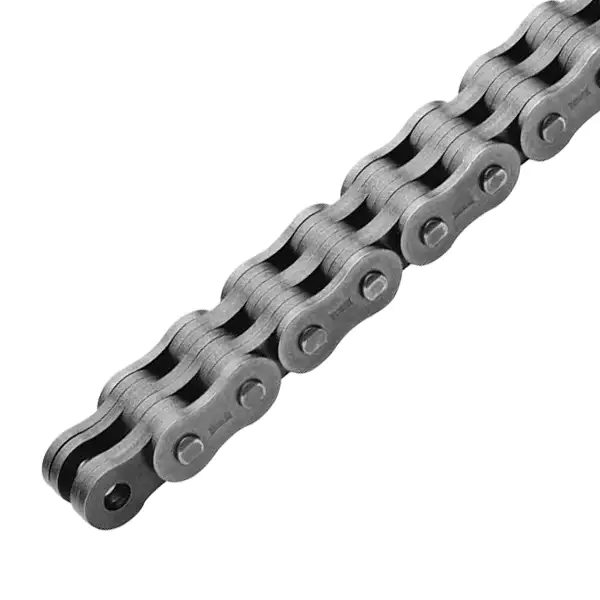

AL Series leaf chains, also known as AL 866 leaf chains, are a revolutionary product in the field of forklifts and material handling. They have been crafted to meet the ANSI leaf chain specification dimensions, thus earning them the reputation of being the modern-day "lighter" duty of leaf chains.

Features and Functions

The AL leaf chains were the first series of ANSI leaf chains around and are still utilized today in many lifting applications due to their space-saving, high-strength lifting design and the inherent nature of this chain. The unique design of these chains enables them to be highly efficient and robust.

Technical Specifications

Our AL leaf chains stand out because of the utilization of high-strength hardened pins, heat-treated plates, and shot-peened components. The chain is also factory pre-stressed to reduce initial install stretching. Here are some of the key technical parameters:

Chain Size	Lacing	Pitch (P)	Min. Tensile Strength	Weight (Per Ft)	Pin Diameter (D)	Pin Length (L)	Plate Height	Plate Thickness (T)
AL322	2X2	0.375"	2,045 lbs	0.2 lbs	0.141"	0.27"	0.30"	0.051"
AL344	4X4	0.375"	4,090 lbs	0.3 lbs	0.141"	0.46"	0.30"	0.051"
AL422	2X2	0.500"	3,205 lbs	0.3 lbs	0.156"	0.33"	0.41"	0.059"
AL444	4X4	0.500"	6,409 lbs	0.5 lbs	0.156"	0.57"	0.41"	0.059"
AL466	6X6	0.500"	9,614 lbs	0.8 lbs	0.156"	0.81"	0.41"	0.059"
AL522	2X2	0.625"	5,000 lbs	0.4 lbs	0.200"	0.44"	0.50"	0.080"
AL534	3X4	0.625"	7,500 lbs	0.7 lbs	0.200"	0.67"	0.50"	0.080"
AL544	4X4	0.625"	10,000 lbs	0.8 lbs	0.200"	0.76"	0.50"	0.080"
AL566	6X6	0.625"	15,000 lbs	1.2 lbs	0.200"	1.08"	0.50"	0.080"
AL622	2X2	0.750"	8,409 lbs	0.6 lbs	0.234"	0.51"	0.61"	0.095"
AL644	4X4	0.750"	14,450 lbs	1.2 lbs	0.234"	0.89"	0.61"	0.095"
AL666	6X6	0.750"	22,750 lbs	1.8 lbs	0.234"	1.27"	0.61"	0.095"
AL688	8X8	0.750"	30,317 lbs	2.4 lbs	0.234"	1.66"	0.61"	0.095"
AL822	2X2	1.000"	12,886 lbs	1.0 lbs	0.312"	0.63"	0.81"	0.128"
AL844	4X4	1.000"	25,773 lbs	2.0 lbs	0.312"	1.16"	0.81"	0.128"
AL866	6X6	1.000"	38,636 lbs	3.0 lbs	0.312"	1.74"	0.81"	0.128"
AL1022	2X2	1.250"	20,114 lbs	1.6 lbs	0.375"	0.77"	1.01"	0.157"
AL1044	4X4	1.250"	40,227 lbs	3.1 lbs	0.375"	1.43"	1.01"	0.157"
AL1066	6X6	1.250"	60,227 lbs	4.8 lbs	0.375"	2.06"	1.01"	0.157"
AL1088	8X8	1.250"	80,454 lbs	6.7 lbs	0.375"	2.70"	1.01"	0.157"
AL1222	2X2	1.500"	28,864 lbs	2.5 lbs	0.437"	0.96"	1.20"	0.189"
AL1244	4X4	1.500"	57,727 lbs	4.7 lbs	0.437"	1.72"	1.20"	0.189"
AL1266	6X6	1.500"	86,591 lbs	7.1 lbs	0.437"	2.49"	1.20"	0.189"
AL1288	8X8	1.500"	115,450 lbs	9.4 lbs	0.437"	3.25"	1.20"	0.189"
AL1444	4X4	1.750"	84,705 lbs	7.0 lbs	0.498"	2.02"	1.43"	0.220"
AL1466	6X6	1.750"	127,045 lbs	10.2 lbs	0.498"	2.94"	1.43"	0.220"
AL1644	4X4	2.000"	107,045 lbs	8.7 lbs	0.559"	2.28"	1.64"	0.252"
AL1666	6X6	2.000"	160,454 lbs	13.3 lbs	0.559"	3.30"	1.64"	0.252"
AL1688	8X8	2.000"	214,090 lbs	17.1 lbs	0.559"	4.31"	1.64"	0.252"

Unique Features and Advantages

• Light Weight: Designed to be lighter without compromising on strength.
• High Strength: Made with hardened pins and heat-treated plates for added durability.
• Corrosion Resistant: The shot-peened components resist corrosion and increase the lifespan of the chains.
• Easy Maintenance: Simple design allows for easy installation and maintenance.
• Compact Design: The space-saving design makes it ideal for various lifting applications.

Hydraulic System and Working Principle

[Detailed explanation of the hydraulic system and working principle]

Applications

AL leaf chains find their application in a variety of fields, primarily in lifting and material handling.

About AL Leaf Chains

[Detailed history, classification, advantages, installation, maintenance, etc. of AL Leaf Chains]

Materials and Manufacturing Process of AL Leaf Chains

[Detailed description of the materials used and the manufacturing process of AL Leaf Chains]

Application Areas and Market Competitiveness of AL Leaf Chains

[Detailed description of the application areas and market competitiveness of AL Leaf Chains]

About Raydafon

Raydafon is a leading name in the Chinese Leaf chain market. We offer a wide range of products, including AL Series Leaf Chain, BL series leaf chain, agricultural chain, conveyor chain, drive chain, etc. We use state-of-the-art automatic CNC production equipment and automatic assembly equipment. We welcome customization requests based on drawings or samples.```
