Angular Gearboxes - Replacement of Comer Code L-150J

Angular Gearboxes - Replacement of Comer Code L-150J

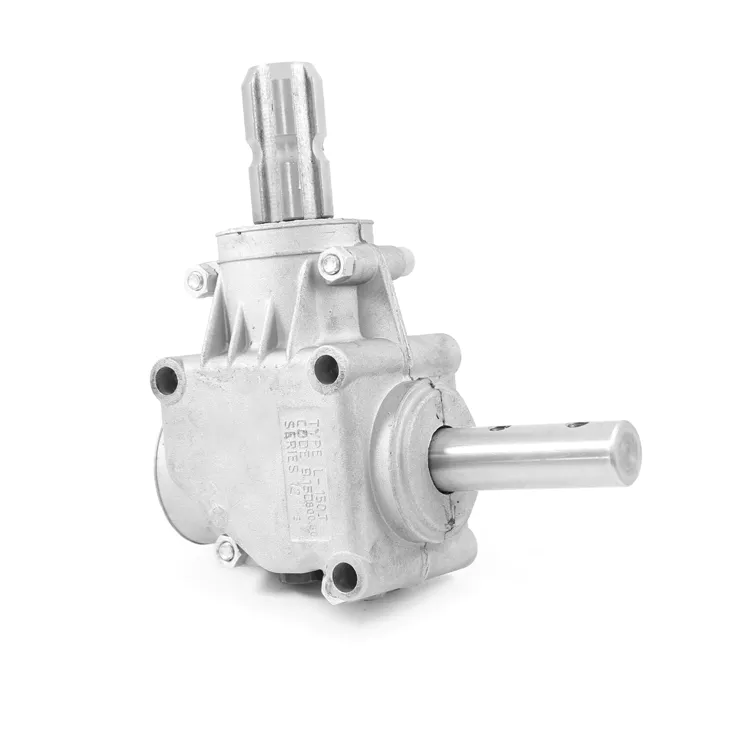

Model: EPT-L150JTechnical features:

• The EPT-L150J gearbox ratio is 1:1.93.
• The input shaft is 1-3/8" round bore.
• The output shaft has tapered splines, bushing must be ordered separately (15 spline bushingA-U0139700000).
• The gearbox is rated at 60 hp at 540 rpm and has a CCW (Counter clockwise) rotation.
• Fits Replacement of Comer Rotary Cutters.
• Output shaft has tapered splines, bushing must be ordered separately. (15 spline bushing:U0139700000).

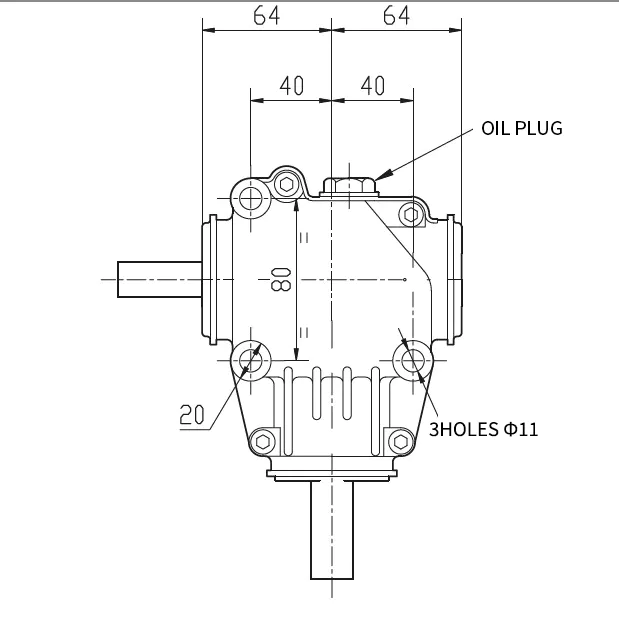

• Mounting pattern is 203.2mm.
• Application: Fertilizers
• Body Material: Aluminum
• Entry Shaft: ΡΤΟ Φ35/Ζ6 (13/8" z6)
• Exit Shaft: Φ25mm with two vertical bores. Keyway not available.
• Entry Power at 540rpm: 8KW
• Lubrication: Grease. Not included.

 RotationThe rotation is defined as either clocwise or counter-clockwise by looking "into" the components in motion ( shaft, pulley, or sprocket), with the gearbox behind the componentAlbero Z: Rot. antioraria 1 3/8"z6Albero X: Rot. oraria cilindrico Diam.25mm con doppio foro Diam.8mmMaterial: AluminumDry weight: Kg 3,8Type of application: 1:1 RatioInput power rate: 11Cv-8Kw (540RPM)Supplied without lubricant

• Different shafts rotation available (please ask our TECHNICAL DEPARTMENT)

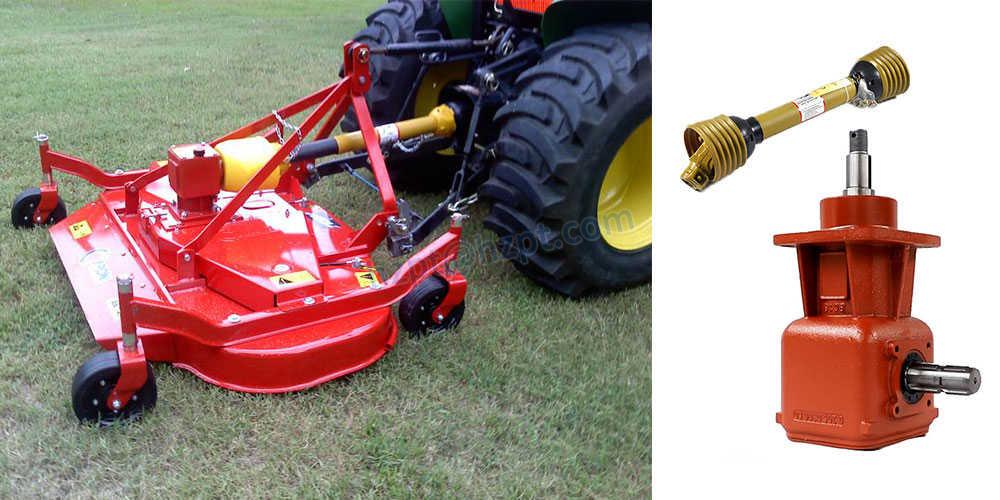

PTO Shafts for Angular Gearboxes

Agricultural equipment includes a variety of PTO shafts. Each one is connected by yokes at each end and rotates between 540 and 1,000 rpm. A safety shield is commonly installed on both ends of a PTO shaft to protect the operator. These protective shields are also found in tractors and agricultural implements, and they ensure maximum efficiency. Added safety is also provided by the use of internal yokes.The agricultural PTO gearbox is designed to change the output speed of a PTO shaft. It can be used as a decreasing or increasing ratio gearbox. With the decrease ratio gearbox, it reduces the PTO shaft's speed from 1000 rpm to 540 rpm, allowing you to use equipment designed for 540 rpm. On the other hand, an increasing ratio gearbox increases the speed of the PTO shaft from 540 rpm to 1000 rpm.
