Automobile Roller Chains for Engine Timing 05E 05BT 06AT 06BT 06BT-2 06BTH-2

Roller Chains for Engine Timing

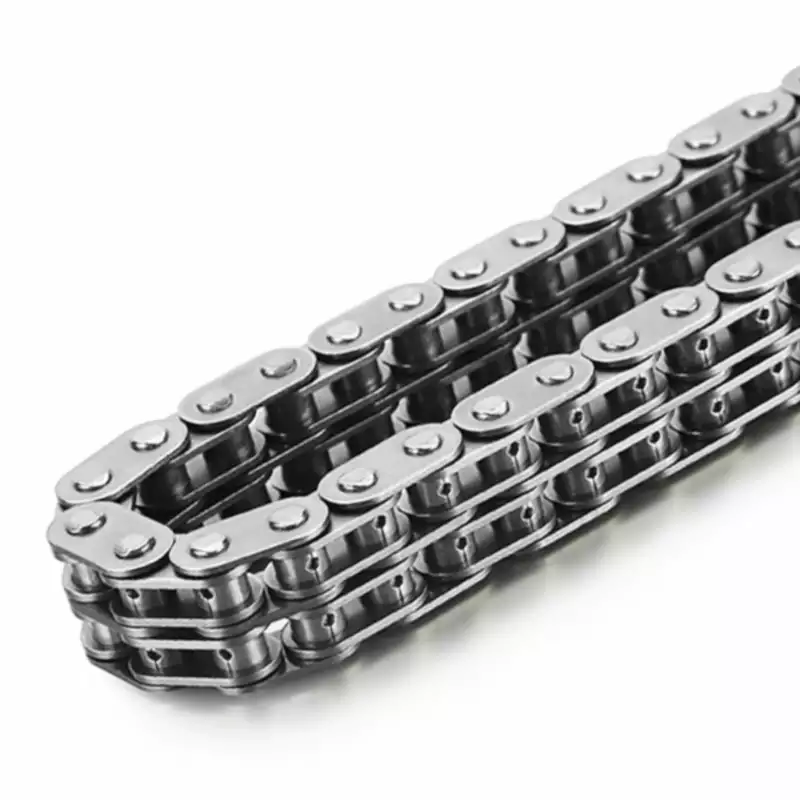

Roller chain for engine timing is mainly used for automobile engine timing systems, oil pumps, balance shafts, standard rail pump drive systems,s, etc. This chain is the critical engine component with high strength and durability.

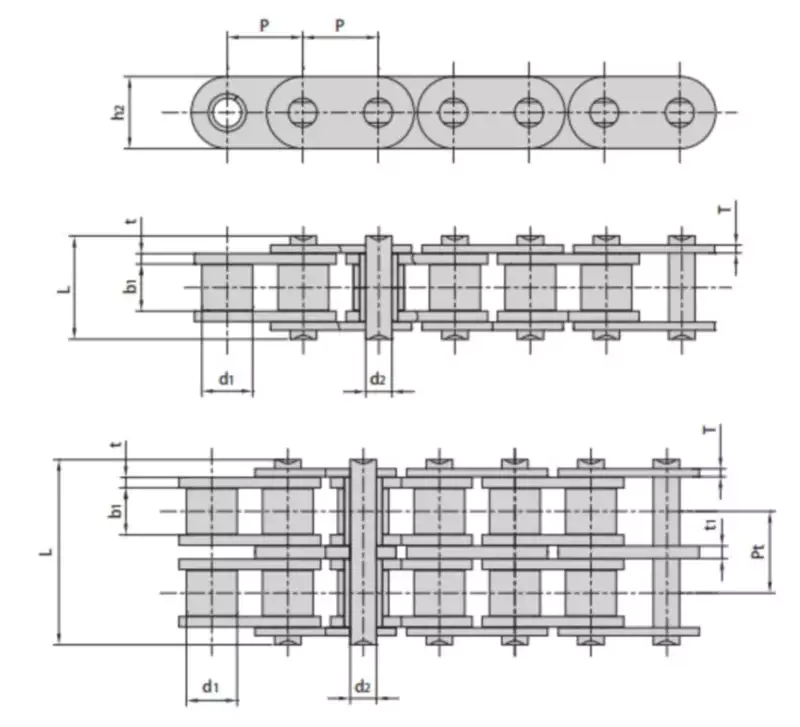

ChainNo.	Pitch	Rollerdiameter	Width?betweeninner?plates	Pindiameter	Pinlength	Innerplate?depth	Platethickness		Transversepitch	Ultimatetensile?strength	Weightper?meter
	P	d1?max	b1?min	d2?max	Lmax	h2max	t/t1max	Tmax	Pt	Qmin	q
	mm	mm	mm	mm	mm	mm	mm	mm	mm	kN/lbf	kg/m
05E	8.000	5.65	4.60	3.05	12.3	7.65	1.3	1.04	-	7.0/1574	0.38
05BT	8.000	5.65	4.60	3.05	12.3	7.65	1.3	1.20	-	8.5/1912	0.41
06AT	9.525	6.35	3.94	3.28	10.5	8.20	1.3	1.04	-	8.9/2002	0.34
06BT	9.525	6.35	5.72	3.28	12.5	8.20	1.3	1.04	-	9.0/2045	0.38
06BT-2	9.525	6.35	5.72	3.28	22.9	8.20	1.3/1.6	1.04	10.24	16.9/3802	0.67
06BTH-2	9.525	6.35	5.72	3.28	25.1	8.20	1.6	1.20	10.24	17.8/4045	0.84

Application

• Engine timing system
• Cam-cam system
• Balance shaft drive system
• Oil pump drive system
• Fuel injection pump drive system

Advantages of Timing Chain

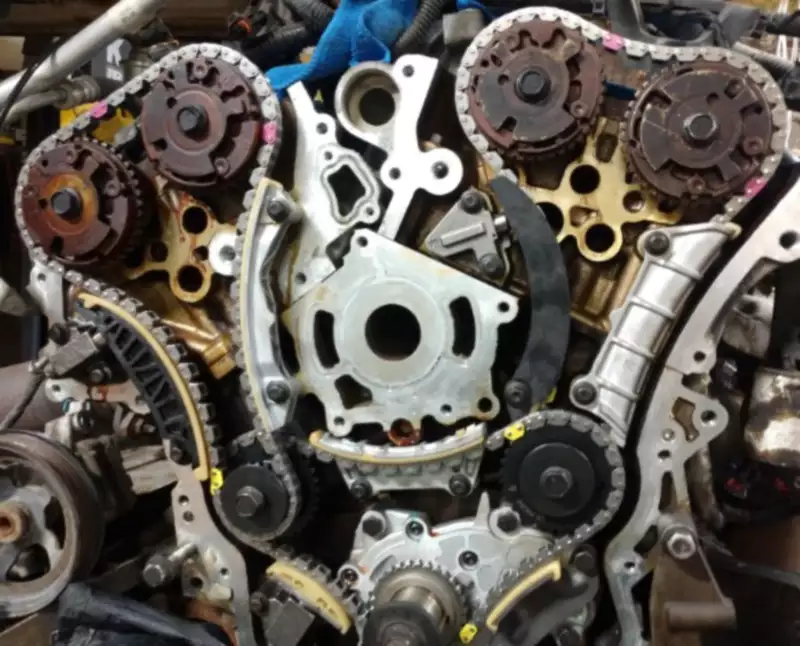

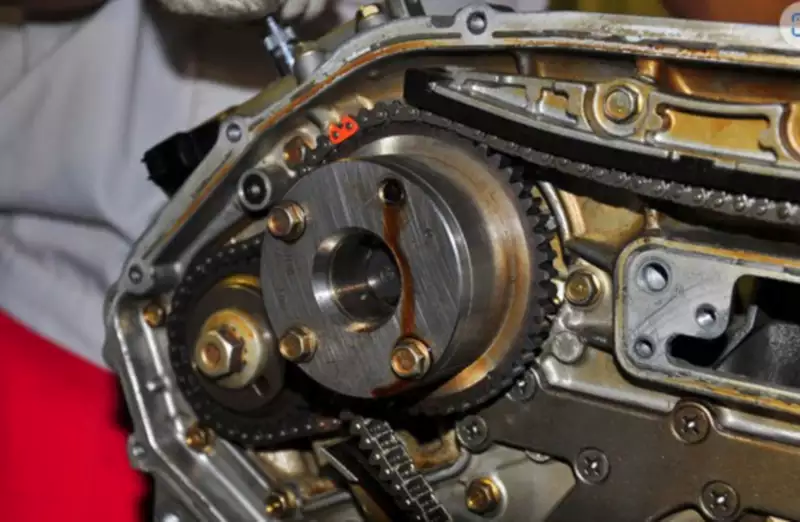

With the continuous progress of vehicle manufacturing technology and industrial development, the engine chain has replaced some engines' timing belts. Compared with the traditional belt drive, the chain drive mode has reliable transmission, good durability, and can also save space. The whole system is composed of gears, chains, and tensioning devices. Among them, the hydraulic tensioner can automatically adjust the tensioning force to make the chain tension consistent and free of maintenance for life; this makes it have the same life as the engine; not only the safety and reliability have been improved, but also the use and maintenance costs of the engine have been reduced, which can be said to kill two birds with one stone.The timing belt must not have tooth skipping or fracture for all engines. If tooth skipping occurs, the engine will not work usually, and unstable idling, poor acceleration, or failure to hit the vehicle will occur; If the timing belt is broken, the engine will shut down immediately, and the multi-valve engine will cause the piston to bend against the valve, which will seriously damage the whole engine.As the working time of the engine increases, the rubber timing belt and other accessories, such as tensioner, tensioner, and water pump, will be worn or aged. Therefore, for the engine equipped with the timing belt, the manufacturer will have strict requirements and regularly replace the timing belt and accessories within the specified period. The timing chain made of steel with high strength can solve this problem. As we all know, the strength of the metal is much greater than that of rubber, which significantly reduces the degree of deformation, and the probability of tooth skipping and fracture is also minimal.

Comparison Between Timing Chain and Timing Belt

Let's look at the advantages and disadvantages of the timing chain compared with the old belt from several aspects. First, the cost of producing the timing chain is significantly higher than that of the timing belt for the manufacturer. Moreover, since the chains are maintenance-free for life, the later benefits of the manufacturer will also be reduced. In addition, the timing chain will have a particular impact on the engine power performance compared with the belt. From the perspective of consumers, due to the limitation of the service life of the timing belt, the subsequent maintenance cost of the user will increase. The service life of the timing chain is the same as that of the engine, so there is no need to replace it, and of course, there is no need to pay relevant fees.Finally, compare the advantages and disadvantages of the two materials and structures: the timing belt has slight noise, small transmission resistance, and small transmission inertia, which can improve the power and acceleration performance of the engine and can be easily replaced. However, the disadvantages are that it is accessible to age, the failure rate is high, and the use cost of vehicle owners is relatively high. The advantages of the timing chain are long service life, low failure rate, and not be easy to break down due to timing transmission failure. However, it also has disadvantages, such as high chain rotation noise, considerable transmission resistance, and large transmission inertia. From a certain point of view, it increases fuel consumption and reduces performance. Although the formal structures of the two materials have some advantages and disadvantages, as far as the current development trend is concerned, the timing chain will be applied to more engines. It is believed that with the continuous improvement of this part by designers, the vehicle cost for users will be lower and lower.
