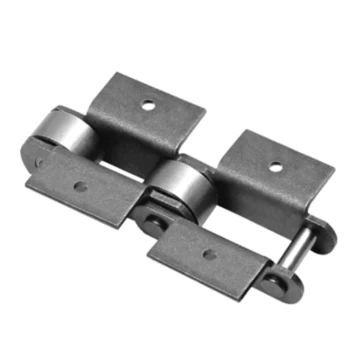

B Series Conveyor Chain Special Attachments

Raydafon Group's B Series Conveyor Chain Special Attachments redefine industrial efficiency with durable steel construction and precision engineering. Designed for manufacturers and logistics experts, these attachments enhance conveyor performance in heavy-duty environments, reducing downtime and boosting productivity. Unlike generic options, they offer customizable fits and seamless integration, solving alignment and wear issues. Experience reliability and smoother operations—optimize your system today with Raydafon's trusted solutions.

Send Inquiry

Product Description

There are many sizes and pitches of conveyor chains.?The strength of the wheel teeth determines the pitch, while plate rigidity determines the pitch maximum.?To increase pitch, bushes can be placed between the link plates.?To prevent corrosion and power loss, the chain should be well-lubricated.?Normal conditions call for medium-viscosity mineral oil.?Some chains have self-lubricating mechanisms.Many industries have developed unique attachments for their specific industry.?One common example is the film gripper chain.?A chain with serrated or toothed plates for wood applications is another example.?Chains with rubber or plastic tops allow for high-speed operation and minimal product damage.?The tops of sawmill chains might have sharp edges to ensure maximum durability.These attachments can be used to attach to a wide range of types of conveyor chains.?These attachments can be used with roller chains, triplex, and duplex chains.?These chains conform to DIN ISO 606 standards and include various safety features, such as locking springs or E-rings.?You can get them with special forms and pin diameters.In distribution and packaging centers, small chains are common.?You can get them in double-pitch or roller chains. They also come with many special attachments that will make sure they do the job.?They can also be made in many configurations which makes them suitable for transporting almost any product.?These chains can be used to transport any material of any size and shape.

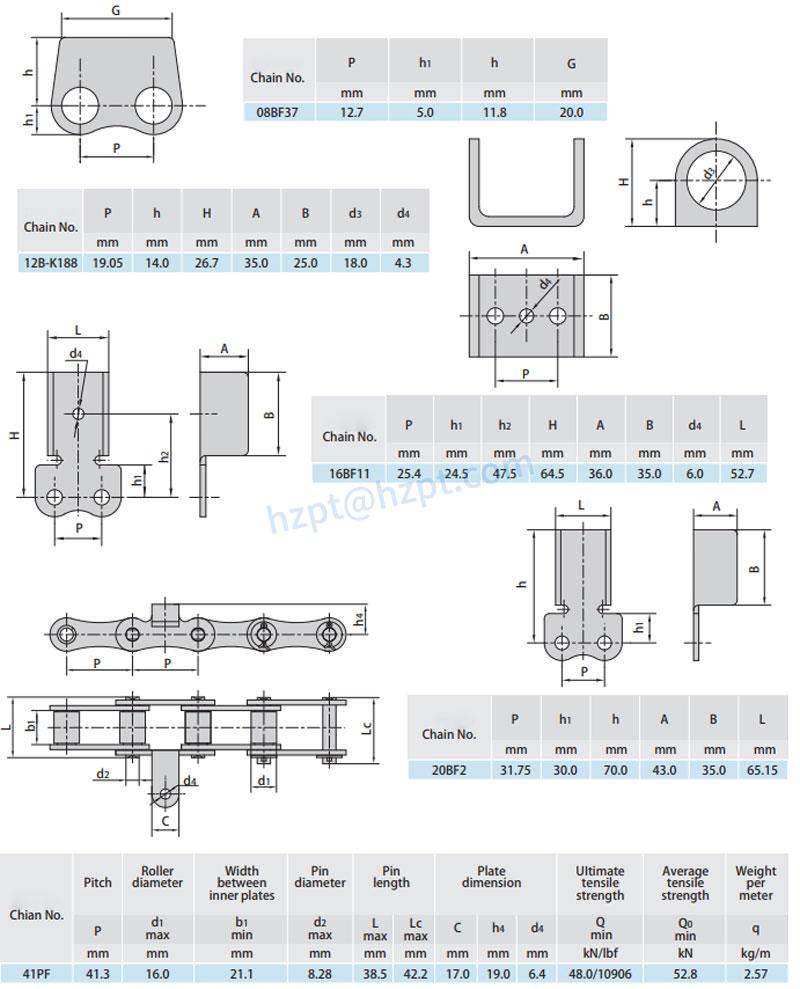

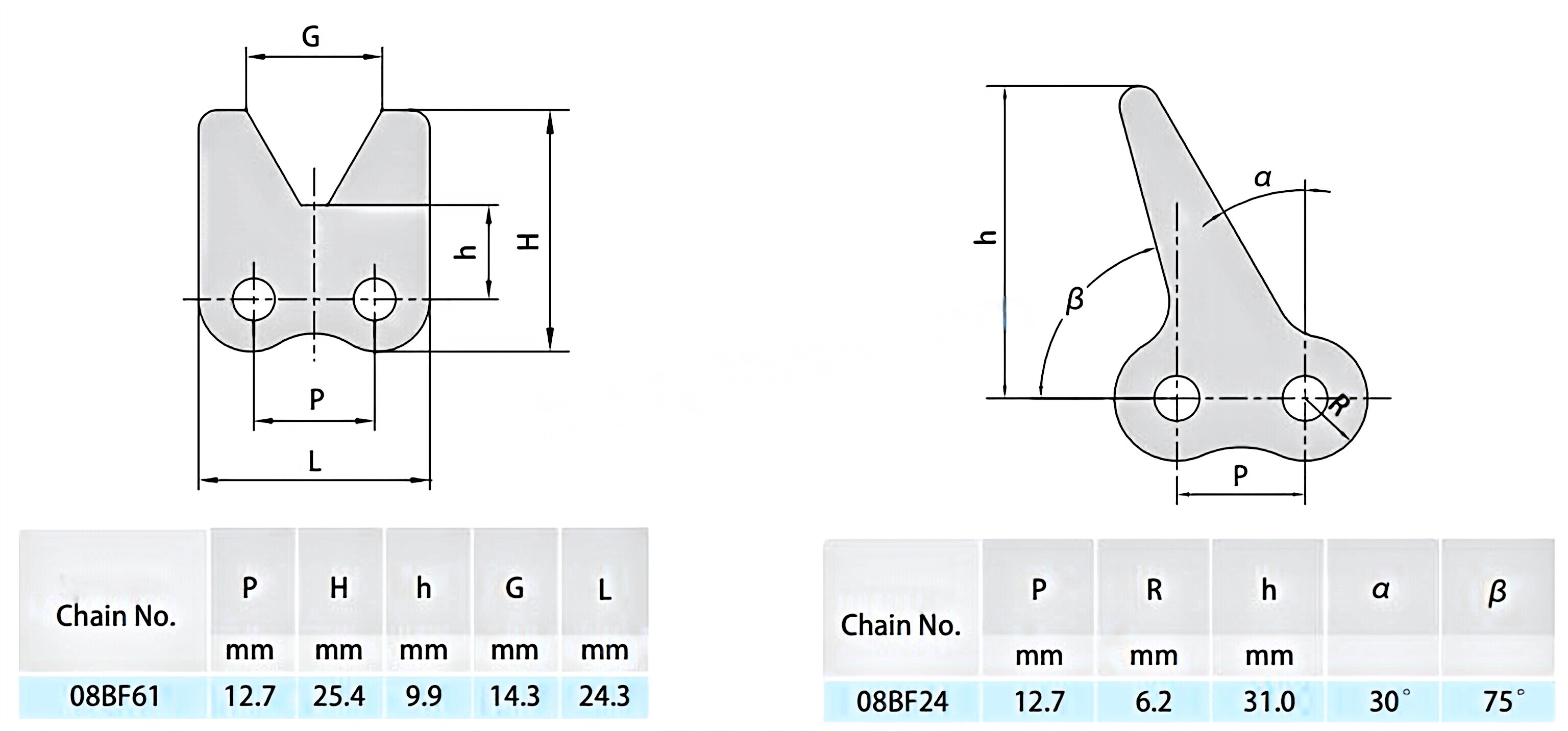

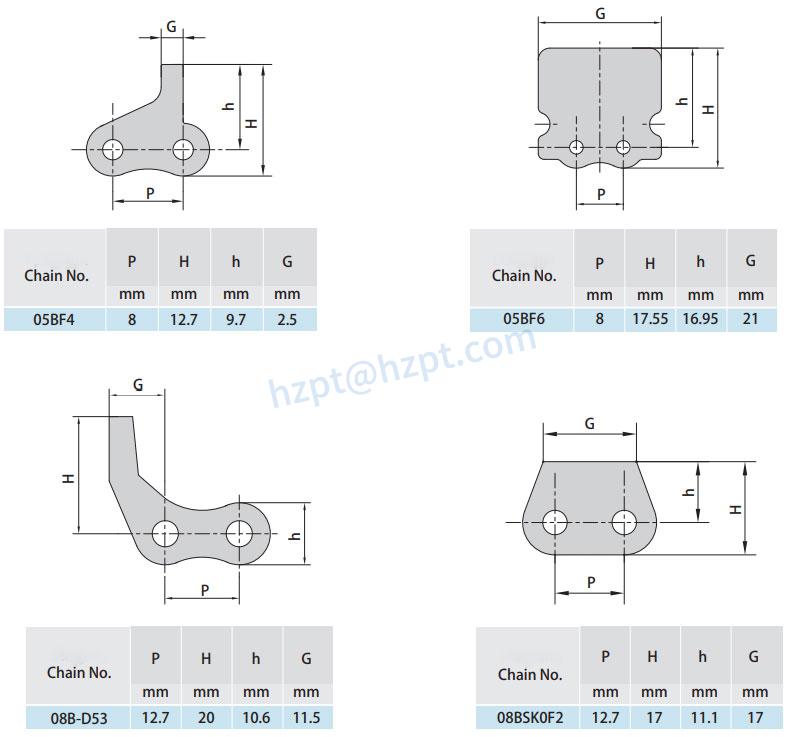

B Series Conveyor Chain Special Attachments Dimensions

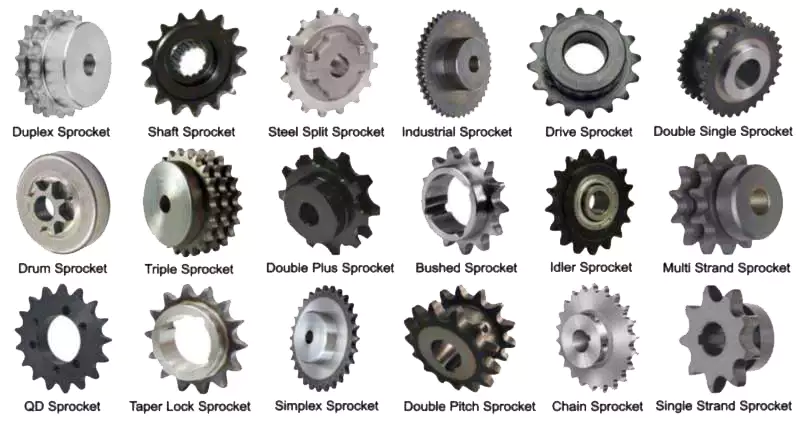

Conveyor Chains and Sprockets

Conveyor chains are versatile products with a variety of uses. They range in size from three to ten thousand pounds and are used for conveying, elevating, and transferring materials. They are available in various finishes and can be fitted with various attachments. They can be made of carbon steel, zinc plated, or nickel plated.There are several types of conveyor chains and sprockets. Some are flat and hinged. Others have pins that secure them together. Hinge-type Flat-top chains, for example, have hinge-like barrels on each side. They are typically used on bucket elevators that require a medium-duty capacity.When choosing sprockets for conveyor chains, it is important to select a high-quality product. Many sprockets are manufactured from a single piece of steel or split between two pieces. This can lead to uneven loading during operation and increased wear on sprocket teeth, bore, and keyway. Ever power Chain manufactures high-quality sprockets that feature a split construction that is both fast and safe.In addition to sprockets, chains also suffer wear from contact with the load. When the rollers are cracked or pitted, the rollers may catch and cause the chain to wind around the sprockets. The amount of wear varies according to the chain size and speed. It is recommended that chains and sprockets be replaced when the wear reaches 310mm or more. To prevent wear from becoming too great, chains should be inspected frequently for proper T-pin attachment and proper chain take-up tension.Ever power is one of the leading chains and sprockets manufacturers and suppliers in China. We can offer various high-quality chains and sprockets for sale. Contact us now! B Series Conveyor Chain Special Attachments

Why Choose Raydafon？

Raydafon transmission group is a professional manufacturer of particular chains with large pitches. We have a complete chain production line, equipment selection, and process design that adhere to high efficiency, energy-saving, and automation, with perfect testing equipment, high-quality enterprise management, and professional technical personnel. We focus on the production, processing, and sales of the?drive chains, particular chains, chain accessories, machinery parts, and so on. We have mastered the core technology of chain production and are proficient in core processing. All products are widely used in sugar, paper, cement, wood, food, mining, metallurgy, and other industries. We pay attention to the reputation of product quality through IS09001:2008 quality management system certification and obtain self-supporting, agent-related products and technology import and export business qualifications. Our products are exported to all provinces and cities in China, Europe, America, and Southeast Asia.
