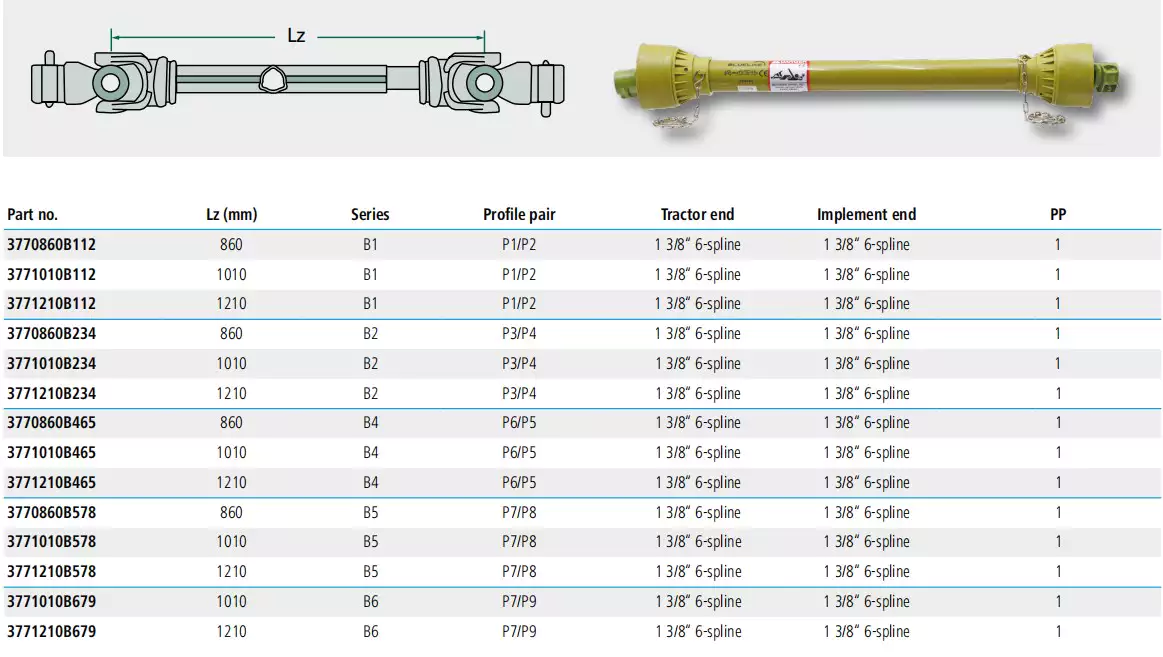

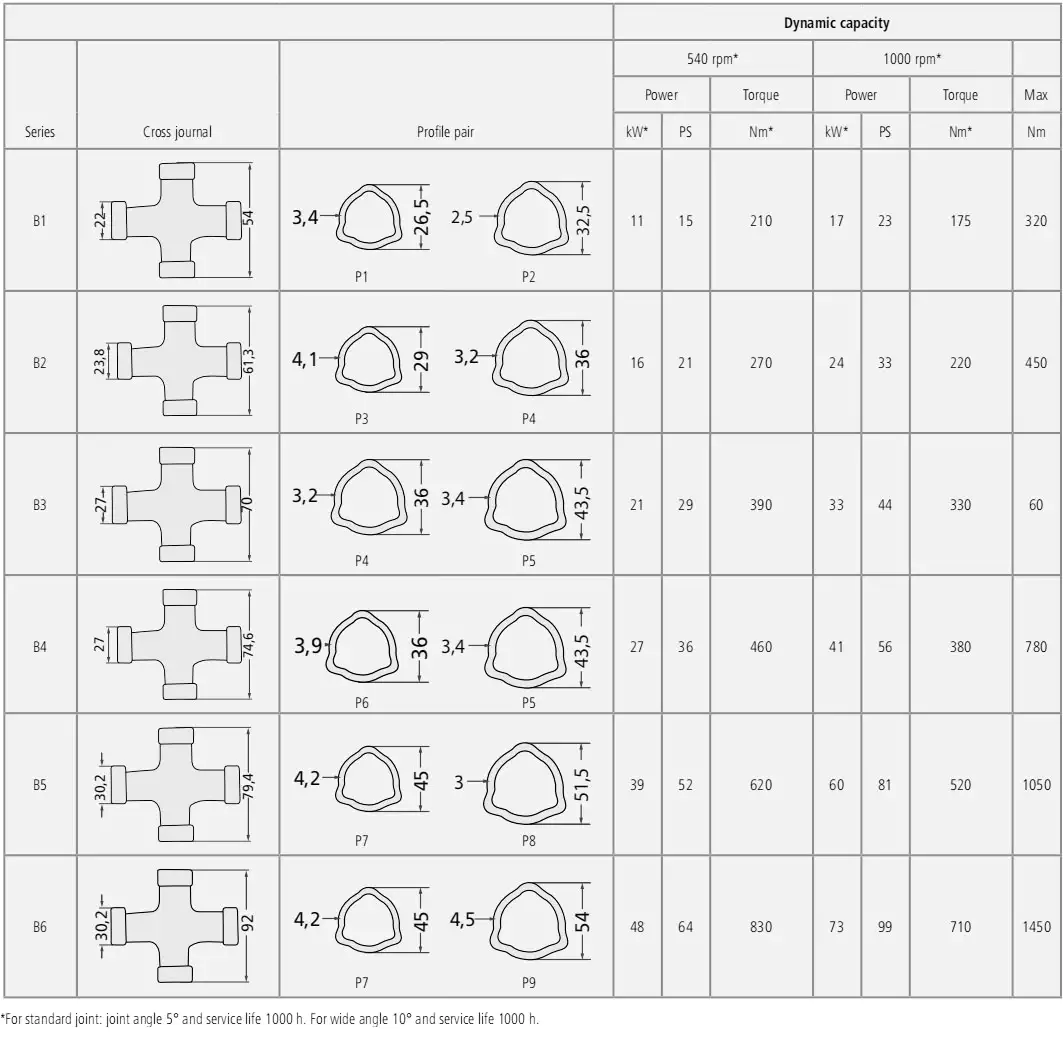

B5 Series PTO Shafts Italian System Replacement of Blueline 3771210B578

Today, we will elaborate on the PTO shafts, particularly the B5 series, which have been designed as an Italian system replacement of Blueline 3771210B578. These shafts are known for their unique features and are a perfect fit for the Blueline system.

Main Features of B5 Series PTO Shafts

• Reliable Power Transmission: The PTO shafts ensure that the power is transmitted efficiently from the tractor to the implement.
• Perfect Compatibility: These shafts are designed to be a perfect fit for the Blueline system.
• Durability: Made from high-quality materials, these shafts are designed to last longer.
• Easy Installation: The shafts can be easily installed without needing any special tools.
• High Performance: These shafts provide high performance even under tough conditions.

Choosing the Right PTO Shaft

There are several factors that you need to consider when choosing a PTO shaft. These include:

Length

This refers to the distance between the drive and receiving devices.

Rated Power

This is the maximum power that the shaft can transmit.

Shaft Type and Connection Method

This refers to the type of shaft and how it connects to the tractor and implement.

Torque Transmission Capability

This is the maximum torque that the shaft can transmit.

Environmental Requirements

These include the need for protective covers, sealing performance, and durability.

Safety Features

These include reliable anti-cardan devices and anti-card pins.

Adaptability

This refers to the shaft's ability to work with different types of tractors and implements.

Certification

The shaft should be CE certified, which ensures that it complies with European Union regulations and standards.

Structure and Material of PTO Shaft

The PTO shaft comprises of several parts, including:

Housing

The housing is made from durable materials to protect the internal components.

Drive Shaft

The drive shaft is made from hardened steel for maximum strength and durability.

Universal Joint

The universal joint is designed for easy movement and flexibility.

Protective Cover

The protective cover is made from high-quality plastic to protect the shaft from dust and debris.

Connectors

The connectors are made from robust materials for a secure connection.

Usage of PTO Shaft

PTO shafts can be used in a variety of applications, such as:

Agricultural Machinery

They are commonly used to connect tractors and agricultural equipment like mowers, harvesters, straw crushers, sprayers, mixers, etc.

Industrial Equipment

PTO shafts are used to drive various rotating equipment like pumps, generators, centrifuges, mixers, etc.

Transportation Equipment

They are also used to drive some transportation equipment like trailers, semi-trailers, and tow trucks.

Solar Systems

PTO shafts are commonly used to rotate and adjust photovoltaic panels on solar trackers.

Adjusting the Length of the PTO Shaft

The length of the PTO shaft can be adjusted by following these steps:

• Remove the plastic protective cover.
• Shorten the inner and outer tubes according to the required length.
• Use a file to remove the burrs.
• Shorten the inner and outer plastic tubes according to the required length.
• Apply oil to the inner steel tube and then reinstall the transmission shaft plastic protective cover.

About Raydafon Group

Raydafon Group is a leading player in the PTO Shaft market in China. We specialize in the development, manufacturing, and marketing of power take-off shafts, industrial universal joints, and automotive transmission shafts. Our products enjoy a great reputation among our customers in Europe, the US, Asia, Australia, and North America. We offer custom manufacturing and processing services, and laser-printed logos. Being one of the top three professional OEM suppliers for many agricultural machinery factories, we have earned CE, TS/16949, and ISO 9001 certifications. We have a systematic production equipment and team that ensures our quality and delivery. In addition to this, we also supply other related products such as agricultural gearboxes, chains, sprockets, pulleys, couplings, and other transmission components and agricultural machinery parts.Author: Miya
