BABR Series High Precision Right Angle Planetary Gearbox (Planetary Gear Reducer)

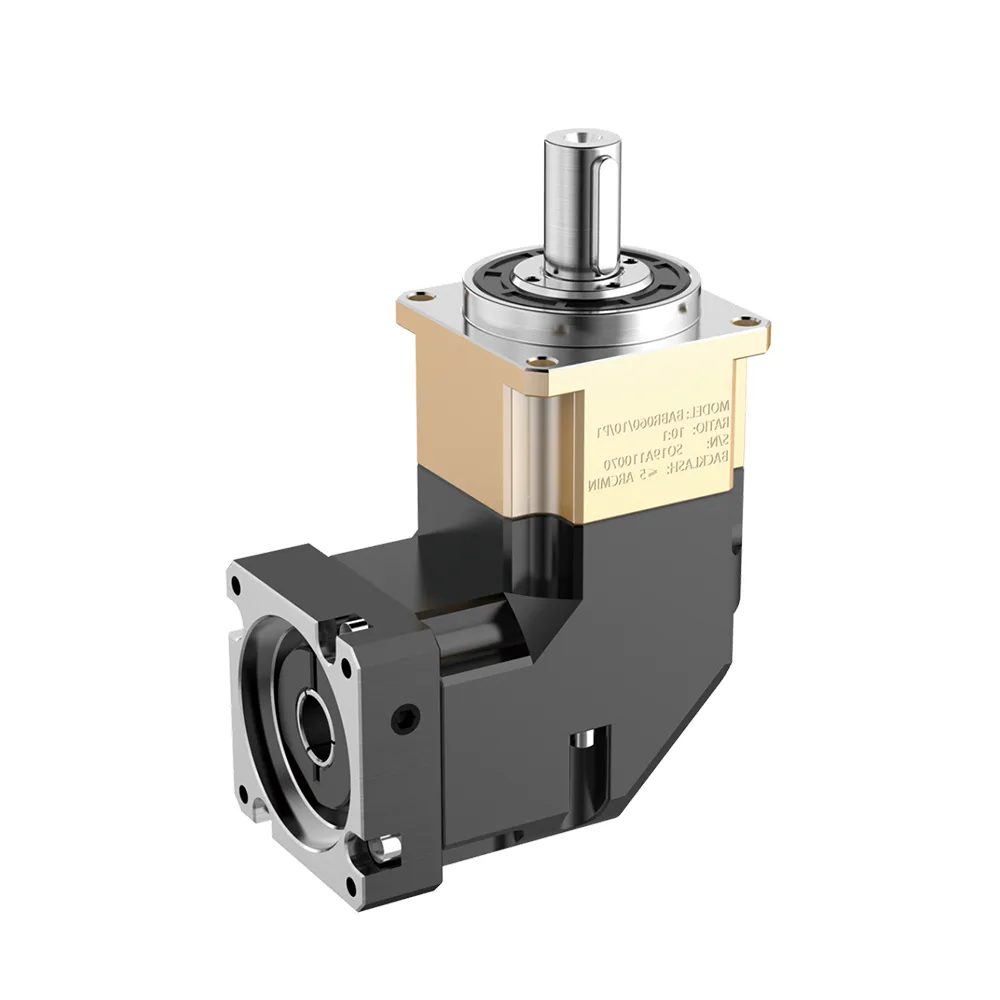

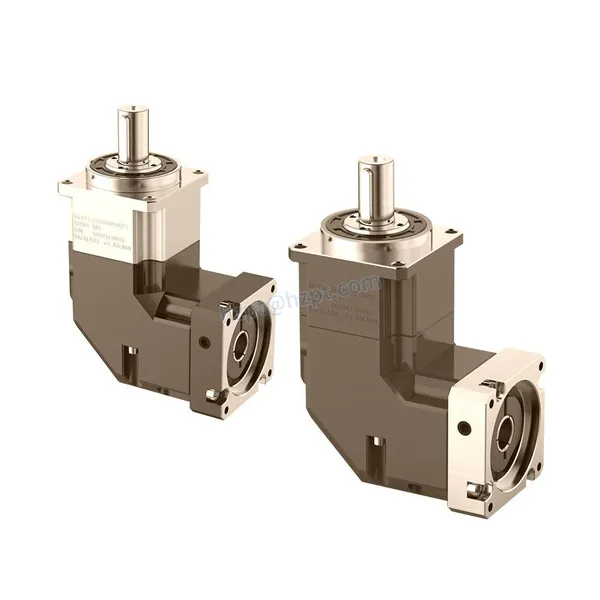

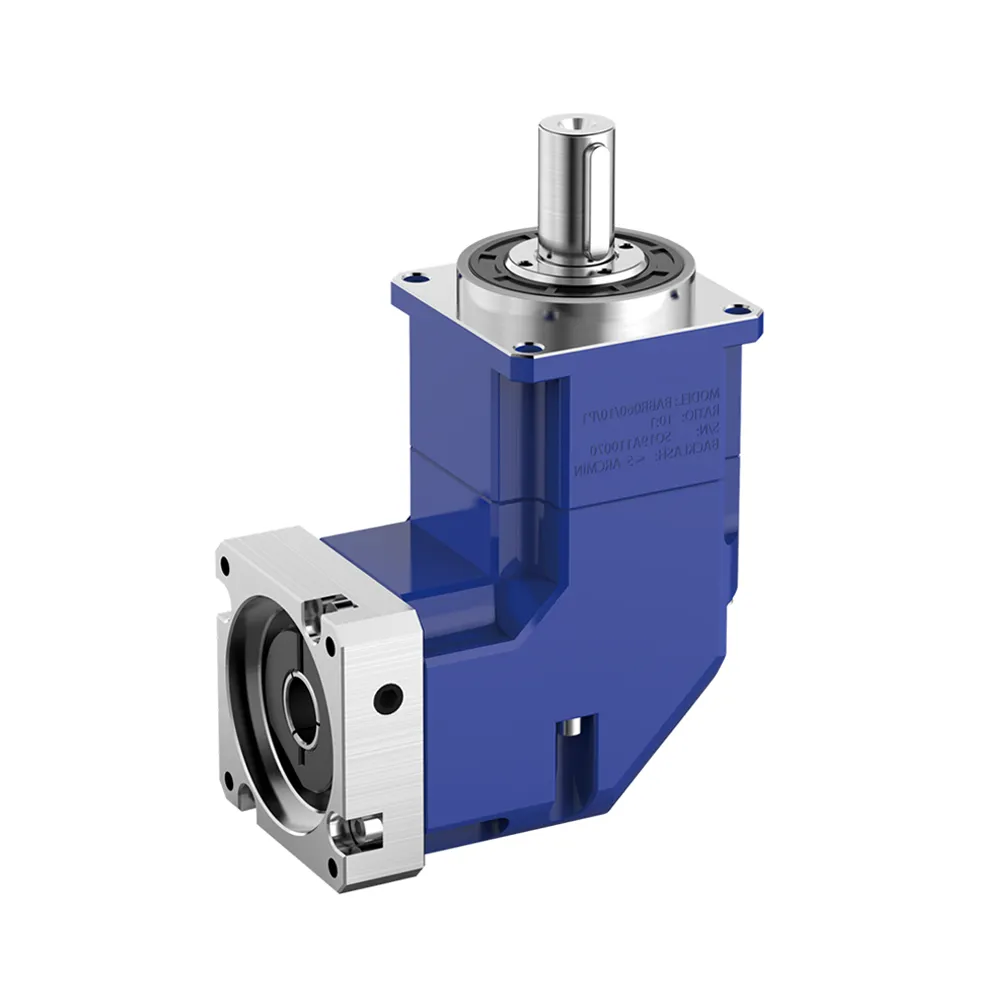

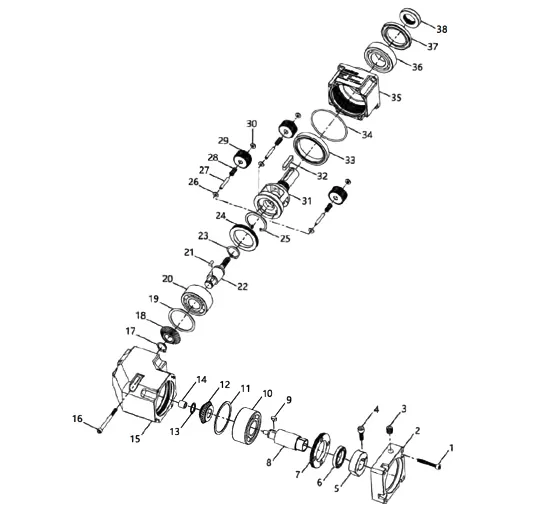

▍BABR Series Right Angle Planetary Gearbox Components:

1	内六角螺钉/ Inner hex screw	14	轴套/Axle sleeve	27	滚柱/ Roller
2	后盖/ Back cover	15	齿轮箱体/Gearcase	28	滚针/Kingpin
3	堵头/Plug	16	内六角螺钉/ Inner hex screw	29	行星轮/Planet gear
4	内六角螺钉/ Inner hex screw	17	轴用挡圈/Shaft-circlip	30	垫圈/Washer
5	锁紧环/ Locking ring	18	从动齿轮/Gear	31	行星架/ Planet carrier
6	油封/Oil seal	19	调整垫片/ Shim ring	32	键/Key
7	调整环/Adjusting ring	20	轴承/ Bearing	33	轴承/ Bearing
8	输入轴/ Input shaft	21	键/ Key	34	O型橡胶密封圈/0- ring
9	键/Key	22	太阳轮/Sun wheel	35	内齿圈/ Internal gear
10	轴承/Bearing	23	轴用挡圈/Shaft-circlip	36	轴承/ Bearing
11	调整垫片/Shim ring	24	调整环/ Adjusting ring	37	油封/Oil seal
12	主动齿轮/ Pinion	25	孔用挡圈/ Hole-circlip	38	锁紧螺母/Lock nut
13	轴用挡圈/Shaft-circlip	26	垫圈/Washe

▍BABR Series Right Angle Planetary Gearbox Model:

BABR Series Model No.: BABR042, BABR060, BABR090, BABR115, BABR142, BABR180, BABR220
7 Sices		42mm-220mm
Output Torque		9N.m-2000N.m
Ratio	1-stage	3/4/5/6/7/8/9/10/14/20
	2-stages	15/20/25/30/35/40/45/50/60/70/80/90/100/120/140/160/180/200
Backlash	1-stage	≤2,≤4,≤6 arcmin
	2-stages	≤4,≤7,≤9 arcmin

▍BABR Series Right Angle Planetary Gearbox Outline Dimension:

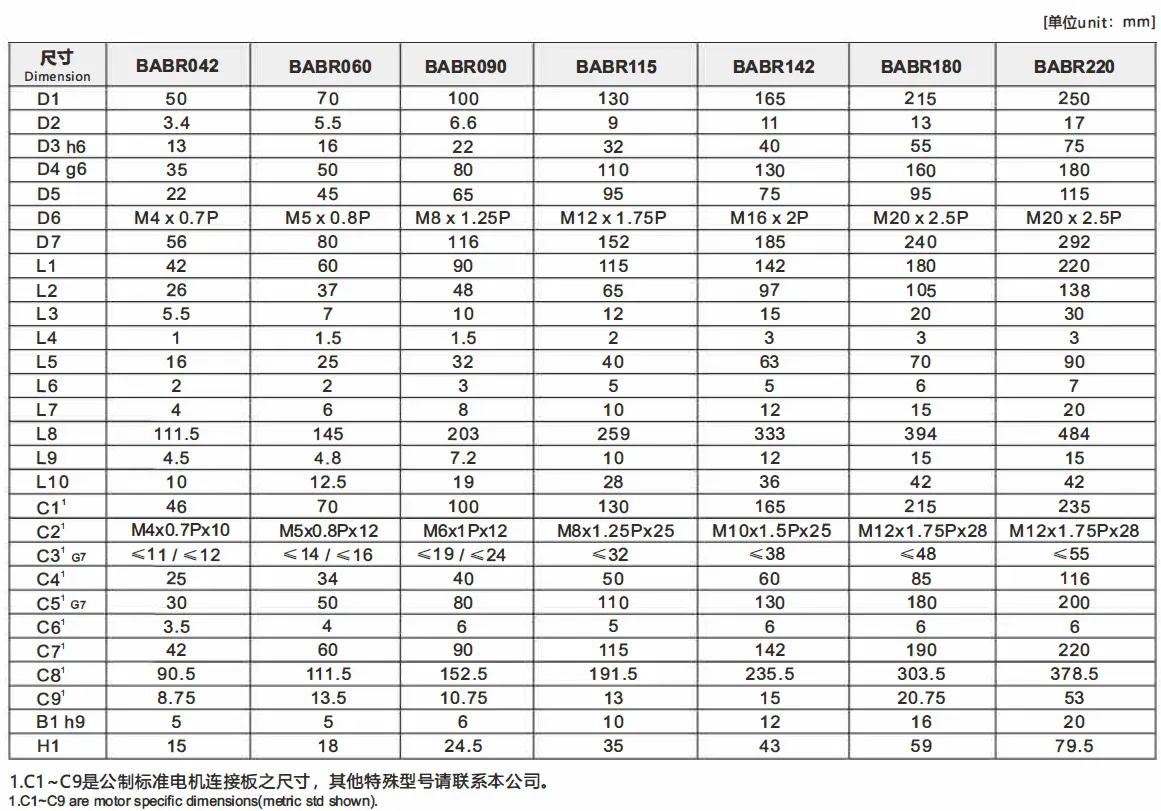

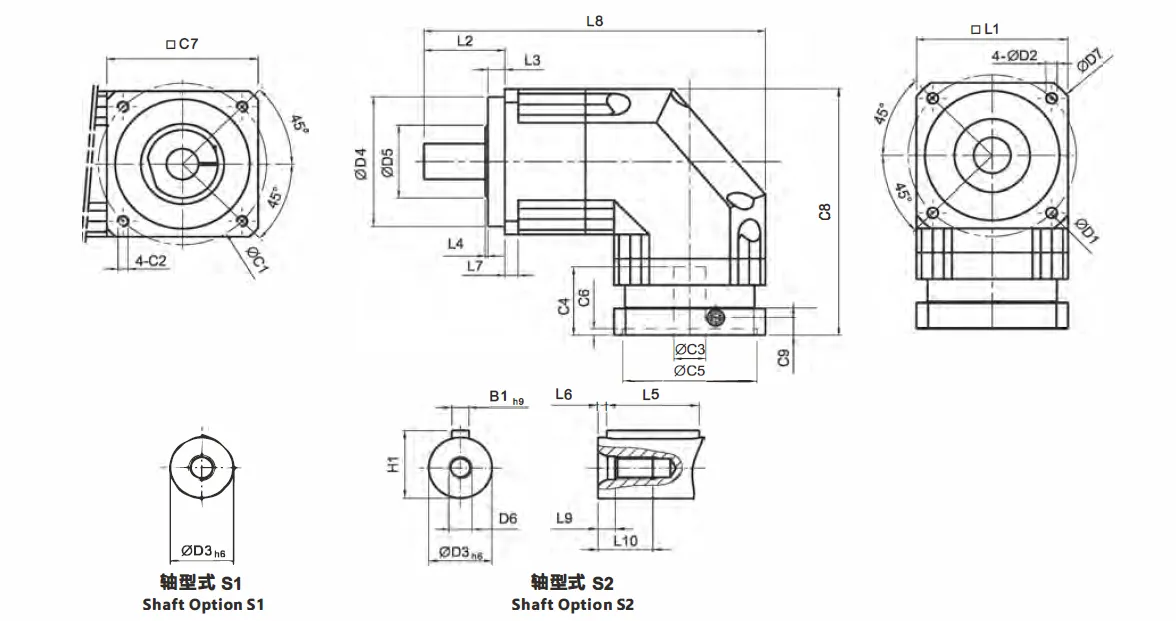

▍Single Stage Planetary Gearbox (Ratio i=3~20)

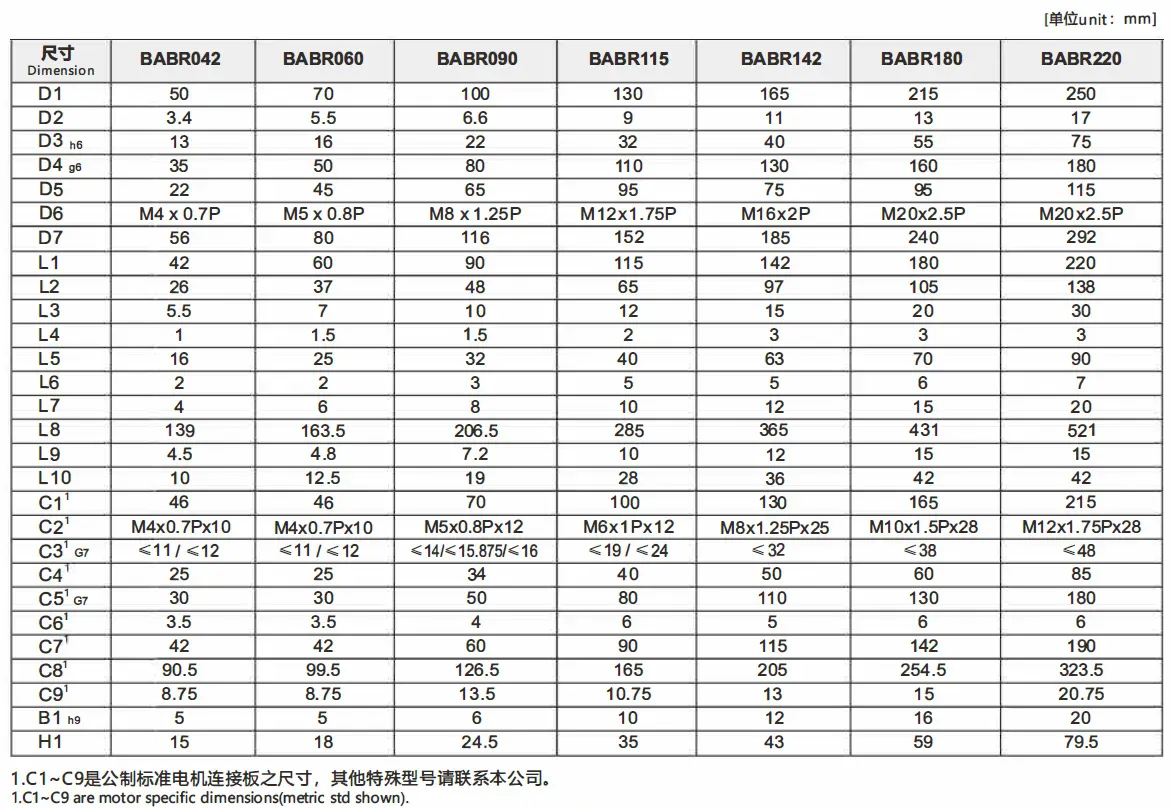

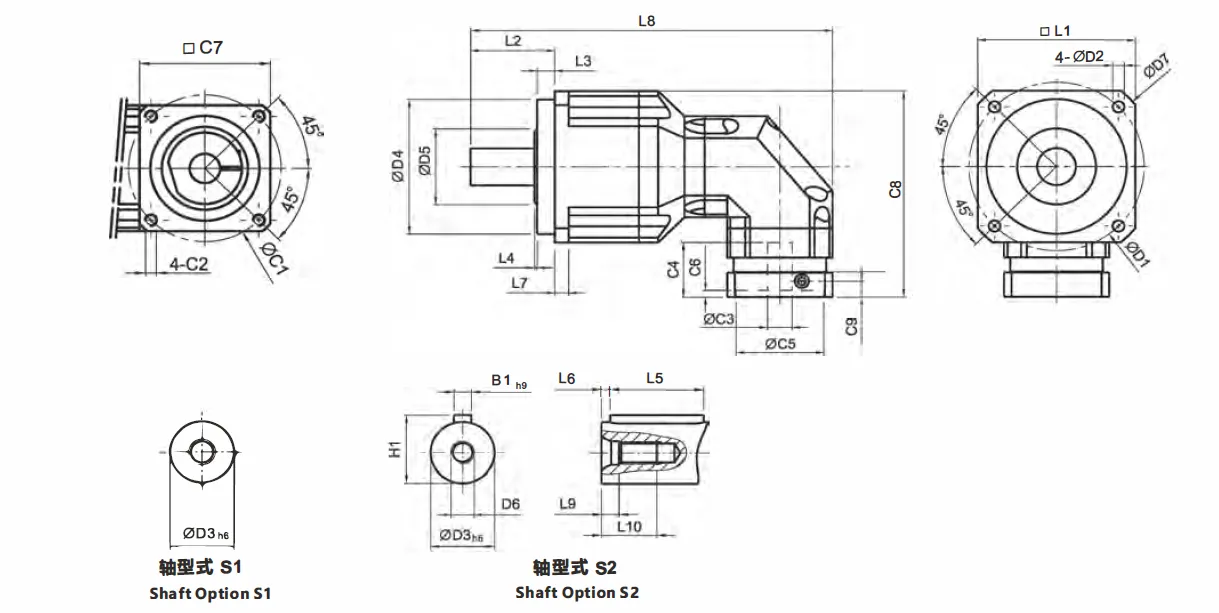

▍Two Stage Planetary Gearbox (Ratio i=15~200)

▍BABR Series Right Angle Planetary Gearbox Advantages:

The BABR series right angle planetary gearbox offers a number of advantages over other types of gearboxes. Here are some of the specific advantages of the BABR series right angle planetary gearbox:1. Compact and lightweight design: The BABR series right angle planetary gearbox is a compact and lightweight gearbox, making it ideal for use in space-constrained applications. The planetary gearbox is typically only a few inches in size and weighs less than a few pounds. This makes it easy to install and maintain, and it also reduces the overall weight of the system.2. High gear reduction ratio: The BABR series right angle planetary gearbox offers a high gear reduction ratio, which allows it to transmit high torques over a wide range of speeds. The gear reduction ratio can be customized to meet the specific requirements of the application. This makes the planetary gearbox ideal for a variety of applications, such as machine tools, robotics, and industrial automation.3. Efficient operation: The BABR series right angle planetary gearbox is an efficient gearbox with a high power-to-weight ratio. This means that the gearbox can transmit a lot of power without losing a lot of energy in the process. This makes the planetary gearbox a good choice for applications where efficiency is important, such as in machine tools and robotics.4. Durable and reliable construction: The BABR series right angle planetary gearbox is a durable and reliable gearbox with a long service life. The planetary gearbox is made from high-quality materials and is designed to withstand harsh environments. This makes it a good choice for applications where reliability is important, such as in industrial automation and robotics.Overall, the BABR series right angle planetary gearbox is a versatile and reliable gearbox that offers a number of advantages over other types of gearboxes. It is a good choice for a variety of applications where compactness, lightweight, efficiency, durability, and reliability are important.

▍BABR Series Right Angle Planetary Gearbox Common Applications:

The BABR series right angle planetary gearbox is a versatile gearbox that can be used in a variety of applications. Some of the most common applications for the BABR series right angle planetary gearbox include:(1) Robotics: The BABR series right angle planetary gearbox is also commonly used in robotics. The gearbox is used to transmit power from the motor to the joints of the robot, which allows the robot to move and manipulate objects.(2) Industrial automation: The BABR series right angle planetary gearbox is also used in industrial automation. The gearbox is used to transmit power from the motor to the actuators, which control the movement of machinery.(3) Automotive: The BABR series high speed planetary gearbox is also used in some automotive applications, such as power steering systems and differentials.(4) Material handling: The BABR series 90 degree planetary gearbox is used in material handling equipment, such as conveyors, hoists, and cranes. The gearbox is used to transmit power from the motor to the load, which allows the load to be moved and lifted.(5) Food and beverage processing: The BABR series high torque planetary gearbox is used in food and beverage processing equipment, such as mixers, grinders, and pumps. The gearbox is used to transmit power from the motor to the equipment, which allows the equipment to process food and beverages.(6) Medical: The BABR series high precision planetary gearbox is used in medical equipment, such as surgical robots and imaging devices. The gearbox is used to transmit power from the motor to the equipment, which allows the equipment to perform its functions.(7) Aerospace: The BABR series right angle planetary gearbox is used in aerospace applications, such as aircraft engines and landing gear. The gearbox is used to transmit power from the motor to the equipment, which allows the equipment to perform its functions.

▍How to Choose the Right Right Angle Planetary Gearbox?

Choosing the right right-angle planetary gearbox requires careful consideration of several factors. Here are some key factors to consider when choosing a right-angle planetary gearbox:Torque requirements: The first step in selecting a right angle planetary gearbox is to determine the required torque output for your application. This will depend on factors such as the load to be moved, the speed of operation, and the required precision.Speed requirements: The speed ratio of the right angle planetary gearbox is another important factor to consider. This will depend on the input speed of the motor and the desired output speed of the planetary gearbox. Choose a gearbox with a speed ratio that matches your application requirements.Size and weight: The size and weight of the 90 degree planetary gearbox are important factors to consider, especially if you have limited space available. Choose a planetary gearbox that is compact and lightweight but also robust enough to withstand the demands of your application.Mounting options: Consider the mounting options for the right angle planetary gearbox and choose one that can be easily integrated into your system. The BABR series right angle planetary gearbox, for example, can be mounted in various orientations to suit different applications.Backlash: Backlash is the clearance between the gear teeth and can affect the precision of the right angle planetary gearbox. Consider the required precision for your application and choose a gearbox with a low backlash.Environmental factors: Consider the environmental factors that the right angle planetary gearbox will be exposed to, such as temperature, humidity, and vibration. Choose a planetary gearbox that is designed to withstand these factors.
