BAE Series Low Noise High Precision Planetary Gearbox (Planetary Reducer)

Discover the BAE Series Low Noise High Precision Planetary Gearbox (Planetary Reducer) from Raydafon Guoup: an engineering marvel designed for seamless, quiet performance in demanding automation and robotics. Its high-precision design ensures minimal noise and maximum durability, making it perfect for industrial engineers seeking reliable, efficient solutions. Experience smoother operations and enhanced productivity—choose Raydafon Guoup for superior quality that sets you apart.

Send Inquiry

Product Description

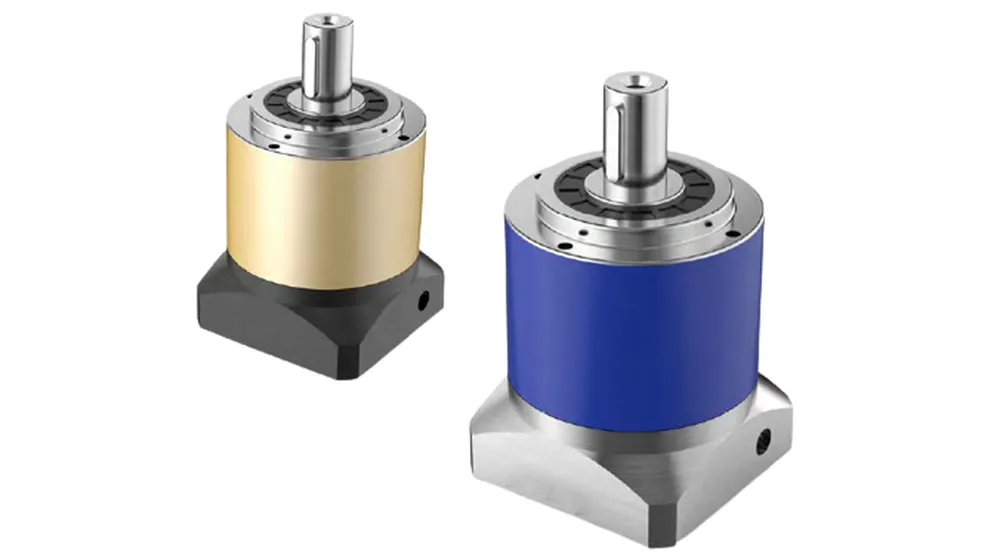

BAE Series Low Noise High Precision Planetary Gearbox (Planetary Reducer)

The BAE series high precision planetary gearbox is a type of gearbox used in various industrial applications to provide high precision and reliable power transmission. The BAE series high precision planetary gearbox features a planetary gear system, which consists of a central sun gear, multiple planet gears, and an outer ring gear. This design allows for high torque transmission in a compact package, making it ideal for applications where space is limited.The BAE series high precision planetary gearbox is known for its high precision and accuracy, thanks to its high-quality materials and manufacturing processes. It is also highly customizable, with a range of options available for gear ratios, output shaft configurations, and mounting options. The BAE series high precision planetary gearbox is commonly used in a range of industrial applications, including robotics, automation, machine tools, and packaging machinery. Its high precision and reliability make it an ideal choice for applications that require consistent performance and minimal maintenance. BAE Series Low Noise High Precision Planetary Gearbox (Planetary Reducer)

▍BAE Series High Precision Planetary Gearbox Model Description:

BAE Series Model No: BAE050, BAE070, BAE090, BAE120, BAE155, BAE205, BAE235

7 sices:	42mm-220mm
Output torque:	14Nm-2000Nm
Ratio:	1-stage：	3/4/5/6/7/8/9/10
Ratio:	2-stage：	15/20/25/30/35/40/45/50/60/70/80/90/100
Backlash:	1-stage：	≤5 arcmin
Backlash:	2-stage：	≤8 arcmin

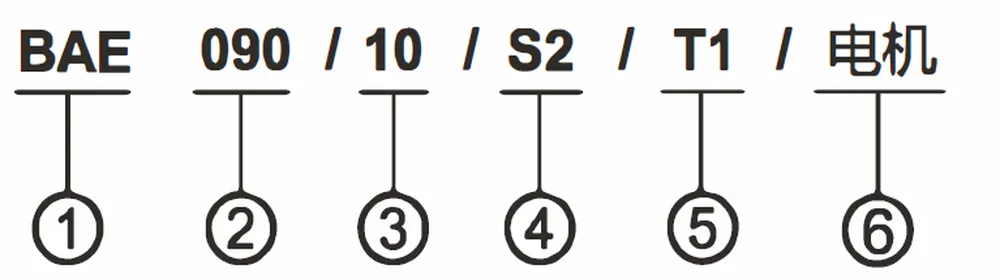

NO	Description
1	Code for gear units series: BAE
2	Specification code of gear units:050、070、090、120、155、205、235
3	Speed ratio of reducer i 1-stage:3、4、5、6 、7、8 、9、102-stage:15、20、25、30、35、40、45、50、60、70、80、90、100
4	output shaft type: S1 :smooth output shaftS2:output shaft with key
5	Motor manufacturer (P53-P54)
6	Motor type

▍BAE Series High Precision Planetary Gearbox Outline Dimensions：

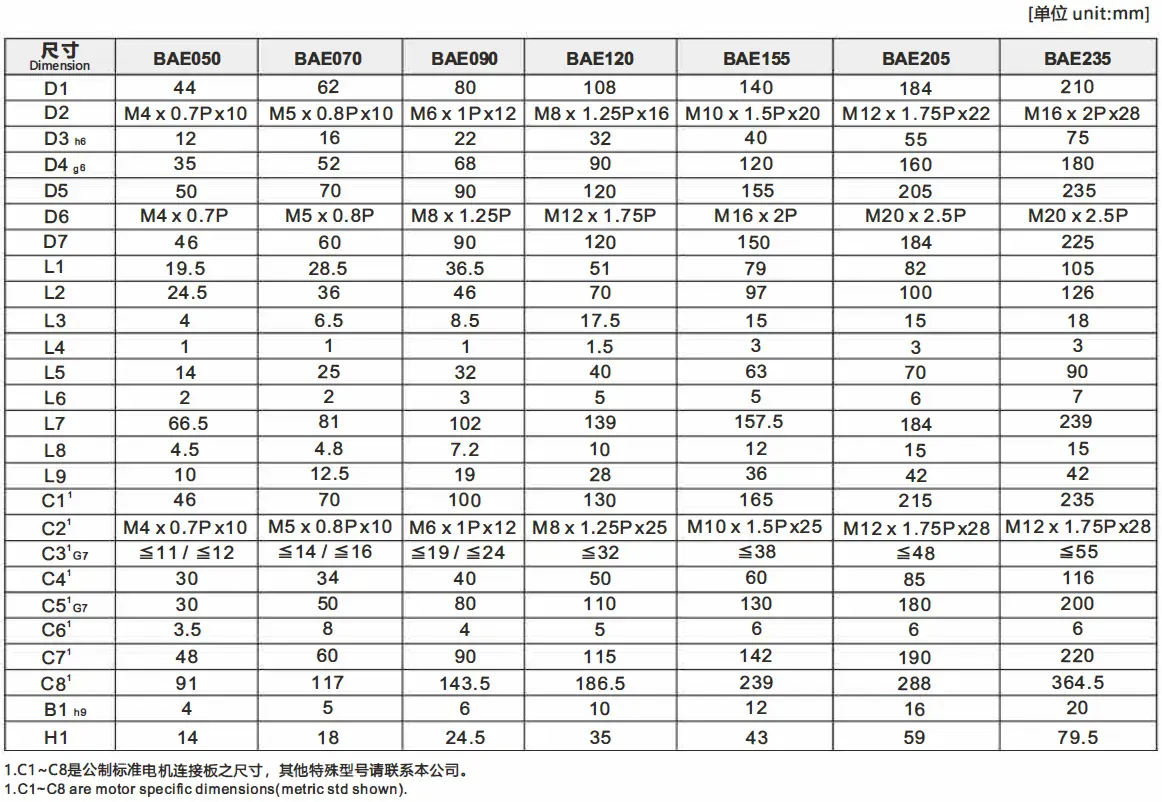

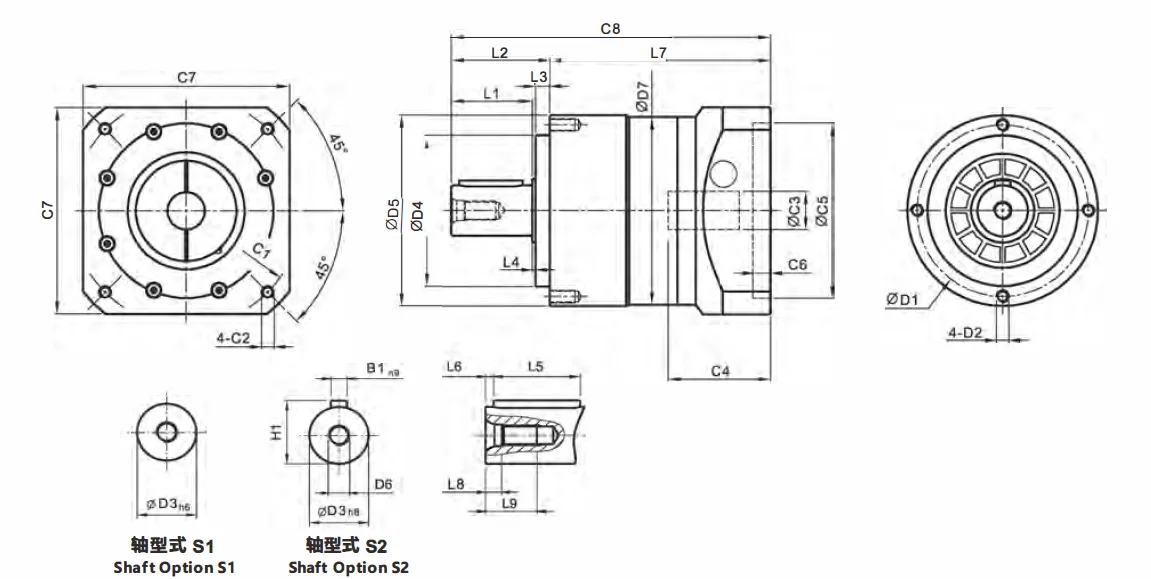

▍ 1 Stage Planetary Gearbox (Ratio i=3~10)

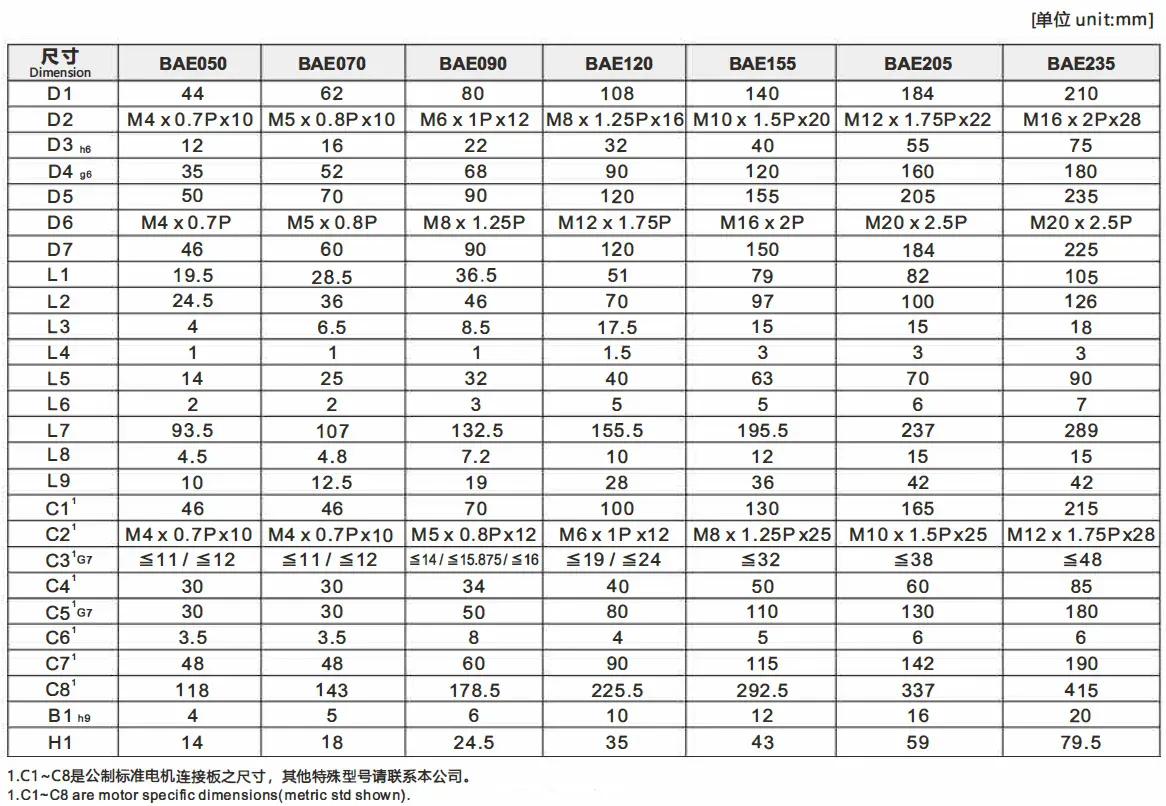

▍2 Stage Planetary Gearbox (Ratio i=15~100)

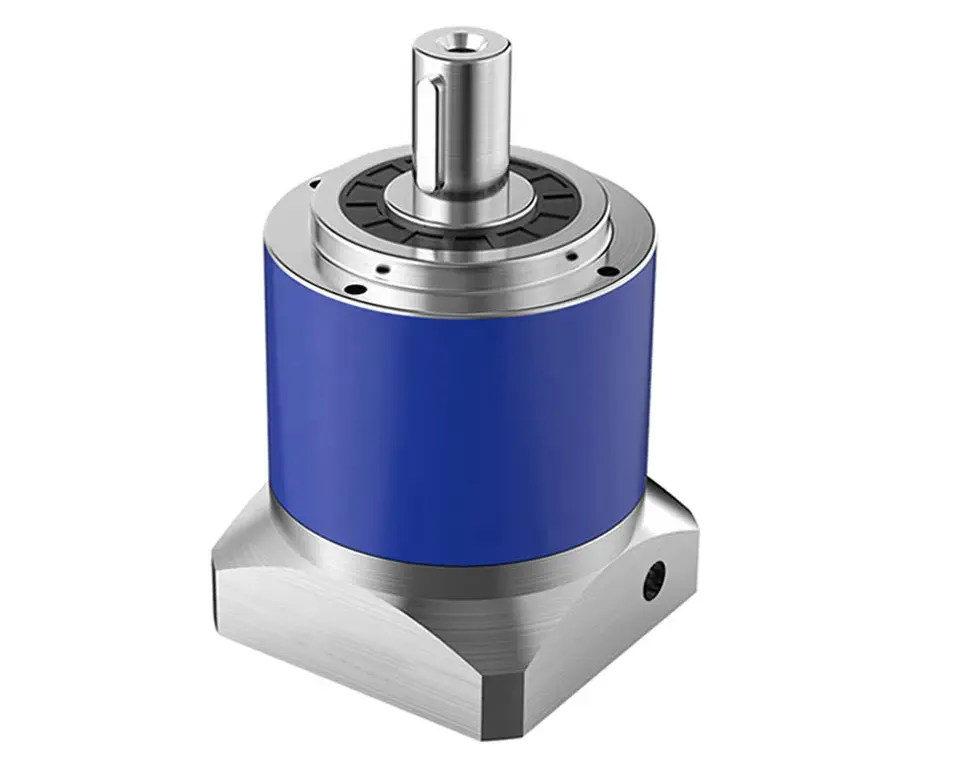

▍BAE Series High Precision Planetary Gearbox Design Features:

The BAE series high precision planetary gearbox has several design features that make it a reliable and high-performance solution for various industrial applications. Some of these design features include:1. Planetary Gear System: The BAE series precision planetary gearbox uses a planetary gear system, which consists of a central sun gear, multiple planet gears, and an outer ring gear. This design allows for high torque transmission in a compact package.2. High-Quality Materials: The BAE series precision planetary gearbox is made of high-quality materials such as case-hardened and tempered alloy steel, which provides excellent strength and durability.3. High Precision: The BAE series high precision planetary gearbox is designed for high precision and accuracy, with a backlash of less than 1 arcminute. This makes it ideal for applications that require precise positioning and motion control.4. Low Noise and Vibration: The BAE series high precision planetary gearbox is designed to operate with low noise and vibration, making it suitable for applications where noise levels need to be kept to a minimum.5. Customizable: The BAE series precision planetary gearbox is highly customizable, with a range of options available for gear ratios, output shaft configurations, and mounting options. This allows for flexibility in designing solutions to fit specific applications.6. Lubrication System: The BAE series precision planetary gearbox features an advanced lubrication system that ensures reliable operation and extends the life of the gearbox.7. Compact Design: The BAE series high precision planetary gearbox has a compact design, which makes it easy to integrate into various machines and systems. Its small size also makes it ideal for applications where space is limited.8. High Efficiency: The BAE series high precision planetary gearbox has a high-efficiency rating, with up to 98% efficiency in some configurations. This means that it can transmit power with minimal energy loss, making it a cost-effective solution.9. High Torque Density: The BAE series precision planetary gearbox has a high torque density, which means that it can transmit high levels of torque relative to its size and weight. This makes it ideal for applications that require high power in a compact package.Overall, the BAE series high precision planetary gearbox is a versatile and reliable solution for various industrial applications, with a range of design features that make it highly customizable and efficient.

▍BAE Series High Precision Planetary Gearbox Applications:

The BAE series high precision planetary gearbox is a versatile solution for a wide range of industrial applications that require precise motion control and positioning. Some common applications include:(1) Robotics: The BAE series high precision planetary gearbox is commonly used in robotics applications, where precise motion control is essential. It can be used in robot arms, grippers, and other mechanisms to provide accurate and reliable motion control.(2) Automation: The BAE series precision planetary gearbox is also used in automation applications, such as conveyor systems, assembly lines, and material handling equipment. Its high precision and reliability make it ideal for applications that require consistent performance and minimal downtime.(3) Machine Tools: The BAE series planetary gearbox is used in various machine tool applications, including CNC machines, machining centers, and lathes. Its high precision and accuracy make it ideal for applications that require precise positioning and motion control.(4) Packaging Machinery: The BAE series high precision planetary gearbox is used in packaging machinery, such as filling machines, labeling machines, and cartooning machines. Its compact design and high torque density make it an ideal solution for applications where space is limited.(5) Medical Equipment: The BAE series precision planetary gearbox is used in various medical equipment applications, including imaging equipment, surgical robots, and patient handling systems. Its high precision and reliability make it an ideal solution for applications that require precise motion control and positioning.(6) Aerospace and Defense: The BAE series high precision planetary gearbox is used in various aerospace and defense applications, including satellite systems, aircraft control systems, and military vehicles. Its robust construction, high precision, and reliability make it an ideal solution for applications where performance and durability are critical.(7) Renewable Energy: The BAE series high precision planetary gearbox is used in renewable energy applications, such as wind turbines and solar tracking systems. Its high torque density and efficiency make it an ideal solution for applications that require high-power transmission with minimal energy loss.

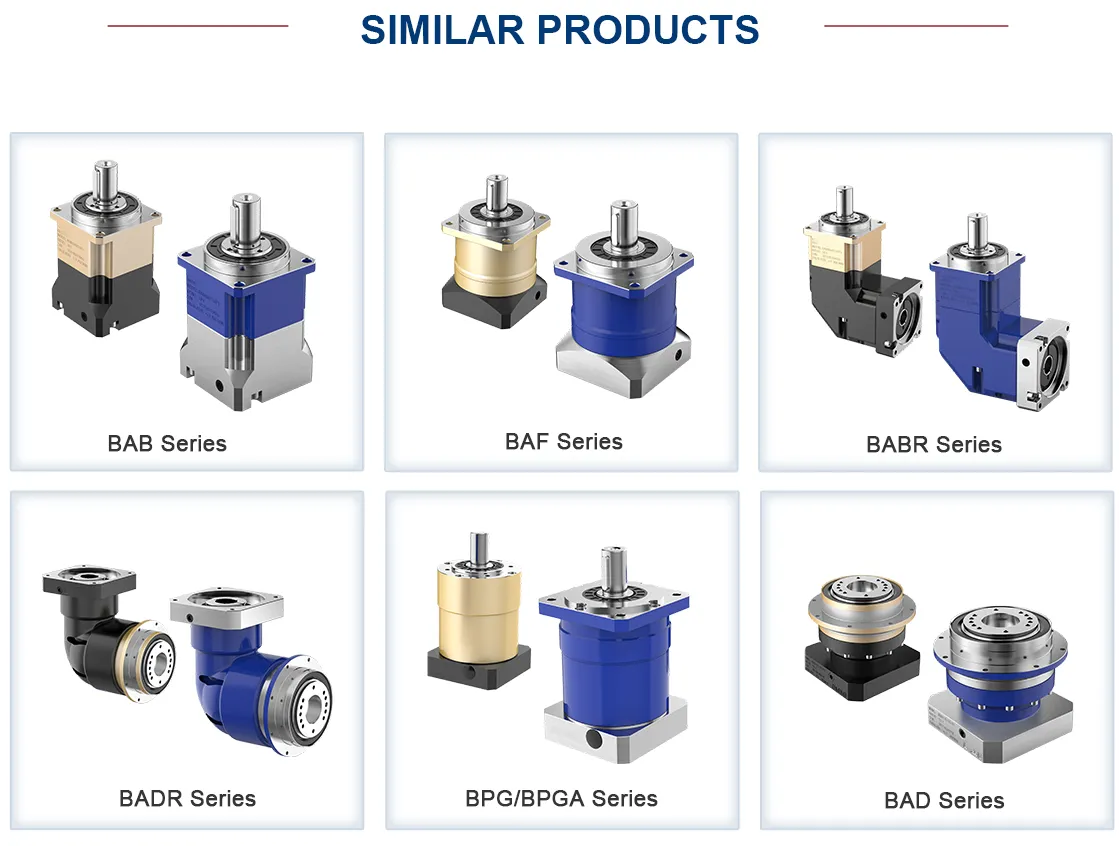

▍We Also Provide Other Similar Products:

▍High Precision Planetary Gearbox Manufacturers

Raydafon Mechanical & Electrical Co., Ltd. is a professional manufacturer of planetary gearbox and electric motors. The factory covers an area of 20,000 square meters, the building area of 30,000 square meters, and the total number of staff is more than 200. We have passed the ISO9001:2015 international quality management system standard certificate, CCC national compulsory product certificate, and CE certificate. We have developed advanced management software such as ERP to keep pace with international standards.In order to serve customers better, the company actively cooperates with colleges and universities to develop new products and improve existing products. BAE Series Low Noise High Precision Planetary Gearbox (Planetary Reducer)

▍FAQ

Q1: What is a high precision planetary gearbox?A: A high precision planetary gearbox is a type of gearbox that uses a planetary gear system to transmit power. It is designed for applications that require precise motion control and positioning, with a high degree of accuracy and repeatability.Q2: What are the advantages of a high precision planetary gearbox?A: Some of the advantages of a high precision planetary gearbox include high torque density, high efficiency, low backlash, and low noise and vibration. They are also highly customizable, with a range of options available for gear ratios, output shaft configurations, and mounting options.Q3: What are some common applications for high precision planetary gearboxes?A: High precision planetary gearboxes are used in a range of industrial applications, including robotics, automation, machine tools, packaging machinery, and medical equipment. They are also used in aerospace and defense applications, where precision and reliability are critical.Q4: What is backlash in a planetary gearbox?A: Backlash is the amount of play between the teeth of the gears in a gearbox. In a planetary gearbox, backlash can cause positioning errors and reduce precision. High precision planetary gearboxes are designed to have low backlash, typically less than 1 arcminute.Q5: How do you select a high precision planetary gearbox for a specific application?A: When selecting a high precision planetary gearbox, it is important to consider factors such as torque requirements, speed, accuracy, and mounting options. It is also important to consider any environmental factors that may affect the gearbox, such as temperature, humidity, and exposure to contaminants. Working with a reputable gearbox manufacturer or supplier can help ensure that you select the right gearbox for your specific application. They can provide guidance on selecting the right gear ratio, output shaft configuration, and other options to meet your specific requirements.
