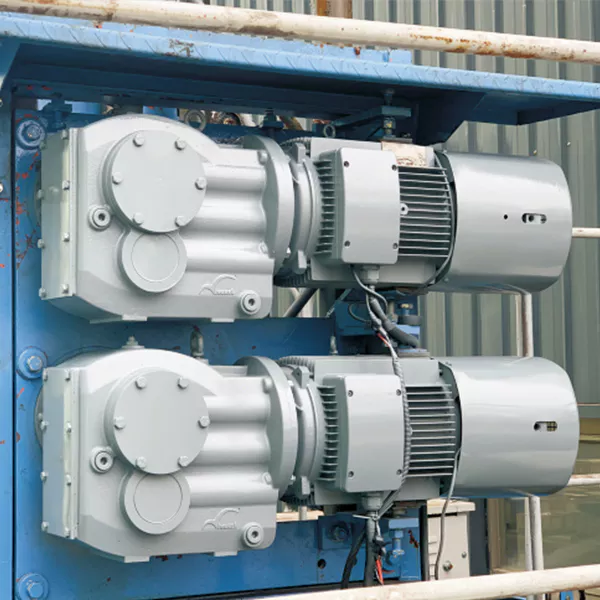

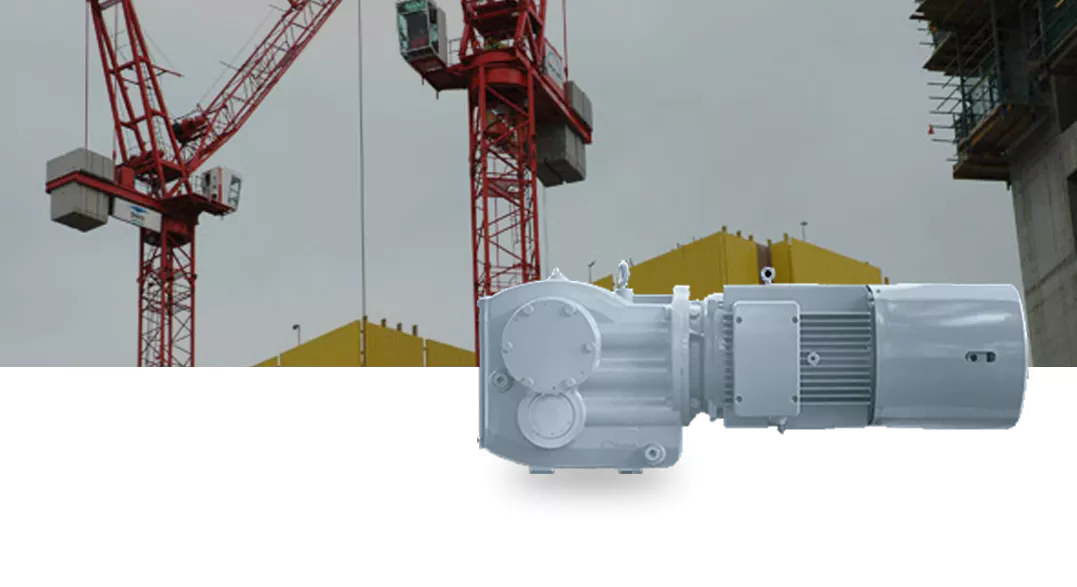

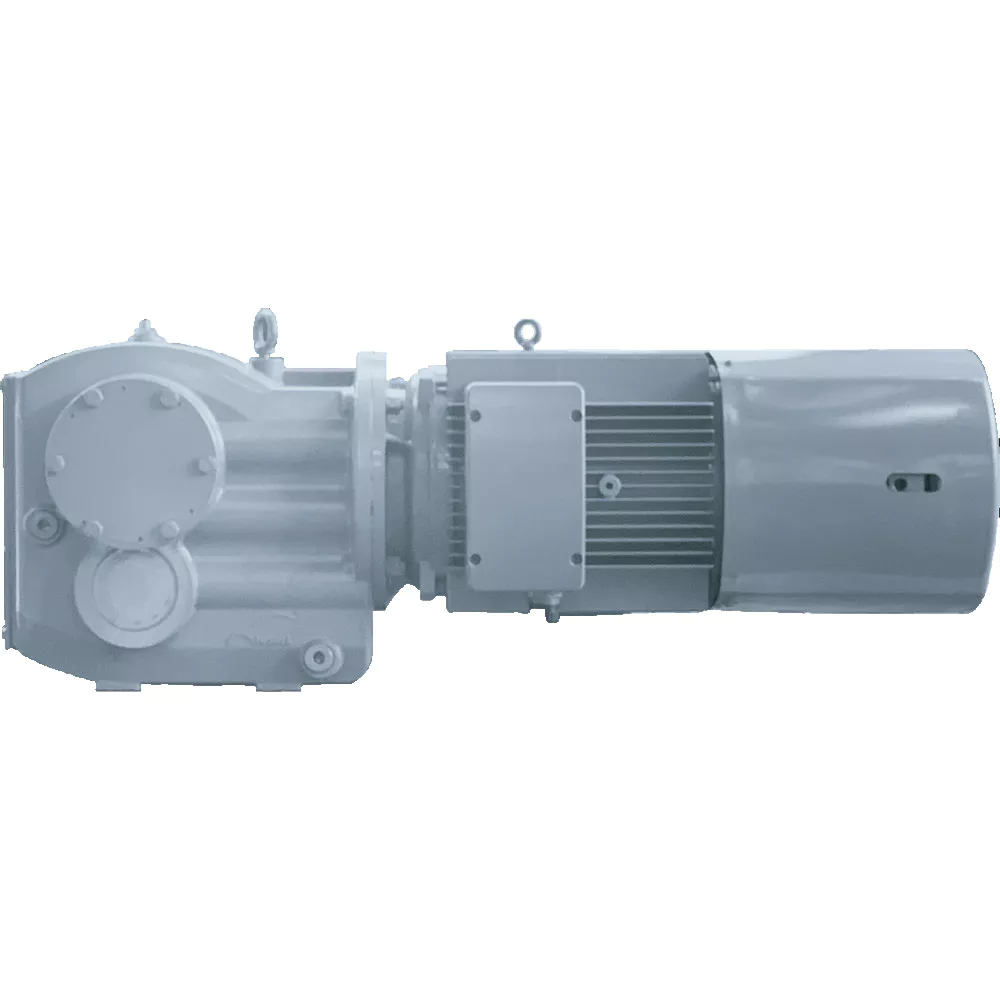

Bevel Geared Motor Gearbox for Construction Lift Elevator with Frequency Brake Motor

The construction elevator is a vertical transportation lifting tool used for building construction, such as a crane. It is safe and effective to lift materials and passengers to different floors. The loading capacity ranges from 1000kg to 2700kg.

Features of Construction Lift Gearbox

• High transmission efficiency (95%)
• Low energy consumption、 Save 40%
• Use high-quality sealing elements、Oil leakage is problematic.
• Output shaft. Axial solid bearing capacity, stronger fatigue resistance
• The box is made of high-strength spheroidal ink casting, which is lighter and stronger
• Low noise, good stability
• High safety and long life
• Optional speed ratio
• Compact structure and easy maintenance

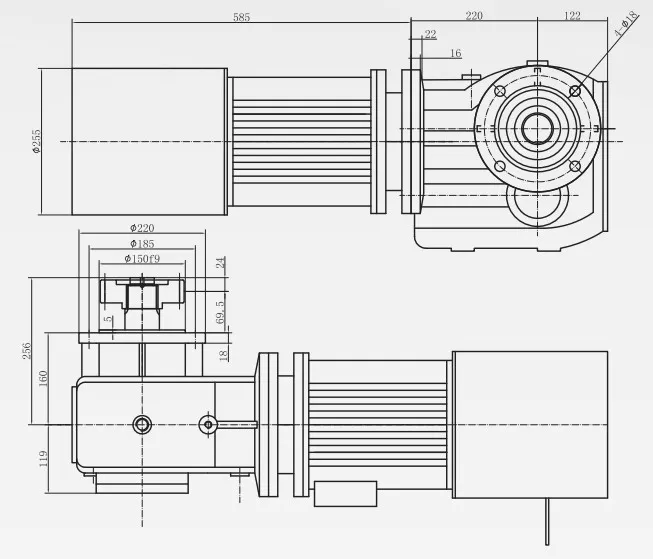

Parameter Of Construction Lift Gearbox

Model	Single weight (Kg)	Ratio (i)	Input power(kW)	Efficiency(%)	Input speed(r/min)	Brak torque(N.m)	Insulation grade	Protection level	Fill quantity(L)
MMQ1640MMQ2042	178	12-20	7.5-32	95	0-2560	180-260	IH	IP55	4



	Lifting speed	Cage+mechanism weight（kg）	Rated load（kg）	Motor model parameters				ratio
				model	87 fundamental frequency power（kW）	Braking torque（N.m）	Motor power(kW)
Double drive	0-47	1500+500	2000	132	16	180	2×9.2	20
		1500+500	2500	132	23	200	2×13	20
		1500+500	2700	132	23	200	2×13	20
	0-53	2000+500	2000	132	23	200	2×13	18
	0-60	1500+500	2000	132	23	200	2×13	16
		2000+500	2000	160	26	260	2×15	16
		1600+500	2000	160	26	260	2×15	16
	0-68	1500+500	2700	160	26	260	2×15	14
Three drive	0-80	1500+500	2000	160	32	260	2×18	12
	0-53	1500+700	3200	132	23	260	3×11	18
	0-60	1600+700	2700	132	23	200	3×11	16
		1800+700	3000	132	23	200	3×13	16
	0-68	1500+600	2000	132	20	180	3×11	14
	0-80	1500+700	2000	132	23	180	3×13	12
		1500+700	2000	160	26	260	3×15	10
	0-95	1600+800	2000	160	32	260	3×18	10

We have various gearboxes for construction machinery; welcome to inquire from us.

On-site test video of Construction Lift Gearbox

 [video width="960" height="544" mp4="https://hzpt.com/wp-content/uploads/2022/09/construction-lift-gearbox-up.mp4"][/video]

How does a construction lift work？

An elevator or lift is a type of cable-assisted, hydraulic cylinder-assisted, or roller-track assisted machine that vertically transports people or freight between floors, levels, or decks of a building, vessel, or other structure. They are typically powered by electric motors that drive traction cables and counterweight systems such as a hoist. However, some pump hydraulic fluid to raise a cylindrical piston like a jack.In agriculture and manufacturing, an elevator is any type of conveyor device used to lift materials in a continuous stream into bins or silos. Several types exist, such as the chain and bucket elevator, grain auger screw conveyor using the principle of Archimedes' screw, or the chain and paddles or forks of hay elevators. Languages other than English, such as Japanese, may refer to elevators by loanwords based on either elevator or lift. Due to wheelchair access laws, elevators are often a legal requirement in new multistory buildings, especially where wheelchair ramps are impossible.Some elevators can also travel horizontally in addition to the usual vertical motion.

Which Construction Elevators Are Right For You?

Several factors will determine which type of construction lift is appropriate for your job. The following are the most common types of cranes and hoists on the construction site.General construction lifts outside buildings.General construction lifts, hoists, and platformsThese lifting cranes provide access to middle and high-rise buildings. They can carry hundreds to thousands of pounds. The lift can be as simple as a portable scissor lift or as customized as an assembled scaffold crane.

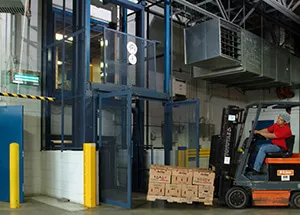

Industrial Elevators	These are similar to construction lifts but usually add safety mechanisms, weather, and environmental protection.Industrial scaffolding elevators protect from adverse weather. We can build them to withstand extreme environments, such as chemical exposure or hazardous materials.These elevators are often more personalized and may vary significantly in design and configuration. They are usually used to transport people and materials.

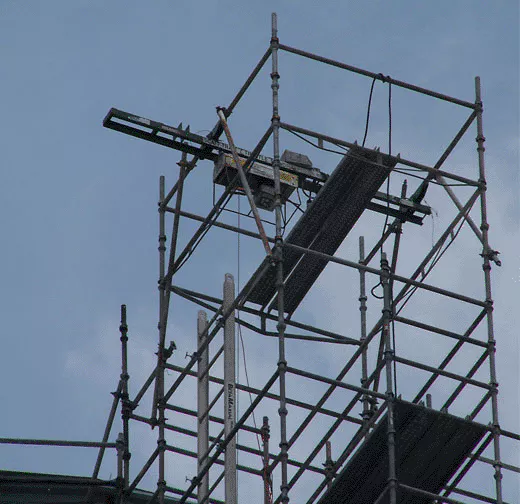

Material Hoists	These temporary elevators, commonly known as boiler elevators, are widely used in industrial and commercial building applications. The available material elevators vary widely, from small elevators suitable for small spaces to large elevators capable of carrying thousands of pounds of cargo.
Transport Platforms	These temporary elevators, also known as boiler elevators, are widely used in industrial and commercial construction projects. The types available can vary greatly, from small to large lifts.
